Mechanical Parts List - 第168页
部品搬送部( 2) PARTS TRANSFER SECT.(2 ) 19 FN610074162AA_02-2 M151
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
19
部品搬送部(1)
PARTS TRANSFER SECT.(1)
部 品 名 品 番 個数 備 考
R
1
R
2
1 N610074162AA
PARTS TRANSFER UNIT ﾌﾞﾋﾝﾊﾝｿｳﾕﾆｯﾄ
1
001 X02G35101
COLLAR ｶﾗｰ
5
002 N210088843AC
BRACKET(GUIDE) ﾌﾞﾗｹｯﾄ(ｶﾞｲﾄﾞ)
1004 N210088836AD
BRACKET ﾌﾞﾗｹｯﾄ
1006 X02G35111
RAIL ﾚｰﾙ
1
007 N210096423AD
BRACKET(MOTOR) ﾌﾞﾗｹｯﾄ(ﾓｰﾀ)
1
008 N210097489AA
BRACKET(SENSOR) ﾌﾞﾗｹｯﾄ(ｾﾝｻ)
1009 N210090100AA
BRACKET(SENSOR) ﾌﾞﾗｹｯﾄ(ｾﾝｻ)
1010 X02P26005
PULLEY(TIMING) ﾌﾟｰﾘｰ(ﾀｲﾐﾝｸﾞ)
1
013 X01A35005
PULLEY(TIMING) ﾌﾟｰﾘｰ(ﾀｲﾐﾝｸﾞ)
1014 X01A35006
COLLAR ｶﾗｰ
1015 X01A35008
COLLAR ｶﾗｰ
1
017 X01A35012A
SHAFT ｼｬﾌﾄ
1
018 N210088854AA
BRACKET(TENSION) ﾌﾞﾗｹｯﾄ(ﾃﾝｼｮﾝ)
1019 X01A3501601
BLOCK ﾌﾞﾛｯｸ
1026 N210088848AA
GUIDE ｶﾞｲﾄﾞ
1
027 N210088858AA
BELT ﾍﾞﾙﾄ
1
028 N210088845AB
BRACKET(GUIDE) ﾌﾞﾗｹｯﾄ(ｶﾞｲﾄﾞ)
1030 N210099191AA
GUIDE ｶﾞｲﾄﾞ
1031 N210099192AA
BRACKET(GUIDE) ﾌﾞﾗｹｯﾄ(ｶﾞｲﾄﾞ)
1
035 X02P26006
NUT ﾅｯﾄ
1
036 N210107432AA
BRACKET ﾌﾞﾗｹｯﾄ
ANFJS-L30-SV-9
1
N001
N510040173AA
GEAR HEAD ｷﾞﾔｰﾍｯﾄﾞ
MDMA202P1C S
1
N002
MDMA202P1C
MOTOR ﾓｰﾀ
E3X-NA11
4
N003
N310E3XNA11
AMPLIFIER ｱﾝﾌﾟ
PFP-M
2
N005
N322PFPM
PLATE ﾌﾟﾚｰﾄ
E32-TC200
3
N008
N310E32TC200
SENSOR ｾﾝｻ
E32-T16P S
1
N009
N310E32T16P
SENSOR ｾﾝｻ
6008ZZ
2
N010
XLC6008ZZ
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
12X20,m6A,STEEL
2
N012
XPK12A20FW
PARALLEL PIN ﾍｲｺｳﾋﾟﾝ
6X20,m6A,STEEL
6
N013
XPJ6A20FW
PARALLEL PIN ﾍｲｺｳﾋﾟﾝ
M3X8-4.8 A2J (Trivalen
4
N501
N510018161AA
FLUSH HEAD SCREW ｻﾗｺﾈｼﾞ
M4X10-10.9 A2J (Trival
4
N503
N510017344AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X12-10.9 A2J (Trival
6
N504
N510017346AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5X12-10.9 A2J (Trival
10
N506
N510017390AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M6X16-10.9 A2J (Trival
2
N509
N510017433AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M8X25-10.9 A2S (Trival
18
N510
N510017474AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M8X30-10.9 A2J (Trival
11
N511
N510017475AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M8X60-10.9 A2J (Trival
1
N512
N510017486AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M12X30-10.9 A2J (Triva
4
N513
N510017189AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
4 10H A2J (Trivalent)
4
N518
N510018497AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
6 10H A2J (Trivalent)
2
N520
N510018501AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
8 10H A2J (Trivalent)
2
N521
N510018503AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
Thich washer for M4
2
N522
N510020099AA
WASHER ｻﾞｶﾞﾈ
Thich washer for M5
8
N523
N510020100AA
WASHER ｻﾞｶﾞﾈ
Thick washer for M8
14
N525
N510020102AA
WASHER ｻﾞｶﾞﾈ
M6X12-45H A2J (Trivale
1
N526
N510018449AA
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ
M8X40-10.9 A2J (Trival
2
N527
N510017478AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M150
FN610074162AA_02-1

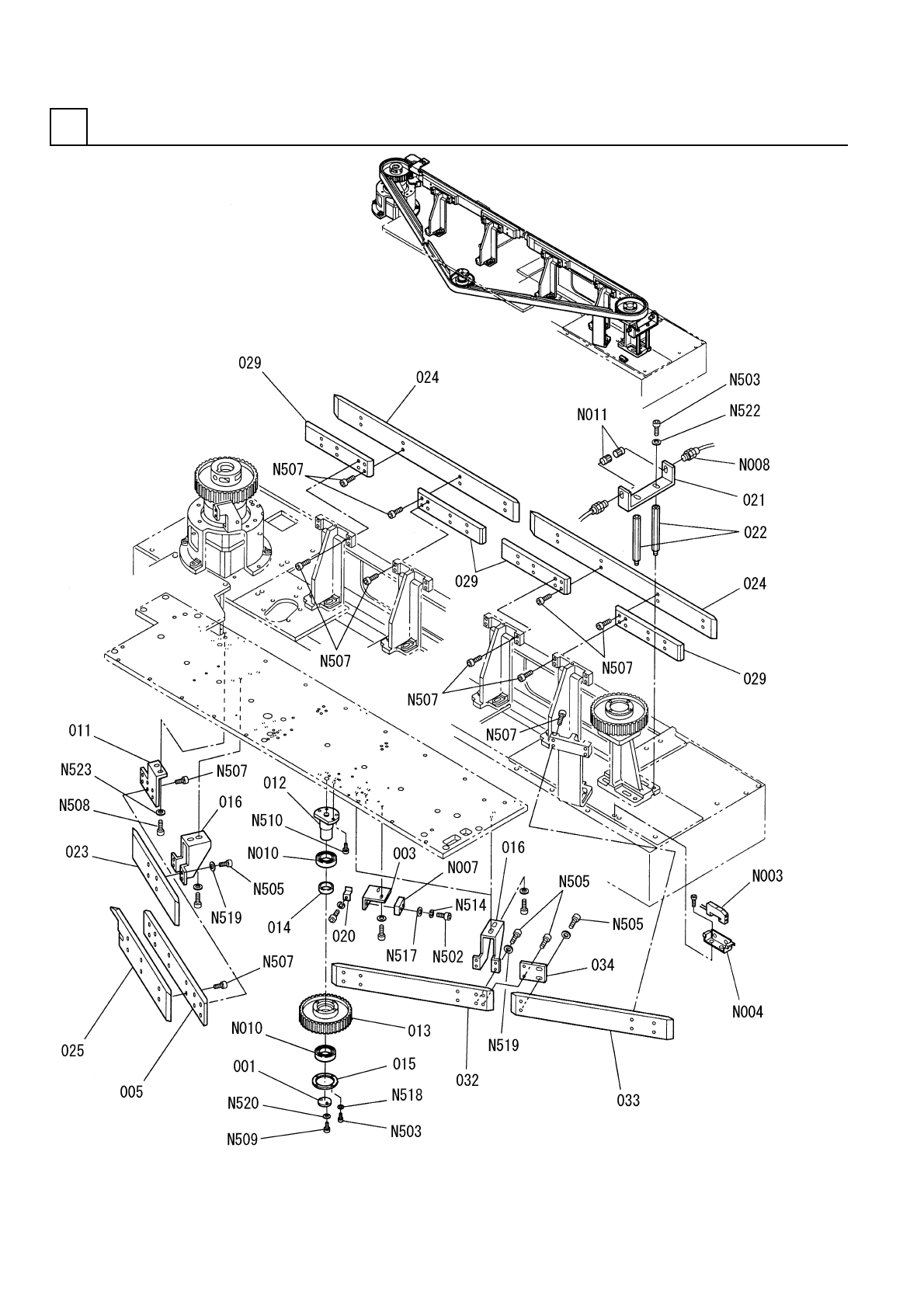

部品搬送部(2)
PARTS TRANSFER SECT.(2)
19
FN610074162AA_02-2
M151
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
19
部品搬送部(2)
PARTS TRANSFER SECT.(2)
部 品 名 品 番 個数 備 考
R
1
R
2
1001 X02G35101
COLLAR ｶﾗｰ
1
003 X02P26012
BRACKET ﾌﾞﾗｹｯﾄ
1
005 N210088850AA
PLATE ﾌﾟﾚｰﾄ
1011 N210088844AC
BRACKET(GUIDE) ﾌﾞﾗｹｯﾄ(ｶﾞｲﾄﾞ)
1012 X01A35004A
SHAFT ｼｬﾌﾄ
1
013 X01A35005
PULLEY(TIMING) ﾌﾟｰﾘｰ(ﾀｲﾐﾝｸﾞ)
1
014 X01A35006
COLLAR ｶﾗｰ
1015 X01A35008
COLLAR ｶﾗｰ
3016 X02P27004
BRACKET ﾌﾞﾗｹｯﾄ
1
020 X01A35027
DETECTION PLATE ｹﾝｼｭﾂﾊﾞﾝ
1021 N210088852AA
BRACKET(SENSOR) ﾌﾞﾗｹｯﾄ(ｾﾝｻ)
2022 N210088853AA
SPACER ｽﾍﾟｰｻ
1
023 N210088840AB
GUIDE ｶﾞｲﾄﾞ
2
024 N210088837AA
GUIDE ｶﾞｲﾄﾞ
1025 N210088838AA
GUIDE ｶﾞｲﾄﾞ
4029 N210088849AA
PLATE ﾌﾟﾚｰﾄ
1
032 N210088841AB
GUIDE ｶﾞｲﾄﾞ
1
033 N210088842AB
GUIDE ｶﾞｲﾄﾞ
1034 N210088846AA
LINK PLATE ﾘﾝｸﾌﾟﾚｰﾄ
E3X-NA11
1
N003
N310E3XNA11
AMPLIFIER ｱﾝﾌﾟ
E39-L143
1
N004
KXF0E0BBA00
BRACKET ﾄﾘﾂｹｶﾅｸﾞ
EE-SX671
1
N007
KXF01YEAA00
SENSOR ｾﾝｻ
E32-TC200
1
N008
N310E32TC200
SENSOR ｾﾝｻ
6008ZZ
2
N010
XLC6008ZZ
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
E39-F1
1
N011
N310E39F1
LENS UNIT ﾚﾝｽﾞﾕﾆｯﾄ
M3X12-10.9 A2J (Trival
2
N502
N510017308AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X10-10.9 A2J (Trival
6
N503
N510017344AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5X8-10.9 A2J (Trivale
12
N505
N510017419AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5X16-10.9 A2J (Trival
46
N507
N510017395AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5X20-10.9 A2J (Trival
2
N508
N510017398AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M6X16-10.9 A2J (Trival
2
N509
N510017433AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M8X25-10.9 A2S (Trival
4
N510
N510017474AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
No.2 3 S A2J (Trivalen
2
N514
N510018327AA
SPRING WASHER ﾊﾞﾈｻﾞｶﾞﾈ
3 10H A2J (Trivalent)
2
N517
N510018478AA
ROUND PLAIN WASHER ｺｶﾞﾀﾏﾙﾋﾗｻﾞｶﾞﾈ
4 10H A2J (Trivalent)
4
N518
N510018497AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
5 10H A2J (Trivalent)
12
N519
N510018499AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
6 10H A2J (Trivalent)
2
N520
N510018501AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
Thich washer for M4
2
N522
N510020099AA
WASHER ｻﾞｶﾞﾈ
M5
2
N523
N510020100AA
WASHER ｻﾞｶﾞﾈ
M152
FN610074162AA_02-2
