部品加工部( 動力部2 ) PARTS PROCESS SECT.(DR IVING SEC T.-2) 20 FN610073289AA_02-2 M159
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
20
部品加工部(動力部1)
PARTS PROCESS SECT.(DRIVING SECT.-1)
部 品 名 品 番 個数 備 考
R
1
R
2
1 N610073289AA
PARTS PROCESS UNIT ﾌﾞﾋﾝｶｺｳﾕﾆｯﾄ
1
001 N210090238AA
CAM ｶﾑ
1
002 N210090239AA
CAM ｶﾑ
1003 N210090240AA
CAM ｶﾑ
1004 N210090241AA
CAM ｶﾑ
1
005 N210087566AA
CAM ｶﾑ
1
006 N210096027AA
CAM ｶﾑ
1008 X02G14008
BRACKET ﾌﾞﾗｹｯﾄ
1009 N210089102AC
BRACKET ﾌﾞﾗｹｯﾄ
2
011 X02G14018
HOSE ﾎｰｽ
1015 N210090097AA
KEY ｷｰ
1016 X02G14104
KEY ｷｰ
1
017 N210087151AD
FRAME ﾌﾚｰﾑ
1
018 N210058841AA
KEY ｷｰ
1020 X02G14115
POST ﾎﾟｽﾄ
1030 N210087190AB
SHAFT ｼｬﾌﾄ
1
031 X01L1403601
PLATE ﾍﾞｱﾘﾝｸﾞｵｻｴ
1
034 X01A14009
SENSOR ｾﾝｻ
1043 N210089103AA
DOG FOR SENSOR ﾄﾞｸﾞ
2052 X01A14054
SPRING ﾊﾞﾈ
1
054 X01A1406101
SPRING ﾊﾞﾈ
3
056 X01A14068
BLOCK ﾌﾞﾛｯｸ
1058 N210089105AA
BRACKET ﾌﾞﾗｹｯﾄ
MSMD082PJA S
1
A001
N610074305AA
MOTOR ﾓｰﾀ
4-13VZZ
3
N001
N648413VZZ
BEARING ﾍﾞｱﾘﾝｸﾞ
87FWSSB-D6.0-V4.0-T1.0
5
N002
N510031417AA
WASHER ｻﾞｶﾞﾈ
M8X10-45H A2J (Trivale
6
N003
N510018455AA
SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ
SW50E07LF-AGB(231D8600
1
N005
N510036776AA
REDUCTION GEAR ｹﾞﾝｿｸｷ
FUS05SS
1
N006
KXF023AAA00
LOCK-NUT ﾛｯｸﾅｯﾄ
6007ZZ
1
N013
KXF00KAAA00
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
87MS6-20
14
N020
N510022041AA
PIN ﾋﾟﾝ
87MSWT2
2
N021
N510023248AA
PLUG ﾌﾟﾗｸﾞ
SFC-040WD-16B-19B
1
N031
N510037967AA
COUPLING ｶｯﾌﾟﾘﾝｸﾞ
KS-1/4
1
N032
N431KS02
FITTING ﾂｷﾞﾃ
KN-1/4
1
N033
N431KN02
FITTING ﾆｯﾌﾟﾙ
AN203-02
1
N034
KXF00WEAA00
SILENCER ｻｲﾚﾝｻ
M158
FN610073289AA_02-1

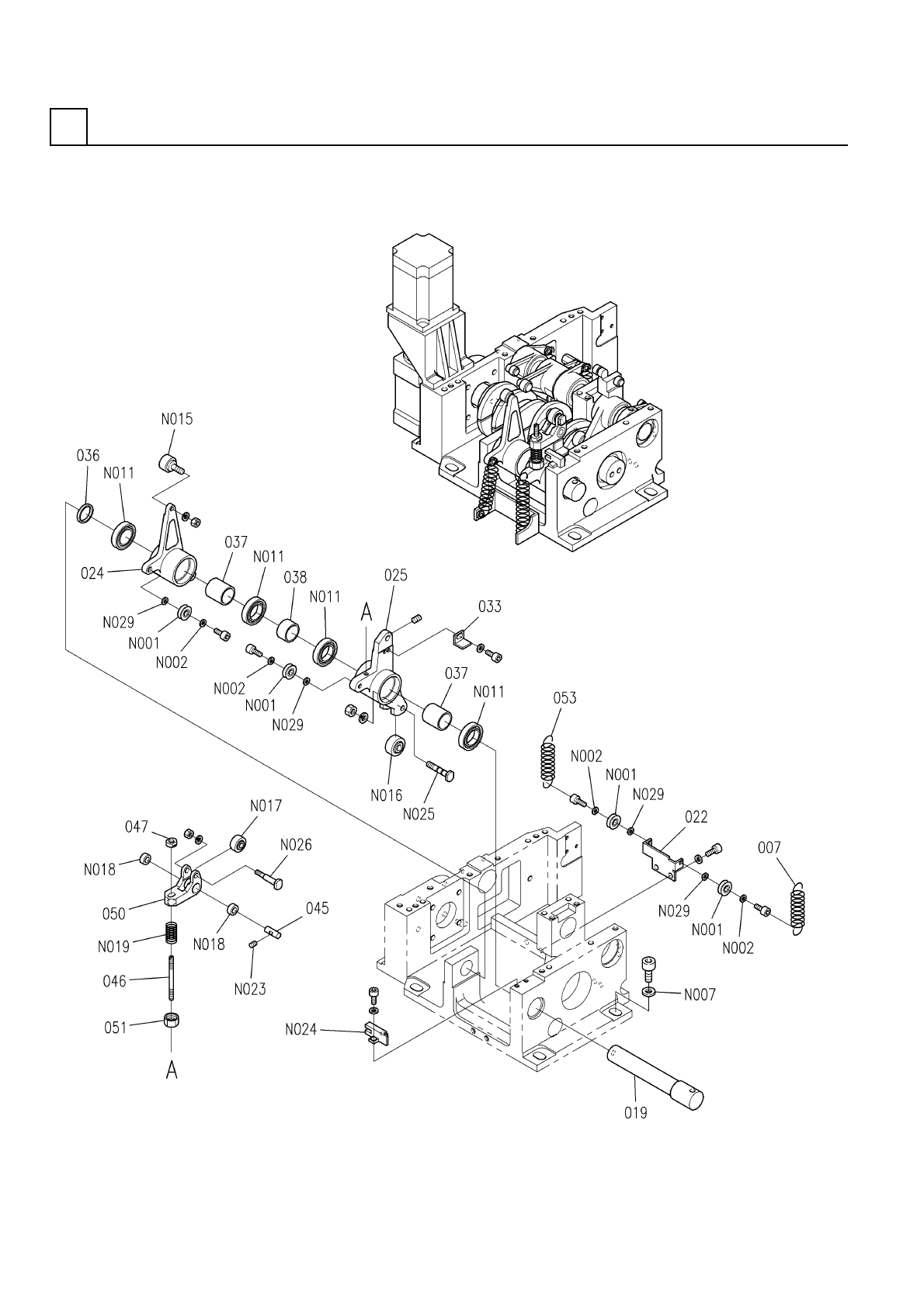

部品加工部(動力部2)
PARTS PROCESS SECT.(DRIVING SECT.-2)
20
FN610073289AA_02-2
M159
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
20
部品加工部(動力部2)
PARTS PROCESS SECT.(DRIVING SECT.-2)
部 品 名 品 番 個数 備 考
R
1
R
2
1007 X02G14007
SPRING ﾊﾞﾈ
1
019 N210087240AA
SHAFT ｼｬﾌﾄ
1
022 N210088624AA
BRACKET ﾌﾞﾗｹｯﾄ
1024 X02G14120
LEVER ﾚﾊﾞｰ
1025 X02G14122
LEVER ﾚﾊﾞｰ
1
033 X01A14008
DETECTION PLATE ｹﾝｼｭﾂﾊﾞﾝ
1
036 X01A14020
COLLAR ｶﾗｰ
2037 X01A14021
COLLAR ｶﾗｰ
1038 X01A14023
COLLAR ｶﾗｰ
1
045 X01A14047
PIN ﾋﾟﾝ
1046 X01A14049
BOLT ﾎﾞﾙﾄ
1047 X01A14050
LOCK-NUT ﾛｯｸﾅｯﾄ
1
050 X01A14051
LEVER ﾚﾊﾞｰ
1
051 X01A14053
SPRING WASHER ﾊﾞﾈｻﾞｶﾞﾈ
1053 X01A14060
SPRING ﾊﾞﾈ
4-13VZZ
4
N001
N648413VZZ
BEARING ﾍﾞｱﾘﾝｸﾞ
87FWSSB-D6.0-V4.0-T1.0
4
N002
N510031417AA
WASHER ｻﾞｶﾞﾈ
87FWSSB-D20.0-V10.0-T5
4
N007
N510037909AA
WASHER ﾜｯｼｬ
6905ZZ
4
N011
KXF06P1AA00
BEARING ﾍﾞｱﾘﾝｸﾞ
CFN8R-A
1
N015
N531CFN8RA
CAM FOLLOWER ｶﾑﾌｫﾛｱ
NART10UUR
1
N016
N531NART-061
ROLLER FOLLOWER ﾛｰﾗﾌｫﾛｱ
NAST8ZZUUR
1
N017
N531NAST-008
ROLLER FOLLOWER ﾛｰﾗﾌｫﾛｱ
54B-101606
2
N018
N52054B1-055
BUSHING ﾌﾞｯｼｭ
SSWL16-45
1
N019
N986SSWL1645
SPRING ｽﾌﾟﾘﾝｸﾞ
M4X6-45H A2J (Trivalen
1
N023
N510018374AA
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ
PANADAC921SA1
1
N024
N310P921SA1
SENSOR ｾﾝｻ
87RFN10-42
1
N025
N510037899AA
PIN ﾋﾟﾝ
87RFN8-34
1
N026
N510037900AA
PIN ﾋﾟﾝ
87FWSSB-D6.0-V4.0-T2.0
4
N029
N510028901AA
WASHER ﾜｯｼｬ
M160
FN610073289AA_02-2
