Mechanical Parts List - 第178页

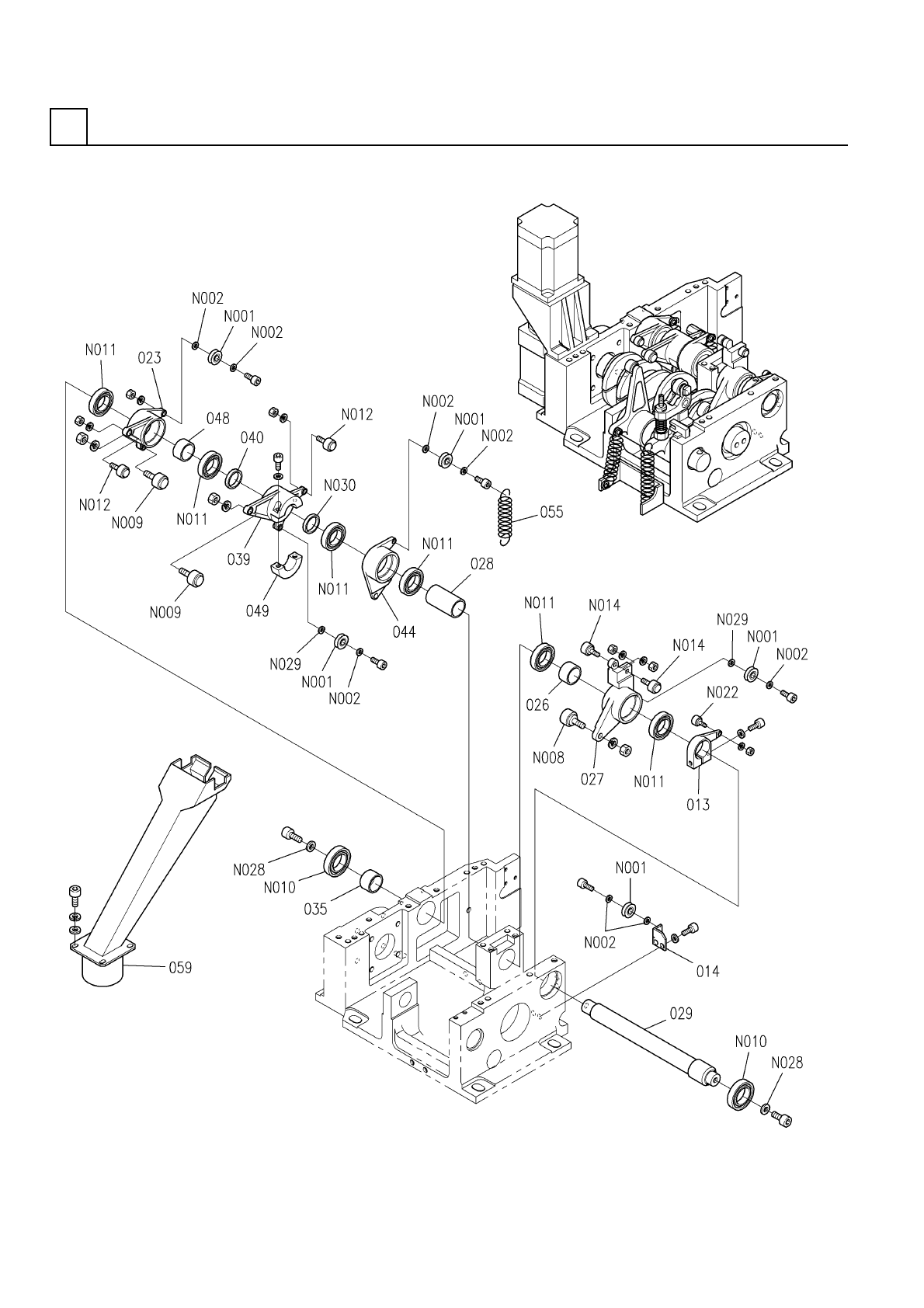

部品加工部( 動力部3 ) PARTS PROCESS SECT.(DR IVING SEC T.-3) 20 FN610073289AA_02-3 M161
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
20
部品加工部(動力部2)
PARTS PROCESS SECT.(DRIVING SECT.-2)
部 品 名 品 番 個数 備 考
R
1
R
2
1007 X02G14007
SPRING ﾊﾞﾈ
1
019 N210087240AA
SHAFT ｼｬﾌﾄ
1
022 N210088624AA
BRACKET ﾌﾞﾗｹｯﾄ
1024 X02G14120
LEVER ﾚﾊﾞｰ
1025 X02G14122
LEVER ﾚﾊﾞｰ
1
033 X01A14008
DETECTION PLATE ｹﾝｼｭﾂﾊﾞﾝ
1
036 X01A14020
COLLAR ｶﾗｰ
2037 X01A14021
COLLAR ｶﾗｰ
1038 X01A14023
COLLAR ｶﾗｰ
1
045 X01A14047
PIN ﾋﾟﾝ
1046 X01A14049
BOLT ﾎﾞﾙﾄ
1047 X01A14050
LOCK-NUT ﾛｯｸﾅｯﾄ
1
050 X01A14051
LEVER ﾚﾊﾞｰ
1
051 X01A14053
SPRING WASHER ﾊﾞﾈｻﾞｶﾞﾈ
1053 X01A14060
SPRING ﾊﾞﾈ
4-13VZZ
4
N001
N648413VZZ
BEARING ﾍﾞｱﾘﾝｸﾞ
87FWSSB-D6.0-V4.0-T1.0
4
N002
N510031417AA
WASHER ｻﾞｶﾞﾈ
87FWSSB-D20.0-V10.0-T5
4
N007
N510037909AA
WASHER ﾜｯｼｬ
6905ZZ
4
N011
KXF06P1AA00
BEARING ﾍﾞｱﾘﾝｸﾞ
CFN8R-A
1
N015
N531CFN8RA
CAM FOLLOWER ｶﾑﾌｫﾛｱ
NART10UUR
1
N016
N531NART-061
ROLLER FOLLOWER ﾛｰﾗﾌｫﾛｱ
NAST8ZZUUR
1
N017
N531NAST-008
ROLLER FOLLOWER ﾛｰﾗﾌｫﾛｱ
54B-101606
2
N018
N52054B1-055
BUSHING ﾌﾞｯｼｭ
SSWL16-45
1
N019
N986SSWL1645
SPRING ｽﾌﾟﾘﾝｸﾞ
M4X6-45H A2J (Trivalen
1
N023
N510018374AA
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ
PANADAC921SA1
1
N024
N310P921SA1
SENSOR ｾﾝｻ
87RFN10-42
1
N025
N510037899AA
PIN ﾋﾟﾝ
87RFN8-34
1
N026
N510037900AA
PIN ﾋﾟﾝ
87FWSSB-D6.0-V4.0-T2.0
4
N029
N510028901AA
WASHER ﾜｯｼｬ
M160
FN610073289AA_02-2
部品加工部(動力部3)
PARTS PROCESS SECT.(DRIVING SECT.-3)
20
FN610073289AA_02-3
M161
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
20
部品加工部(動力部3)
PARTS PROCESS SECT.(DRIVING SECT.-3)
部 品 名 品 番 個数 備 考
R
1
R
2
1013 N210103572AA
LEVER ﾚﾊﾞｰ
1
014 N210095146AA
BRACKET ﾌﾞﾗｹｯﾄ
1
023 N210086544AB
LEVER ﾚﾊﾞｰ
1026 X01L1400401
COLLAR ｶﾗｰ
1027 X01L1400502
LEVER ﾚﾊﾞｰ
1
028 X01L1400701
COLLAR ｶﾗｰ
1
029 N210087148AA
SHAFT ｼｬﾌﾄ
1035 N210087146AA
COLLAR ｶﾗｰ
1039 N210086543AC
COLLAR ｶﾗｰ
1
040 N210087149AA
LEVER ﾚﾊﾞｰ
1044 X01A14032
LEVER ﾚﾊﾞｰ
1048 N210087147AA
COLLAR ｶﾗｰ
1
049 N210087543AA
NUT ﾅｯﾄ
1
055 X01A14062
SPRING ﾊﾞﾈ
1059 N210106127AA
DUCT ﾀﾞｸﾄ
4-13VZZ
5
N001
N648413VZZ
BEARING ﾍﾞｱﾘﾝｸﾞ
87FWSSB-D6.0-V4.0-T1.0
8
N002
N510031417AA
WASHER ｻﾞｶﾞﾈ
CFN10R-A
1
N008
N531CFN10RA
CAM FOLLOWER ｶﾑﾌｫﾛｱ
CFN6R-A
2
N009
N531CFN6RA
CAM FOLLOWER ｶﾑﾌｫﾛｱ
6004ZZ
2
N010
XLC6004ZZ
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
6905ZZ
6
N011
KXF06P1AA00
BEARING ﾍﾞｱﾘﾝｸﾞ
CFN5R-A
2
N012
N531CFN5RA
CAM FOLLOWER ｶﾑﾌｫﾛｱ
CFN6R-A
4
N014
N531CFN6RA
CAM FOLLOWER ｶﾑﾌｫﾛｱ
CFS5
1
N022
N532CFS5
CAM FOLLOWER ｶﾑﾌｫﾛｱ
87FWSSB-D25-V8.0-T5.0
2
N028
N510037908AA
WASHER ﾜｯｼｬ
87FWSSB-D6.0-V4.0-T2.0
2
N029
N510028901AA
WASHER ﾜｯｼｬ
87FWSSB-D30-V25.0-T2.0
1
N030
N510037210AA
WASHER ﾜｯｼｬ
M162
FN610073289AA_02-3
