Mechanical Parts List - 第183页
PART No. ｲﾗｽﾄ No. REF No. PART NAME REMARKS Q'TY 20 部品加工部( 部品位置 決め部2 ) PARTS PROCESS SECT.(PA RTS POSIT IONING SE CT.-2) 部 品 名 品 番 個数 備 考 R 1 R 2 1 008 N210085717AA SHAFT ｼｬﾌﾄ 1 011 N210085720AA LEVER ﾚﾊﾞｰ 1 012 N21…

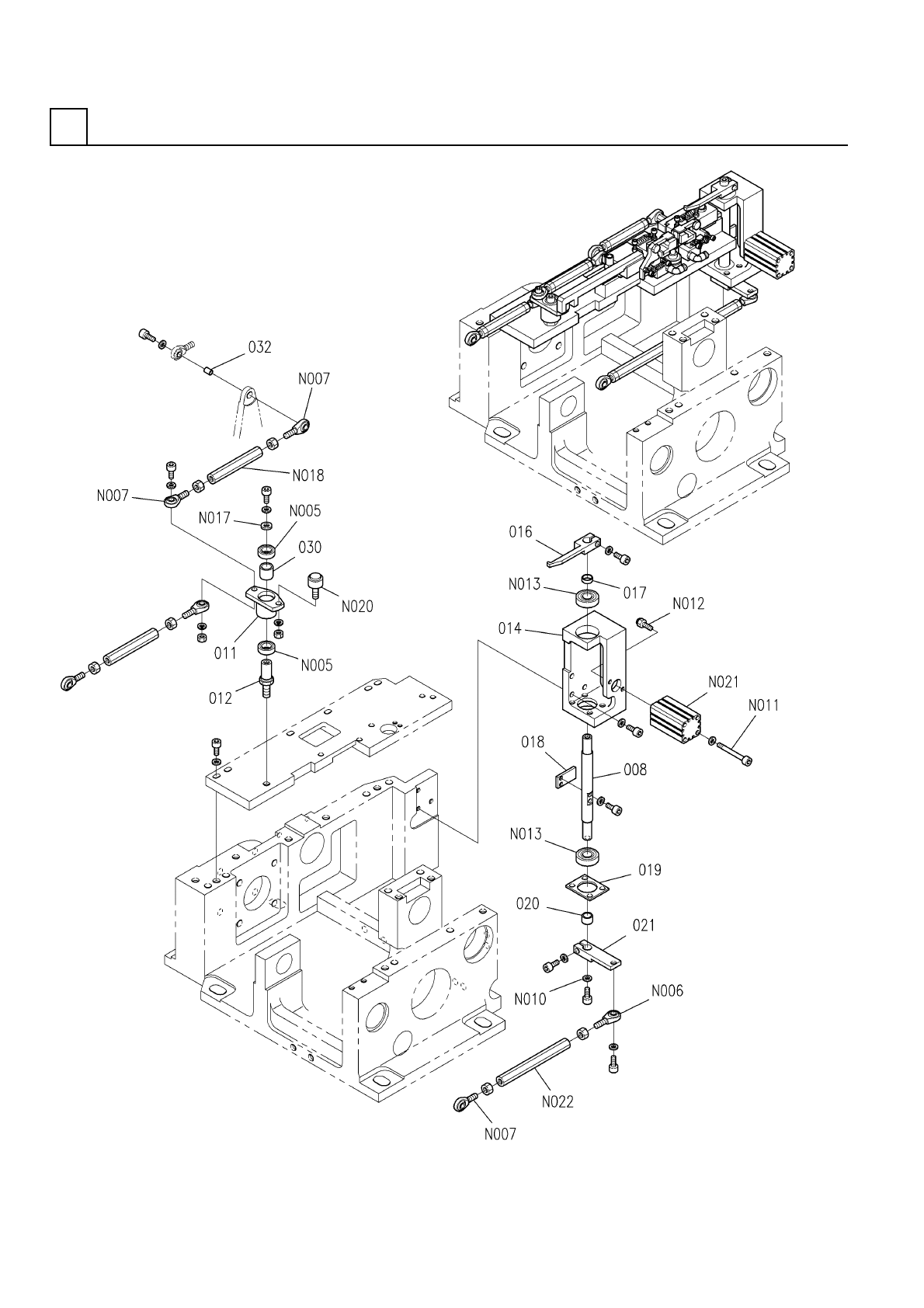

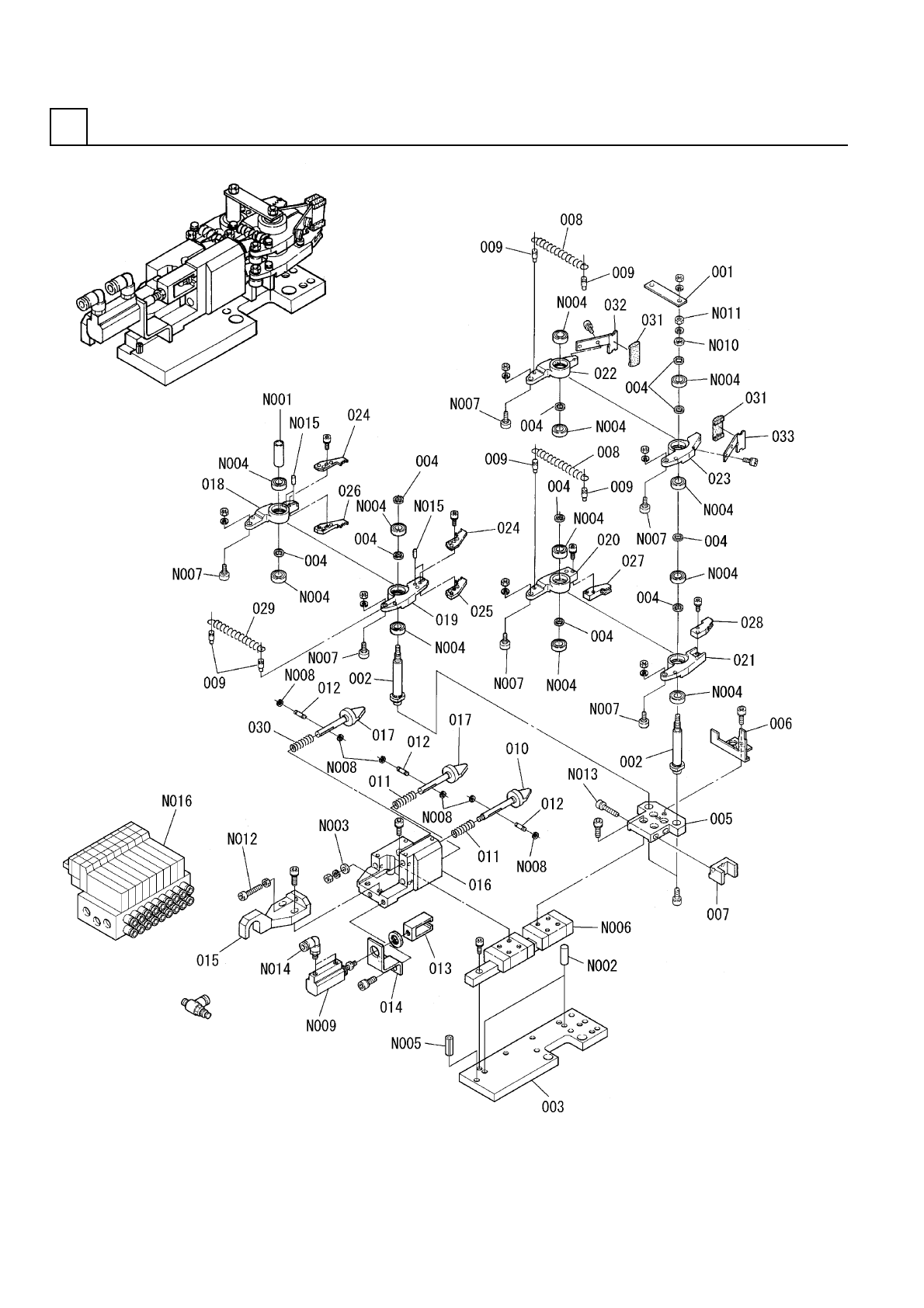

部品加工部(部品位置決め部2)
PARTS PROCESS SECT.(PARTS POSITIONING SECT.-2)
20
FN610071373AA_02-2
M165
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
20
部品加工部(部品位置決め部2)
PARTS PROCESS SECT.(PARTS POSITIONING SECT.-2)
部 品 名 品 番 個数 備 考
R
1
R
2
1008 N210085717AA
SHAFT ｼｬﾌﾄ
1
011 N210085720AA
LEVER ﾚﾊﾞｰ
1
012 N210085721AA
PIN ﾋﾟﾝ
1014 N210085820AA
BRACKET ﾌﾞﾗｹｯﾄ
1016 X01L11026
LEVER ﾚﾊﾞｰ
1
017 X01A11046
COLLAR ｶﾗｰ
1
018 X02G11120
PLATE ﾌﾟﾚｰﾄ
1019 X01L11050
PLATE ﾍﾞｱﾘﾝｸﾞｵｻｴ
1020 X01L11051
SPACER ｽﾍﾟｰｻ
1
021 X01A11047
LEVER ﾚﾊﾞｰ
1030 N210088898AA
COLLAR ｶﾗｰ
1032 N210098686AA
COLLAR ｶﾗｰ
6800ZZ
2
N005
KXF00M6AA00
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
N0S4T
2
N006
N533N0S4T
ROD END ﾛｯﾄﾞｴﾝﾄﾞ
NOS4TL
2
N007
N533N0S4TL
ROD END ﾛｯﾄﾞｴﾝﾄﾞ
87FWSSB-D15.0-V4.0-T3.
2
N010
N510028123AA
WASHER ﾜｯｼｬ
M3X40
2
N011
N401CDQS-D87
BOLT ﾎﾞﾙﾄ
USB4-15
1
N012
N986USB415
STOPPER BOLT ｽﾄｯﾊﾟﾎﾞﾙﾄ
6000ZZ
2
N013
KXF0E3BVA00
BEARING ﾍﾞｱﾘﾝｸﾞ
87FWSSB-D12.0-V5.0-T3.
1
N017
N510036443AA
WASHER ﾜｯｼｬ
87LBMFN4-75
1
N018
N510041172AA
ROD ﾛｯﾄﾞ
CFN5R-A
1
N020
N531CFN5RA
CAM FOLLOWER ｶﾑﾌｫﾛｱ
CDQSB16-15D-F9NVS
1
N021
N401CDQS-D76
CYLINDER ｼﾘﾝﾀﾞ
87LBMFN4-125
1
N022
N510023242AA
ROD ﾛｯﾄﾞ
M166
FN610071373AA_02-2
