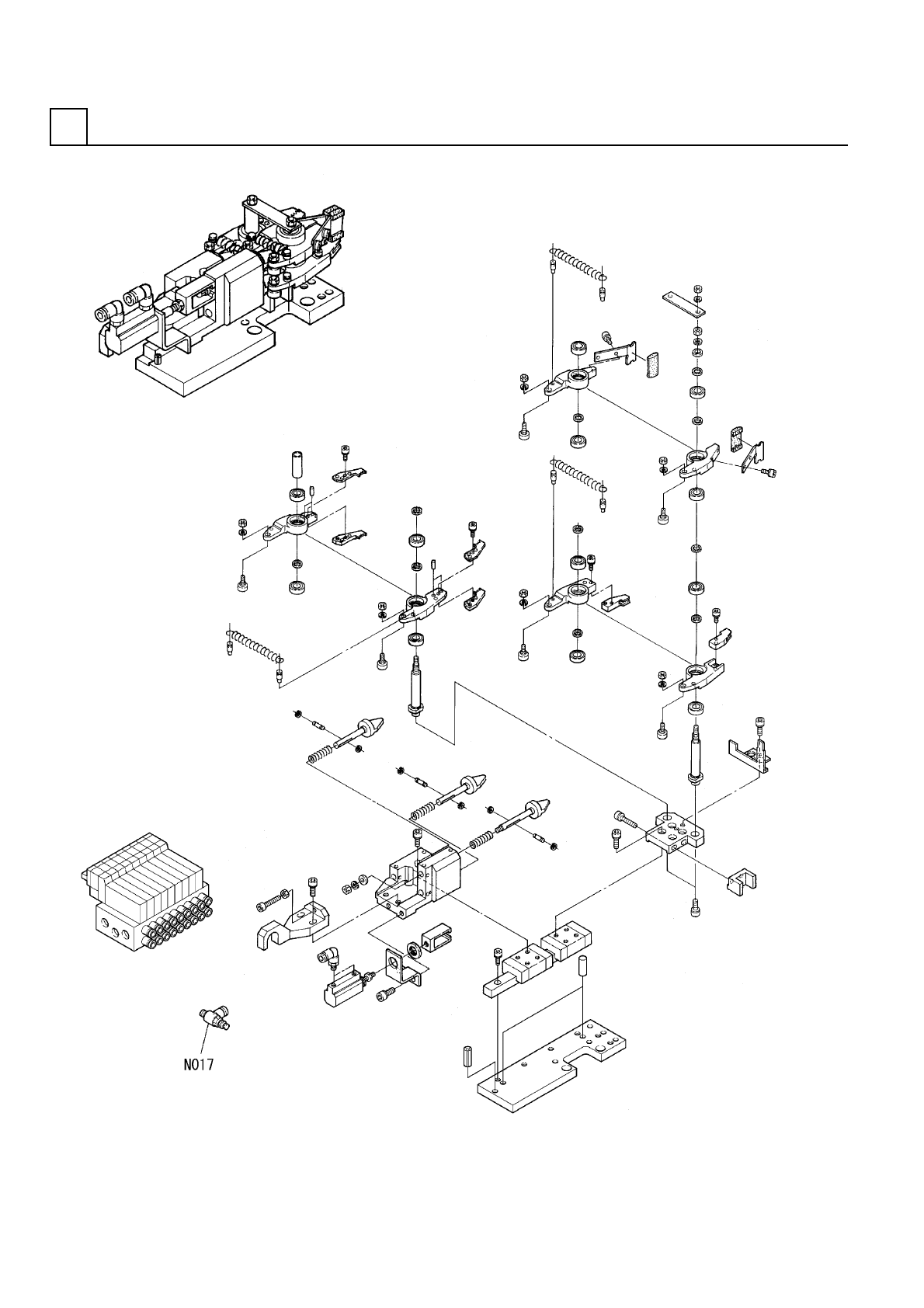

部品加工 部(ﾘｰﾄﾞ修正部2) PARTS PROCESS SECT.(LE AD AMEND SECT.-2) 20 FN610074381AA_02-2 M169
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
20
部品加工部(ﾘｰﾄﾞ修正部1)
PARTS PROCESS SECT.(LEAD AMEND SECT.-1)
部 品 名 品 番 個数 備 考
R
1
R
2
1 N610074381AA
PARTS EXCHANGE UNIT ﾌﾞﾋﾝｺｳｶﾝﾕﾆｯﾄ
1
001 X02G12101
SUPPORT ｻﾎﾟｰﾄ
2
002 X02G12103
PIN ｼﾃﾝﾋﾟﾝ
1003 X02G12104
PLATE ﾌﾟﾚｰﾄ
10004 X01L12012
COLLAR ｶﾗｰ
1
005 X01L12014
PLATE(SLIDE) ﾌﾟﾚｰﾄ(ｽﾗｲﾄﾞ)
1
006 X01L12019
STOPPER ｽﾄｯﾊﾟ
1007 X01L12020
FORK ﾌｫｰｸ
2008 X01L1202101
SPRING ﾊﾞﾈ
6
009 X01L12022
PIN ﾋﾟﾝ(ﾊﾞﾈｶｹ)
1010 X01L1202401
PIN ﾋﾟﾝ
2011 X01L1202501
SPRING ﾊﾞﾈ
3
012 X01L12026
PIN ﾋﾟﾝ
1
013 X01L12029
HOOK ﾌｯｸ
1014 X01L12030
BRACKET(CYLINDER) ﾌﾞﾗｹｯﾄ(ｼﾘﾝﾀﾞ)
1015 X01L12032
HOOK ﾌｯｸ
1
016 X01L12034
HOUSING ﾊｳｼﾞﾝｸﾞ
2
017 X01L12036
PIN ﾋﾟﾝ
1018 N210096600AB
LEVER ﾚﾊﾞｰ
1019 X01L1204001
LEVER ﾚﾊﾞｰ
1
020 X01L1204101
LEVER ﾚﾊﾞｰ
1
021 X01L1204201
LEVER ﾚﾊﾞｰ
1022 X01L12043A
LEVER ﾚﾊﾞｰ
1023 X01L12043B
LEVER ﾚﾊﾞｰ
2
024 N210107823AA
PLATE ﾌﾟﾚｰﾄ
1025 N210107827AA
PLATE ﾌﾟﾚｰﾄ
1026 N210107828AA
PLATE ﾌﾟﾚｰﾄ
1
027 N210097356AA
BLOCK ﾌﾞﾛｯｸ
1
028 N210097357AA
BLOCK ﾌﾞﾛｯｸ
1029 X01L12053
SPRING ﾊﾞﾈ
1030 X01L12054
SPRING ﾊﾞﾈ
2
031 X01L1206001
RUBBER ｺﾞﾑ
1
032 N210097365AA
GUIDE(PARTS) ｶﾞｲﾄﾞ(ﾊﾟｰﾂ)
1033 N210097366AA
GUIDE(PARTS) ｶﾞｲﾄﾞ(ﾊﾟｰﾂ)
87FNCLB-V8.0-D10.0-L26
1
N001
N510038109AA
COLLAR ｶﾗｰ
87MS4-10
2
N002
N510020878AA
PIN ﾋﾟﾝ
87FWSSB-D10.0-V4.0-T2.
1
N003
N510024978AA
WASHER ﾜｯｼｬ
688ZZ
12
N004
XLC688ZZ
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
4X25,STEEL
2
N005
XPL4A25WFW
SPRING PIN ｽﾌﾟﾘﾝｸﾞﾋﾟﾝ
HSR12R2UU+150LP
1
N006
N513HSR1-682
LM GUIDE LMｶﾞｲﾄﾞ
CFS5
6
N007
N532CFS5
CAM FOLLOWER ｶﾑﾌｫﾛｱ
1.5,STEEL,P.C
6
N008
XUC15FP
RETAINING RING E-TYPE E ｶﾞﾀﾄﾒﾜ
CJPB10-15D
1
N009
N401CJPB-005
CYLINDER ｼﾘﾝﾀﾞ
87FWSSB-D10.0-V6.0-T2.
1
N010
N510038092AA
WASHER ﾜｯｼｬ
M6-6H-4T A2J (Trivalen
2
N011
N510017867AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M4X30-10.9 A2J (Trival
1
N012
N510017361AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X40-10.9 A2J (Trival
2
N013
N510017365AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
KQ2L06-M5
2
N014
KXF0DYM2A00
JOINT ｼﾞｮｲﾝﾄ
MMS3-8
4
N015
N510020589AA
PIN ﾋﾟﾝ
VQZ1151-5LO
1
N016
N411VQZ1-694
SOLENOID VALVE ｿﾚﾉｲﾄﾞﾊﾞﾙﾌﾞ
M168
FN610074381AA_02-1
部品加工部(ﾘｰﾄﾞ修正部2)
PARTS PROCESS SECT.(LEAD AMEND SECT.-2)
20
FN610074381AA_02-2
M169
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
20
部品加工部(ﾘｰﾄﾞ修正部2)
PARTS PROCESS SECT.(LEAD AMEND SECT.-2)
部 品 名 品 番 個数 備 考
R
1
R
2
AS1201F-M5-06
2
N017
KXF00YNAA00
SPEED CONTROLLER ｽﾋﾟｰﾄﾞｺﾝﾄﾛｰﾗ
M170
