Mechanical Parts List - 第191页
PART No. ｲﾗｽﾄ No. REF No. PART NAME REMARKS Q'TY 21 部品ｶﾞ ｲﾄ ﾞﾏｳﾝ ﾄ 部(左 右共通取付部) PARTS GUIDE MO UNT SECT .(LEFT & RIGHT COM MON ATTACH MENT SECT .) 部 品 名 品 番 個数 備 考 R 1 R 2 1 N610082519AA PARTS GUIDE M OUNT UNIT ﾌ…

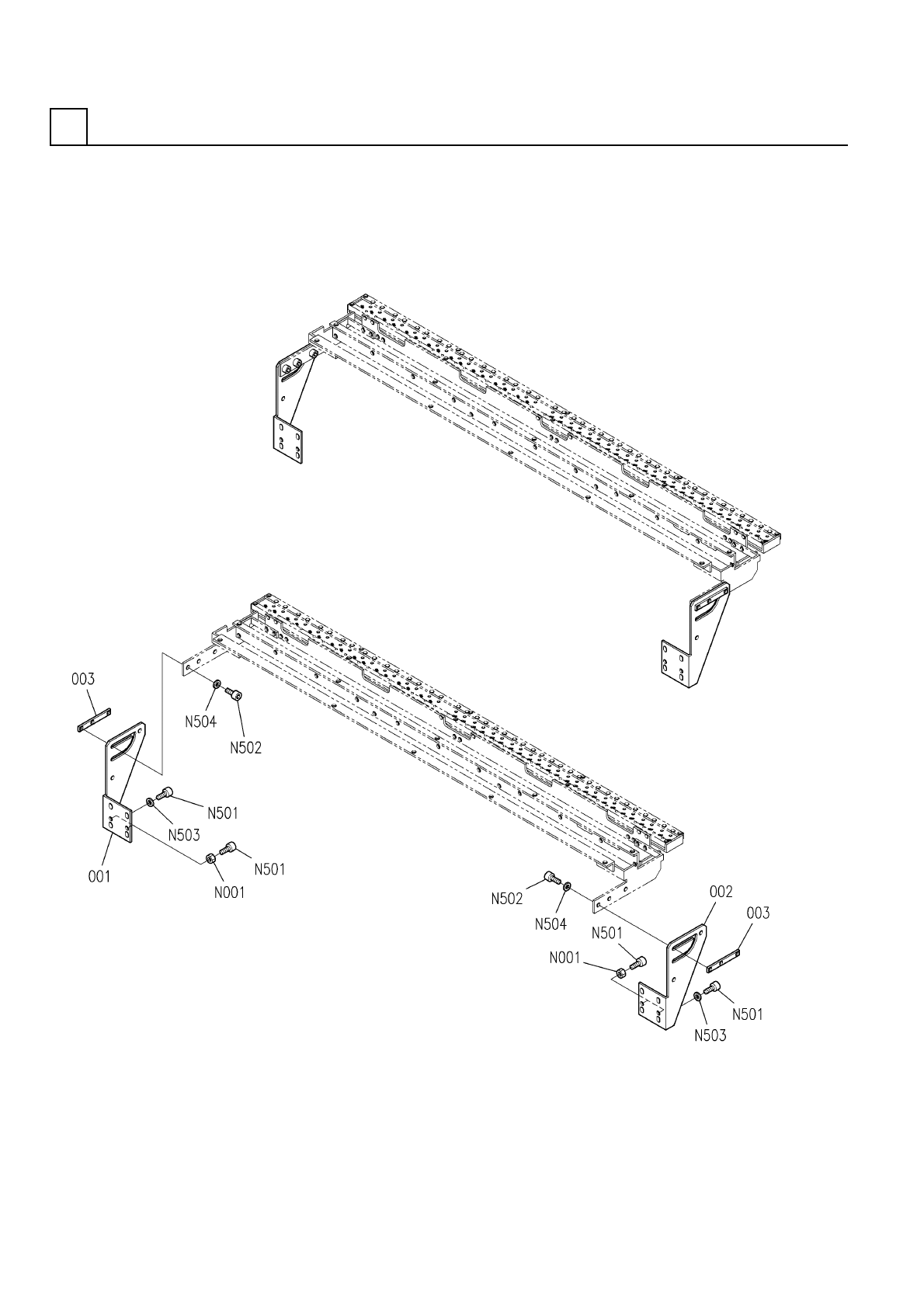

部品ｶﾞｲﾄﾞﾏｳﾝﾄ部(左右共通取付部)
PARTS GUIDE MOUNT SECT.(LEFT & RIGHT COMMON ATTACHMENT SECT.)
21
FN610082519AA_00
M173
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
21
部品ｶﾞｲﾄﾞﾏｳﾝﾄ部(左右共通取付部)
PARTS GUIDE MOUNT SECT.(LEFT & RIGHT COMMON ATTACHMENT SECT.)
部 品 名 品 番 個数 備 考
R
1
R
2
1 N610082519AA
PARTS GUIDE MOUNT UNIT ﾌﾞﾋﾝｶﾞｲﾄﾞﾏｳﾝﾄﾕﾆｯﾄ
1
001 N210088870AB
BRACKET ﾌﾞﾗｹｯﾄ
1
002 N210088871AB
BRACKET ﾌﾞﾗｹｯﾄ
2003 N210088873AA
NUT PLATE ﾅｯﾄﾌﾟﾚｰﾄ
M6-6H-4T A2J (Trivalen
4
N001
N510017867AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M6X20-10.9 A2J (Trival
12
N501
N510017435AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M6X16-10.9 A2J (Trival
6
N502
N510017433AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M6
8
N503
N510020101AA
WASHER ｻﾞｶﾞﾈ
6 10H A2J (Trivalent)
6
N504
N510018501AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
M174
FN610082519AA_00

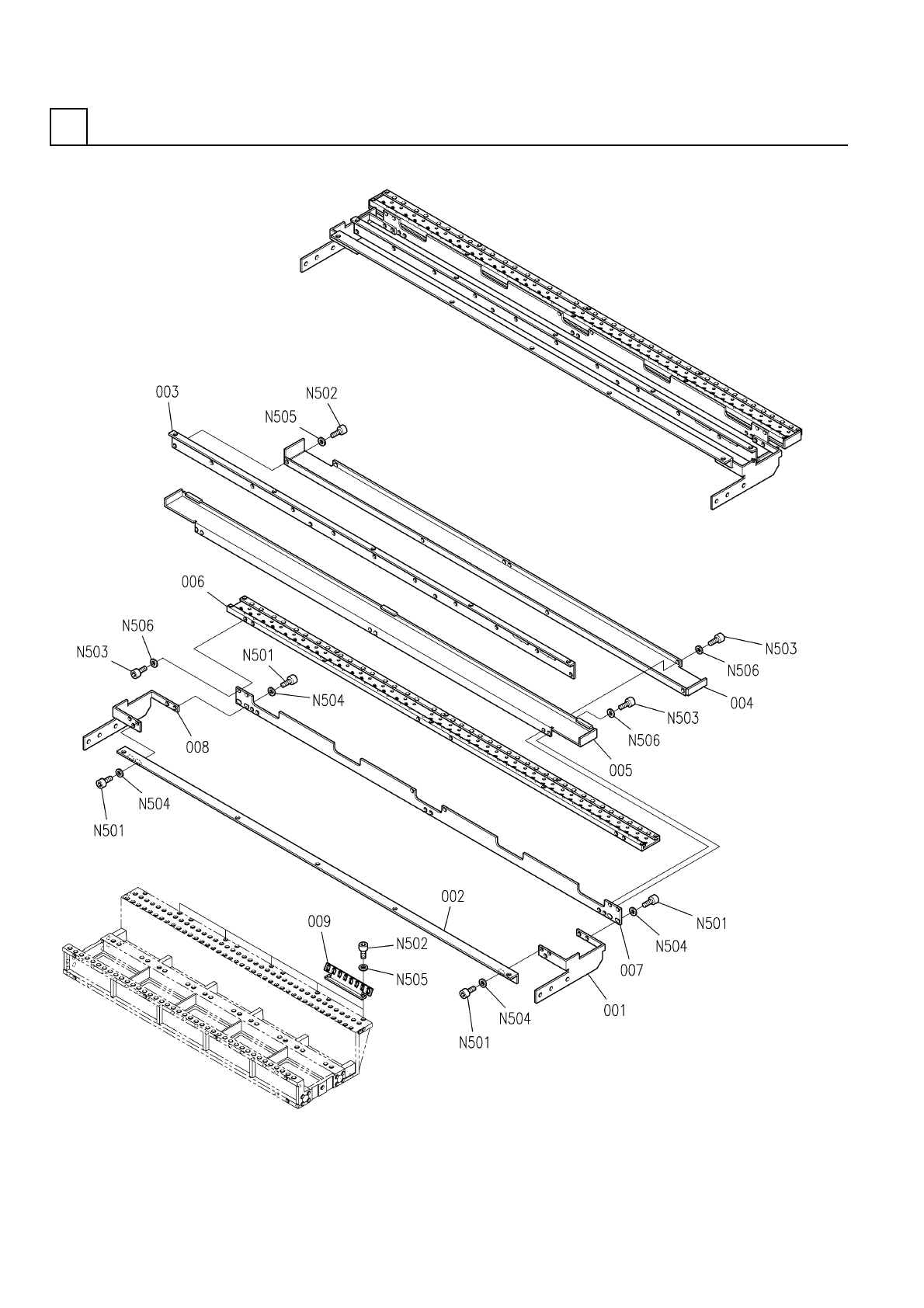

部品ｶﾞｲﾄﾞﾏｳﾝﾄ部(左右共通)
PARTS GUIDE MOUNT SECT.(LEFT & RIGHT COMMON)
21
FN610071314AA_01
M175
