PART No. ｲﾗｽﾄ No. REF No. PART NAME REMARKS Q'TY 24 ﾒｲﾝｺﾝｿｰﾙﾊﾟﾈﾙ取付部 MAIN CONSOLE P ANEL ATT ACHMENT S ECT. 部 品 名 品 番 個数 備 考 R 1 R 2 1 N610066189AA PANEL ATTACHM ENT UNIT ﾊﾟﾈﾙﾄﾘﾂｹﾕﾆｯﾄ 1 001 N210071661AB UNDER COVER ｱ…

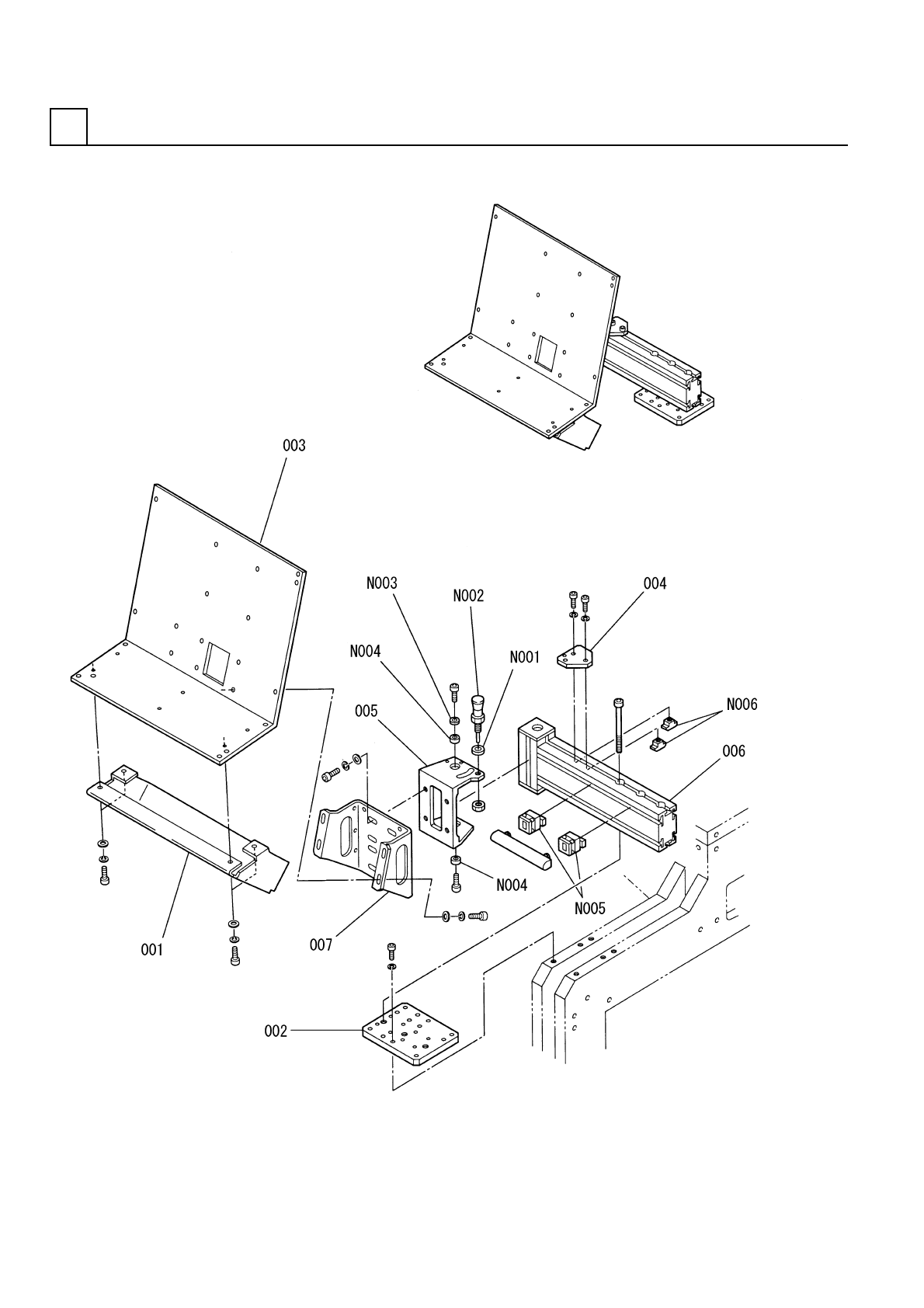

ﾒｲﾝｺﾝｿｰﾙﾊﾟﾈﾙ取付部
MAIN CONSOLE PANEL ATTACHMENT SECT.
24
FN610066189AA_03
M191
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
24
ﾒｲﾝｺﾝｿｰﾙﾊﾟﾈﾙ取付部
MAIN CONSOLE PANEL ATTACHMENT SECT.
部 品 名 品 番 個数 備 考
R
1
R
2
1 N610066189AA
PANEL ATTACHMENT UNIT ﾊﾟﾈﾙﾄﾘﾂｹﾕﾆｯﾄ
1
001 N210071661AB
UNDER COVER ｱﾝﾀﾞｰｶﾊﾞｰ
1
002 N210078856AA
SUPPORT PLATE ｻﾎﾟｰﾄﾌﾟﾚｰﾄ
1003 N210071662AD
PLATE ﾌﾟﾚｰﾄ
1004 N210089344AA
PLATE ﾌﾟﾚｰﾄ
1
005 N210088860AC
BRACKET ﾌﾞﾗｹｯﾄ
1
006 N610075857AB
FRAME ﾌﾚｰﾑ
1007 N210085321AC
BRACKET ﾌﾞﾗｹｯﾄ
PXC-10X12X6
1
N001
N510036715AA
COLLAR ｶﾗ-
PXXS-5-A
1
N002
N510036373AA
PLUNGER ﾌﾟﾗﾝｼﾞｬ
87CBBF4-8
1
N003
N510036716AA
SPACER ｽﾍﾟｰｻ
87FNCLCH-V12.0-D16.0-L
2
N004
N510036575AA
COLLAR ｶﾗ-
3 842 526 564
2
N005
N510038683AA
BRACKET ﾌﾞﾗｹｯﾄ
3 842 529 298
2
N006
N510038681AA
BLOCK ﾌﾞﾛｯｸ
M192
FN610066189AA_03
