X-Yﾃｰﾌﾞﾙ部(自動幅寄せ部1) X-Y TABLE SECT .(AUTO W IDTH CONT ROL SECT. -1) 25 FN610055726AA_01-1 M193
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
24
ﾒｲﾝｺﾝｿｰﾙﾊﾟﾈﾙ取付部
MAIN CONSOLE PANEL ATTACHMENT SECT.
部 品 名 品 番 個数 備 考
R
1
R
2
1 N610066189AA
PANEL ATTACHMENT UNIT ﾊﾟﾈﾙﾄﾘﾂｹﾕﾆｯﾄ
1
001 N210071661AB
UNDER COVER ｱﾝﾀﾞｰｶﾊﾞｰ
1
002 N210078856AA
SUPPORT PLATE ｻﾎﾟｰﾄﾌﾟﾚｰﾄ
1003 N210071662AD
PLATE ﾌﾟﾚｰﾄ
1004 N210089344AA
PLATE ﾌﾟﾚｰﾄ
1
005 N210088860AC
BRACKET ﾌﾞﾗｹｯﾄ
1
006 N610075857AB
FRAME ﾌﾚｰﾑ
1007 N210085321AC
BRACKET ﾌﾞﾗｹｯﾄ
PXC-10X12X6
1
N001
N510036715AA
COLLAR ｶﾗ-
PXXS-5-A
1
N002
N510036373AA
PLUNGER ﾌﾟﾗﾝｼﾞｬ
87CBBF4-8
1
N003
N510036716AA
SPACER ｽﾍﾟｰｻ
87FNCLCH-V12.0-D16.0-L
2
N004
N510036575AA
COLLAR ｶﾗ-
3 842 526 564
2
N005
N510038683AA
BRACKET ﾌﾞﾗｹｯﾄ
3 842 529 298
2
N006
N510038681AA
BLOCK ﾌﾞﾛｯｸ
M192
FN610066189AA_03
X-Yﾃｰﾌﾞﾙ部(自動幅寄せ部1)
X-Y TABLE SECT.(AUTO WIDTH CONTROL SECT.-1)
25
FN610055726AA_01-1
M193
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
25

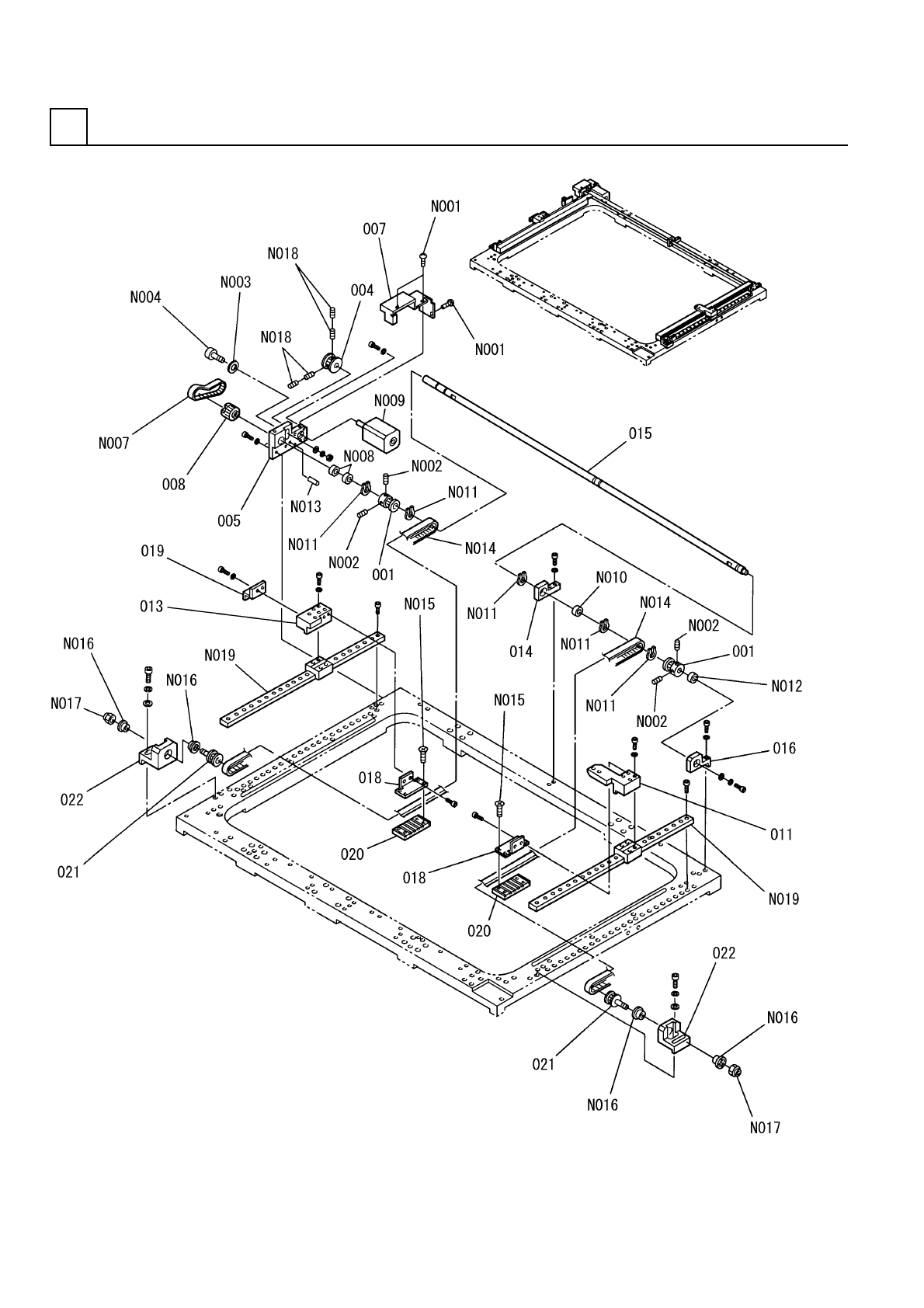

X-Yﾃｰﾌﾞﾙ部(自動幅寄せ部1)
X-Y TABLE SECT.(AUTO WIDTH CONTROL SECT.-1)
部 品 名 品 番 個数 備 考
R
1
R
2
1 N610055726AA
AUTO WIDTH CONTROL UNIT ｼﾞﾄﾞｳﾊﾊﾞﾖｾﾕﾆｯﾄ
2
001 108710410102
PULLEY ﾌﾟｰﾘｰ
1
004 108710410403
PULLEY ﾌﾟｰﾘｰ
1005 108710410502
BRACKET(MOTOR) ﾌﾞﾗｹｯﾄ(ﾓｰﾀ)
1007 108710410703
COVER(MOTOR) ｶﾊﾞｰ(ﾓｰﾀ)
1
008 108710410802
PULLEY ﾌﾟｰﾘｰ
1
011 N210068281AB
BLOCK ﾌﾞﾛｯｸ
1013 N210068282AA
BLOCK ﾌﾞﾛｯｸ
1014 1087104114
BRACKET ﾌﾞﾗｹｯﾄ
1
015 N210068290AA
SHAFT ｼｬﾌﾄ
1016 N210068283AA
BRACKET ﾌﾞﾗｹｯﾄ
2018 N210068284AA
BRACKET ﾌﾞﾗｹｯﾄ
1
019 N210068289AB
DOG FOR SENSOR ﾄﾞｸﾞ
2
020 108710412002
BRACKET ﾌﾞﾗｹｯﾄ
2021 108710412102
PULLEY ﾌﾟｰﾘｰ
2022 N210068291AB
BRACKET ﾌﾞﾗｹｯﾄ
M3X6-4.8 A2J (Trivalen
5
N001
N510018253AA
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
M3X5,STEEL,P.C
4
N002
XXE3C5FP
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ
87FWSSB-D10.0-V6.0-T3.
1
N003
N510028564AA
WASHER ｻﾞｶﾞﾈ
CF6A
1
N004
N531CF6A
CAM FOLLOWER ｶﾑﾌｫﾛｱ
196-2GT-9
1
N007
N6411962GT9
BELT ﾍﾞﾙﾄ
F688AZZ1
2
N008
KXF0DYPHA00
BEARING ﾍﾞｱﾘﾝｸﾞ
103H5331-03GXF4 S
1
N009
N510028188AA
MOTOR ﾓｰﾀ
688AZZ1
1
N010
KXF0E2FJA00
BEARING ﾍﾞｱﾘﾝｸﾞ
STW-8
5
N011
KXF04D1AA00
RETAINING RING C-TYPE,SHAFT C ｶﾞﾀｼﾞｸﾖｳﾄﾒﾜ
606ZZ
1
N012
KXF00KFAA00
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
3X8,m6A,STEEL
1
N013
XPJ3A8FW
PARALLEL PIN ﾍｲｺｳﾋﾟﾝ
994-2GT-9
2
N014
N6419942GT9
BELT(TIMING) ﾍﾞﾙﾄ(ﾀｲﾐﾝｸﾞ)
M3X8-4.8 A2J (Trivalen
8
N015
N510018161AA
FLUSH HEAD SCREW ｻﾗｺﾈｼﾞ
F605ZZ
4
N016
KXF0AL7AA00
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
M5,SUS301,2-TYPE,SS400
2
N017
N510044550AA
NUT U ﾅｯﾄ
M3X4-45H A2S (Trivalen
4
N018
N510018421AA
WASHER ｻﾞｶﾞﾈ
SRS9MUUC1+450LHM-2
2
N019
N513SRS9-A56
LINEAR MOTION UNIT(W) ﾘﾆｱﾓｰｼｮﾝﾕﾆｯﾄ(W)
M194
FN610055726AA_01-1
