Mechanical Parts List - 第216页
X-Yﾃｰﾌﾞﾙ部(自動幅寄せﾚﾊﾞｰ部(D=5.0)) X-Y TABLE SECT .(AUTO W IDTH CONT ROL LEVER SECT.(D=5 .0)) 25 FN610061657AA_00 M199
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
25
X-Yﾃｰﾌﾞﾙ部(ﾋﾟﾝ自動幅寄せ部)
X-Y TABLE SECT.(PIN AUTO WIDTH CONTROL SECT.)
部 品 名 品 番 個数 備 考
R
1
R
2
1 N610054629AA
PIN AUTO POSITION CONTROL U ﾋﾟﾝｼﾞﾄﾞｳﾊﾊﾞﾖｾﾕﾆｯﾄ
1
001 N210077740AA
BLOCK(LEFT) ﾌﾞﾛｯｸ(LEFT)
1
002 1087114102
BLOCK ﾌﾞﾛｯｸ
1003 1087114103
LEVER ﾚﾊﾞｰ
1004 1041314104
SHAFT ｼｬﾌﾄ
1
005 N210049473AA
SPRING ﾊﾞﾈ
1
006 1087114106
DOG FOR SENSOR ﾄﾞｸﾞ
1007 N210068920AB
DOG FOR SENSOR ﾄﾞｸﾞ
1008 1087114108
BLOCK ﾌﾞﾛｯｸ
1
009 N210076926AA
HOUSING ﾊｳｼﾞﾝｸﾞ
1010 1087114111
HOUSING ﾊｳｼﾞﾝｸﾞ
MDK1202-3RRGT+591.3LC5
1011 N210076368AA
BALL SCREW ﾎﾞｰﾙﾈｼﾞ
LT10UUCL+812.5L
1
012 N210068925AA
BALL SPLINE ﾎﾞｰﾙｽﾌﾟﾗｲﾝ
1
013 1087114114
LM GUIDE LMｶﾞｲﾄﾞ
1014 N210076180AA
BRACKET ﾌﾞﾗｹｯﾄ
1015 N210076178AB
BLOCK ﾌﾞﾛｯｸ
1
016 1041314124
BLOCK ﾌﾞﾛｯｸ
1
017 1020714161
STOPPER ｽﾄｯﾊﾟｰ
1018 N210076179AA
BRACKET ﾌﾞﾗｹｯﾄ
6800ZZ
2
N001
KXF00M6AA00
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
698ZZ
1
N002
KXF00MWAA00
BEARING ﾍﾞｱﾘﾝｸﾞ
F688ZZ
3
N003
KXF020PAA00
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
P914S1
1
N004
N310P914S1
SENSOR ｾﾝｻ
4,STEEL,P.C
1
N005
XUB4FP
RETAINING RING C-TYPE, SHAF C ｶﾞﾀｼﾞｸﾖｳﾄﾒﾜ
M4-6H-4T A2J (Trivalen
1
N006
N510017859AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
103H5331-03CXA4 S
1
N007
N510030658AA
MOTOR ﾓｰﾀ
MSX-19C-ph6Xph8
1
N008
N644MSX1-178
COUPLING ｶｯﾌﾟﾘﾝｸﾞ
SUB-M5X20
1
N009
N510028255AA
BOLT ﾎﾞﾙﾄ
87FWASM-D15.0-V10.0-T3
1
N010
N510028278AA
WASHER ｻﾞｶﾞﾈ
M3X4-45H A2J (Trivalen
1
N011
N510018420AA
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ
M4X8-4.8 A2J (Trivalen
2
N012
N510018282AA
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
3X8,A TYPE
4
N013
XPM3A8FW
DOWEL PIN ﾀﾞｳｴﾙﾋﾟﾝ
M198
FN610054629AA_00
X-Yﾃｰﾌﾞﾙ部(自動幅寄せﾚﾊﾞｰ部(D=5.0))
X-Y TABLE SECT.(AUTO WIDTH CONTROL LEVER SECT.(D=5.0))
25
FN610061657AA_00
M199
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
25

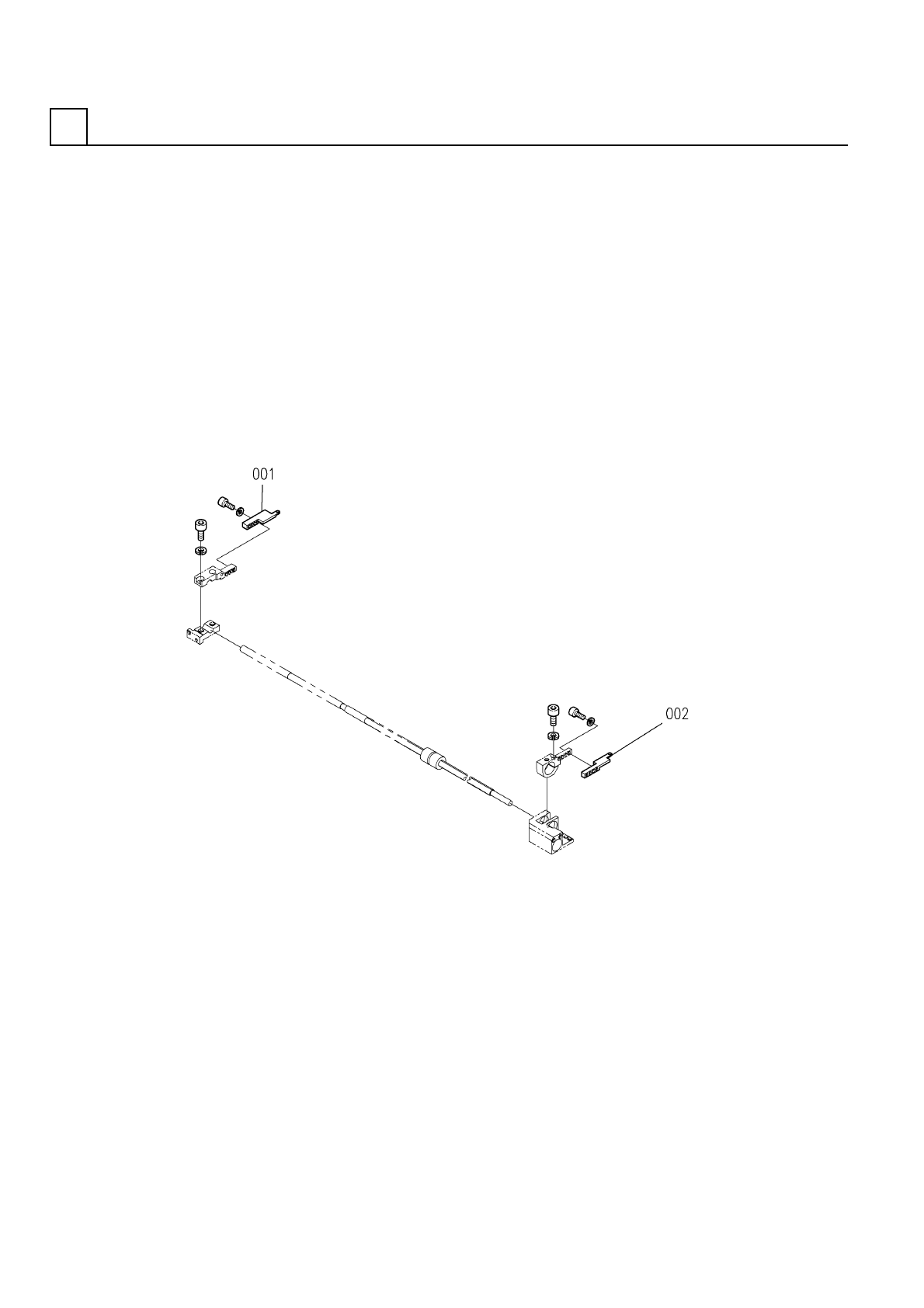

X-Yﾃｰﾌﾞﾙ部(自動幅寄せﾚﾊﾞｰ部(D=5.0))
X-Y TABLE SECT.(AUTO WIDTH CONTROL LEVER SECT.(D=5.0))
部 品 名 品 番 個数 備 考
R
1
R
2
1 N610061657AA
LEVER UNIT ﾚﾊﾞｰﾕﾆｯﾄ
1
001 N210077741AA
LEVER(LEFT) ﾚﾊﾞｰ(LEFT)
1
002 N210076924AA
LEVER(RIGHT) ﾚﾊﾞｰ(RIGHT)
M200
FN610061657AA_00
