Mechanical Parts List - 第234页
ﾛｰﾀﾞ･ｱﾝﾛｰﾀﾞ部(自動幅寄せ部2) LOADER & UNLOA DER SECT .(AUTO WI DTH CONTR OL SECT.-2 ) 26 FN610055731AA_00-2 M217
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
26
ﾛｰﾀﾞ･ｱﾝﾛｰﾀﾞ部(自動幅寄せ部1)
LOADER & UNLOADER SECT.(AUTO WIDTH CONTROL SECT.-1)
部 品 名 品 番 個数 備 考
R
1
R
2
1 N610055731AA
LOADER & UNLOADER UNIT ﾛｰﾀﾞｱﾝﾛｰﾀﾞﾕﾆｯﾄ
1
001 N210078205AA
PULLEY ﾌﾟｰﾘｰ
1
002 N210083152AA
DOG FOR SENSOR (R) ﾄﾞｸﾞ(R)
1004 N210070021AA
BLOCK ﾌﾞﾛｯｸ
1005 N210070022AB
PULLEY ﾌﾟｰﾘｰ
1
006 N210070025AA
PLATE ﾌﾟﾚｰﾄ
1
007 N210075906AA
BRACKET ﾌﾞﾗｹｯﾄ
1009 N210079975AA
BRACKET ﾌﾞﾗｹｯﾄ
1010 N210070783AA
SCREW ﾈｼﾞ
1
011 109970514001
COLLAR ｶﾗｰ
T5-10-50
1
N001
N641T51050
BELT(TIMING) ﾍﾞﾙﾄ(ﾀｲﾐﾝｸﾞ)
P914S1
1
N002
N310P914S1
SENSOR ｾﾝｻ
103H7832-0312(DDA) S
1
N003
KXF0DZDRA00
MOTOR ﾓｰﾀ
SCSS1618ZD
2
N004
N510034925AA
COLLAR ｶﾗ-
6001ZZ
2
N005
XLC6001ZZ
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
M4X8-4.8 A2J (Trivalen
6
N006
N510018282AA
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
FU01SS
2
N007
KXF0233AA00
LOCK-NUT ﾛｯｸﾅｯﾄ
M4X6-45H A2J (Trivalen
3
N008
N510018438AA
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ
SCSS1618ZD
2
N009
N510034925AA
COLLAR ｶﾗ-
M216
FN610055731AA_00-1
ﾛｰﾀﾞ･ｱﾝﾛｰﾀﾞ部(自動幅寄せ部2)
LOADER & UNLOADER SECT.(AUTO WIDTH CONTROL SECT.-2)
26
FN610055731AA_00-2
M217
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
26

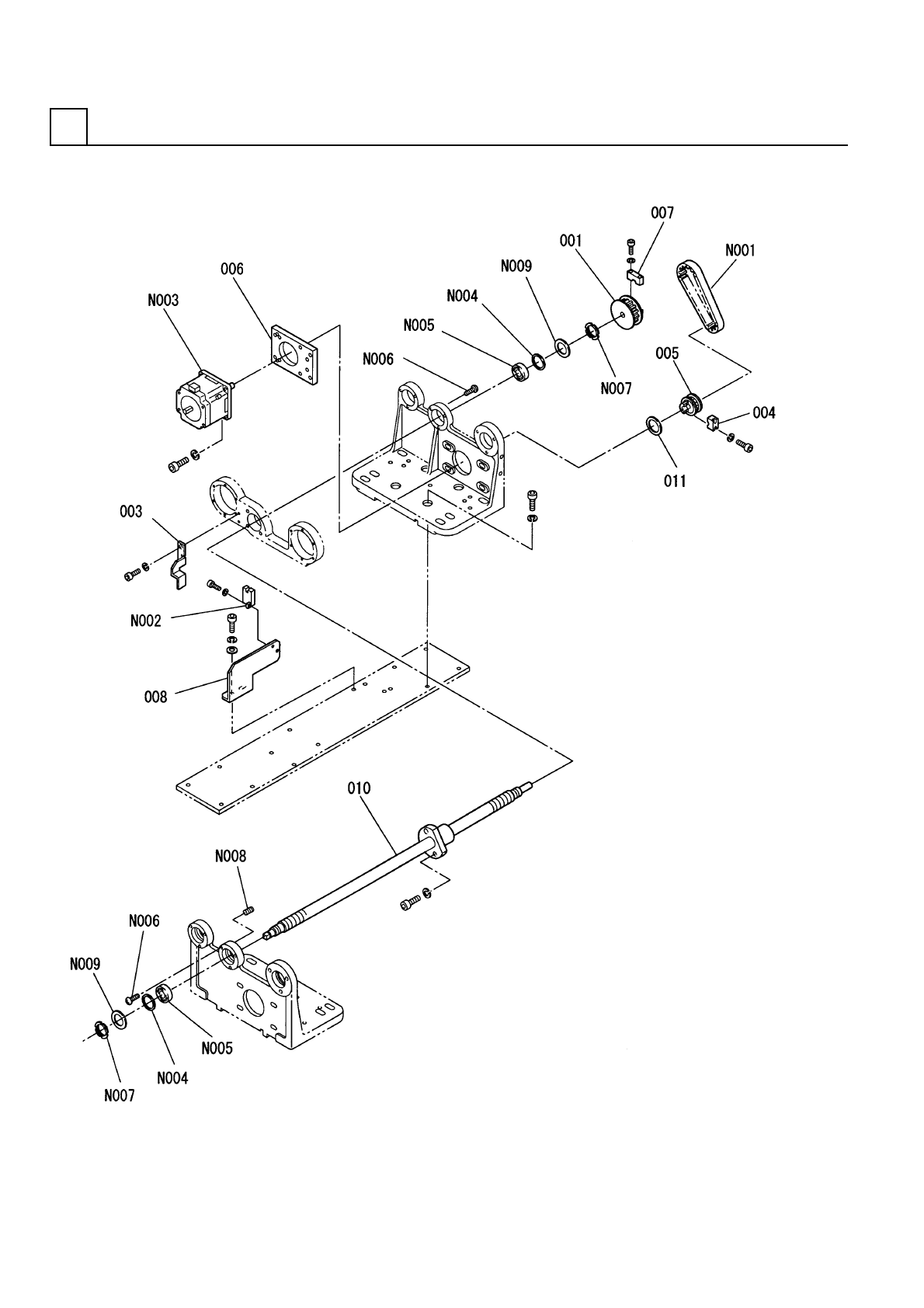

ﾛｰﾀﾞ･ｱﾝﾛｰﾀﾞ部(自動幅寄せ部2)
LOADER & UNLOADER SECT.(AUTO WIDTH CONTROL SECT.-2)
部 品 名 品 番 個数 備 考
R
1
R
2
1001 N210078205AA
PULLEY ﾌﾟｰﾘｰ
1
003 N210083151AA
DOG FOR SENSOR (L) ﾄﾞｸﾞ(L)
1
004 N210070021AA
BLOCK ﾌﾞﾛｯｸ
1005 N210070022AB
PULLEY ﾌﾟｰﾘｰ
1006 N210070025AA
PLATE ﾌﾟﾚｰﾄ
1
007 N210075906AA
BRACKET ﾌﾞﾗｹｯﾄ
1
008 N210079974AA
BRACKET ﾌﾞﾗｹｯﾄ
1010 N210070783AA
SCREW ﾈｼﾞ
1011 109970514001
COLLAR ｶﾗｰ
T5-10-50
1
N001
N641T51050
BELT(TIMING) ﾍﾞﾙﾄ(ﾀｲﾐﾝｸﾞ)
P914S1
1
N002
N310P914S1
SENSOR ｾﾝｻ
103H7832-0312(DDA) S
1
N003
KXF0DZDRA00
MOTOR ﾓｰﾀ
SCSS1618ZD
2
N004
N510034925AA
COLLAR ｶﾗ-
6001ZZ
2
N005
XLC6001ZZ
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
M4X8-4.8 A2J (Trivalen
6
N006
N510018282AA
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
FU01SS
2
N007
KXF0233AA00
LOCK-NUT ﾛｯｸﾅｯﾄ
M4X6-45H A2J (Trivalen
3
N008
N510018438AA
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ
SCSS1618ZD
2
N009
N510034925AA
COLLAR ｶﾗ-
M218
FN610055731AA_00-2
