本体部(穴 ｶﾊ ﾞｰ 部) MAIN BODY SECT .(HOLE C OVER SECT .) 1 FN610080803AA_00 M7
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
1
本体部(ｱｯﾊﾟﾌﾚｰﾑ部)
MAIN BODY SECT.(UPPER FRAME SECT.)
部 品 名 品 番 個数 備 考
R
1
R
2
1 N610073211AA
MAIN BODY UNIT ﾎﾝﾀｲﾕﾆｯﾄ
1
001 N210096695AB
ARM(RIGHT) ｱｰﾑ(RIGHT)
1
002 N210088040AC
UPPER BASE ﾍﾞｰｽ(ｱｯﾊﾟｰ)
1003 N210088041AA
PLATE ﾌﾟﾚｰﾄ
1004 N210088042AA
PLATE ﾌﾟﾚｰﾄ
1
005 N210088043AB
PLATE ﾌﾟﾚｰﾄ
1
006 N210088044AB
PLATE ﾌﾟﾚｰﾄ
1007 N210096696AC
ARM(LEFT) ｱｰﾑ(LEFT)
1008 N210066040AB
BRACKET ﾌﾞﾗｹｯﾄ
1
009 N210090531AC
BRACKET ﾌﾞﾗｹｯﾄ
1010 N210090533AB
BRACKET ﾌﾞﾗｹｯﾄ
1011 N210090534AA
COVER ｶﾊﾞｰ
MMS10-40
3
N001
N510020647AA
PIN ﾋﾟﾝ
MMS8-15
3
N002
N510020629AA
PIN ﾋﾟﾝ
YD-8U10 S
1
N003
N510011080AA
FLOPPY DISK DRIVE FDD
YD-8V06 S
1
N004
N510014081AA
CARD READER ｶｰﾄﾞﾘｰﾀﾞ
M12X35-10.9 A2J (Triva
7
N501
N510017190AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
12 10H A2J (Trivalent)
7
N502
N510018507AA
WASHER ﾋﾗｻﾞｶﾞﾈ
M10X25-10.9 A2J (Triva
25
N503
N510017166AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M12X25-10.9 A2J (Triva
9
N504
N510017188AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M6
FN610073211AA_07
本体部(穴ｶﾊﾞｰ部)
MAIN BODY SECT.(HOLE COVER SECT.)
1
FN610080803AA_00
M7
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
1

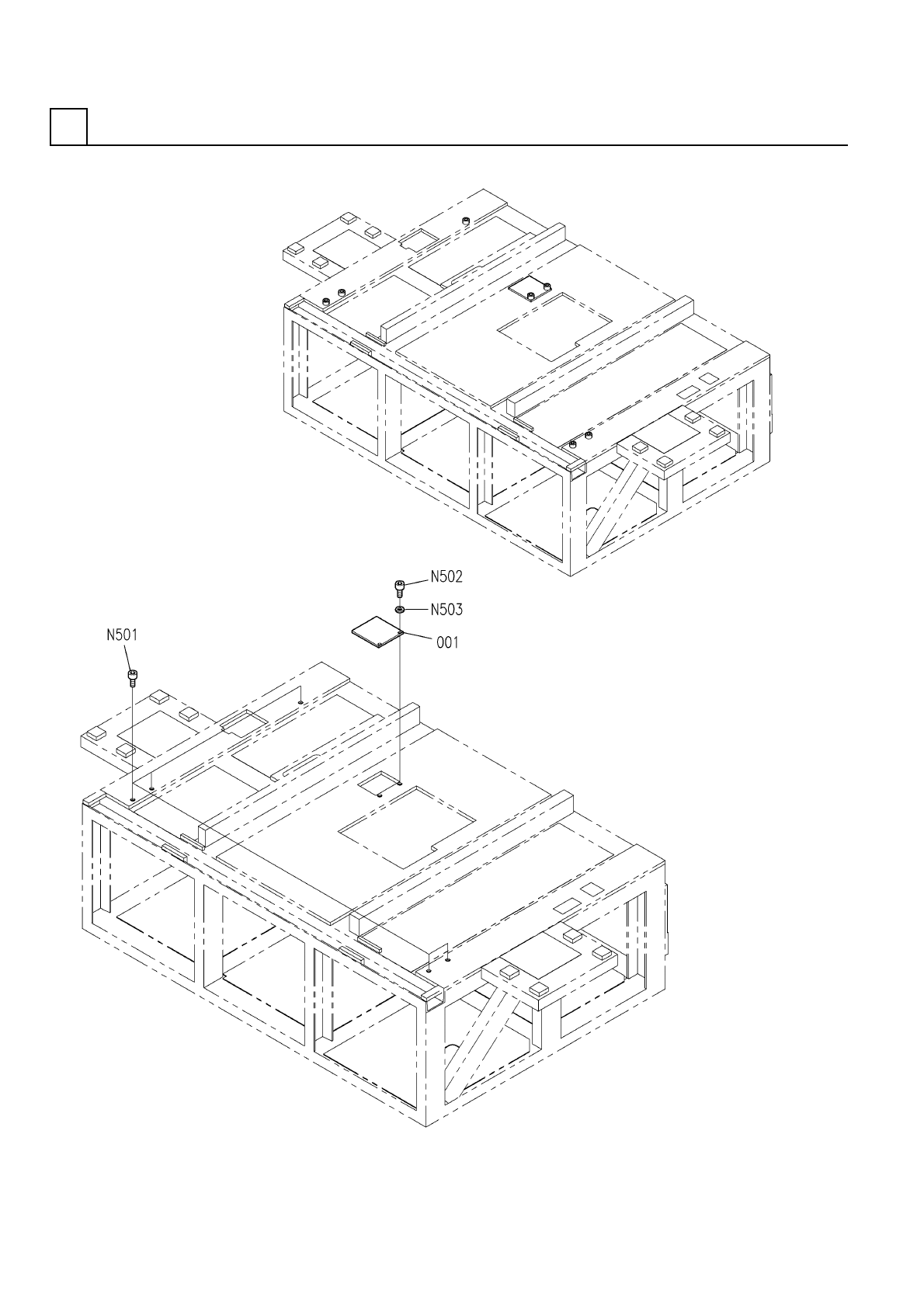

本体部(穴ｶﾊﾞｰ部)
MAIN BODY SECT.(HOLE COVER SECT.)
部 品 名 品 番 個数 備 考
R
1
R
2
1 N610080803AA
MAIN BODY UNIT ﾎﾝﾀｲﾕﾆｯﾄ
1
001 N210098976AA
COVER ｶﾊﾞｰ
M12X20-10.9 A2J (Triva
5
N501
N510017187AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X10-10.9 A2J (Trival
2
N502
N510017344AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
4 10H A2J (Trivalent)
2
N503
N510018497AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
M8
FN610080803AA_00
