Mechanical Parts List - 第32页
ｶﾊﾞｰ部(共通部3) COVER SECT.(CO MMON SEC T.-3) 3 FN610070383AA_04-3 M15
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
3
ｶﾊﾞｰ部(共通部2)
COVER SECT.(COMMON SECT.-2)
部 品 名 品 番 個数 備 考
R
1
R
2
1002 N210105128AA
FRONT COVER(RIGHT) ﾌﾛﾝﾄｶﾊﾞｰ(RIGHT)
1
003 N210105129AB
FRONT COVER ﾌﾛﾝﾄｶﾊﾞｰ
1
004 N210105127AA
FRONT COVER(LEFT) ﾌﾛﾝﾄｶﾊﾞｰ(LEFT)
1011 1046702086
GUIDE ｶﾞｲﾄﾞ
1016 N210086430AC
SIDE COVER(RIGHT) ｻｲﾄﾞｶﾊﾞｰ(RIGHT)
1
017 N210086431AC
SIDE COVER(LEFT) ｻｲﾄﾞｶﾊﾞｰ(LEFT)
1
022 1087105805
BRACKET ﾌﾞﾗｹｯﾄ
1026 3086239031
LABEL ﾗﾍﾞﾙ
6027 N210071792AB
BRACKET ﾌﾞﾗｹｯﾄ
1
032 N210090530AA
SHAFT ｼｬﾌﾄ
1033 N210090532AA
COVER ｶﾊﾞｰ
D4NS-1BF S
1
N002
N510015338AA
SWITCH ｽｲｯﾁ
ST13.5
1
N004
KXF06F4AA00
JOINT ｼﾞｮｲﾝﾄ
XW1E-BV402MFR-TK2377 S
1
N005
N510011524AA
SWITCH ｽｲｯﾁ
C-100-B-2
2
N011
KXF01BNAA00
MAGNETIC CATCH ﾏｸﾞﾈｯﾄｷｬｯﾁ
ETW-2.5
2
N015
KXF01XAAA00
E-RING E ﾘﾝｸﾞ
JB-A M5X8 +
2
N019
N510038044AA
BOLT ﾎﾞﾙﾄ
M5X12
2
N020
N986YYYY-814
CAP ｷｬｯﾌﾟ
5 External toothed Ste
2
N023
N510018765AA
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
6 External toothed Ste
2
N024
N510018767AA
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
M5-6H-4T A2J (Trivalen
4
N026
N510017862AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M3X6-4.8 A2J (Trivalen
4
N027
N510018158AA
FLUSH HEAD SCREW ｻﾗｺﾈｼﾞ
M14
FN610070383AA_04-2

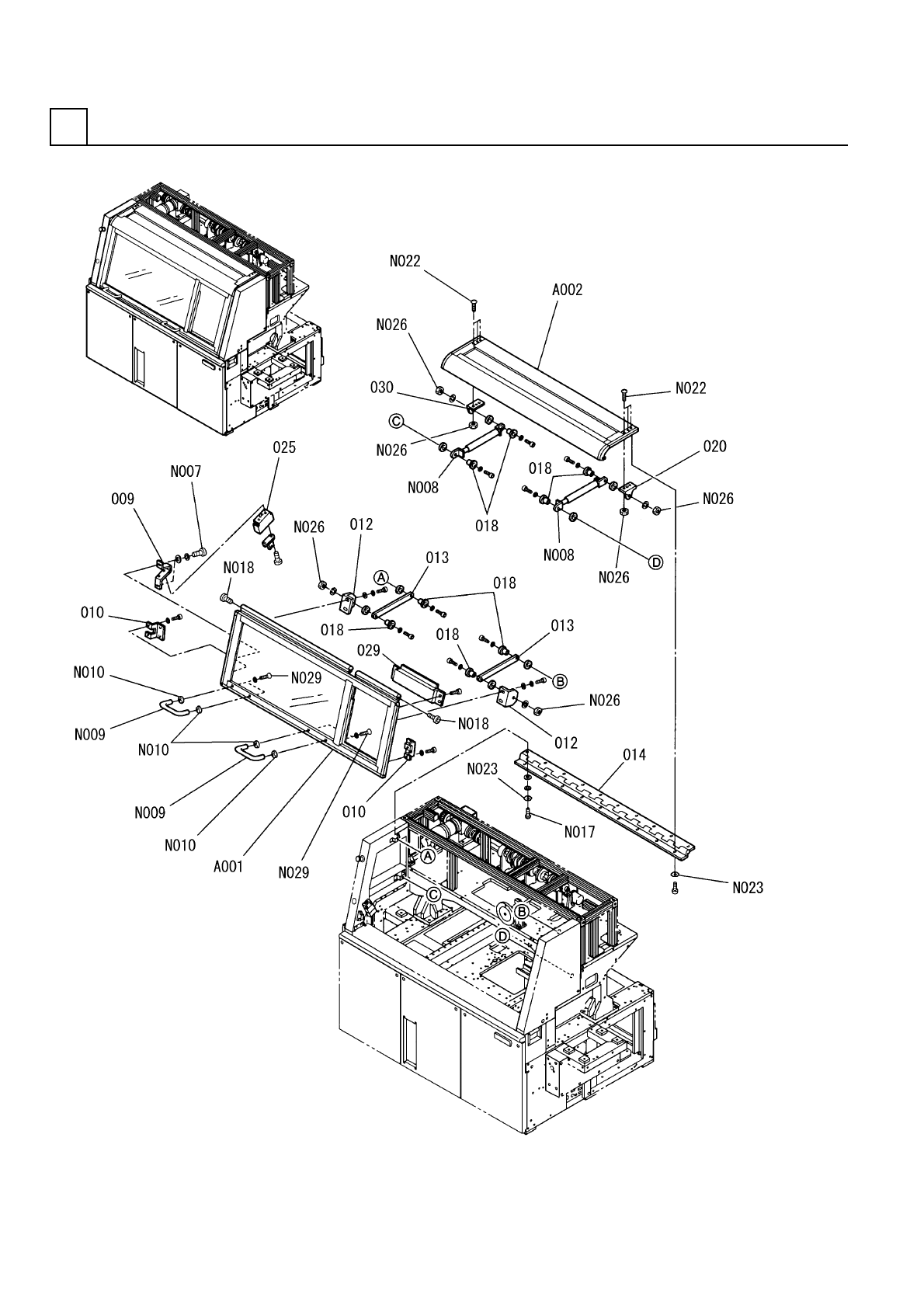

ｶﾊﾞｰ部(共通部3)
COVER SECT.(COMMON SECT.-3)
3
FN610070383AA_04-3
M15
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
3
ｶﾊﾞｰ部(共通部3)
COVER SECT.(COMMON SECT.-3)
部 品 名 品 番 個数 備 考
R
1
R
2
S
1009 N210072142AA
BRACKET ﾌﾞﾗｹｯﾄ
2
010 104680203103
BRACKET ﾌﾞﾗｹｯﾄ
2
012 N210086548AA
BRACKET ﾌﾞﾗｹｯﾄ
2013 N210086429AA
ARM ｱｰﾑ
1014 N210070857AA
HINGE ﾋﾝｼﾞ
8
018 1083802078
BUSHING ﾌﾞｯｼｭ
1
020 N210086555AB
BRACKET ﾌﾞﾗｹｯﾄ
1025 1087102064
BRACKET ﾌﾞﾗｹｯﾄ
1029 N210073367AB
COVER ｶﾊﾞｰ
1
030 N210086572AB
BRACKET ﾌﾞﾗｹｯﾄ
S
1
A001
N610061398AB
FRONT COVER ﾌﾛﾝﾄｶﾊﾞｰ
1
A002
N610061399AB
TOP COVER ﾄｯﾌﾟｶﾊﾞｰ
TX010510
2
N007
N510002054AA
BOLT ﾎﾞﾙﾄ(ﾄﾙｸｽｱﾅﾂｷﾎﾞﾀﾝ)
30R0 S
2
N008
N98630R0
GAS SPRING ｶﾞｽｽﾌﾟﾘﾝｸﾞ
THA-31-13-TAP LEG
2
N009
N510024017AA
DRAWER PULL ﾄｯﾃ
THA-268-4(TG)
4
N010
N510023902AA
WASHER ｻﾞｶﾞﾈ
BN1206M5X12
10
N017
N986BN12-R26
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
EH0612 (Trivalent)
2
N018
N510019215AA
BOLT ﾎﾞﾙﾄ
M5X18-10.9 AJ2 (Trival
6
N022
N510017397AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
5 External toothed Ste
19
N023
N510018765AA
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
M5-6H-4T A2J (Trivalen
10
N026
N510017862AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M6X25-10.9 A2J (Trival
2
N029
N510017650AA
BOLT ﾛｯｶｸｱﾅﾂｷｻﾗﾎﾞﾙﾄ
M16
FN610070383AA_04-3
