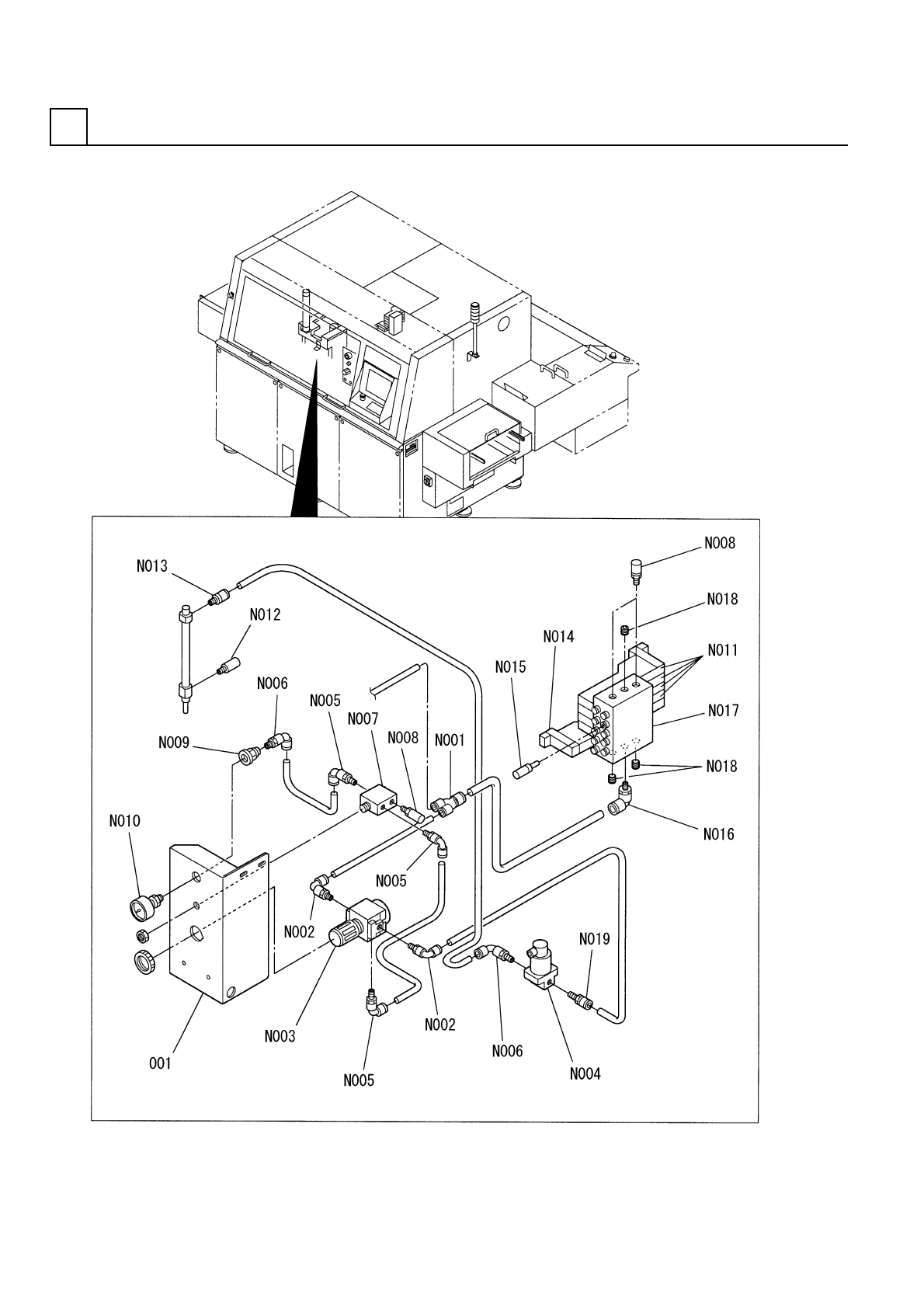

空圧制御部 PNEUMATIC SYST EM SECT. 1 FN610070310AA_03 P3
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
1
空圧制御部(共通部)
PNEUMATIC SYSTEM SECT.(COMMON SECT.)
部 品 名 品 番 個数 備 考
R
1
R
2
1 N610060943AA
PNEUMATIC SYSTEM ｸｳｱﾂｾｲｷﾞｮﾕﾆｯﾄ
OUA8X12-5M-03B
1
N001
N510002541AA
TUBE WITH FITTING ﾁｭｰﾌﾞﾕﾆｯﾄ
NK-81197
1
N002
N510038083AA
OIL MIST SEPARATOR WITH/R ｵｲﾙﾐｽﾄｾﾊﾟﾚｰﾀﾚｷﾞｭﾚｰﾀ
KQ2T10-00
2
N003
KXF0E496A00
FITTING ﾂｷﾞﾃ
KQ2U10-99
2
N004
N431KQ2U1099
FITTING ﾂｷﾞﾃ
KQ2E10-00
2
N005
KXF0E2G5A00
FITTING ﾂｷﾞﾃ
KQ2P-10
3
N006
KXF0DZKSA00
PLUG ﾌﾟﾗｸﾞ
NK-80533-1
1
N007
N411NK805331
SOLENOID VALVE ｿﾚﾉｲﾄﾞﾊﾞﾙﾌﾞ
NK-81220
1
N008
N510038086AA
MANIFOLD ﾏﾆﾎｰﾙﾄﾞ
NK-81221
1
N009
N510038085AA
MANIFOLD ﾏﾆﾎｰﾙﾄﾞ
KQ2U06-00
3
N010
KXF0A3FAA00
FITTING ﾂｷﾞﾃ
KQ2P-06
1
N011
KXF09ZBAA00
PLUG ﾌﾟﾗｸﾞ
TU0604B-20
1
N012
KXF03U6AA00
TUBE ﾁｭｰﾌﾞ
TU1065B-20
1
N013
KXF03V4AA00
TUBE ﾁｭｰﾌﾞ
VQ31A1-5GZ-C10-F-Q
1V 1 N411VQ31-936
SOLENOID VALVE ｿﾚﾉｲﾄﾞﾊﾞﾙﾌﾞ
KQ2L06-99
1V 2 KXF0DZJ5A00
JOINT ｼﾞｮｲﾝﾄ
KQ2L10-01S
1
V 3 KXF0E0YFA00
FITTING ﾂｷﾞﾃ
VV5QZ15-03C6C
1
V 4 N510041347AA
MANIFOLD ﾏﾆﾎｰﾙﾄﾞ
VQZ1351-5LO
1V 5 N510009400AA
SOLENOID VALVE ｿﾚﾉｲﾄﾞﾊﾞﾙﾌﾞ
VQZ1151-5LO
1V 6 N411VQZ1-694
SOLENOID VALVE ｿﾚﾉｲﾄﾞﾊﾞﾙﾌﾞ
VVQZ1000-10A-5
1
V 7 N415VVQZ-895
PLATE ﾌﾟﾚｰﾄ
AN103-01
4
V 8 KXF00W9AA00
SILENCER ｻｲﾚﾝｻ
PT1/8
3V 9 N42201
PLUG ﾌﾟﾗｸﾞ
AXT661-14A-6
5V10 N411AXT6-410
CONNECTOR ｺﾈｸﾀ
KQ2S10-01S
1
V11 N431KQ2S-237
FITTING ﾂｷﾞﾃ
VQZ1351-5LO-01
1V12 N510009405AA
MANIFOLD ﾏﾆﾎｰﾙﾄﾞ
KJS06-01S
2V13 KXF031AA00
PLUG ﾌﾟﾗｸﾞ
P2
FN610060943AA_00
空圧制御部
PNEUMATIC SYSTEM SECT.
1
FN610070310AA_03
P3
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
1
空圧制御部
PNEUMATIC SYSTEM SECT.
部 品 名 品 番 個数 備 考
R
1
R
2
1 N610070310AA
PNEUMATIC SYSTEM ｸｳｱﾂｾｲｷﾞｮﾕﾆｯﾄ
1
001 N210099142AA
BRACKET ﾌﾞﾗｹｯﾄ
KQ2U10-00
1
N001
KXF0E495A00
FITTING ﾂｷﾞﾃ
KQ2L10-02S
2
N002
N431KQ2L-165
FITTING ﾂｷﾞﾃ
AR20-02
1
N003
N510024039AA
REGULATOR ﾚｷﾞｭﾚｰﾀ
AM250-02B
1
N004
N510038091AA
REGULATOR ﾚｷﾞｭﾚｰﾀ
KQ2L06-01S
3
N005
KXF0DYW0A00
FITTING ﾂｷﾞﾃ
KQ2L10-02S
2
N006
KXF0DYXPA00
JOINT ｼﾞｮｲﾝﾄ
31P
1
N007
N41331P
VALVE ﾊﾞﾙﾌﾞ
AN103-01
3
N008
KXF00W9AA00
SILENCER ｻｲﾚﾝｻ
PF-1/4-1/4-BS
1
N009
N431PF02-219
FITTING ﾂｷﾞﾃ
G46-4-02-X259
1
N010
N439G464-008
GAUGE ｹﾞｰｼﾞ
VQZ1151-5LO
4
N011
N411VQZ1-694
SOLENOID VALVE ｿﾚﾉｲﾄﾞﾊﾞﾙﾌﾞ
AN120-M5
1
N012
KXF00WCAA00
SILENCER ｻｲﾚﾝｻ
KQ2H06-M5
1
N013
KXF0A3QAA00
FITTING ﾂｷﾞﾃ
VQZ1351-5LO
1
N014
N510009400AA
SOLENOID VALVE ｿﾚﾉｲﾄﾞﾊﾞﾙﾌﾞ
KQ2P-06
1
N015
KXF09ZBAA00
PLUG ﾌﾟﾗｸﾞ
KQ2L10-01S
1
N016
KXF0E0YFA00
FITTING ﾂｷﾞﾃ
VV5QZ15-05C6C
1
N017
N510009402AA
MANIFOLD ﾏﾆﾎｰﾙﾄﾞ
87MSWT1
3
N018
N510023436AA
PLUG ﾌﾟﾗｸﾞ
KQ2H10-02S
1
N019
KXF0E1Z4A00
FITTING ﾂｷﾞﾃ
P4
