PART No. ｲﾗｽﾄ No. REF No. PART NAME REMARKS Q'TY 1 空圧制御 部(80ｽﾃｰｼｮﾝ部) PNEUMATIC SYST EM SECT. (80 STATI ON SECT.) 部 品 名 品 番 個数 備 考 R 1 R 2 1 N610070313AA PNEUMATIC UNI T ｸｳｱﾂﾕﾆｯﾄ KQ2T10-00 1 N001 KXF0E496A00 FITTING …

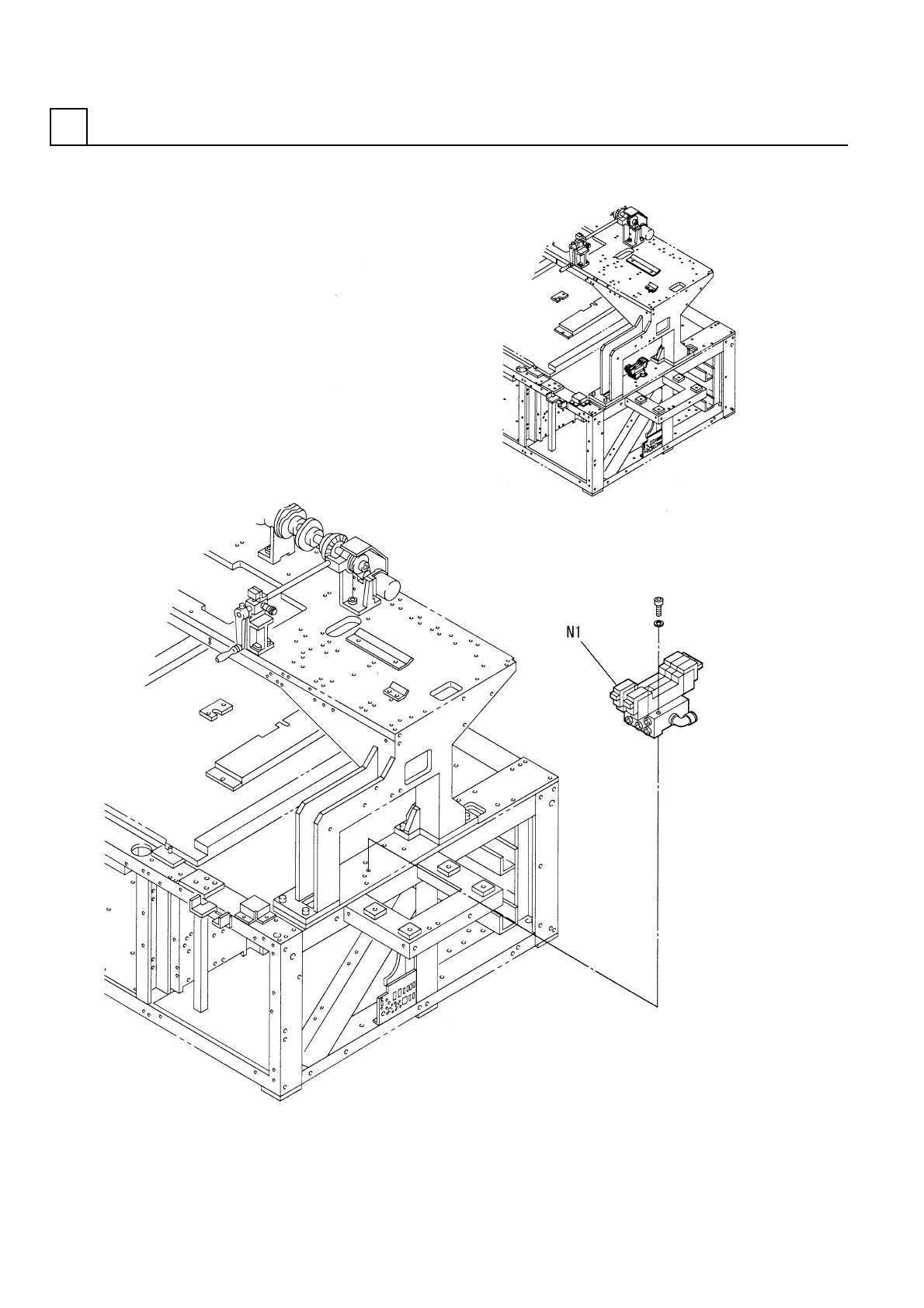

空圧制御部(80ｽﾃｰｼｮﾝ部)
PNEUMATIC SYSTEM SECT.(80 STATION SECT.)
1
FN610070313AA_00
P7
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
1
空圧制御部(80ｽﾃｰｼｮﾝ部)
PNEUMATIC SYSTEM SECT.(80 STATION SECT.)
部 品 名 品 番 個数 備 考
R
1
R
2
1 N610070313AA
PNEUMATIC UNIT ｸｳｱﾂﾕﾆｯﾄ
KQ2T10-00
1
N001
KXF0E496A00
FITTING ﾂｷﾞﾃ
VQZ1151-5LO
2
N002
N411VQZ1-694
SOLENOID VALVE ｿﾚﾉｲﾄﾞﾊﾞﾙﾌﾞ
AS1001F-06
2
N003
KXF00YCAA00
SPEED CONTROLLER ｽﾋﾟｰﾄﾞｺﾝﾄﾛｰﾗ
AS2001F-06
2
N004
KXF068FAA00
SPEED CONTROLLER ｽﾋﾟｰﾄﾞｺﾝﾄﾛｰﾗ
KQ2U06-00
4
N005
KXF0A3FAA00
FITTING ﾂｷﾞﾃ
P8
FN610070313AA_00
空圧制御部(P-PUSH)
PNEUMATIC SYSTEM SECT.(P-PUSH)
1
F10871-03-050_A
P9
