PART No. ｲﾗｽﾄ No. REF No. PART NAME REMARKS Q'TY 3 ｶﾊﾞｰ部(上部ｶﾊﾞｰ部) COVER SECT.(UP PER COVE R SECT.) 部 品 名 品 番 個数 備 考 R 1 R 2 1 N610080302AA COVER UNIT ｶﾊﾞｰﾕﾆｯﾄ 1 001 N210094694AA COVER ｶﾊﾞｰ 1 002 N210094695AA COVER ｶ…
ｶﾊﾞｰ部(上部ｶﾊﾞｰ部)
COVER SECT.(UPPER COVER SECT.)
3
FN610080302AA_00
M19
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
3
ｶﾊﾞｰ部(上部ｶﾊﾞｰ部)
COVER SECT.(UPPER COVER SECT.)
部 品 名 品 番 個数 備 考
R
1
R
2
1 N610080302AA
COVER UNIT ｶﾊﾞｰﾕﾆｯﾄ
1
001 N210094694AA
COVER ｶﾊﾞｰ
1
002 N210094695AA
COVER ｶﾊﾞｰ
3003 N210094696AA
BRACKET ﾌﾞﾗｹｯﾄ
2004 N210095203AA
BRACKET ﾌﾞﾗｹｯﾄ
JB-A M5X8 +
8
N001
N510038044AA
BOLT ﾎﾞﾙﾄ
M5X12
8
N002
N986YYYY-814
CAP ｷｬｯﾌﾟ
5 External toothed Ste
8
N003
N510018765AA
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
C-30-SG-32A,WHITE
1
N004
KXF0B5ZAA00
GROMMET ｸﾞﾛﾒｯﾄ
C-30-SG-26A,WHITE
1
N005
N980C30S-028
GROMMET ｸﾞﾛﾒｯﾄ
M5X12-10.9 A2J (Trival
6
N501
N510017390AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5X10-10.9 A2J (Trival
8
N502
N510017386AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
5 10H A2J (Trivalent)
14
N503
N510018499AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
M20
FN610080302AA_00

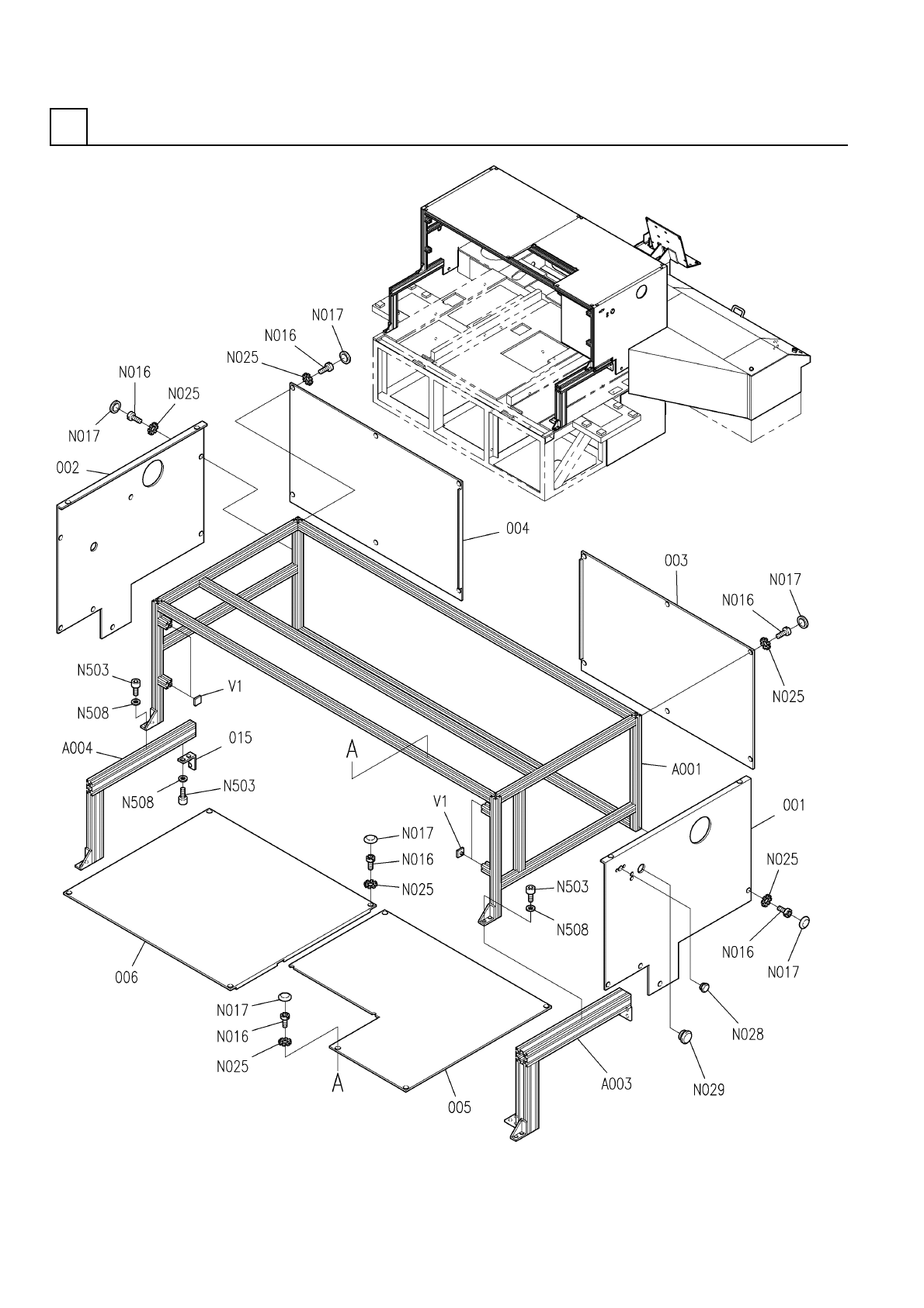

ｶﾊﾞｰ部(ﾘｱｶﾊﾞｰ部1)
COVER SECT.(REAR COVER SECT.-1)
3
FN610073902AA_07-1
M21
