ｶﾊﾞｰ部(ﾘｱｶﾊﾞｰ部2) COVER SECT.(RE AR COVER SECT.-2) 3 FN610073902AA_07-2 M23
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
3
ｶﾊﾞｰ部(ﾘｱｶﾊﾞｰ部1)
COVER SECT.(REAR COVER SECT.-1)
部 品 名 品 番 個数 備 考
R
1
R
2
1 N610073902AA
COVER UNIT ｶﾊﾞｰﾕﾆｯﾄ
1
001 N210091168AD
COVER ｶﾊﾞｰ
1
002 N210091169AE
COVER ｶﾊﾞｰ
1003 N210091170AA
COVER ｶﾊﾞｰ
1004 N210091171AA
COVER ｶﾊﾞｰ
1
005 N210091172AB
COVER ｶﾊﾞｰ
1
006 N210091173AB
COVER ｶﾊﾞｰ
1015 N210091971AA
BRACKET ﾌﾞﾗｹｯﾄ
1
A001
N610073594AA
FRAME ﾌﾚｰﾑ
1
A003
N610074614AA
FRAME (R) ﾌﾚｰﾑ(R)
1
A004
N610074615AA
FRAME (L) ﾌﾚｰﾑ(L)
JB-A M5X8 +
37
N016
N510038044AA
BOLT ﾎﾞﾙﾄ
M5X12
37
N017
N986YYYY-814
CAP ｷｬｯﾌﾟ
5 External toothed Ste
37
N025
N510018765AA
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
C-30-SG-24A,WHITE
1
N028
N980C30S-065
GROMMET ｸﾞﾛﾒｯﾄ
C-30-BW-25-2,WHITE
1
N029
N980C30B-120
GROMMET ｸﾞﾛﾒｯﾄ
M5X12-10.9 A2J (Trival
6
N503
N510017390AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
5 10H A2J (Trivalent)
8
N508
N510018499AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
3 842 516 506
4V 1 N510041033AA
CAP ｷｬｯﾌﾟ
M22
FN610073902AA_07-1
ｶﾊﾞｰ部(ﾘｱｶﾊﾞｰ部2)
COVER SECT.(REAR COVER SECT.-2)
3
FN610073902AA_07-2
M23
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
3

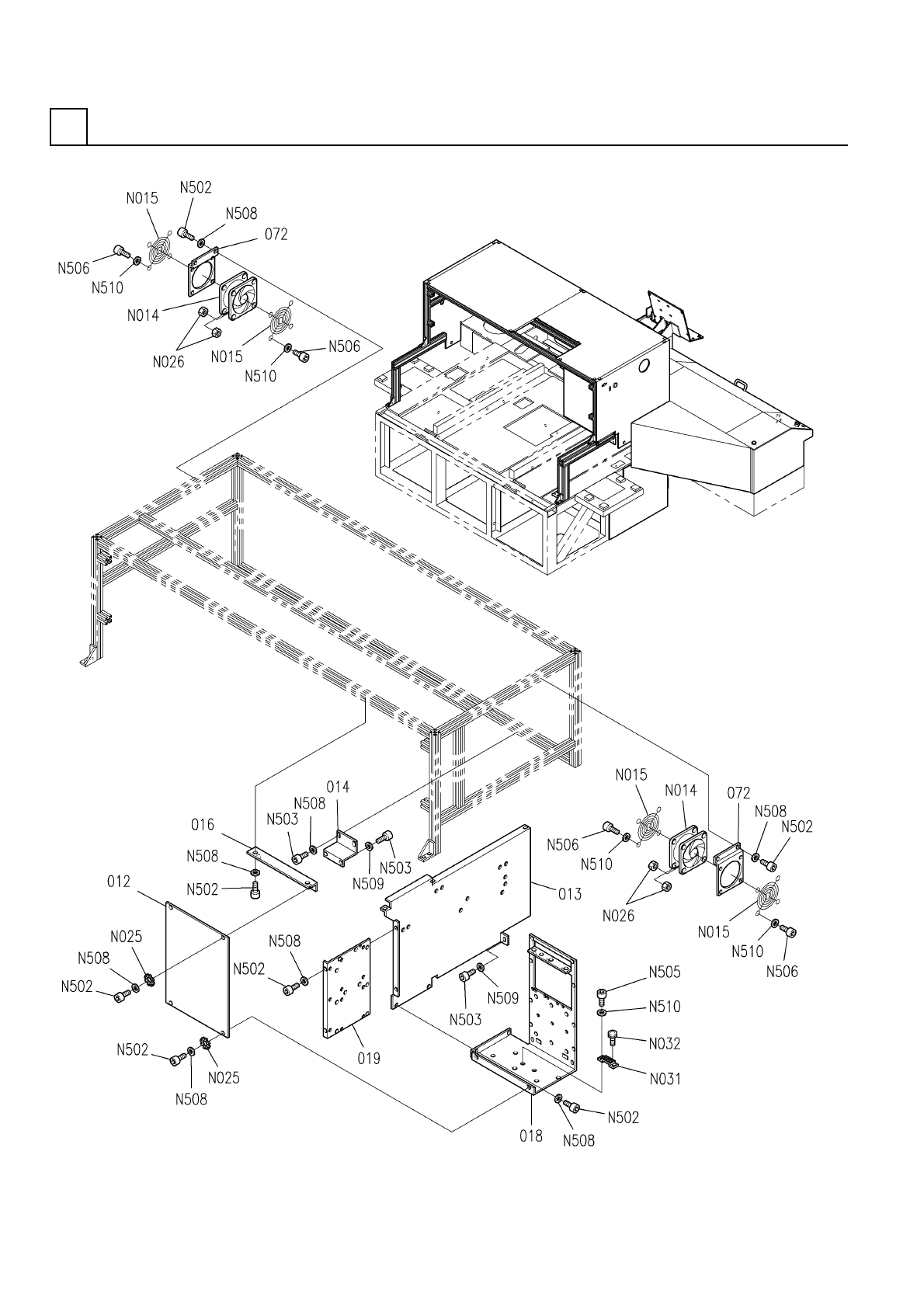

ｶﾊﾞｰ部(ﾘｱｶﾊﾞｰ部2)
COVER SECT.(REAR COVER SECT.-2)
部 品 名 品 番 個数 備 考
R
1
R
2
S
1012 N210091968AA
COVER ｶﾊﾞｰ
1
013 N210091969AD
PLATE ﾌﾟﾚｰﾄ
3
014 N210091970AA
BRACKET ﾌﾞﾗｹｯﾄ
1016 N210091972AA
BRACKET ﾌﾞﾗｹｯﾄ
1018 N210090975AA
BRACKET ﾌﾞﾗｹｯﾄ
1
019 N210090977AA
PLATE ﾌﾟﾚｰﾄ
2
072 N210096518AA
BRACKET ﾌﾞﾗｹｯﾄ
4715KL-05W-B29-P53
2
N014
N510035075AA
FAN WITH MOTOR ﾌｧﾝ
PG-47-02(8130)
4
N015
N238PG47-091
COVER(FAN) ｶﾊﾞｰ(ﾌｧﾝ)
5 External toothed Ste
4
N025
N510018765AA
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
M4-6H-4T A2J (Trivalen
16
N026
N510017855AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
N510013514AA S
1
N031
N510013514AA
TERMINAL ﾀｰﾐﾅﾙ
M4X8, STEEL, P.C
8
N032
XYN4+J8FN
PAN HEAD M/C SCREW & W. ｻﾞｶﾞﾈｸﾐｺﾐﾅﾍﾞｺﾈｼﾞ
M5X10-10.9 A2J (Trival
16
N502
N510017386AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5X12-10.9 A2J (Trival
13
N503
N510017390AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X8-10.9 A2J (Trivale
2
N505
N510017381AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X12-10.9 A2J (Trival
16
N506
N510017346AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
5 10H A2J (Trivalent)
16
N508
N510018499AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
M5
9
N509
N510020100AA
WASHER ｻﾞｶﾞﾈ
4 10H A2J (Trivalent)
18
N510
N510018497AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
M24
FN610073902AA_07-2
