Mechanical Parts List - 第41页
PART No. ｲﾗｽﾄ No. REF No. PART NAME REMARKS Q'TY 3 ｶﾊﾞｰ部(ﾘｱｶﾊﾞｰ部2) COVER SECT.(RE AR COVER SECT.-2) 部 品 名 品 番 個数 備 考 R 1 R 2 S 1 012 N210091968AA COVER ｶﾊﾞｰ 1 013 N210091969AD PLATE ﾌﾟﾚｰﾄ 3 014 N210091970AA BRACKET …

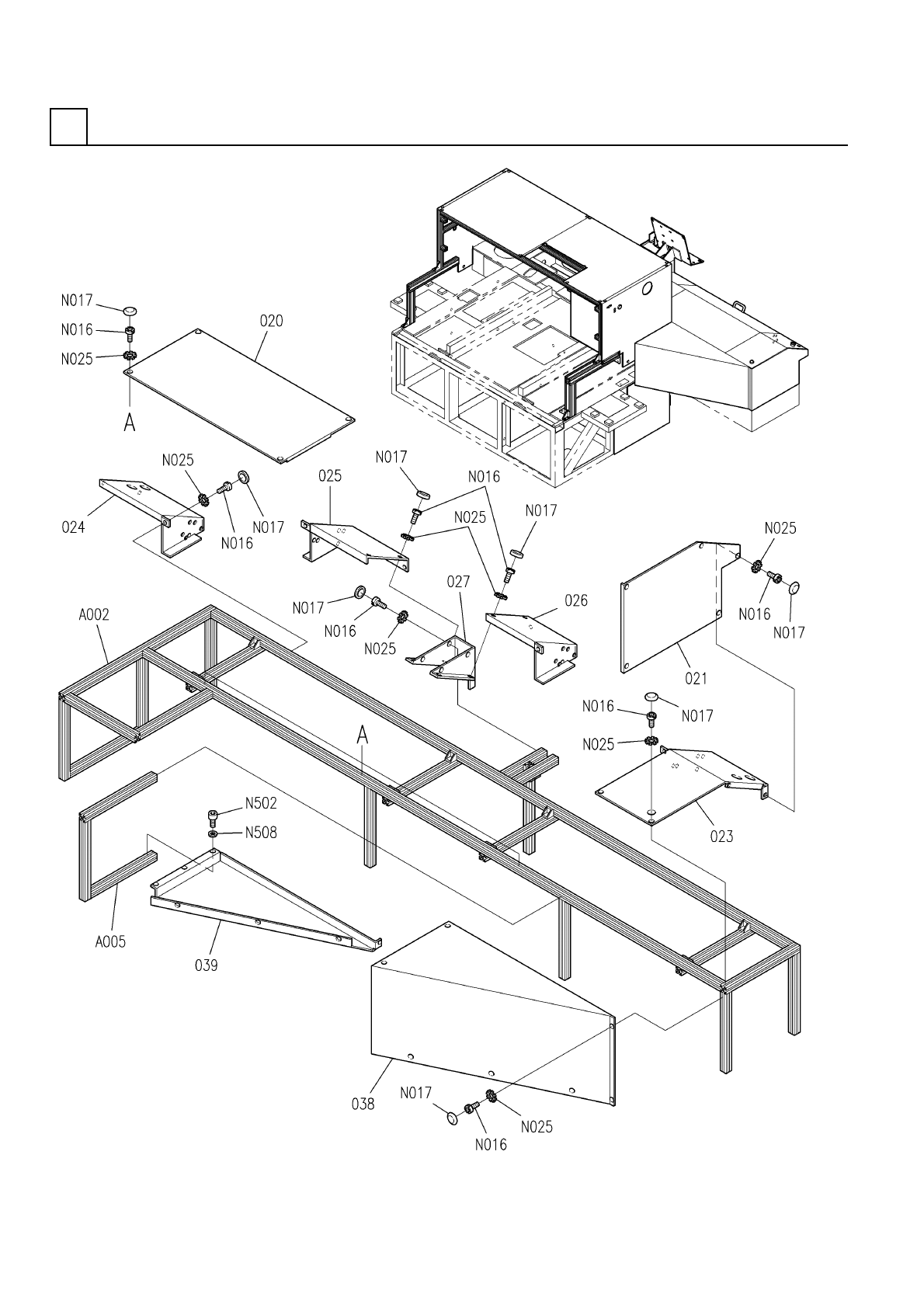

ｶﾊﾞｰ部(ﾘｱｶﾊﾞｰ部2)
COVER SECT.(REAR COVER SECT.-2)
3
FN610073902AA_07-2
M23
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
3
ｶﾊﾞｰ部(ﾘｱｶﾊﾞｰ部2)
COVER SECT.(REAR COVER SECT.-2)
部 品 名 品 番 個数 備 考
R
1
R
2
S
1012 N210091968AA
COVER ｶﾊﾞｰ
1
013 N210091969AD
PLATE ﾌﾟﾚｰﾄ
3
014 N210091970AA
BRACKET ﾌﾞﾗｹｯﾄ
1016 N210091972AA
BRACKET ﾌﾞﾗｹｯﾄ
1018 N210090975AA
BRACKET ﾌﾞﾗｹｯﾄ
1
019 N210090977AA
PLATE ﾌﾟﾚｰﾄ
2
072 N210096518AA
BRACKET ﾌﾞﾗｹｯﾄ
4715KL-05W-B29-P53
2
N014
N510035075AA
FAN WITH MOTOR ﾌｧﾝ
PG-47-02(8130)
4
N015
N238PG47-091
COVER(FAN) ｶﾊﾞｰ(ﾌｧﾝ)
5 External toothed Ste
4
N025
N510018765AA
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
M4-6H-4T A2J (Trivalen
16
N026
N510017855AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
N510013514AA S
1
N031
N510013514AA
TERMINAL ﾀｰﾐﾅﾙ
M4X8, STEEL, P.C
8
N032
XYN4+J8FN
PAN HEAD M/C SCREW & W. ｻﾞｶﾞﾈｸﾐｺﾐﾅﾍﾞｺﾈｼﾞ
M5X10-10.9 A2J (Trival
16
N502
N510017386AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5X12-10.9 A2J (Trival
13
N503
N510017390AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X8-10.9 A2J (Trivale
2
N505
N510017381AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X12-10.9 A2J (Trival
16
N506
N510017346AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
5 10H A2J (Trivalent)
16
N508
N510018499AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
M5
9
N509
N510020100AA
WASHER ｻﾞｶﾞﾈ
4 10H A2J (Trivalent)
18
N510
N510018497AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
M24
FN610073902AA_07-2
ｶﾊﾞｰ部(ﾘｱｶﾊﾞｰ部3)
COVER SECT.(REAR COVER SECT.-3)
3
FN610073902AA_07-3
M25
