ｶﾊﾞｰ部(ﾘｱｶﾊﾞｰ部6) COVER SECT.(RE AR COVER SECT.-6) 3 FN610073902AA_07-6 M31
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
3
ｶﾊﾞｰ部(ﾘｱｶﾊﾞｰ部5)
COVER SECT.(REAR COVER SECT.-5)
部 品 名 品 番 個数 備 考
R
1
R
2
2045 N210100767AA
BRACKET ﾌﾞﾗｹｯﾄ
S
2
046 N210100769AB
COVER ｶﾊﾞｰ
2
049 KXFB012PA01
NUT PLATE ﾅｯﾄﾌﾟﾚｰﾄ
6050 N210093563AB
BRACKET ﾌﾞﾗｹｯﾄ
2051 N210093565AA
HINGE ﾁｮｳﾊﾞﾝ
2
053 N210048950AA
NUT PLATE ﾅｯﾄﾌﾟﾚｰﾄ
2
054 N210048951AA
SPACER ｽﾍﾟｰｻ
2055 1087105805
BRACKET ﾌﾞﾗｹｯﾄ
1077 N210100725AA
PLATE ﾌﾟﾚｰﾄ
1
078 N210100724AA
BRACKET ﾌﾞﾗｹｯﾄ
B-1223-12-L
2
N001
N980B122312L
STAY ｽﾃｰ
C-30-CS-6
6
N003
KXF0C9YAA00
RUBBER ｺﾞﾑ
THA-31-6
2
N004
N982THA3406A
DRAWER PULL ﾄｯﾃ
THA-270-3(3460)
4
N005
N982THA3460
WASHER ｻﾞｶﾞﾈ
D4NS-1BF S
2
N006
N510015338AA
SWITCH ｽｲｯﾁ
ST13.5
2
N007
KXF06F4AA00
JOINT ｼﾞｮｲﾝﾄ
JB-A M5X8 +
2
N016
N510038044AA
BOLT ﾎﾞﾙﾄ
M5X12
2
N017
N986YYYY-814
CAP ｷｬｯﾌﾟ
M5X10-4.8 A2J (Trivale
10
N020
N510018284AA
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
M4X12-4.8 A2J (Trivale
12
N021
N510018259AA
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
5 External toothed Ste
2
N025
N510018765AA
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
M4-6H-4T A2J (Trivalen
12
N026
N510017855AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M5X16-4.8 A2J (Trivale
4
N030
N510018290AA
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
M5X10-10.9 A2J (Trival
12
N502
N510017386AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5X12-10.9 A2J (Trival
2
N503
N510017390AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X30-10.9 A2J (Trival
4
N507
N510017361AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
5 10H A2J (Trivalent)
13
N508
N510018499AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
M5
1
N509
N510020100AA
WASHER ｻﾞｶﾞﾈ
4 10H A2J (Trivalent)
28
N510
N510018497AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
M3X8-10.9 A2J (Trivale
4
N511
N510017341AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M3X12-10.9 A2J (Trival
4
N512
N510017308AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M3
8
N513
N510020098AA
WASHER ｻﾞｶﾞﾈ
M30
FN610073902AA_07-5

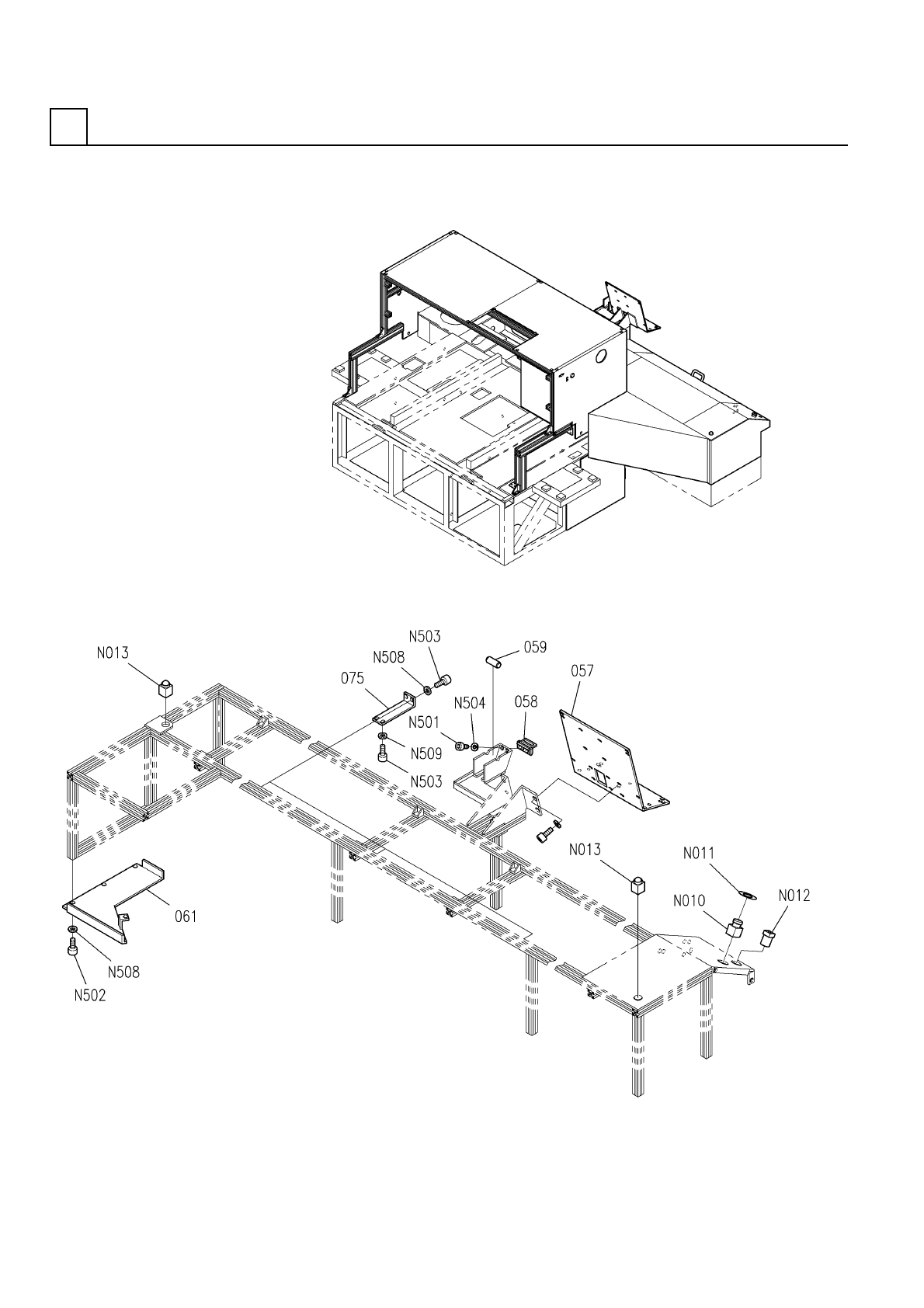

ｶﾊﾞｰ部(ﾘｱｶﾊﾞｰ部6)
COVER SECT.(REAR COVER SECT.-6)
3
FN610073902AA_07-6
M31
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
3
ｶﾊﾞｰ部(ﾘｱｶﾊﾞｰ部6)
COVER SECT.(REAR COVER SECT.-6)
部 品 名 品 番 個数 備 考
R
1
R
2
1057 N210071662AD
PLATE ﾌﾟﾚｰﾄ
1
058 X850-601
CUTTER ｶｯﾀｰ
1
059 X850-602
PIN ﾋﾟﾝ
1061 N210094074AA
COVER ｶﾊﾞｰ
3075 N210096589AA
BRACKET ﾌﾞﾗｹｯﾄ
XW1E-BV402MFR-TK2377 S
2
N010
N510011524AA
SWITCH ｽｲｯﾁ
2
N011
3086239031
LABEL ﾗﾍﾞﾙ
LW6MB-M1C2MLW S
2
N012
N510038384AA
SWITCH ｽｲｯﾁ
APN122DNS
2
N013
N223APN1-065
LAMP ﾗﾝﾌﾟ
M3X5-10.9 A2J (Trivale
2
N501
N510017333AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5X10-10.9 A2J (Trival
4
N502
N510017386AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5X12-10.9 A2J (Trival
12
N503
N510017390AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
3 10H A2J (Trivalent)
2
N504
N510018494AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
5 10H A2J (Trivalent)
12
N508
N510018499AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
M5
6
N509
N510020100AA
WASHER ｻﾞｶﾞﾈ
M32
FN610073902AA_07-6
