ｶﾊﾞｰ部(ﾘｱｶﾊﾞｰ部8) COVER SECT.(RE AR COVER SECT.-8) 3 FN610073902AA_07-8 M35
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
3
ｶﾊﾞｰ部(ﾘｱｶﾊﾞｰ部7)
COVER SECT.(REAR COVER SECT.-7)
部 品 名 品 番 個数 備 考
R
1
R
2
1007 N210091277AA
COVER ｶﾊﾞｰ
1
008 N210091278AB
COVER ｶﾊﾞｰ
2
009 N210091717AB
COVER ｶﾊﾞｰ
1010 N210091718AB
COVER ｶﾊﾞｰ
1060 N210093677AB
COVER ｶﾊﾞｰ
JB-A M5X8 +
10
N016
N510038044AA
BOLT ﾎﾞﾙﾄ
M5X12
10
N017
N986YYYY-814
CAP ｷｬｯﾌﾟ
EL-10
1
N022
N348EL10
BUSHING FOR WIRING ﾌﾞｯｼｭ
5 External toothed Ste
10
N025
N510018765AA
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
M5X10-10.9 A2J (Trival
16
N502
N510017386AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
5 10H A2J (Trivalent)
16
N508
N510018499AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
M34
FN610073902AA_07-7

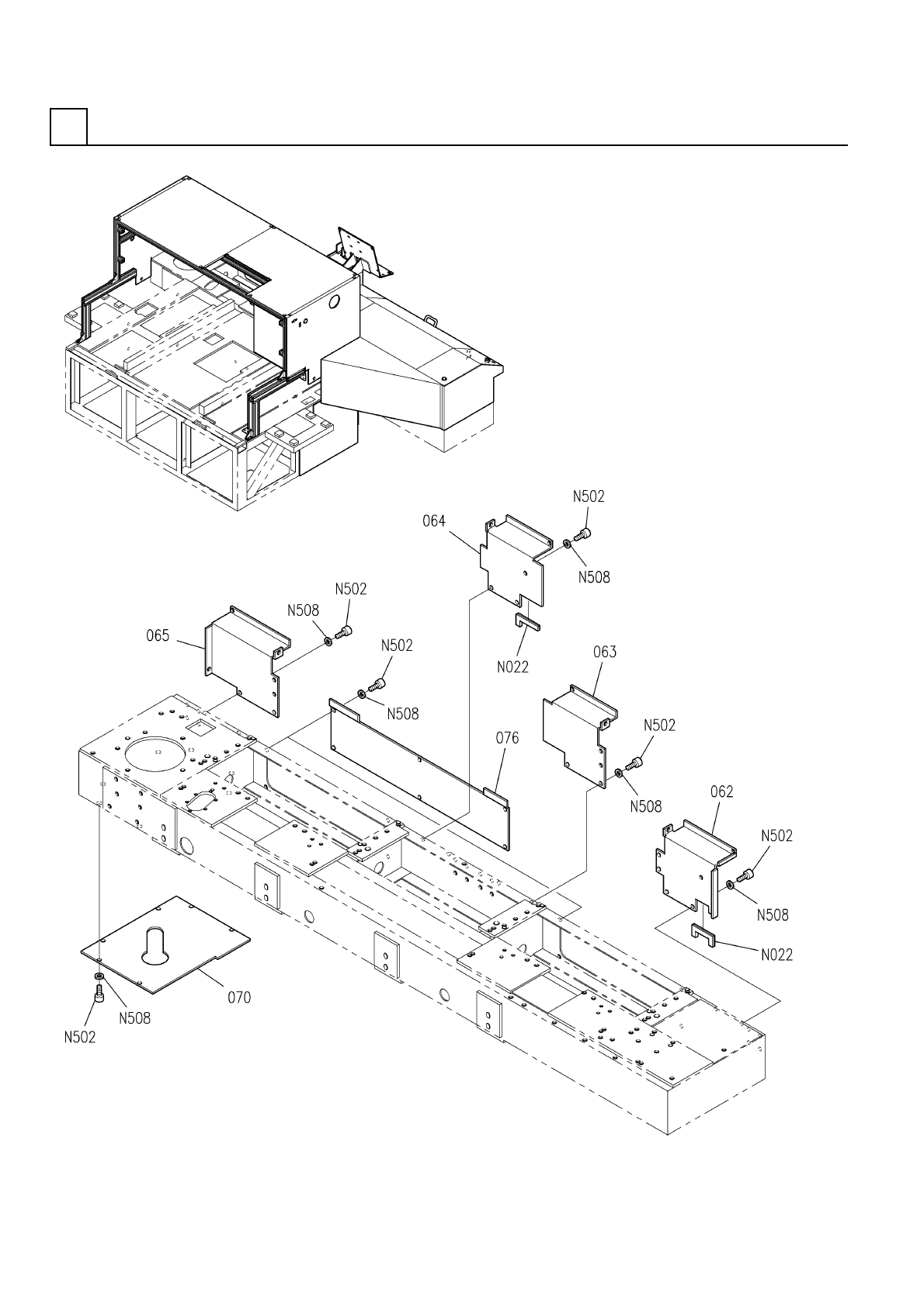

ｶﾊﾞｰ部(ﾘｱｶﾊﾞｰ部8)
COVER SECT.(REAR COVER SECT.-8)
3
FN610073902AA_07-8
M35
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
3
ｶﾊﾞｰ部(ﾘｱｶﾊﾞｰ部8)
COVER SECT.(REAR COVER SECT.-8)
部 品 名 品 番 個数 備 考
R
1
R
2
1062 N210094065AD
COVER ｶﾊﾞｰ
1
063 N210094068AB
COVER ｶﾊﾞｰ
1
064 N210094067AE
COVER ｶﾊﾞｰ
1065 N210094066AC
COVER ｶﾊﾞｰ
1070 N210101085AA
COVER ｶﾊﾞｰ
2
076 N210097008AB
COVER ｶﾊﾞｰ
EL-10
1
N022
N348EL10
BUSHING FOR WIRING ﾌﾞｯｼｭ
M5X10-10.9 A2J (Trival
30
N502
N510017386AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
5 10H A2J (Trivalent)
30
N508
N510018499AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
M36
FN610073902AA_07-8
