X-Yﾃ-ﾌﾞﾙ部(Y軸駆動部) X-Y TABLE SECT .(Y-AXIS DRIVING SECT.) 4 FN610055746AA_03-2 M39
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
4
X-Yﾃ-ﾌﾞﾙ部(X軸駆動部)
X-Y TABLE SECT.(X-AXIS DRIVING SECT.)
部 品 名 品 番 個数 備 考
R
1
R
2
1 N610055746AA
X-Y TABLE UNIT X-Y ﾃｰﾌﾞﾙﾕﾆｯﾄ
1
001 N210069667AA
BRACKET(MOTOR) ﾌﾞﾗｹｯﾄ(ﾓｰﾀ)
1
003 N210069662AA
HOUSING ﾊｳｼﾞﾝｸﾞ
1005 N210069668AA
HOLDER(SHAFT) ﾎﾙﾀﾞ(ｼｬﾌﾄ)
3010 108710401302
BRACKET ﾌﾞﾗｹｯﾄ
1
011 1087104014
DOG FOR SENSOR ｾﾝｻﾄﾞｸﾞ
1
018 N210069669AC
COVER ｶﾊﾞｰ
1026 N210028631AA
COVER(BEARING) ｶﾊﾞｰ(ﾍﾞｱﾘﾝｸﾞ)
(MSMD042PJA) S
1
A005
N610052027AA
MOTOR ﾓｰﾀ
SFC-035SA2-9B-14B
1
N006
N510010689AA
COUPLING ｶｯﾌﾟﾘﾝｸﾞ
FU00SS
1
N007
N510004723AA
NUT ﾅｯﾄ
7000ADBC8P5
1
N008
N510003427AA
BEARING ﾍﾞｱﾘﾝｸﾞ
6201ZZ
1
N009
XLC6201ZZ
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
87FWSSB-D16.0-V5.0-T2.
1
N010
N510034921AA
WASHER ｻﾞｶﾞﾈ
P921S1
1
N011
N310P921S1
SENSOR ｾﾝｻ
PANADAC921SA1
2
N012
N310P921SA1
SENSOR ｾﾝｻ
87FWSSB-D15.0-V10.0-T3
1
N022
N510032158AA
WASHER ﾜｯｼｬ
GZ1510ES-ZAPR-0744X069
1
N024
N510037864AA
BALL SCREW ﾎﾞｰﾙﾈｼﾞ
M38
FN610055746AA_03-1

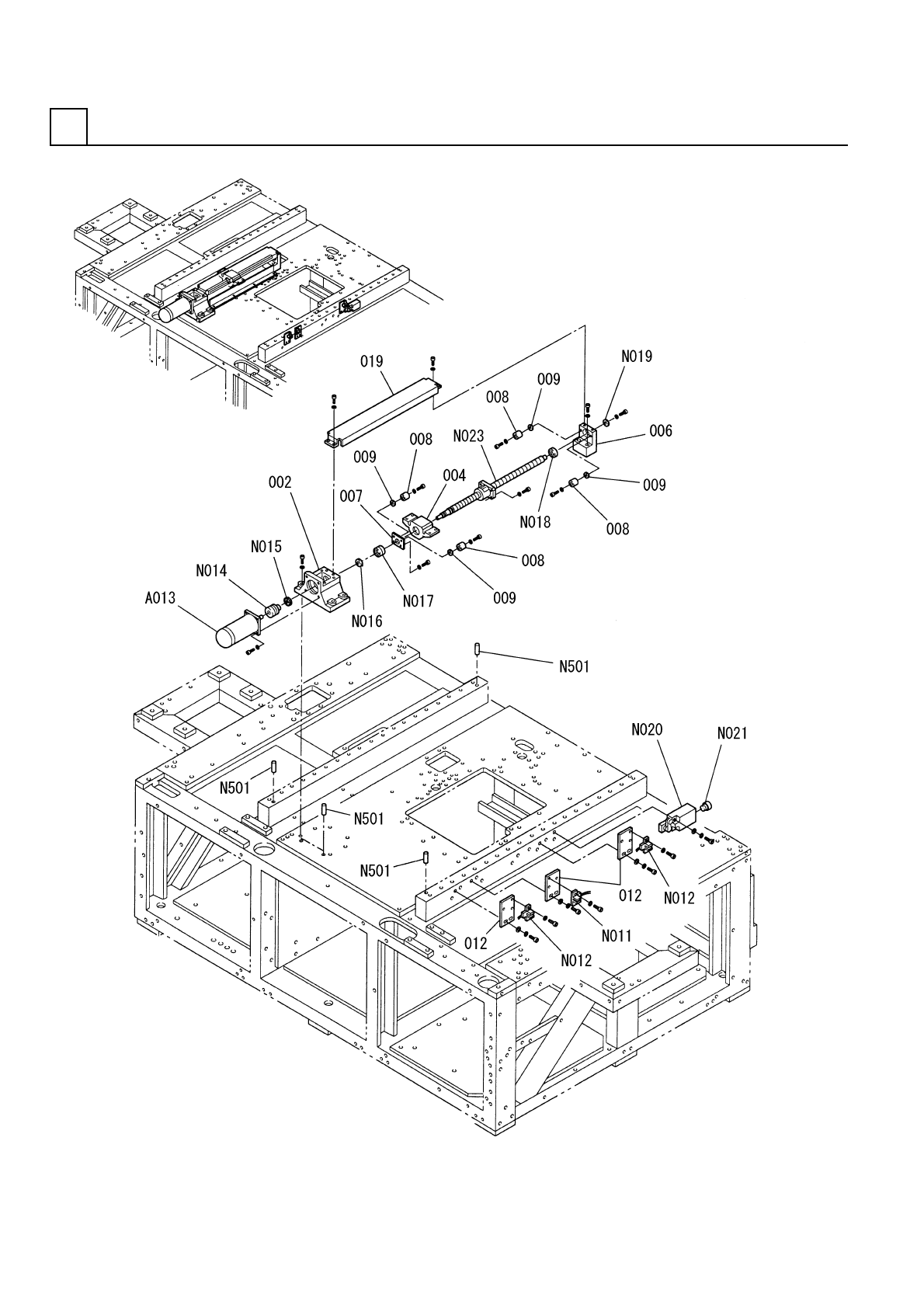

X-Yﾃ-ﾌﾞﾙ部(Y軸駆動部)
X-Y TABLE SECT.(Y-AXIS DRIVING SECT.)
4
FN610055746AA_03-2
M39
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
4
X-Yﾃ-ﾌﾞﾙ部(Y軸駆動部)
X-Y TABLE SECT.(Y-AXIS DRIVING SECT.)
部 品 名 品 番 個数 備 考
R
1
R
2
1002 N210084043AB
BRACKET(MOTOR) ﾌﾞﾗｹｯﾄ(ﾓｰﾀ)
1
004 X01L21011
HOUSING ﾊｳｼﾞﾝｸﾞ
1
006 N210068163AA
HOLDER ﾎﾙﾀﾞ
1007 N210027736AA
BEARING ﾍﾞｱﾘﾝｸﾞ
4008 X00K02068
STOPPER ｽﾄｯﾊﾟｰ
4
009 X00K02069
COLLAR ｶﾗｰ
3
012 1087104015
PLATE(Y) ﾌﾟﾚｰﾄ(Y)
1019 N210084055AB
COVER ｶﾊﾞｰ
(MSMD082PJA) S
1
A013
N610052028AA
MOTOR ﾓｰﾀ
P921S1
1
N011
N310P921S1
SENSOR ｾﾝｻ
PANADAC921SA1
2
N012
N310P921SA1
SENSOR ｾﾝｻ
SFC-040SA2-13B-19B
1
N014
N510010690AA
COUPLING ｶｯﾌﾟﾘﾝｸﾞ
FU02SC
1
N015
KXF0234AA00
LOCK-NUT ﾛｯｸﾅｯﾄ
87FWSSB-D20.0-V15.0-T5
1
N016
N510034922AA
WASHER ｻﾞｶﾞﾈ
7202ADBP5
1
N017
N510003493AA
BEARING ﾍﾞｱﾘﾝｸﾞ
6202ZZ
1
N018
XLC6202ZZ
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
87FWSSB-D20.0-V5.0-T3.
1
N019
N510033408AA
WASHER ｻﾞｶﾞﾈ
LS-11S/RL S
1
N020
N510030839AA
SWITCH ｽｲｯﾁ
V-M20
1
N021
KXF0DG3AA00
CABLE ｹｰﾌﾞﾙ
GZ2010ES-ZAPR-0588X050
1
N023
N510037865AA
BALL SCREW ﾎﾞｰﾙﾈｼﾞ
6X10,m6A,STEEL
5
N501
XPJ6A10FW
PARALLEL PIN ﾍｲｺｳﾋﾟﾝ
M40
FN610055746AA_03-2
