Mechanical Parts List - 第58页
X-Yﾃ-ﾌﾞﾙ部(ﾃｰﾌﾞﾙ部1) X-Y TABLE SECT .(TABLE SECT.-1) 4 FN610055746AA_03-3 M41
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
4
X-Yﾃ-ﾌﾞﾙ部(Y軸駆動部)
X-Y TABLE SECT.(Y-AXIS DRIVING SECT.)
部 品 名 品 番 個数 備 考
R
1
R
2
1002 N210084043AB
BRACKET(MOTOR) ﾌﾞﾗｹｯﾄ(ﾓｰﾀ)
1
004 X01L21011
HOUSING ﾊｳｼﾞﾝｸﾞ
1
006 N210068163AA
HOLDER ﾎﾙﾀﾞ
1007 N210027736AA
BEARING ﾍﾞｱﾘﾝｸﾞ
4008 X00K02068
STOPPER ｽﾄｯﾊﾟｰ
4
009 X00K02069
COLLAR ｶﾗｰ
3
012 1087104015
PLATE(Y) ﾌﾟﾚｰﾄ(Y)
1019 N210084055AB
COVER ｶﾊﾞｰ
(MSMD082PJA) S
1
A013
N610052028AA
MOTOR ﾓｰﾀ
P921S1
1
N011
N310P921S1
SENSOR ｾﾝｻ
PANADAC921SA1
2
N012
N310P921SA1
SENSOR ｾﾝｻ
SFC-040SA2-13B-19B
1
N014
N510010690AA
COUPLING ｶｯﾌﾟﾘﾝｸﾞ
FU02SC
1
N015
KXF0234AA00
LOCK-NUT ﾛｯｸﾅｯﾄ
87FWSSB-D20.0-V15.0-T5
1
N016
N510034922AA
WASHER ｻﾞｶﾞﾈ
7202ADBP5
1
N017
N510003493AA
BEARING ﾍﾞｱﾘﾝｸﾞ
6202ZZ
1
N018
XLC6202ZZ
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
87FWSSB-D20.0-V5.0-T3.
1
N019
N510033408AA
WASHER ｻﾞｶﾞﾈ
LS-11S/RL S
1
N020
N510030839AA
SWITCH ｽｲｯﾁ
V-M20
1
N021
KXF0DG3AA00
CABLE ｹｰﾌﾞﾙ
GZ2010ES-ZAPR-0588X050
1
N023
N510037865AA
BALL SCREW ﾎﾞｰﾙﾈｼﾞ
6X10,m6A,STEEL
5
N501
XPJ6A10FW
PARALLEL PIN ﾍｲｺｳﾋﾟﾝ
M40
FN610055746AA_03-2
X-Yﾃ-ﾌﾞﾙ部(ﾃｰﾌﾞﾙ部1)
X-Y TABLE SECT.(TABLE SECT.-1)
4
FN610055746AA_03-3
M41
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
4

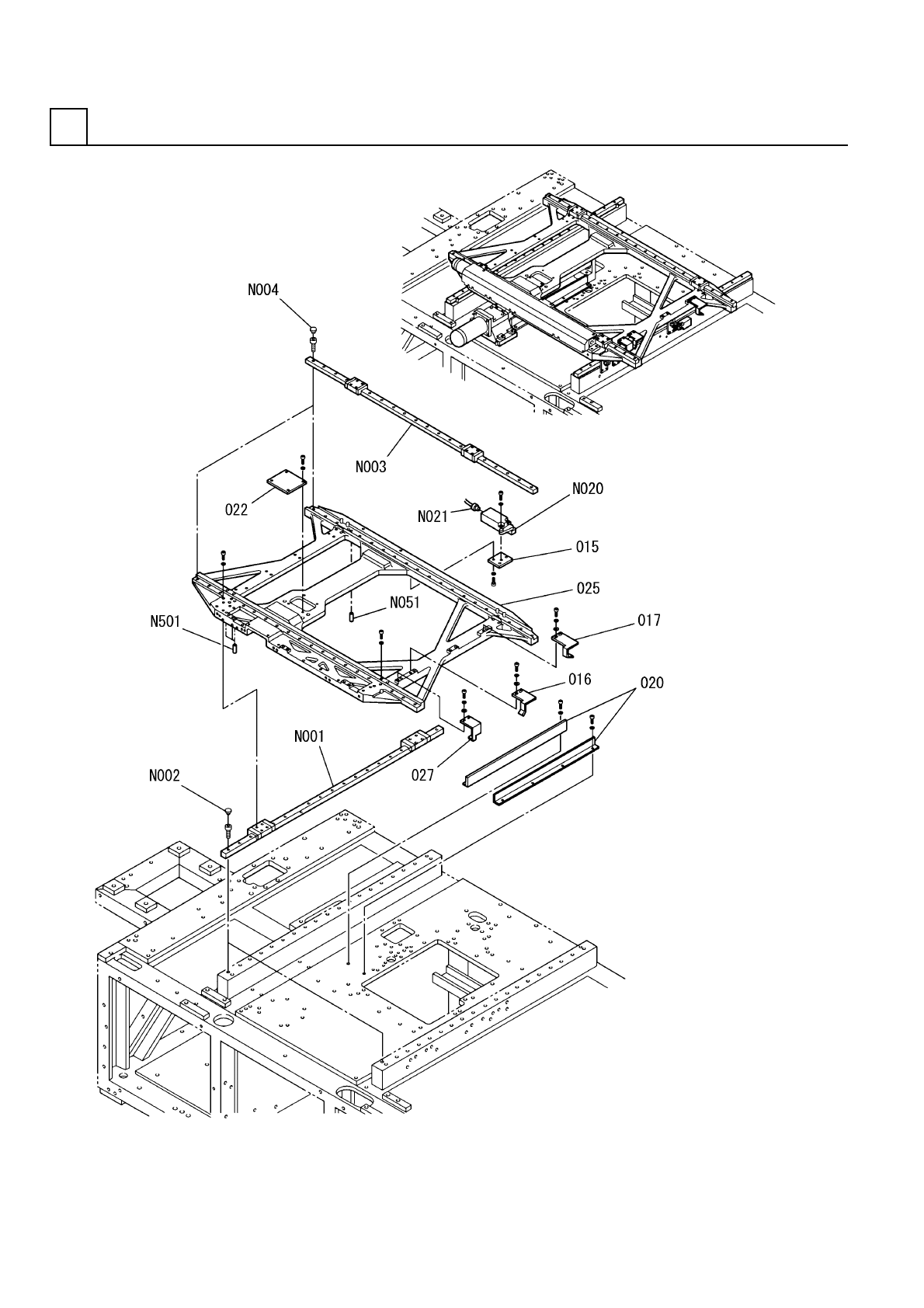

X-Yﾃ-ﾌﾞﾙ部(ﾃｰﾌﾞﾙ部1)
X-Y TABLE SECT.(TABLE SECT.-1)
部 品 名 品 番 個数 備 考
R
1
R
2
1015 X01L21081
PLATE ﾌﾟﾚｰﾄ
1
016 1087104020
BRACKET ﾌﾞﾗｹｯﾄ
1
017 1087104021
BRACKET ﾌﾞﾗｹｯﾄ
2020 N210084054AA
COVER ｶﾊﾞｰ
1022 X01L21106
COVER ｶﾊﾞｰ
1
025 N210081970AA
Y-TABLE Y ﾃｰﾌﾞﾙ
1
027 1087104016
DOG FOR SENSOR ｾﾝｻﾄﾞｸﾞ
SSR20XW2UUC1+1130LH-2
2
N001
N513SSR2-A44
LINEAR MOTION UNIT(Y) ﾘﾆｱﾓｰｼｮﾝﾕﾆｯﾄ(Y)
C5
38
N002
N513C5
CAP ｷｬｯﾌﾟ
SSR15XW2UUC1+1180LHY-2
2
N003
N513SSR1-810
LINEAR MOTION UNIT(X) ﾘﾆｱﾓｰｼｮﾝﾕﾆｯﾄ(X)
C4
40
N004
N513C4
CAP ｷｬｯﾌﾟ
LS-11S/RL S
1
N020
N510030839AA
SWITCH ｽｲｯﾁ
V-M20
1
N021
KXF0DG3AA00
CABLE ｹｰﾌﾞﾙ
6X10,m6A,STEEL
4
N501
XPJ6A10FW
PARALLEL PIN ﾍｲｺｳﾋﾟﾝ
M42
FN610055746AA_03-3
