Mechanical Parts List - 第62页
X-Yﾃｰﾌﾞﾙ部(配線配管部) X-Y TABLE SECT .(WIRING & PIPING SECT.) 4 FN610055729AA_04 M45
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
4
X-Yﾃ-ﾌﾞﾙ部(ﾃｰﾌﾞﾙ部2)
X-Y TABLE SECT.(TABLE SECT.-2)
部 品 名 品 番 個数 備 考
R
1
R
2
1013 108710401701
BRACKET(L) ﾌﾞﾗｹｯﾄ(L)
1
014 1087104018
BRACKET(R) ﾌﾞﾗｹｯﾄ(R)
1
023 N210084127AA
BRACKET ﾌﾞﾗｹｯﾄ
1
A024
N610056204AB
X-TABLE X ﾃｰﾌﾞﾙ
L80106021-301
1
N025
N510036735AA
JOINT ｼﾞｮｲﾝﾄ
L50003000-001
2
N026
N510036737AA
GREASE NIPPLE ｸﾞﾘｽﾆｯﾌﾟﾙ
L80206021-301
1
N027
N510036736AA
JOINT ｼﾞｮｲﾝﾄ
1823391784
1
N028
N510036733AA
JOINT ｼﾞｮｲﾝﾄ
1823391008
1
N029
N510036734AA
JOINT ｼﾞｮｲﾝﾄ
6X10,m6A,STEEL
3
N501
XPJ6A10FW
PARALLEL PIN ﾍｲｺｳﾋﾟﾝ
NYLON4
1
N502
N434SH0W-048
TUBE ﾁｭｰﾌﾞ
M44
FN610055746AA_03-4

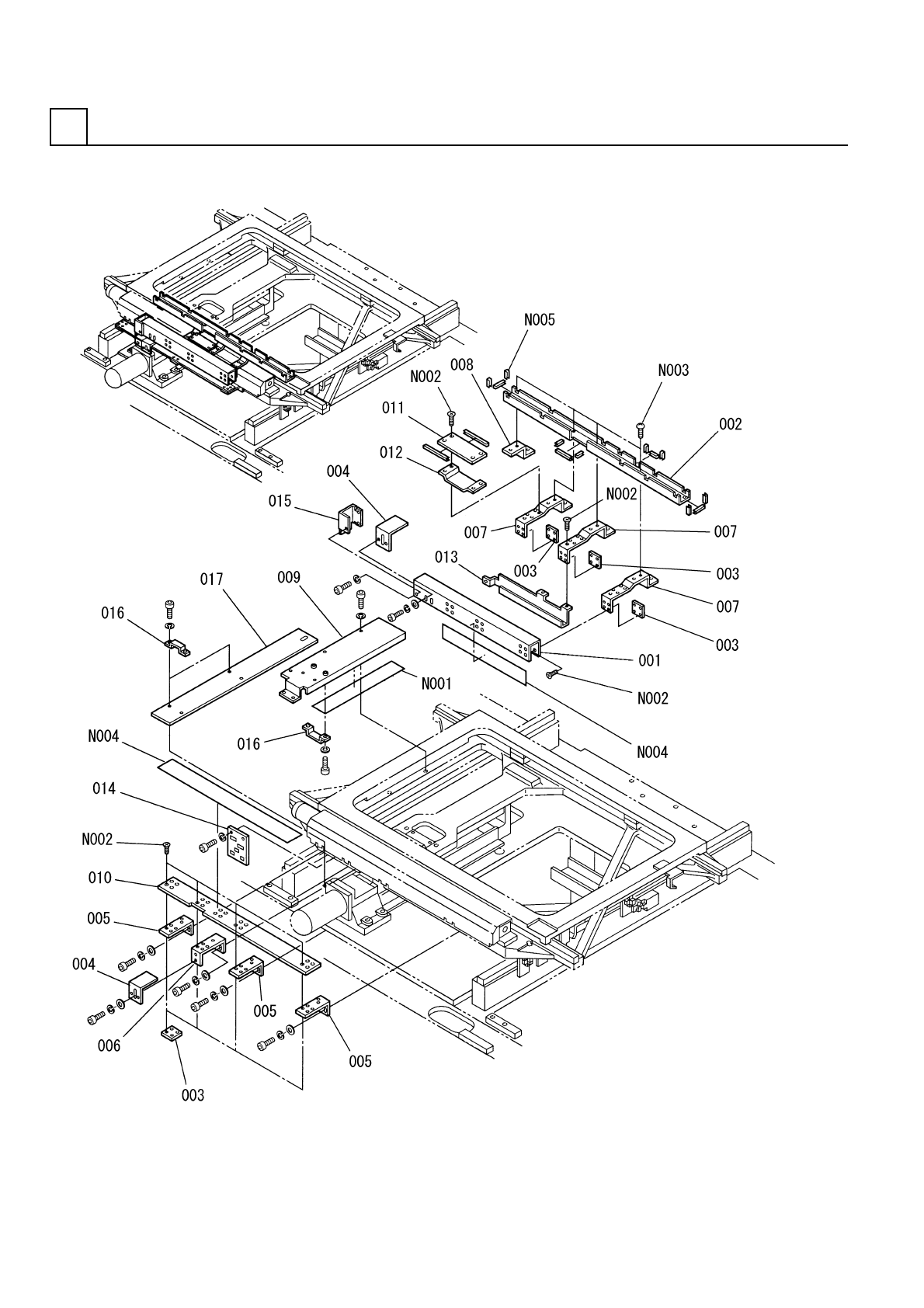

X-Yﾃｰﾌﾞﾙ部(配線配管部)
X-Y TABLE SECT.(WIRING & PIPING SECT.)
4
FN610055729AA_04
M45
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
4
X-Yﾃｰﾌﾞﾙ部(配線配管部)
X-Y TABLE SECT.(WIRING & PIPING SECT.)
部 品 名 品 番 個数 備 考
R
1
R
2
1 N610055729AA
WIRING & PIPING UNIT ﾊｲｾﾝ･ﾊｲｶﾝﾕﾆｯﾄ
1
001 N210069670AB
GUIDE ｶﾞｲﾄﾞ
1
002 N210069671AB
GUIDE ｶﾞｲﾄﾞ
7003 N210069673AA
NUT ﾅｯﾄ
2004 N210069675AB
BRACKET ﾌﾞﾗｹｯﾄ
3
005 N210069676AB
BRACKET ﾌﾞﾗｹｯﾄ
1
006 N210069677AB
BRACKET ﾌﾞﾗｹｯﾄ
3007 N210069678AB
BRACKET ﾌﾞﾗｹｯﾄ
1008 N210087140AA
BRACKET ﾌﾞﾗｹｯﾄ
1
009 N210069680AA
PLATE ﾌﾟﾚｰﾄ
1010 N210069681AA
PLATE ﾌﾟﾚｰﾄ
1011 N210069682AB
PLATE ﾌﾟﾚｰﾄ
1
012 N210087144AA
PLATE ﾌﾟﾚｰﾄ
1
013 N210087360AA
BRACKET ﾌﾞﾗｹｯﾄ
1014 N210069848AA
CONNECTOR BRACKET ｺﾈｸﾀﾌﾞﾗｹｯﾄ
1015 N210069849AD
CONNECTOR BRACKET ｺﾈｸﾀﾌﾞﾗｹｯﾄ
3
016 104130415601
BRACKET ﾌﾞﾗｹｯﾄ
1
017 1041304153
PLATE ﾌﾟﾚｰﾄ
HMW-TAP-WER No.2
1
N001
N986HMWT-056
ADHESIVE TAPE ﾈﾝﾁｬｸﾃｰﾌﾟ
M3X6-4.8 A2J (Trivalen
34
N002
N510018158AA
FLUSH HEAD SCREW ｻﾗｺﾈｼﾞ
M3X4-4.8 A2J (Trivalen
8
N003
N510018249AA
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
HMW-TAP-WAR No.11/4
1
N004
N986HMWT-M67
TAPE ﾃｰﾌﾟ
EL-10
1
N005
N348EL10
BUSHING FOR WIRING ﾌﾞｯｼｭ
M46
FN610055729AA_04
