PART No. ｲﾗｽﾄ No. REF No. PART NAME REMARKS Q'TY 5 ﾛｰﾀﾞ・ｱﾝﾛｰﾀﾞ部(共通部<ﾛｰﾀﾞ部>) LOADER & UNLOA DER SECT .(COMMOM SECT.<LOA DER SECT.> ) 部 品 名 品 番 個数 備 考 R 1 R 2 1 N610061299AA LOADER & UNLO ADER UNIT…

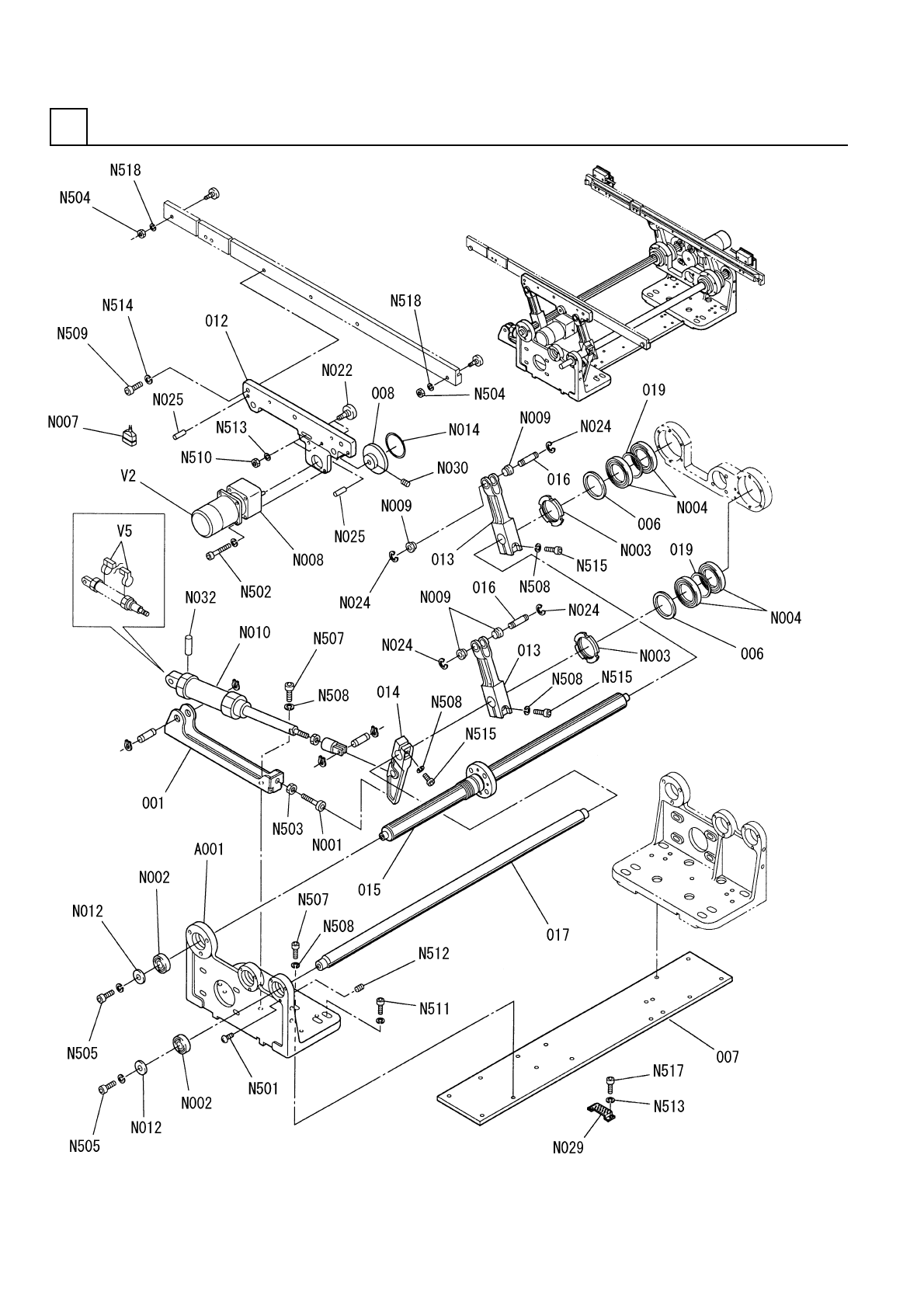

ﾛｰﾀﾞ・ｱﾝﾛｰﾀﾞ部(共通部<ﾛｰﾀﾞ部>)
LOADER & UNLOADER SECT.(COMMOM SECT.<LOADER SECT.>)
5
FN610061299AA_01-1
M47
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
5
ﾛｰﾀﾞ・ｱﾝﾛｰﾀﾞ部(共通部<ﾛｰﾀﾞ部>)
LOADER & UNLOADER SECT.(COMMOM SECT.<LOADER SECT.>)
部 品 名 品 番 個数 備 考
R
1
R
2
1 N610061299AA
LOADER & UNLOADER UNIT ﾛｰﾀﾞｱﾝﾛｰﾀﾞﾕﾆｯﾄ
1
008 1099705118
PULLEY ﾌﾟｰﾘｰ
2
009 109970512002
LEVER ﾚﾊﾞｰ
1010 N210066358AB
PLATE ﾌﾟﾚｰﾄ
1011 N210066359AB
RAIL ﾚｰﾙ
2
016 N210066363AA
PIN ﾋﾟﾝ
1
018 N210066362AB
HOSE ﾎｰｽ
2020 N210066364AA
BRACKET ﾌﾞﾗｹｯﾄ
1
A002
N610067724AA
FRAME ﾌﾚｰﾑ
6001ZZ
2
N002
XLC6001ZZ
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
MOPC3917
1
N007
M0PC3917
CAP FOR CAPACITOR ｺﾝﾃﾞﾝｻｷｬｯﾌﾟ
M4GA12.5F
1
N008
N510031513AA
GEAR HEAD ｷﾞﾔｰﾍｯﾄﾞ
80F-0805
4
N009
KXF0DY6MA00
BUSHING ﾌﾞｯｼｭ
P919T
2
N011
N310P919T
SWITCH ｽｲｯﾁ
87WSF16
2
N012
N510024734AA
WASHER ｻﾞｶﾞﾈ
1AP34N
1
N014
N5541AP34N
O-RING O ﾘﾝｸﾞ
MB019000
2
N022
N648MB019000
PULLEY(TENSION) ﾌﾟｰﾘｰ(ﾃﾝｼｮﾝ)
STW-8
4
N024
KXF04D1AA00
RETAINING RING C-TYPE,SHAFT C ｶﾞﾀｼﾞｸﾖｳﾄﾒﾜ
5X12,m6A,STEEL
2
N025
XPJ5A12FW
PARALLEL PIN ﾍｲｺｳﾋﾟﾝ
M4X8, STEEL, P.C
4
N030
XYN4+J8FN
PAN HEAD M/C SCREW & W. ｻﾞｶﾞﾈｸﾐｺﾐﾅﾍﾞｺﾈｼﾞ
LUDM-52-5X25-BK
1
N031
N510043758AA
LEVER ﾚﾊﾞｰ
M4X8-4.8 A2J (Trivalen
12
N501
N510018282AA
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
M3X50-10.9 A2J (Trival
2
N502
N510017332AA
BOLT ﾎﾞﾙﾄ
M3-6H-4T A2J (Trivalen
2
N504
N510017849AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M5X8-10.9 A2J (Trivale
2
N505
N510017419AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X20-10.9 A2J (Trival
8
N506
N510017354AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M6X12-10.9 A2J (Trival
4
N507
N510017428AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5X20-10.9 A2J (Trival
3
N509
N510017398AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4-6H-4T A2J (Trivalen
2
N510
N510017855AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M8X30-10.9 A2J (Trival
2
N511
N510017475AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X6-45H A2J (Trivalen
9
N512
N510018438AA
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ
4 10H A2J (Trivalent)
14
N513
N510018497AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
5 10H A2J (Trivalent)
3
N514
N510018499AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
M3X8-10.9 A2J (Trivale
4
N516
N510017341AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X10-10.9 A2J (Trival
4
N517
N510017344AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
3 10H A2J (Trivalent)
6
N518
N510018494AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
No.2 3 S A2J (Trivalen
4
N519
N510018327AA
SPRING WASHER ﾊﾞﾈｻﾞｶﾞﾈ
M4RA1G4L S
1V 1 308380500702
MOTOR ﾓｰﾀ
