挿入ﾍｯ ﾄﾞ 部(挿入動力部3 ) INSERTION HEAD SECT.(I NSERTION POWER SEC T.-3) 7 FN610074519AA_06-3 M73
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
7
挿入ﾍｯﾄﾞ部(挿入動力部2)
INSERTION HEAD SECT.(INSERTION POWER SECT.-2)
部 品 名 品 番 個数 備 考
R
1
R
2
1018 X02G45107
PLATE ﾌﾟﾚｰﾄ
1
019 X02G45109
NUT ﾅｯﾄ
1
020 X02G45110
PULLEY(TIMING) ﾌﾟｰﾘｰ(ﾀｲﾐﾝｸﾞ)
1022 X02G45116
PLATE ﾍﾞｱﾘﾝｸﾞｵｻｴ
1024 X02G45120
FLANGE ﾌﾗﾝｼﾞ
1
029 X02G45126
WASHER ﾜｯｼｬ
1
037 X02G45138
PLATE ﾌﾟﾚｰﾄ
1040 N210084986AA
LEVER ﾚﾊﾞｰ
1041 N210084987AB
LEVER ﾚﾊﾞｰ
1
042 X01L45001
PLATE ﾌﾟﾚｰﾄ
1043 N210084985AA
LEVER ﾚﾊﾞｰ
1044 X01L4500501
PIN ﾋﾟﾝ
1
045 X01L45006
SHAFT ｼｬﾌﾄ
1
046 X01L45016
CAM(PLATE) ｶﾑ(ｲﾀ)
1052 X01A45037
PIN ﾋﾟﾝ
2053 X01A45039
COLLAR ｶﾗｰ
1
054 X01A45042
COLLAR ｶﾗｰ
1
055 X01A45043
PIN ｼﾃﾝﾋﾟﾝ
6056 N210048696AA
WASHER ﾜｯｼｬ
5058 N210084980AA
COLLAR ｶﾗ-
360-5GT-15
1
N009
N6413605GT15
BELT(TIMING) ﾍﾞﾙﾄ(ﾀｲﾐﾝｸﾞ)
87WASMH25-6
1
N010
N510034997AA
WASHER ﾜｯｼｬ
87FWSSM-D16.0-V8.0-T2.
1
N012
N510033690AA
WASHER ﾜｯｼｬ
87FWSSM-D14.0-V6.0-T3.
2
N013
N510035006AA
WASHER ﾜｯｼｬ
M5X8-45H A2J (Trivalen
1
N023
N510018384AA
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ
CFN6R-A
1
N024
N531CFN6RA
CAM FOLLOWER ｶﾑﾌｫﾛｱ
NART8R
1
N025
N531NART8R
ROLLER FOLLOWER ﾛｰﾗﾌｫﾛｱ
6901ZZ
2
N026
KXF00MLAA00
BEARING ﾍﾞｱﾘﾝｸﾞ
NART6R
1
N027
N531NART6R
ROLLER FOLLOWER ﾛｰﾗﾌｫﾛｱ
M4X8-45H A2J (Trivalen
2
N028
N510018375AA
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ
6005ZZ
2
N030
KXF00K8AA00
BEARING ﾍﾞｱﾘﾝｸﾞ
6905ZZ
2
N032
KXF06P1AA00
BEARING ﾍﾞｱﾘﾝｸﾞ
M4X5-45H A2J (Trivalen
1
N043
N510018372AA
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ
M4X6-10.9 A2J (Trivale
8
N044
N510017534AA
HEX. SOCKET BUTTON HEAD BOL ﾛｯｶｸｱﾅﾂｷﾎﾞﾀﾝﾎﾞﾙﾄ
F696ZZIMC3PS2S
6
N047
N510020363AA
BEARING ﾍﾞｱﾘﾝｸﾞ
M6X20-10.9 A2J (Trival
6
N502
N510017435AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M6X16-10.9 A2J (Trival
4
N506
N510017433AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M3X8-10.9 A2J (Trivale
3
N508
N510017341AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M6X12-10.9 A2J (Trival
4
N512
N510017428AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X16-10.9 A2J (Trival
4
N513
N510017351AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
6 10H A2J (Trivalent)
5
N514
N510018501AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
4 10H A2J (Trivalent)
6
N516
N510018497AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
M4X10-10.9 A2J (Trival
6
N517
N510017344AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
3 10H A2J (Trivalent)
5
N518
N510018494AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
M3X5-10.9 A2J (Trivale
2
N520
N510017333AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M8-6H-4T A2J (Trivalen
1
N528
N510017877AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M6-6H-4T A2J (Trivalen
1
N529
N510017867AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
8 10H A2J (Trivalent)
1
N531
N510018503AA
WASHER ﾋﾗｻﾞｶﾞﾈ
M72
FN610074519AA_06-2
挿入ﾍｯﾄﾞ部(挿入動力部3)
INSERTION HEAD SECT.(INSERTION POWER SECT.-3)
7
FN610074519AA_06-3
M73
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
7

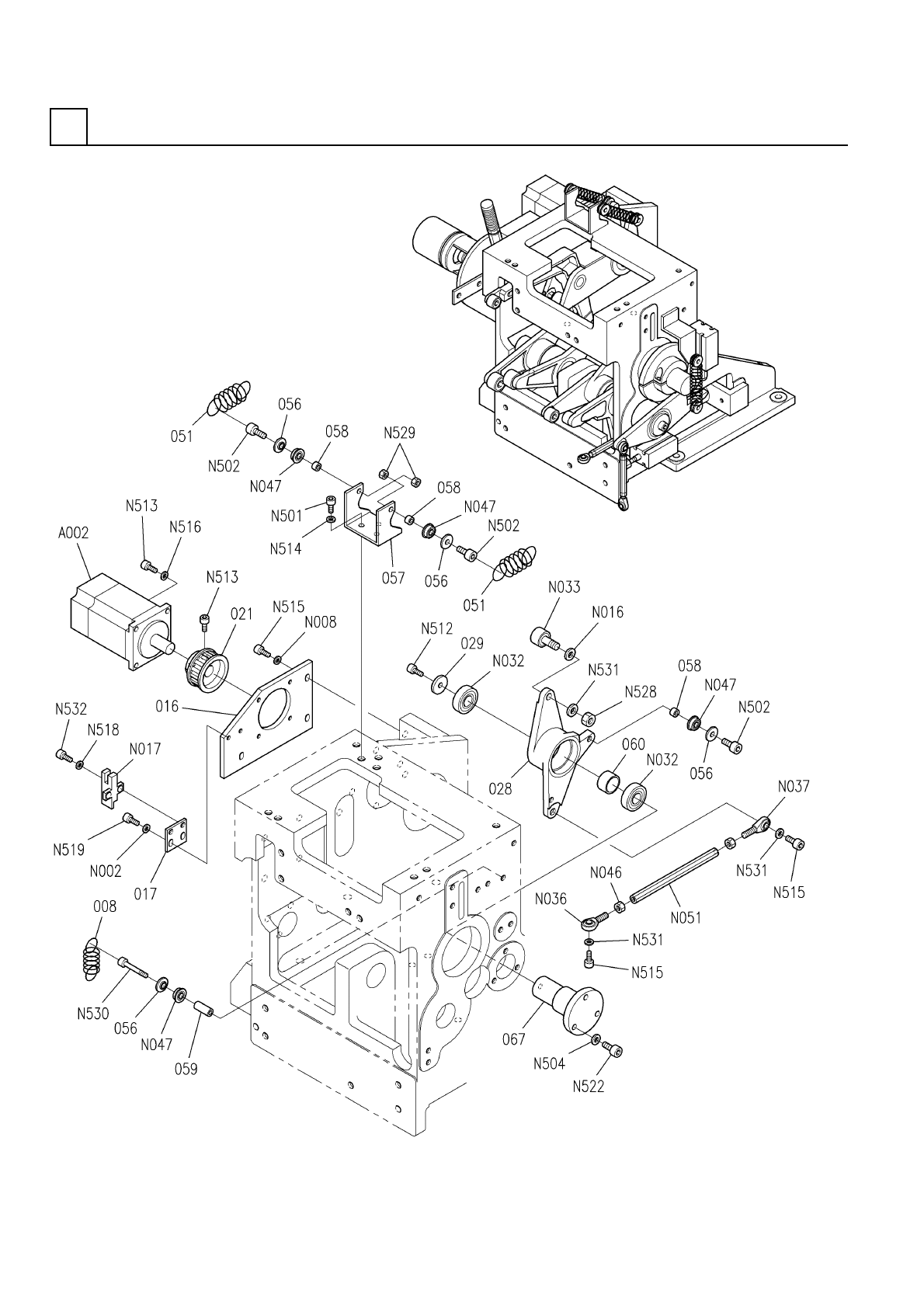

挿入ﾍｯﾄﾞ部(挿入動力部3)
INSERTION HEAD SECT.(INSERTION POWER SECT.-3)
部 品 名 品 番 個数 備 考
R
1
R
2
1008 N210092170AA
SPRING ｽﾌﾟﾘﾝｸﾞ
1
016 N210084989AA
PLATE ﾌﾟﾚｰﾄ
1
017 X02G45106
BRACKET(SENSOR) ﾌﾞﾗｹｯﾄ(ｾﾝｻ)
1021 X02G45111
PULLEY(TIMING) ﾌﾟｰﾘｰ(ﾀｲﾐﾝｸﾞ)
1028 N210092175AA
LEVER ﾚﾊﾞｰ
1
029 X02G45126
WASHER ﾜｯｼｬ
2
051 N210092183AA
SPRING ｽﾌﾟﾘﾝｸﾞ
4056 N210048696AA
WASHER ﾜｯｼｬ
1057 N210092184AA
BRACKET ﾌﾞﾗｹｯﾄ
4
058 N210084980AA
COLLAR ｶﾗ-
1059 N210084981AA
COLLAR ｶﾗｰ
1060 X01A45069
COLLAR ｶﾗｰ
1
067 X01A45090
PIN ｼﾃﾝﾋﾟﾝ
MSMD042PJA S
1
A002
N610074303AA
MOTOR ﾓｰﾀ
M3
2
N002
N510020098AA
WASHER ｻﾞｶﾞﾈ
Thick washer for M8
3
N008
N510020102AA
WASHER ｻﾞｶﾞﾈ
87FWSSM-D15.0-V8.0-T3.
1
N016
N510038169AA
WASHER ﾜｯｼｬ
EE-SX672
1
N017
KXF01YHAA00
SENSOR ｾﾝｻ
6905ZZ
2
N032
KXF06P1AA00
BEARING ﾍﾞｱﾘﾝｸﾞ
CFN8R-A
1
N033
N531CFN8RA
CAM FOLLOWER ｶﾑﾌｫﾛｱ
P0S8L
1
N036
N534P0S8L
ROD END ﾛｯﾄﾞｴﾝﾄﾞ
POS8
1
N037
N534P0S8
ROD END ﾛｯﾄﾞｴﾝﾄﾞ
M8,1-TYPE,STEEL,Z.C.T
1
N046
N510018953AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
F696ZZIMC3PS2S
4
N047
N510020363AA
BEARING ﾍﾞｱﾘﾝｸﾞ
87LBMFN8-130
1
N051
N510038167AA
ROD ﾛｯﾄﾞ
M6X10-10.9 A2J (Trival
3
N501
N510017424AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M6X20-10.9 A2J (Trival
3
N502
N510017435AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
5 10H A2J (Trivalent)
3
N504
N510018499AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
M6X12-10.9 A2J (Trival
1
N512
N510017428AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X16-10.9 A2J (Trival
6
N513
N510017351AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
6 10H A2J (Trivalent)
3
N514
N510018501AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
M8X20-10.9 A2J (Trival
5
N515
N510017472AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
4 10H A2J (Trivalent)
4
N516
N510018497AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
3 10H A2J (Trivalent)
2
N518
N510018494AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
M3X10-10.9 A2J (Trival
2
N519
N510017305AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5X16-10.9 A2J (Trival
3
N522
N510017395AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M8-6H-4T A2J (Trivalen
1
N528
N510017877AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M6-6H-4T A2J (Trivalen
2
N529
N510017867AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M6X45-10.9 A2J (Trival
1
N530
N510017444AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
8 10H A2J (Trivalent)
3
N531
N510018503AA
WASHER ﾋﾗｻﾞｶﾞﾈ
M3X6-10.9 A2J (Trivale
2
N532
N510017337AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M74
FN610074519AA_06-3
