Mechanical Parts List - 第92页

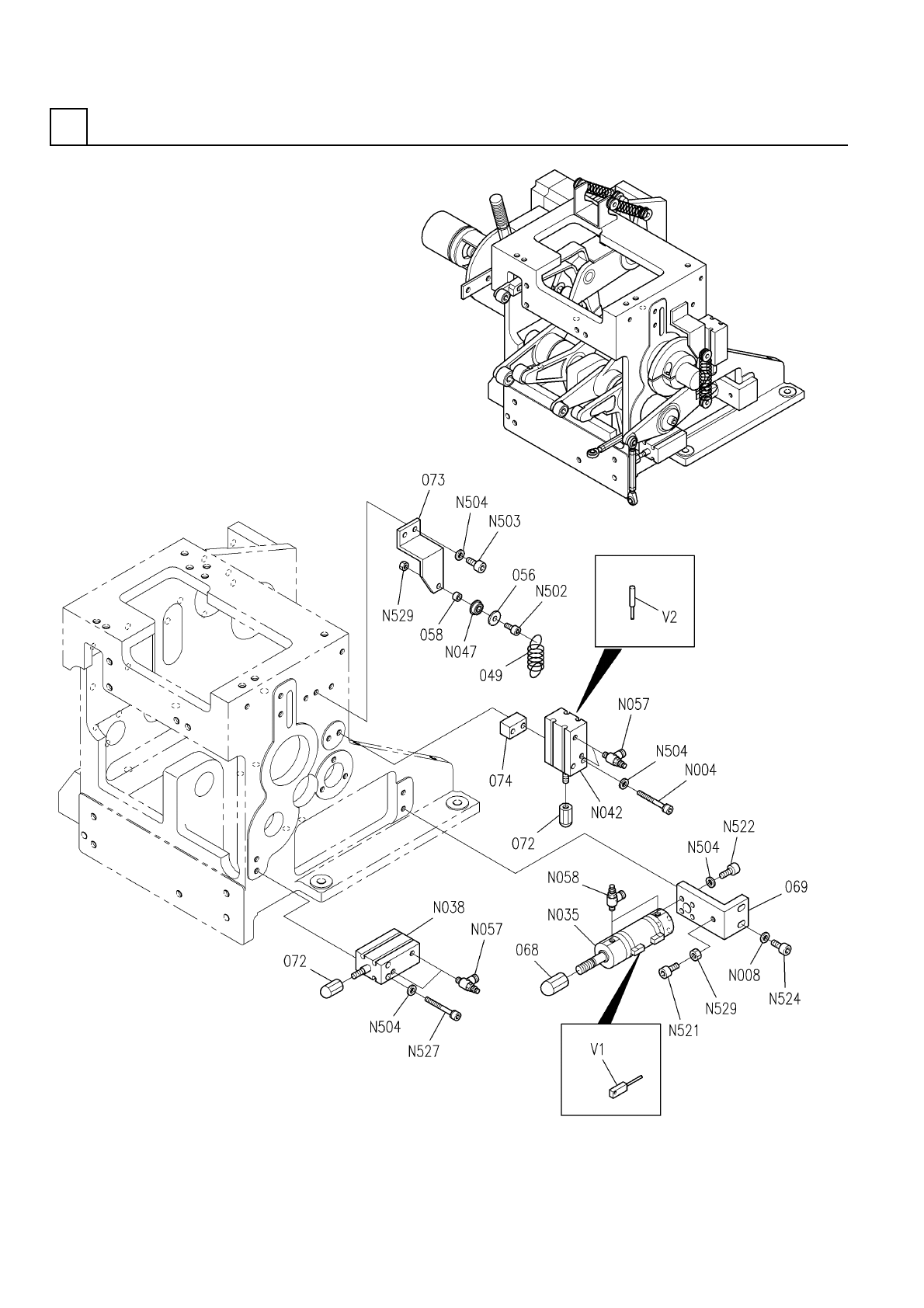

挿入ﾍｯ ﾄﾞ 部(挿入動力部4 ) INSERTION HEAD SECT.(I NSERTION POWER SEC T.-4) 7 FN610074519AA_06-4 M75
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
7
挿入ﾍｯﾄﾞ部(挿入動力部3)
INSERTION HEAD SECT.(INSERTION POWER SECT.-3)
部 品 名 品 番 個数 備 考
R
1
R
2
1008 N210092170AA
SPRING ｽﾌﾟﾘﾝｸﾞ
1
016 N210084989AA
PLATE ﾌﾟﾚｰﾄ
1
017 X02G45106
BRACKET(SENSOR) ﾌﾞﾗｹｯﾄ(ｾﾝｻ)
1021 X02G45111
PULLEY(TIMING) ﾌﾟｰﾘｰ(ﾀｲﾐﾝｸﾞ)
1028 N210092175AA
LEVER ﾚﾊﾞｰ
1
029 X02G45126
WASHER ﾜｯｼｬ
2
051 N210092183AA
SPRING ｽﾌﾟﾘﾝｸﾞ
4056 N210048696AA
WASHER ﾜｯｼｬ
1057 N210092184AA
BRACKET ﾌﾞﾗｹｯﾄ
4
058 N210084980AA
COLLAR ｶﾗ-
1059 N210084981AA
COLLAR ｶﾗｰ
1060 X01A45069
COLLAR ｶﾗｰ
1
067 X01A45090
PIN ｼﾃﾝﾋﾟﾝ
MSMD042PJA S
1
A002
N610074303AA
MOTOR ﾓｰﾀ
M3
2
N002
N510020098AA
WASHER ｻﾞｶﾞﾈ
Thick washer for M8
3
N008
N510020102AA
WASHER ｻﾞｶﾞﾈ
87FWSSM-D15.0-V8.0-T3.
1
N016
N510038169AA
WASHER ﾜｯｼｬ
EE-SX672
1
N017
KXF01YHAA00
SENSOR ｾﾝｻ
6905ZZ
2
N032
KXF06P1AA00
BEARING ﾍﾞｱﾘﾝｸﾞ
CFN8R-A
1
N033
N531CFN8RA
CAM FOLLOWER ｶﾑﾌｫﾛｱ
P0S8L
1
N036
N534P0S8L
ROD END ﾛｯﾄﾞｴﾝﾄﾞ
POS8
1
N037
N534P0S8
ROD END ﾛｯﾄﾞｴﾝﾄﾞ
M8,1-TYPE,STEEL,Z.C.T
1
N046
N510018953AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
F696ZZIMC3PS2S
4
N047
N510020363AA
BEARING ﾍﾞｱﾘﾝｸﾞ
87LBMFN8-130
1
N051
N510038167AA
ROD ﾛｯﾄﾞ
M6X10-10.9 A2J (Trival
3
N501
N510017424AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M6X20-10.9 A2J (Trival
3
N502
N510017435AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
5 10H A2J (Trivalent)
3
N504
N510018499AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
M6X12-10.9 A2J (Trival
1
N512
N510017428AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X16-10.9 A2J (Trival
6
N513
N510017351AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
6 10H A2J (Trivalent)
3
N514
N510018501AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
M8X20-10.9 A2J (Trival
5
N515
N510017472AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
4 10H A2J (Trivalent)
4
N516
N510018497AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
3 10H A2J (Trivalent)
2
N518
N510018494AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
M3X10-10.9 A2J (Trival
2
N519
N510017305AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5X16-10.9 A2J (Trival
3
N522
N510017395AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M8-6H-4T A2J (Trivalen
1
N528
N510017877AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M6-6H-4T A2J (Trivalen
2
N529
N510017867AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M6X45-10.9 A2J (Trival
1
N530
N510017444AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
8 10H A2J (Trivalent)
3
N531
N510018503AA
WASHER ﾋﾗｻﾞｶﾞﾈ
M3X6-10.9 A2J (Trivale
2
N532
N510017337AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M74
FN610074519AA_06-3
挿入ﾍｯﾄﾞ部(挿入動力部4)
INSERTION HEAD SECT.(INSERTION POWER SECT.-4)
7
FN610074519AA_06-4
M75
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
7
挿入ﾍｯﾄﾞ部(挿入動力部4)
INSERTION HEAD SECT.(INSERTION POWER SECT.-4)
部 品 名 品 番 個数 備 考
R
1
R
2
1049 N210092181AA
SPRING ｽﾌﾟﾘﾝｸﾞ
1
056 N210048696AA
WASHER ﾜｯｼｬ
1
058 N210084980AA
COLLAR ｶﾗ-
1068 X01A45104
BRACKET ｶﾅｸﾞ
1069 X01A45105
BRACKET(CYLINDER) ﾌﾞﾗｹｯﾄ(ｼﾘﾝﾀﾞ)
2
072 X01A45113
BRACKET ｶﾅｸﾞ
1
073 N210092186AA
BRACKET ﾌﾞﾗｹｯﾄ
1074 X01A45121
SPACER ｽﾍﾟｰｻ
M5X65-10.9 A2J (Trival
2
N004
N510017415AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
Thick washer for M8
2
N008
N510020102AA
WASHER ｻﾞｶﾞﾈ
CDG1BN25-25-H7A1S
1
N035
N401CDG1-C49
CYLINDER ｼﾘﾝﾀﾞ
CDU20-40D
1
N038
N401CDU2040D
CYLINDER ｼﾘﾝﾀﾞ
CDU20-25D-M9NS
1
N042
N401CDU2-J55
CYLINDER ｼﾘﾝﾀﾞ
F696ZZIMC3PS2S
1
N047
N510020363AA
BEARING ﾍﾞｱﾘﾝｸﾞ
AS1201F-M5-06
4
N057
KXF00YNAA00
SPEED CONTROLLER ｽﾋﾟｰﾄﾞｺﾝﾄﾛｰﾗ
AS2201F-01-06S
2
N058
KXF00ZCAA00
SPEED CONTROLLER ｽﾋﾟｰﾄﾞｺﾝﾄﾛｰﾗ
M6X20-10.9 A2J (Trival
1
N502
N510017435AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5X12-10.9 A2J (Trival
2
N503
N510017390AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
5 10H A2J (Trivalent)
10
N504
N510018499AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
M6X30-10.9 A2J (Trival
1
N521
N510017438AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5X16-10.9 A2J (Trival
4
N522
N510017395AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M8X25-10.9 A2J (Trival
2
N524
N510017473AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5X50-10.9 A2J (Trival
2
N527
N510017409AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M6-6H-4T A2J (Trivalen
2
N529
N510017867AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
D-H7A1
1
V 1 N401DH7A1
SWITCH ｽｲｯﾁ
D-M9N
1V 2 N401DM9N
SWITCH ｽｲｯﾁ
M76
FN610074519AA_06-4
