PART No. ｲﾗｽﾄ No. REF No. PART NAME REMARKS Q'TY 7 挿入ﾍｯ ﾄﾞ 部(挿入動力部6 ) INSERTION HEAD SECT.(I NSERTION POWER SEC T.-6) 部 品 名 品 番 個数 備 考 R 1 R 2 1 025 X02G45121 COLLAR ｶﾗｰ 1 026 X02G45122 COLLAR ｶﾗｰ 1 027 X02G45123 SH…
挿入ﾍｯﾄﾞ部(挿入動力部6)
INSERTION HEAD SECT.(INSERTION POWER SECT.-6)
7
FN610074519AA_06-6
M79
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
7
挿入ﾍｯﾄﾞ部(挿入動力部6)
INSERTION HEAD SECT.(INSERTION POWER SECT.-6)
部 品 名 品 番 個数 備 考
R
1
R
2
1025 X02G45121
COLLAR ｶﾗｰ
1
026 X02G45122
COLLAR ｶﾗｰ
1
027 X02G45123
SHAFT ｼｬﾌﾄ
1033 X02G45133
PLATE ﾌﾟﾚｰﾄ
1034 X02G45134
COLLAR ｶﾗｰ
1
035 N210092177AA
LEVER ﾚﾊﾞｰ
1
036 N210092178AA
LEVER ﾚﾊﾞｰ
1056 N210048696AA
WASHER ﾜｯｼｬ
1058 N210084980AA
COLLAR ｶﾗ-
5
060 X01A45069
COLLAR ｶﾗｰ
1061 X01A45071
COLLAR ｶﾗｰ
1062 N210084970AA
LEVER ﾚﾊﾞｰ
1
063 X01A45081
COLLAR ｶﾗｰ
1
064 N210084971AA
LEVER ﾚﾊﾞｰ
1065 N210092185AA
LEVER ﾚﾊﾞｰ
1066 X01A45089
COLLAR ｶﾗｰ
87FWSSM-D13.0-V8.0-T2.
1
N007
N510038168AA
WASHER ﾜｯｼｬ
87WASMH30-8
1
N014
N510027896AA
WASHER ﾜｯｼｬ
87FWSSM-D16.0-V10.0-T2
3
N015
N510038170AA
WASHER ﾜｯｼｬ
87FWSSM-D15.0-V8.0-T3.
1
N016
N510038169AA
WASHER ﾜｯｼｬ
CFN6R-A
2
N024
N531CFN6RA
CAM FOLLOWER ｶﾑﾌｫﾛｱ
CFN10R-A
3
N031
N531CFN10RA
CAM FOLLOWER ｶﾑﾌｫﾛｱ
6905ZZ
10
N032
KXF06P1AA00
BEARING ﾍﾞｱﾘﾝｸﾞ
CFN8R-A
4
N033
N531CFN8RA
CAM FOLLOWER ｶﾑﾌｫﾛｱ
P0S5L
1
N039
N533P0S5L
ROD END ﾛｯﾄﾞｴﾝﾄﾞ
M5,1-TYPE,STEEL,Z.C.T
1
N040
N510018945AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
P0S5
1
N041
N533P0S5
ROD END ﾛｯﾄﾞｴﾝﾄﾞ
F696ZZIMC3PS2S
1
N047
N510020363AA
BEARING ﾍﾞｱﾘﾝｸﾞ
87LBMFN5-60
1
N052
N510038166AA
ROD ﾛｯﾄﾞ
M6X20-10.9 A2J (Trival
1
N502
N510017435AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5X12-10.9 A2J (Trival
3
N503
N510017390AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
5 10H A2J (Trivalent)
5
N504
N510018499AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
M5X25-10.9 A2J (Trival
1
N509
N510017399AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5X20-10.9 A2J (Trival
1
N510
N510017398AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
6 10H A2J (Trivalent)
2
N514
N510018501AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
M8X16-10.9 A2J (Trival
2
N523
N510017470AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M8-6H-4T A2J (Trivalen
4
N528
N510017877AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M6-6H-4T A2J (Trivalen
2
N529
N510017867AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
8 10H A2J (Trivalent)
4
N531
N510018503AA
WASHER ﾋﾗｻﾞｶﾞﾈ
M10-6H-4T A2J (Trivale
3
N533
N510017887AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
10 10H A2J (Trivalent)
3
N534
N510018505AA
WASHER ﾋﾗｻﾞｶﾞﾈ
M80
FN610074519AA_06-6

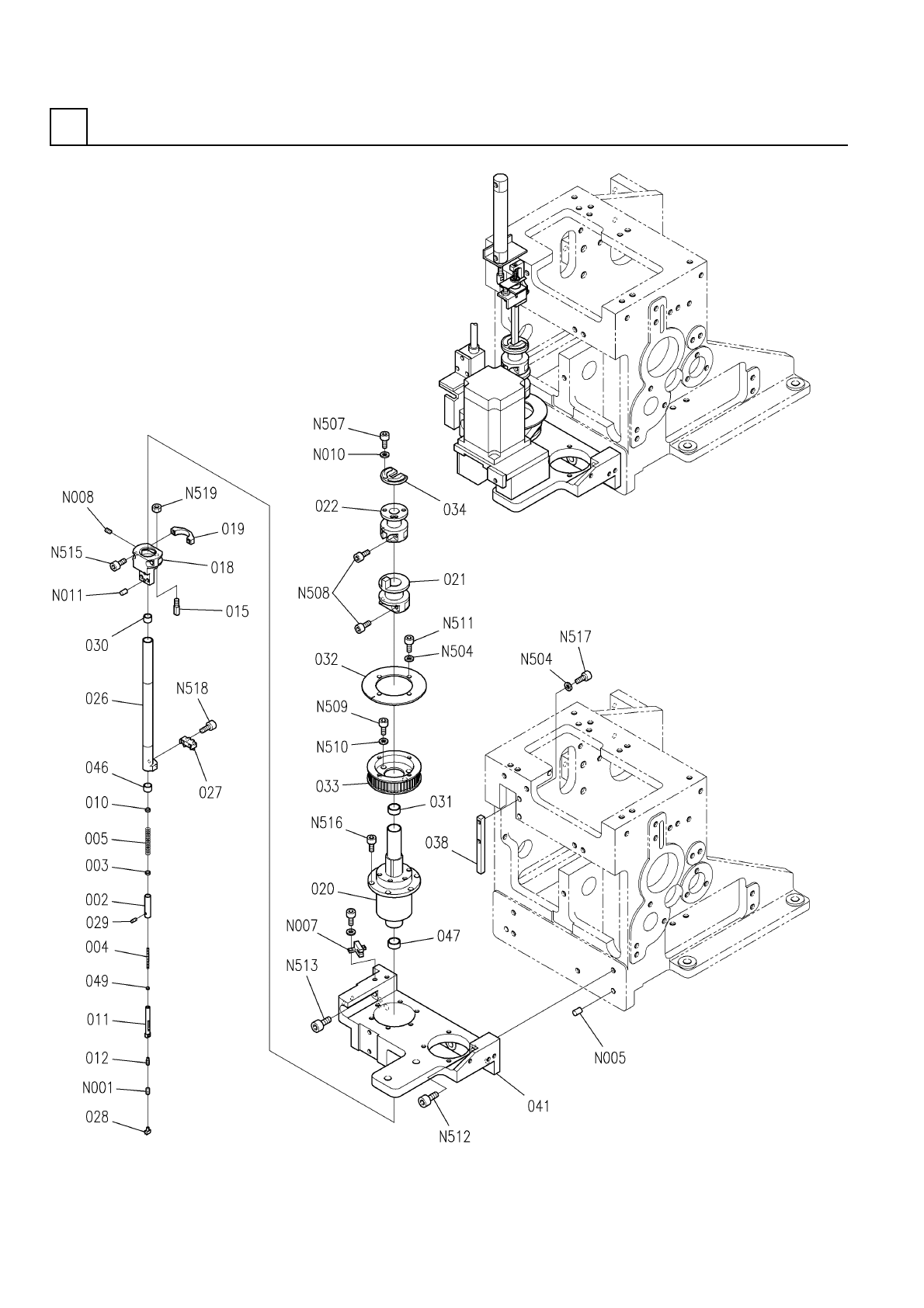

挿入ﾍｯﾄﾞ部(挿入本体部1)
INSERTION HEAD SECT.(MAIN BODY SECT.-1)
7
FN610074520AA_03-1
M81
