MODEL TIM-5000 9905-001 P-1 Key No. PART No. PART NAME Q'ty REMA RKS 1 630 082 9839 ASSY,M OTOR,AC-SERVO 1 2 630 068 8542 BALL SCREW 1 3 630 069 8213 PULLEY,T IMIM G 4 4 630 055 3406 COUPLIN G 1 5 630 054 8556 PULLE…
MODEL TIM-5000
9905-001
バックアップベ−ス部 BACK-UP BASE SECTION

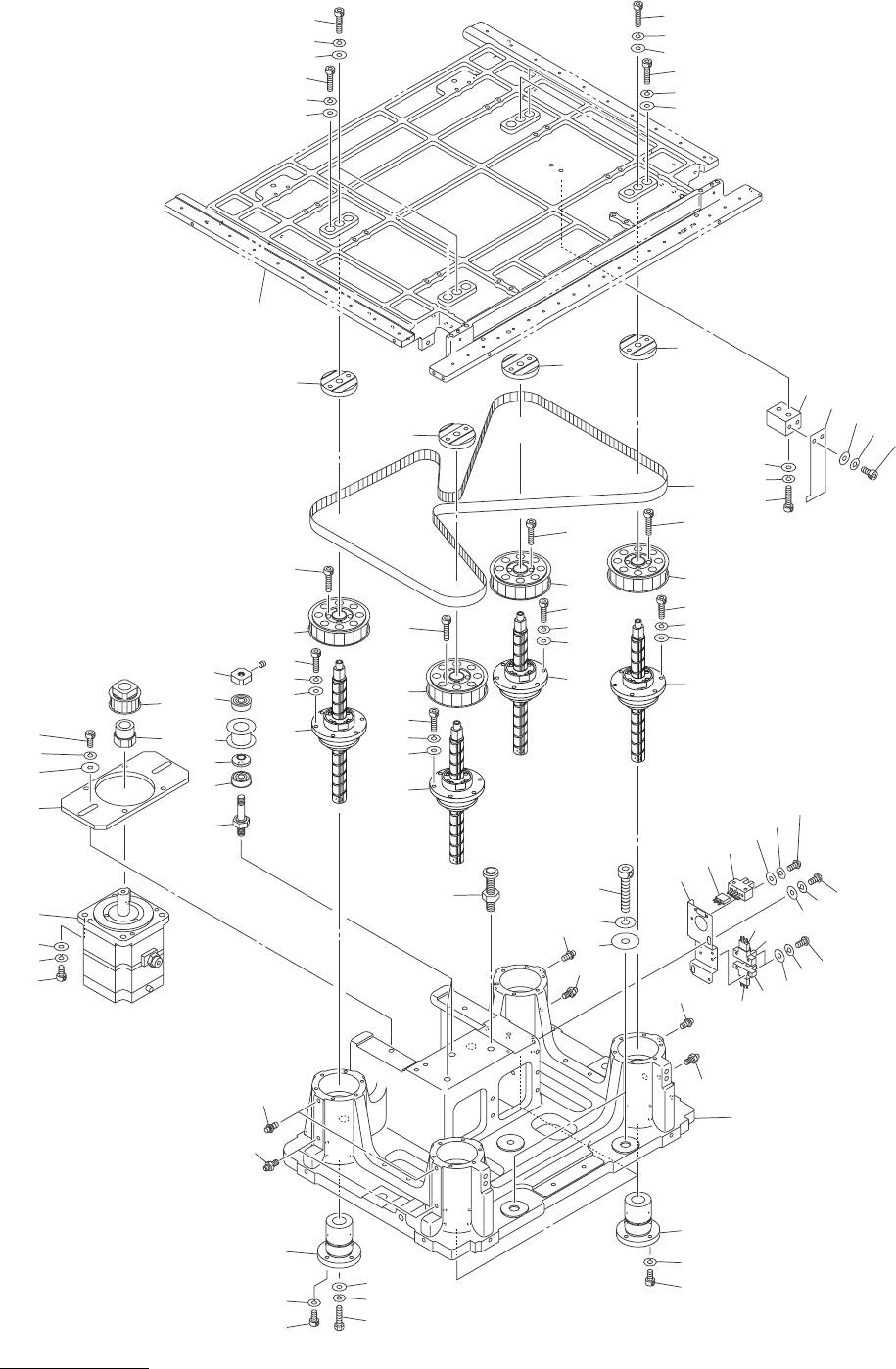

Fig. P-1 バックアップ上下部 Back-up Up/Down Section
66
67
68
66
23
23
23
23
66
67
70
18
17
71
72
73
7
76
3
75
72
71
2
75
3
76
72
71
2
4
5
75
3
76
72
71
2
13
56
19
14
11
86
87
89
71
14
10
14
74
72
2
56
57
58
74
72
2
15
10
86
87
88
72
74
9
8
9
8
9
8
57
59
75
3
76
72
71
20
63
62
61
1
16
60
62
64
6
22
21
6
12
2
67
68
66
67
69
66
67
69
See Fig.P-2
Key No.101
MODEL TIM-5000
9905-001
P-1
Key No. PART No. PART NAME Q'ty REMARKS
1 630 082 9839 ASSY,MOTOR,AC-SERVO 1
2 630 068 8542 BALL SCREW 1
3 630 069 8213 PULLEY,TIMIMG 4
4 630 055 3406 COUPLING 1
5 630 054 8556 PULLEY,TIMIMG 1
6 630 001 1562 BEARING,RADIAL 4
7 630 069 1467 BELT,TIMING 1
8 630 003 4301 GREASE NIPPLE 4
9 630 056 9346 GREASE NIPPLE 4
10 630 000 0252 SENSOR,PHOTO 2
11 630 000 0245 SENSOR,PHOTO 1
12 630 005 0851 BEARING,PARTS 2
13 630 069 1634 MECH PARTS 1
14 630 000 0269 SENSOR,PHOTO(CONNECTOR) 3
15 630 074 0684 FRAME 1
16 630 068 8054 PLATE 1
17 630 068 8061 PLATE 1
18 630 068 8078 BLOCK 1
19 630 068 7187 PLATE 1
20 630 070 3382 SHAFT 2
21 630 074 0646 PULLEY,FLAT 2
22 630 074 0660 COLLAR 2
23 630 074 0677 PLATE 4
56 630 001 0244 WASHER 8 BW8
57 411 141 3100 WASHER SPR 8 8 SW8
58 630 000 8029 BOLT,HEX-SCT 1 M8X25
59 630 000 8043 BOLT,HEX-SCT 7 M8X35
60 630 001 0237 WASHER 2 BW6
61 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
62 411 141 3001 WASHER SPR 6 6 SW6
63 630 000 7886 BOLT,HEX-SCT 4 M6X16
64 630 000 7893 BOLT,HEX-SCT 2 M6X20
66 411 141 4107 WASHER V 5X10X1 14 FW5
67 411 141 6705 WASHER SPR 5 14 SW5
68 630 000 7756 BOLT,HEX-SCT 8 M5X12
69 630 000 7770 BOLT,HEX-SCT 4 M5X20
70 630 000 7794 BOLT,HEX-SCT 2 M5X30
71 411 141 4008 WASHER V 4X9X0.8 28 FW4
72 411 141 2905 WASHER SPR 4 44 SW4
73 630 000 7626 BOLT,HEX-SCT 2 M4X10
74 630 000 7633 BOLT,HEX-SCT 18 M4X12
75 630 000 7657 BOLT,HEX-SCT 24 M4X16
76 630 000 7688 BOLT,HEX-SCT 16 M4X30
86 411 119 1909 WASHER V 3X7X0.5 6 FW3 F
87 411 086 4408 WASHER SPR 3 6 SW3 F
88 411 040 7803 SCR PAN 3X12 4 M3X12 PAN
89 411 162 1604 SCR PAN 3X20 2 M3X20 PAN
NOTE
MODEL TIM-5000
9905-001
バックアップベ−ス部 BACK-UP BASE SECTION
Fig. P-2 バックアップベ−ス Back-up Base
172
171
173
101
102
103
