MODEL TIM-5000 9905-001 ベースフレーム部 BASE FRAME SECTION Fig. B-2 エア源 Air Source 109 165 167 169 101 166 167 168 171 102 172 173 117 117 B A C C B 121 120 119 170 107 116 106 105 114 A 115 111 122 122 171 172 173 108 112 171 …
MODEL TIM-5000
9905-001
B-1
Key No. PART No. PART NAME Q'ty REMARKS
1 630 076 5922 FRAME 1
2 630 076 0804 FRAME(L) 1
3 630 076 0811 FRAME(R) 1
4 630 048 9927 BLOCK,LOCATE 6
5 630 041 6770 COLLAR 6
11 630 075 6432 CASTER 4
12 630 042 5673 BOLT,HEX 6
13 630 042 5697 NUT 6
17 630 076 3850 COVER 2
18 630 076 3867 COVER 1
19 630 077 1091 COVER 1
56 411 141 4503 WASHER V 8X17X1.6 16 FW8
57 411 141 3100 WASHER SPR 8 16 SW8
58 630 000 8012 BOLT,HEX-SCT 16 M8X20
61 411 141 4305 WASHER V 6X12.5X1.6 8 FW6
62 411 141 3001 WASHER SPR 6 8 SW6
63 630 000 7855 BOLT,HEX-SCT 8 M6X8
90 630 000 8975 SET SCREW 6 M6X6 SET
91 411 141 5401 WASHER V 20X37X3 16 FW20
92 411 141 6804 WASHER SPR 20 16 SW20
93 630 000 8388 BOLT,HEX-SCT 16 M20X60
NOTE
MODEL TIM-5000
9905-001

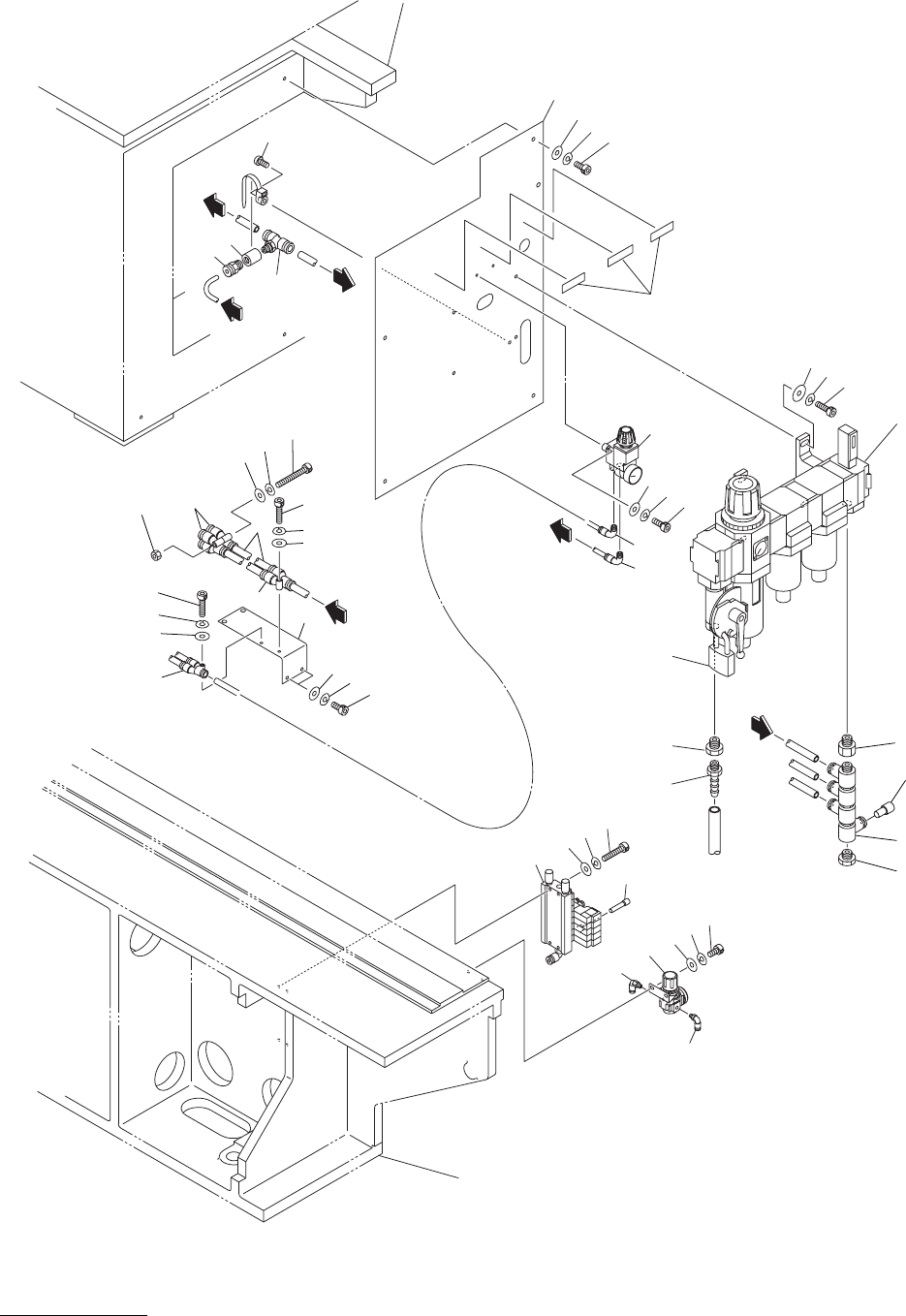

ベースフレーム部 BASE FRAME SECTION
Fig. B-2 エア源 Air Source
109
165
167
169
101
166
167
168
171
102
172
173
117
117
B
A
C
C
B
121
120
119
170
107
116
106
105
114
A
115
111
122
122
171
172
173
108
112
171
172
176
123
175
177
172
171
178
103
103
172
171
110
166
174
172
171
118
167
168
12
See Fig.B-1See Fig.B-1
Key No.1Key No.1
See Fig.B-1See Fig.B-1
Key No.2Key No.2
113
MODEL TIM-5000
9905-001
B-2
Key No. PART No. PART NAME Q'ty REMARKS
101 630 070 2194 AIR LINE EQPT 1
102 630 071 1660 AIR LINE EQPT 1
103 630 062 4847 BALL SCREW 3
105 630 003 8248 PIPE FITTINGS 1
106 630 003 8224 PIPE FITTINGS 4
107 630 003 8231 PIPE FITTINGS 1
108 630 053 4917 MECH PARTS 1
109 630 074 8376 BRACKET 1
110 630 074 8536 BRACKET 1
111 630 072 1546 AIR LINE EQPT 1
112 630 071 3718 VALVE 1
113 630 076 5021 NAME PLATE,PARTS 1
114 630 008 0285 PIPE FITTINGS 1
115 630 003 7388 PIPE FITTINGS 1
116 630 003 7814 PIPE FITTINGS 1
117 630 003 7302 PIPE FITTINGS 2
118 630 003 7708 PIPE FITTINGS 1
119 630 003 7579 PIPE FITTINGS 1
120 630 003 7937 PIPE FITTINGS 1
121 630 003 7036 PIPE FITTINGS 1
122 630 003 7265 PIPE FITTINGS 2
123 630 003 7791 PIPE FITTINGS 1
165 630 001 0220 WASHER 4 BW5
166 411 141 4107 WASHER V 5X10X1 6 FW5
167 411 141 6705 WASHER SPR 5 10 SW5
168 630 000 7749 BOLT,HEX-SCT 6 M5X10
169 630 000 7770 BOLT,HEX-SCT 4 M5X20
170 630 000 7725 BOLT,HEX-SCT 1 M5X6
171 411 141 4008 WASHER V 4X9X0.8 11 FW4
172 411 141 2905 WASHER SPR 4 11 SW4
173 630 000 7657 BOLT,HEX-SCT 4 M4X16
174 630 000 7664 BOLT,HEX-SCT 1 M4X20
175 630 000 7671 BOLT,HEX-SCT 1 M4X25
176 630 000 7688 BOLT,HEX-SCT 4 M4X30
177 630 000 7718 BOLT,HEX-SCT 1 M4X45
178 411 141 0307 NUT HEX 4 1 M4
NOTE
