MODEL TIM-5000 9905-001 BB-6 Key No. PART No. PART NAME Q'ty REMA RKS 516 411 141 4107 W ASHER V 5X10X1 4 FW 5 517 411 141 6705 W ASHER SPR 5 4 SW 5 518 630 000 7732 BOLT,HEX -SCT 2 M5X 8 519 630 000 7749 BOLT,HEX -…
MODEL TIM-5000
9905-001
本体電装部 MACHINE ELECTRICAL SECTION

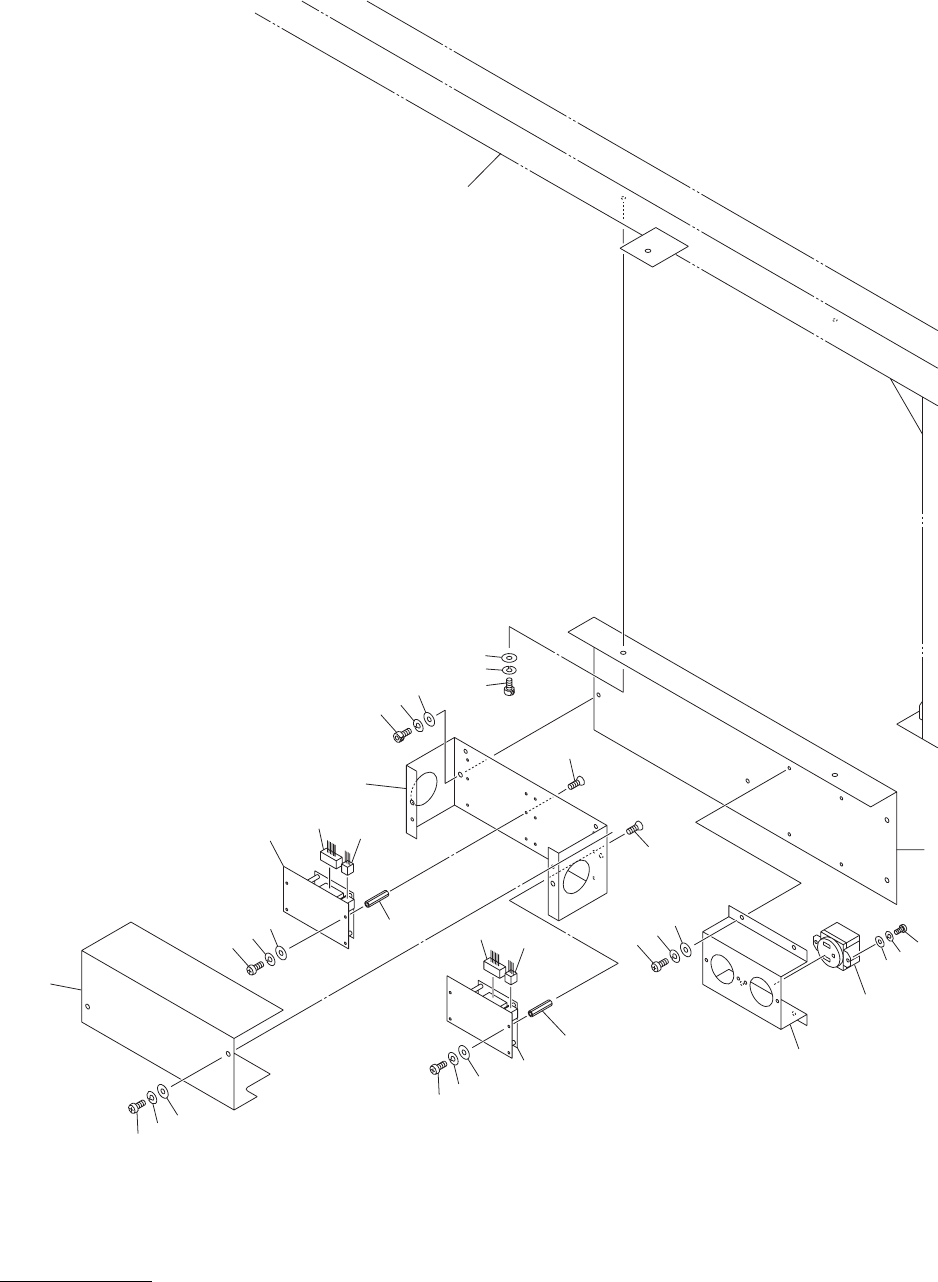

Fig. BB-6操作パネルＢ ＳＤＳ Operation Panel B SDS
535
535
557
583
582
569
587
586
570
585
516
517
519
516
517
518
584
See Fig.B-5
Key No.401
587
586
531
532
533
516
517
518
531
568
570
532
533
536
537
538
538
537
536
MODEL TIM-5000
9905-001
BB-6
Key No. PART No. PART NAME Q'ty REMARKS
516 411 141 4107 WASHER V 5X10X1 4 FW5
517 411 141 6705 WASHER SPR 5 4 SW5
518 630 000 7732 BOLT,HEX-SCT 2 M5X8
519 630 000 7749 BOLT,HEX-SCT 2 M5X10
531 411 119 1909 WASHER V 3X7X0.5 8 FW3 F
532 411 086 4408 WASHER SPR 3 8 SW3 F
533 411 041 8908 SCR PAN 3X6 8 M3X6 PAN
535 411 108 7103 SCR FLT 3X10 8 M3X10 FLT
536 411 119 2104 WASHER V 4X9X0.8 10 FW4 F
537 411 008 1706 WASHER SPR 4 10 SW4 F
538 411 043 5004 SCR PAN 4X8 10 M4X8 PAN
557 630 000 4243 SOCKET 1 675BB-11D-457
568 630 071 2551 UNIT,I/O 1 675BB-11D-860
569 630 071 2568 UNIT,I/O 1 675BB-11D-861
570 630 069 1078 ACCESSORY,P.C.B 8 675BB-11D-866
582 630 071 3961 BRACKET 1 675BB-11V-077
583 630 071 3756 BRACKET 1 675BB-11V-078
584 630 071 5309 BOX 1 675BB-11V-271
585 630 071 3763 COVER 1 675BB-11V-272
586 630 070 2965 CONNECTOR 2 675BB-11D-652
587 630 070 2972 CONNECTOR 2 675BB-11D-868
NOTE
MODEL TIM-5000
9905-001
本体電装部 MACHINE ELECTRICAL SECTION
Fig. BB-7ＴＦ(Ａ)ＰＭＤ ＢＯＸ TF(A) PMD BOX
636
637
638
631
632
635
668
674
621
622
623
616
671
618
636
633
632
631
637
638
617
672
665
621
641
622
623
638
637
636
666
634
631
673
666
632
