MODEL TIM-5000 9905-001 BD-1 Key No. PART No. PART NAME Q'ty REMA RKS 15 630 001 0220 W ASHER 7 BW 5 16 411 141 4107 W ASHER V 5X10X1 2 FW 5 17 411 141 6705 W ASHER SPR 5 9 SW 5 18 630 000 7749 BOLT,HEX -SCT 2 M5X 1…
MODEL TIM-5000
9905-001
ドライバ部 DRIVER SECTION

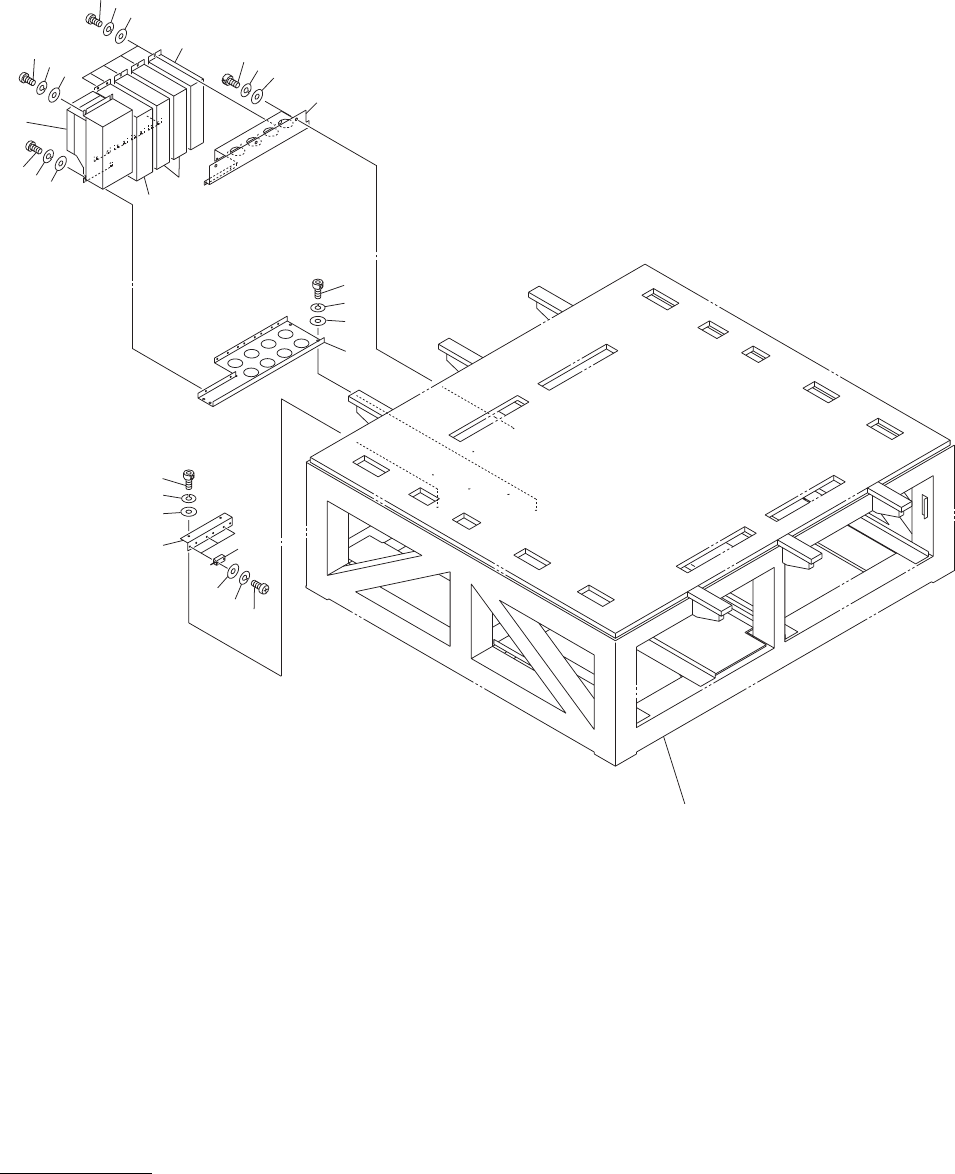

Fig. BD-1ドライバＡレイアウト Driver A Layout
See Fig.B-1
Key No.1
18
17
16
73
54
36
37
38
19
17
15
71
53
52
48
47
46
48
51
47
46
48
47
46
61
15
19
17
72
MODEL TIM-5000
9905-001
BD-1
Key No. PART No. PART NAME Q'ty REMARKS
15 630 001 0220 WASHER 7 BW5
16 411 141 4107 WASHER V 5X10X1 2 FW5
17 411 141 6705 WASHER SPR 5 9 SW5
18 630 000 7749 BOLT,HEX-SCT 2 M5X10
19 630 000 7756 BOLT,HEX-SCT 7 M5X12
36 411 119 1909 WASHER V 3X7X0.5 6 FW3 F
37 411 086 4408 WASHER SPR 3 6 SW3 F
38 411 040 6202 SCR PAN 3X10 6 M3X10 PAN
46 411 088 1702 WAHER V 5X10X1 17 FW5 F
47 411 008 2109 WASHER SPR 5 17 SW5 F
48 411 043 6803 SCR PAN 5X12 17 M5X12 PAN
51 630 068 9624 UNIT,DRIVER 1 675BD-11D-051
52 630 073 5475 UNIT,DRIVER 1 675BD-11D-052
53 630 075 0447 UNIT,DRIVER 2 675BD-11D-053
54 630 054 5357 UNIT,POWER 3 675BD-11D-054
61 630 078 3179 UNIT,DRIVER 1 675BD-11D-158
71 630 071 6702 BRACKET 1 675BD-11V-071
72 630 071 6719 BRACKET 1 675BD-11V-072
73 630 071 6740 BRACKET 1 675BD-11V-073
NOTE
MODEL TIM-5000
9905-001
ドライバ部 DRIVER SECTION

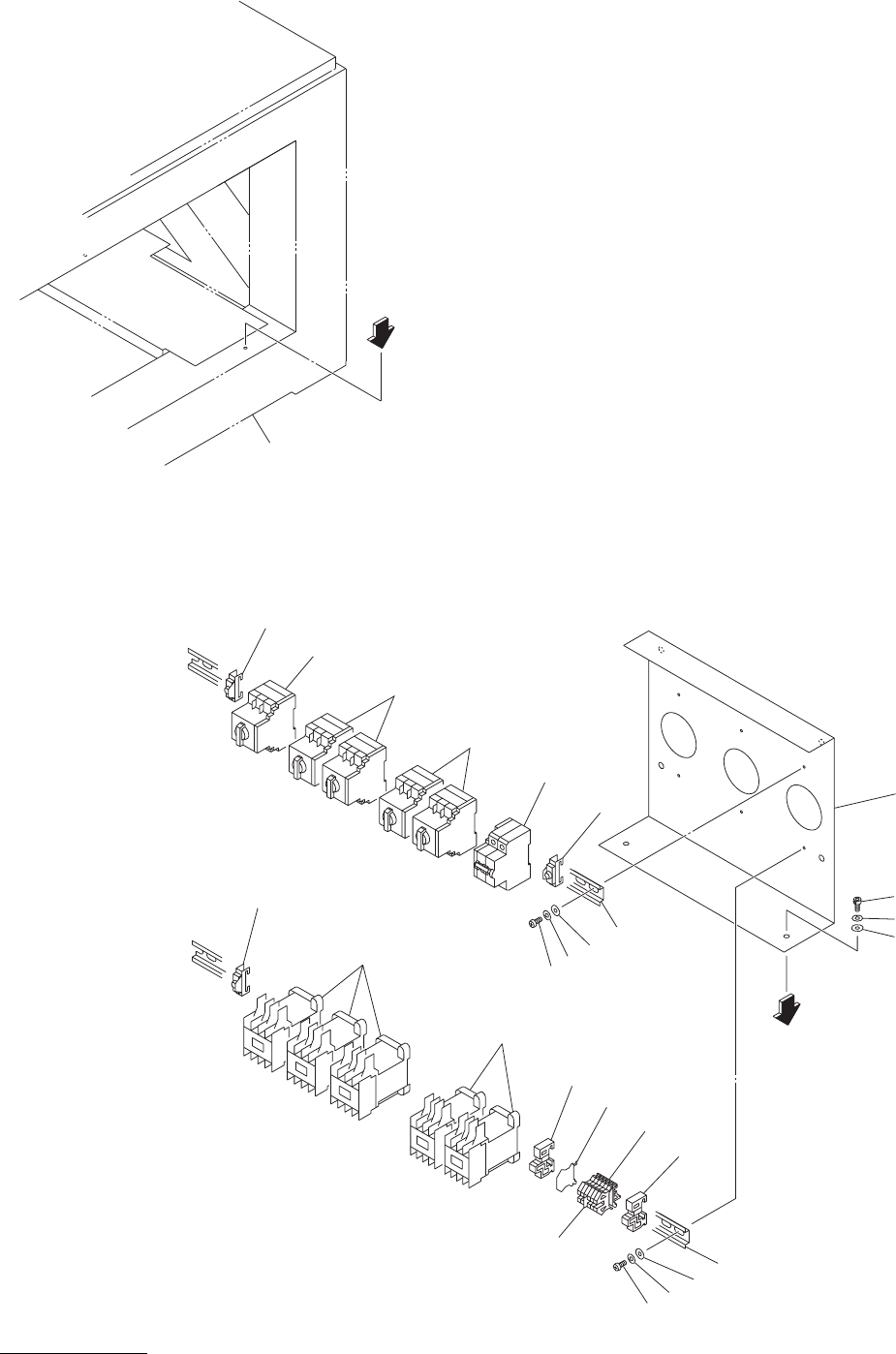

Fig. BD-2ドライバＡパネルレイアウト Driver A Panel Layout
174
118
117
116
171
169
168
154
153
152
151
155
153
157
141
142
143
157
171
165
166
167
159
171
141
142
143
.
A
A
See Fig.B-1
Key No.1
