MODEL TIM-5000 9905-001 電源部 POWER SUPPL Y SECTION Fig. BF-2 電源２ （１） Power Supply 2 (1) 136 137 186 138 185 196 198 151 152 153 165 188 136 137 138 186 . 165 188 173 118 116 117 185 184 180 196 187 181 185 . 165 189 . 165…
MODEL TIM-5000
9905-001
BF-1
Key No. PART No. PART NAME Q'ty REMARKS
16 411 141 4107 WASHER V 5X10X1 16 FW5
17 411 141 6705 WASHER SPR 5 16 SW5
18 630 000 7756 WASHER HEX-SCT 8 M5X12
19 630 000 7732 BOLT,HEX-SCT 8 M5X8
21 411 119 2104 WASHER V 4X9X0.8 9 FW4 F
22 411 008 1706 WASHER SPR 4 9 SW4 F
23 411 042 3001 SCR PAN 4X10 9 M4X10 PAN
24 411 043 5004 SCR PAN 4X8 1 M4X8 PAN
28 411 113 2803 SCR PAN 5X8 8 M5X8 PAN
31 411 113 9109 SCR TRS 5X10 1 M5X10 TRS
36 411 141 4305 WASHER V 6X12.5X1.6 2 FW6
37 411 141 3001 WASHER SPR 6 2 SW6
38 630 000 7879 BOLT,HEX-SCT 2 M6X12
51 630 049 1104 BREAKER 1 675BF-11D-051
52 630 049 1241 COVER 1 675BF-11D-052
53 630 049 1234 HANDLE 1 675BF-11D-053
54 630 059 7820 BREAKER 1 675BF-11D-054
55 408 031 0004 VARISTOR R¥AEV-781BXZ-4 1 675BF-11D-055
56 630 049 1197 FILTER,NOISE 1 675BF-11D-056
58 630 076 0378 FILTER,NOISE 1 675BF-11D-058
60 630 057 7723 TERMINAL 1 675BF-11D-060
61 630 063 4457 RELAY 3 675BF-11D-151
62 630 045 4260 SOCKET 3 675BF-11D-152
63 630 000 1037 BRACKET,WIRING 6 675BF-11D-153
64 630 049 1173 FUSE HOLDER 3 675BF-11D-154
65 423 025 2000 FUSE 250V 0.4A 3 675BF-11D-155
67 630 067 3562 PILOT LAMP 1 675BF-11D-157
68 630 049 3672 BRACKET,WIRING 2 675BF-11D-158
70 630 000 1051 BRACKET,WIRING 4 675BF-11D-253
71 630 074 8550 BOX 1 675BF-11V-071
72 630 068 8221 PANEL 1 675BF-11V-072
73 630 071 3411 COVER 1 675BF-11V-073
93 630 076 8336 NAME PLATE,PARTS 1 675BF-11D-254
94 630 054 9676 MECH PARTS 1 675S--11D-153
NOTE
MODEL TIM-5000
9905-001

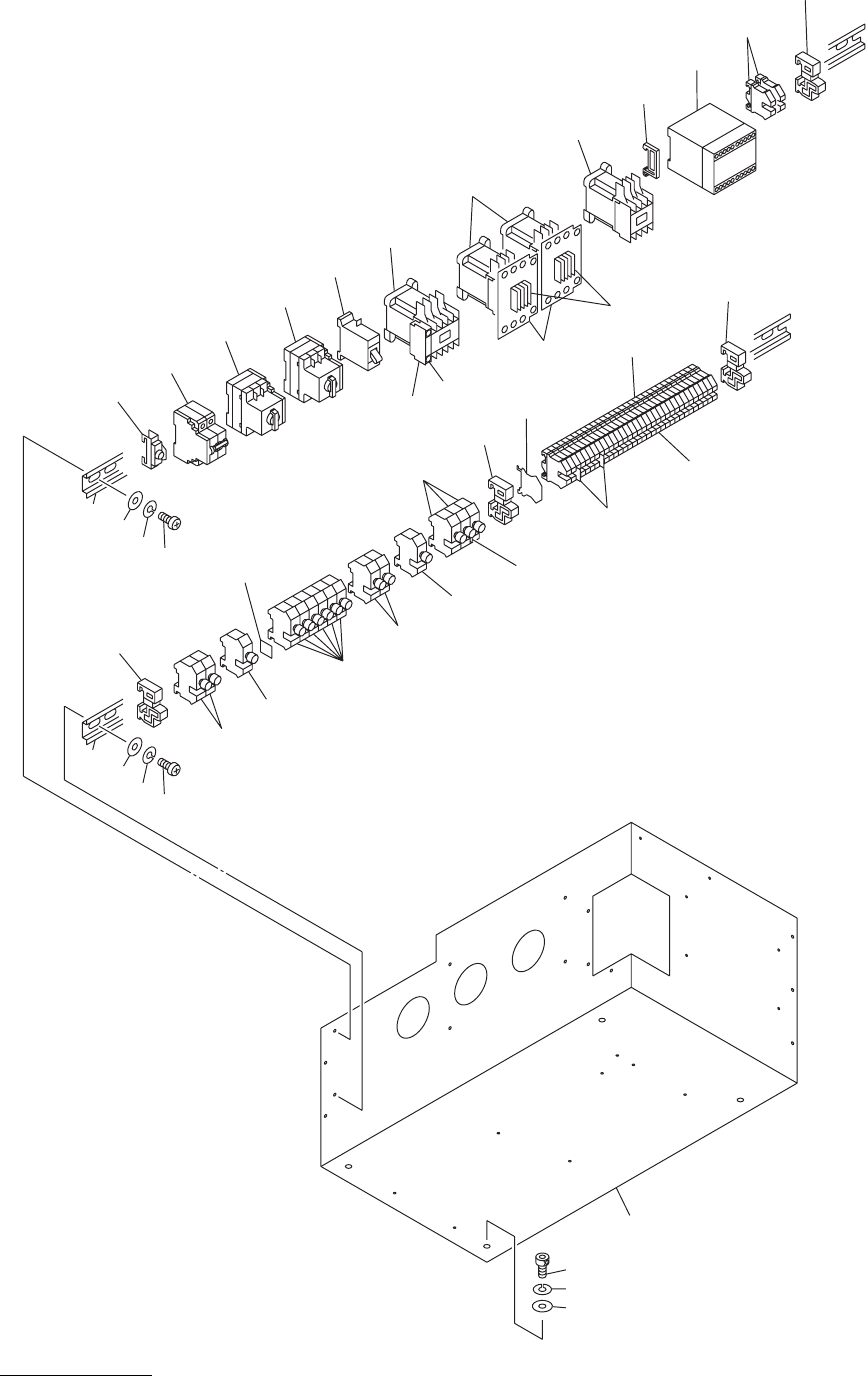

電源部 POWER SUPPLY SECTION
Fig. BF-2電源２ （１） Power Supply 2 (1)
136
137
186
138
185
196
198
151
152
153
165
188
136
137
138
186
.
165
188
173
118
116
117
185
184
180
196
187
181
185
.
165
189
.
165
190
.
165
191
.
192
175
.
194
195
154
155
156
176
159
157
197
163
187
185
.
.
160
161
MODEL TIM-5000
9905-001
BF-2
Key No. PART No. PART NAME Q'ty REMARKS
116 411 141 4107 WASHER V 5X10X1 4 FW5
117 411 141 6705 WASHER SPR 5 4 SW5
118 630 000 7749 BOLT,HEX-SCT 4 M5X10
136 411 119 2104 WASHER V 4X9X0.8 6 FW4 F
137 411 008 1706 WASHER SPR 4 6 SW4 F
138 411 043 5004 SCR PAN 4X8 6 M4X8 PAN
151 630 054 2912 CIRCUIT PROTECTOR 1 675BG-11D-051
152 630 067 3227 CIRCUIT PROTECTOR 1 675BG-11D-052
153 630 069 5915 CIRCUIT PROTECTOR 1 675BG-11D-053
154 630 069 5908 CIRCUIT PROTECTOR 1 675BG-11D-054
155 630 053 8601 EM-CONTACTOR 1 675BG-11D-055
156 630 057 2568 EM-CONTACTOR 1 675BG-11D-056
157 630 053 8618 EM-CONTACTOR 1 675BG-11D-057
159 630 072 4424 EM-CONTACTOR 2 675BG-11D-059
160 630 049 2187 EM-CONTACTOR 2 675BG-11D-060
161 630 049 2163 COVER 2 675BG-11D-151
163 630 071 5460 RELAY 1 675BG-11D-153
165 630 049 1173 FUSE HOLDER 15 675BG-11D-255
173 630 071 2742 BRACKET 1 675BG-11V-073
176 630 069 9579 COVER 1 675BG-11D-451
180 630 049 3702 ACCESSORY,WIRING 2 675BG-11D-260
181 630 068 9631 TERMINAL 31 675BG-11D-351
184 630 049 3733 ACCESSORY,WIRING 1 675BG-11D-354
185 630 049 3672 BRACKET,WIRING 4 675BG-11D-355
187 630 057 4326 TERMINAL 3 675BG-11D-357
188 423 022 8203 FUSE 250V 3.15A 3 675BG-11D-358
189 423 025 1904 FUSE 250V 1.6A 1 675BG-11D-359
190 423 022 8005 FUSE 250V 1A 6 675BG-11D-360
191 423 022 8104 FUSE 250V 2A 2 675BG-11D-361
192 423 022 8302 FUSE 250V 5A 3 675BG-11D-362
194 630 071 3343 COVER 1 675BG-11D-554
195 630 071 3350 COVER 1 675BG-11D-555
196 630 058 8415 ACCESSORY,WIRING 2 675BG-11D-556
197 630 000 1273 ACCESSORY,WIRING 1 675BG-11D-754
198 630 000 1051 BRACKET,WIRING 1 675BG-11D-755
NOTE
