コンベアＢＯＸ部 CONVEYOR BOX SECTION

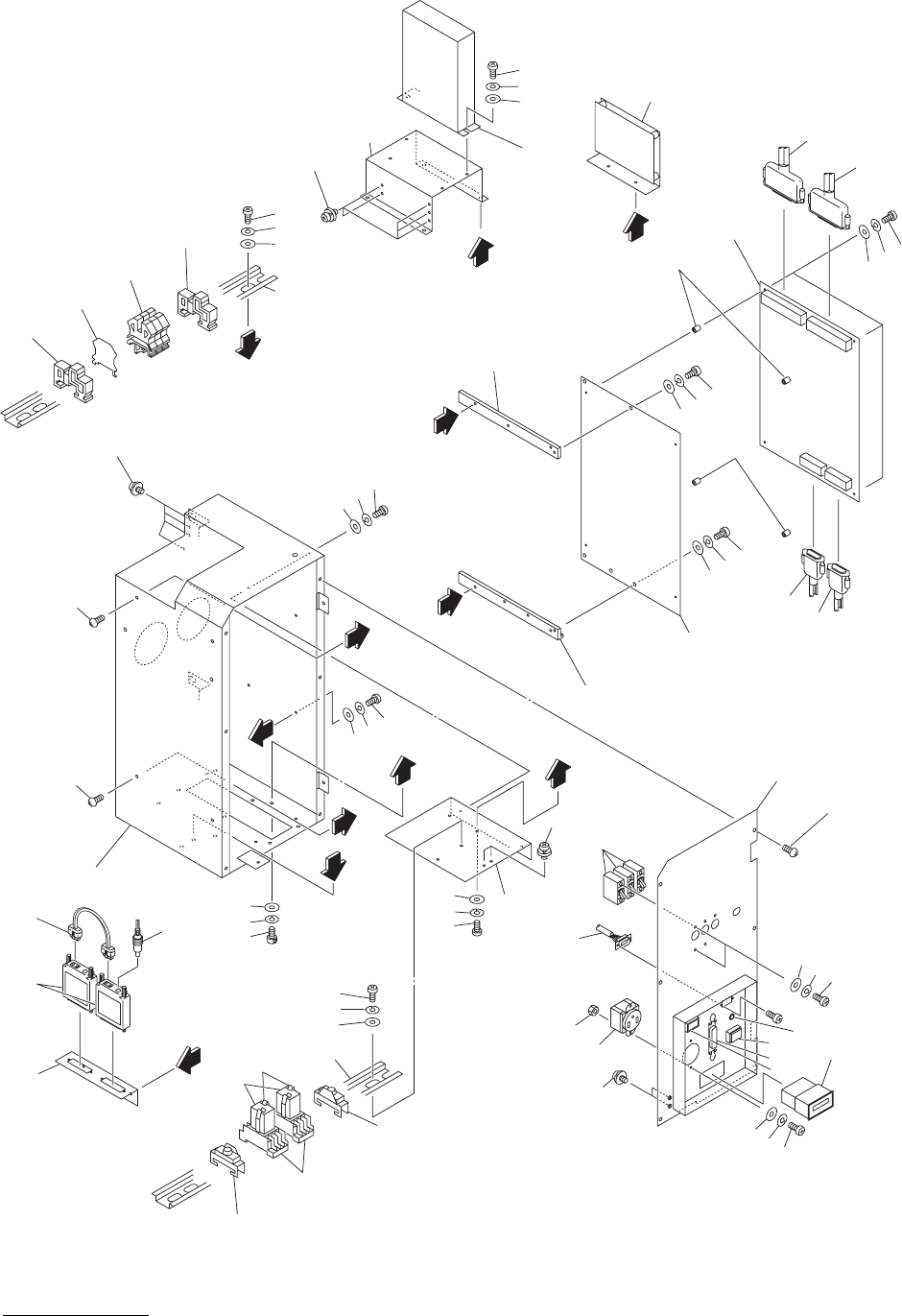

Fig. BK-2コンベア２ ＢＯＸ Conveyor 2 Box
136
136
145
145
139
139
A
F
D
D
C
E
E
C
A
B
B
171
174
137
138
137
138
177
136
116
117
118
183
181
182
180
137
138
138
137
136
155
179
131
134
132
172
140
131
133
132
191
192
.
187
188
131
132
134
184
189
145
See Fig.BP-1
Key No.72
45
193
162
159
157
158
160
160
161
186
.
185
176
178
163
163
164
123
121
122
123
121
122
170
169
131
168
167
132
135
F
154
154
153
151
138
137
136
155
130
.
164-1
MODEL TIM-5000
9905-001
BK-2
Key No. PART No. PART NAME Q'ty REMARKS
116 411 141 6705 WASHER V 5X10X1 4 FW5
117 630 000 7756 WASHER SPR 5 4 SW5
118 630 000 7732 BOLT,HEX-SCT 4 M5X8
121 411 141 4008 WASHER V 4X9X0.8 4 FW4
122 411 141 2905 WASHER SPR 4 4 SW4
123 630 000 7619 BOLT,HEX-SCT 4 M4X8
130 411 054 6809 NUT HEX 3 2 M3 F
131 411 119 1909 WASHER V 3X7X0.5 14 FW3 F
132 411 086 4408 WASHER SPR 3 14 SW3 F
133 411 041 8908 SCR PAN 3X6 6 M3X6 PAN
134 411 042 0703 SCR PAN 3X8 4 M3X8 PAN
135 411 113 0700 SCR PAN 3X16 4 M3X16 PAN
136 411 119 2104 WASHER V 4X9X0.8 10 FW4 F
137 411 008 1706 WASHER SPR 4 10 SW4 F
138 411 043 5004 SCR PAN 4X8 10 M4X8 PAN
139 411 051 1708 SCR TRS 4X6 4 M4X6 TRS
140 411 140 8007 SCR TRS 5X6 6 M5X6 TRS
145 411 141 7807 SCR PAN+SW+W 4X10 14
151 630 069 4987 TERMINAL 3 675BL-11D-051
153 630 049 3733 ACCESSORY,WIRING 1 675BL-11D-053
154 630 049 3672 BRACKET,WIRING 2 675BL-11D-054
157 630 000 3529 RELAY 2 675BL-11D-157
158 630 045 4260 SOCKET 2 675BL-11D-158
159 630 000 1020 BRACKET,WIRING 4 675BL-11D-159
160 630 000 1051 BRACKET,WIRING 2 675BL-11D-257
161 630 051 6555 UNIT,DRIVER 1 675BL-11D-061
162 630 043 0530 CIRCUIT PROTECTOR 3 675BL-11D-062
163 630 006 0225 ACCESSORY,P.C.B 4 675BL-11D-253
164 630 069 2396 P.C.B,MOUNT(RECOG LED) 1 675BL-11U-362
164 -01 423 002 8500 FUSE 250V 10A 1
167 630 072 0785 CORD 1 675BP-11D-267
168 630 072 0792 CORD 1 675BP-11D-268
169 630 072 0648 CORD 1 675BP-11D-254
170 630 071 5514 CORD 1 675BP-11D-164
171 630 076 8572 BOX 1 675BL-11V-071
172 630 075 8542 PANEL 1 675BL-11V-072
174 630 071 3039 BRACKET 1 675BL-11V-074
176 630 075 0478 PANEL 1 675BL-11V-076
177 630 075 0485 SPACER 1 675BL-11V-077
178 630 075 0492 SPACER 1 675BL-11V-078
179 630 073 0593 BRACKET 1 675BL-11V-171
180 630 071 6788 BRACKET 1 675BL-11V-172
181 630 066 8513 CONNECTOR 1 675BL-11D-152
182 630 056 9537 CORD 1 675BL-11D-153
183 630 057 3954 CORD 1 675BL-11D-154
184 630 000 2744 SWITCH,BUTTON 1 675BL-11D-151
185 407 035 4704 LED SLP-721F 1 675BL-11D-155
186 401 008 1707 CARBON 1.8K JB 1/2W 1 675BL-11D-156
187 630 072 0198 CORD 1 675BL-11D-951
188 630 076 0644 SWITCH,SEESAW 1 675BL-11D-258
NOTE
MODEL TIM-5000
9905-001
BK-2
Key No. PART No. PART NAME Q'ty REMARKS
189 630 000 4243 SOCKET 1 675VC-11D-051
191 630 000 5059 COUNTER 1 675BL-11D-351
192 407 139 6505 VARISTOR TNR9G470K 1 675BL-11D-355
193 630 078 4466 P.C.B,MOUNT(COUNTER) 1 675BL-11U-361
NOTE
