MODEL TIM-5000 9905-001 BR-1 Key No. PART No. PART NAME Q'ty REMA RKS 31 411 119 1909 W ASHER V 3X7X 0.5 6 FW 3 F 32 411 086 4408 W ASHER SPR 3 7 SW 3 F 33 411 042 0703 SCR PAN 3X 8 2 M3X8 PAN 34 411 113 0700 SCR PA…
MODEL TIM-5000
9905-001
前後工程Ｉ/Ｆ PREVIOUS/NEXT WORK PROCESS I/F

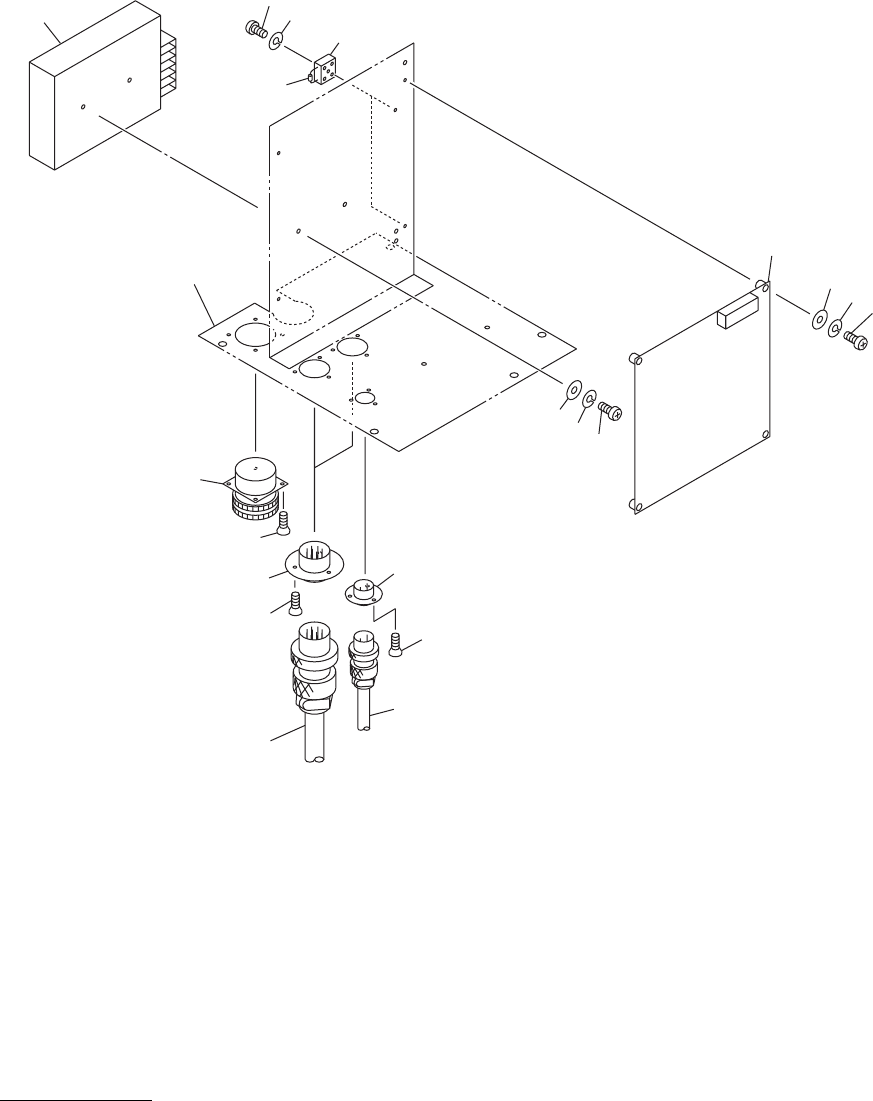

Fig. BR-1電源４ＢＯＸ底面 Power Supply 4 Box Lower
53
56
36
36
57
58
59
36
31
32
33
31
32
35
54
See Fig.BF-5
61
62
32
34
63
MODEL TIM-5000
9905-001
BR-1
Key No. PART No. PART NAME Q'ty REMARKS
31 411 119 1909 WASHER V 3X7X0.5 6 FW3 F
32 411 086 4408 WASHER SPR 3 7 SW3 F
33 411 042 0703 SCR PAN 3X8 2 M3X8 PAN
34 411 113 0700 SCR PAN 3X16 1 M3X16 PAN
35 411 162 1604 SCR PAN 3X20 4 M3X20 PAN
36 411 034 7208 SCR FLT 3X8 13 M3X8 FLT
53 630 055 2201 UNIT,POWER 1 675UC-11D-053
54 630 054 8778 CONNECTOR 1 675UC-11D-054
56 630 000 3963 CONNECTOR 2 675UC-11D-056
57 630 000 3970 CONNECTOR 2 675UC-11D-057
58 630 004 6281 CONNECTOR 1 675UC-11D-058
59 630 004 6267 CONNECTOR 1 675UC-11D-059
61 630 051 1819 TERMINAL 1 675UC-11D-060
62 407 005 1306 DIODE DS135C 1 675UC-11D-062
63 603 062 4793 P.C.B,MOUNT(I/F) 1 675UC-11U-154
NOTE
MODEL TIM-5000
9905-001
前後工程Ｉ/Ｆ PREVIOUS/NEXT WORK PROCESS I/F

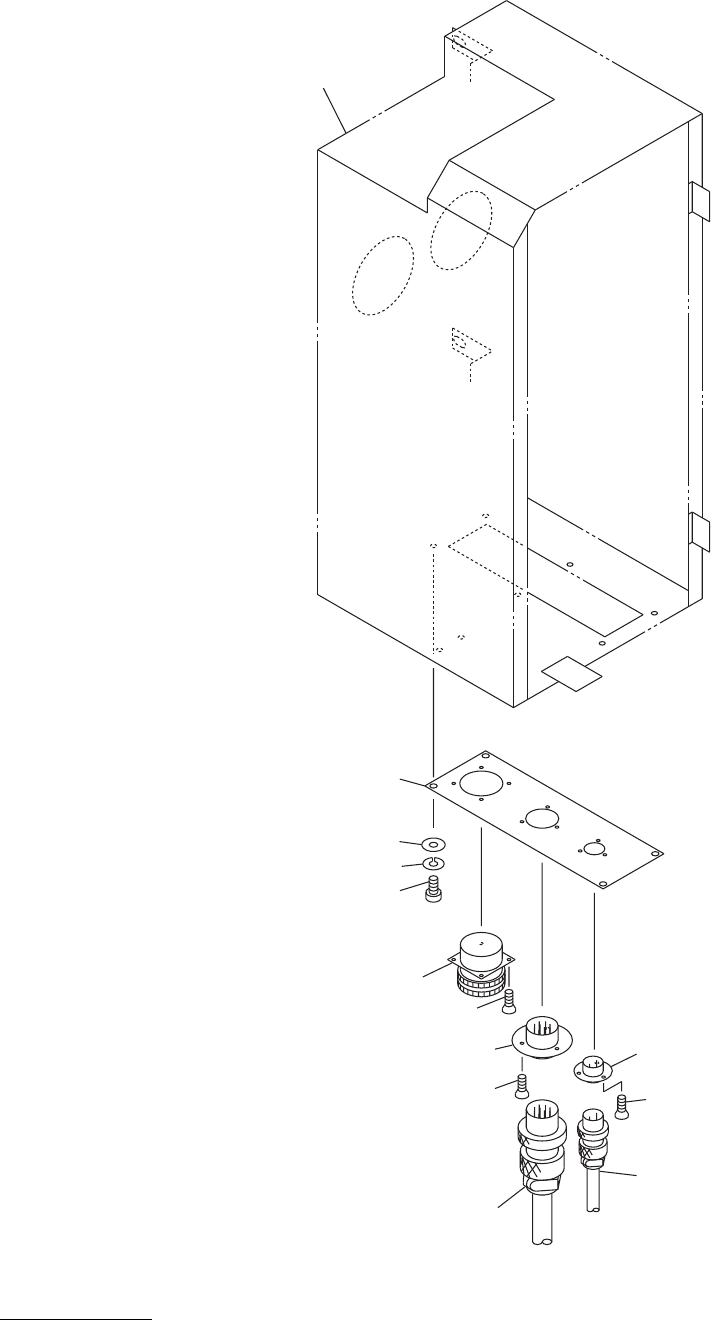

Fig. BR-2コンベア２ＢＯＸ底面 Coveyor 2 Box Lower
111
173
112
113
154
136
136
157
156
158
136
159
See Fig.BK-2
