MODEL TIM-5000
9905-001
Sheet-2

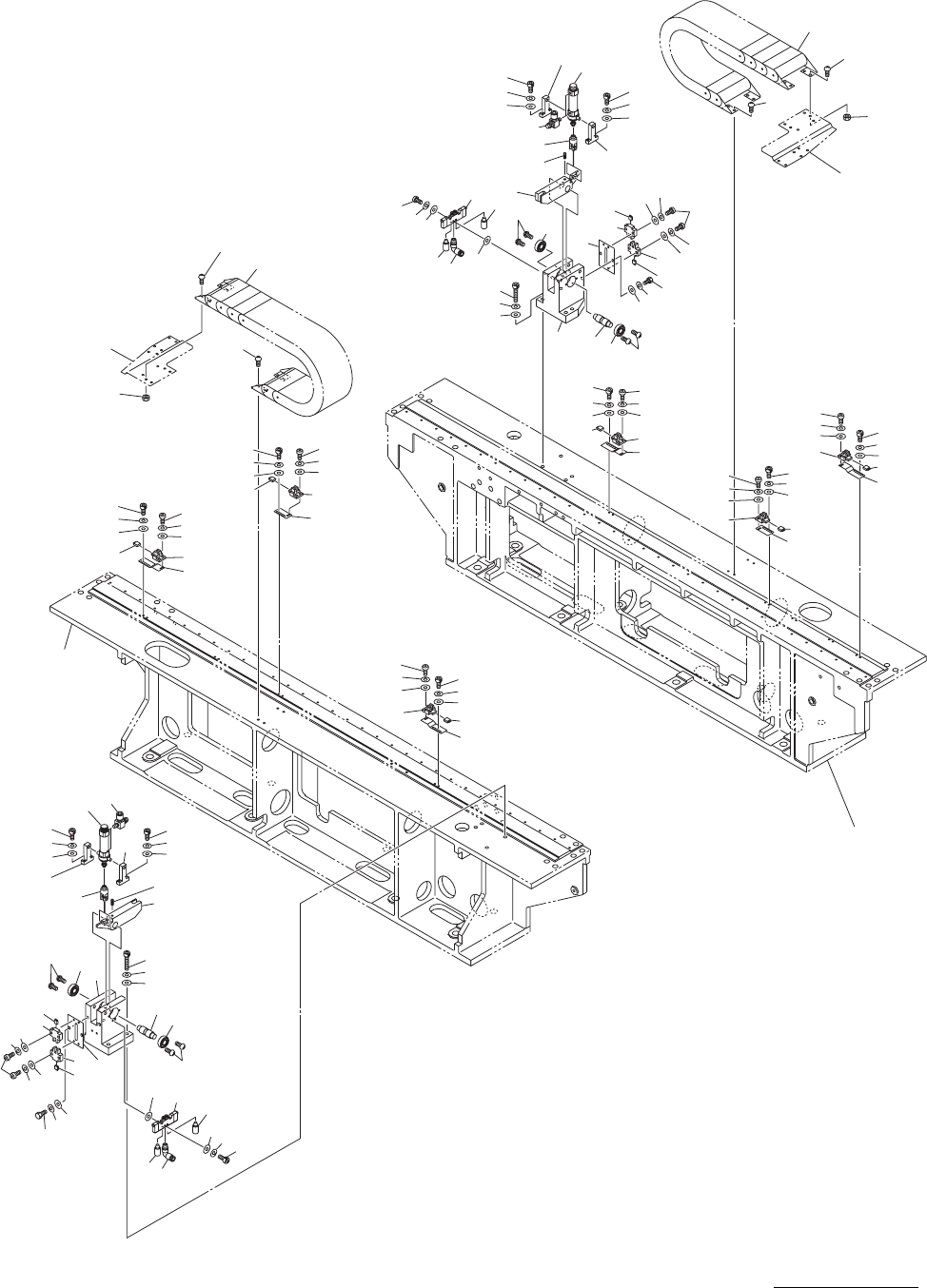

２ビームＸＹ部 2-BEAM XY SECTION
Fig. C-1 Ｙ軸部 Y Axis Section
94
36
46
73
74
75
35
40
43
97
47
42
31
31
89
88
87
42
46
44
37
41
38
71
69
68
31
95
32
83
82
81
29
10
95
96
33
94
71
69
68
31
11
71
69
68
31
30
84
82
81
86
82
81
42
31
89
88
87
82
46
35
73
74
75
81
42
31
47
29
12
84
82
81
29
83
82
29
69
71
43
68
31
74
75
73
77
78
76
38
41
61
59
58
46
37
36
44
96
98
45
40
See Fig.B-1
Key No.2
See Fig.C-2
Key No.112
See Fig.B-1
Key No.3
See Fig.C-2
Key No.112
71
69
68
31
12
75
74
73
76
77
78
61
59
58
84
82
81
29
11
81
45
40
98
97
90
39
39
84
82
81
71
59
68
31
50
39
39
82
86
81
81
82
97
40
97
29
MODEL TIM-5000
9905-001
C-1
Key No. PART No. PART NAME Q'ty REMARKS
1 630 073 8940 PLATE 2
2 630 068 4520 PLATE 2
3 630 068 9662 HOLDER 2
4 630 072 9177 BRACKET,LOCATE 2
5 630 068 4674 PLATE 2
6 630 068 4681 BLOCK 2
7 630 068 4650 COLLAR 4
8 630 068 4667 COLLAR 4
9 630 068 5381 PLATE 2
10 630 068 5398 PLATE 2
11 630 068 5404 PLATE 2
12 630 068 6913 PLATE 2
13 630 076 7353 PLATE 1
14 630 068 6937 PLATE 1
15 630 078 4220 BLOCK 2
16 630 074 9069 BLOCK 2
17 630 072 6312 PLATE 2 675C--11B-0171
18 630 072 9221 BLOCK 4
19 630 072 9184 BRACKET 1
20 630 072 9245 PLATE 2 675C--11B-0172
21 630 068 5480 GUIDE,LINEAR 1
22 630 068 4025 BALL SCREW 2
23 630 037 6647 BEARING,UNIT 2
24 630 069 0576 BEARING,RADIAL 2
25 630 069 0590 SEAL 4
26 630 069 0583 BEARING,PARTS 2
27 630 069 0453 COUPLING 2
28 630 065 8057 MOTOR,AC-SERVO 2
29 630 069 0545 SENSOR,PHOTO 6
30 630 000 0252 SENSOR,PHOTO 1
31 630 000 0269 SENSOR,PHOTO(CONNECTOR) 11
32 630 068 4445 MECH PARTS 1
33 630 068 4452 MECH PARTS 1
34 630 069 0637 PIN,LOCATE 2
35 630 070 9292 CYLINDER 2
36 630 070 9315 CYLINDER(JOINT) 2
37 630 003 5193 AIR LINE EQPT 4
38 630 070 9308 VALVE 2
39 630 003 6534 AIR LINE EQPT 4
40 630 006 8795 BEARING,RADIAL 4
41 630 070 9285 WASHER 4
42 630 000 0245 SENSOR,PHOTO 4
43 630 070 9377 BLOCK 2
44 630 070 9360 LEVER 2
45 630 070 9339 SHAFT 2
46 630 070 9353 PLATE 4
47 630 070 9346 PLATE 2
48 630 076 7339 BOLT 4
49 630 073 0197 BOLT 4
50 630 003 7265 PIPE FITINGS 2
NOTE
MODEL TIM-5000
9905-001
C-1
Key No. PART No. PART NAME Q'ty REMARKS
51 411 141 5203 WASHER V 16X30X3 20 FW16
52 411 141 3407 WASHER SPR 16 20 SW16
53 630 000 8364 BOLT,HEX-SCT 12 M16X100
54 630 000 8357 BOLT,HEX-SCT 8 M16X80
55 411 141 4800 WASHER V 12X24X2.5 4 FW12
56 411 141 3308 WASHER SPR 12 4 SW12
57 630 000 8227 BOLT,HEX-SCT 4 M12X30
58 411 141 4701 WASHER V 10X21X2 20 FW10
59 411 141 3209 WASHER SPR 10 20 SW10
60 630 000 8173 BOLT,HEX-SCT 4 M10X60
61 630 000 8166 BOLT,HEX-SCT 8 M10X50
62 630 000 8142 BOLT,HEX-SCT 8 M10X35
63 411 141 4305 WASHER V 6X12.5X1.6 64 FW6
64 411 141 3001 WASHER SPR 6 64 SW6
65 630 000 7909 BOLT,HEX-SCT 24 M6X25
66 630 000 7893 BOLT,HEX-SCT 64 M6X20
67 630 000 7886 BOLT,HEX-SCT 48 M6X16
68 411 141 4107 WASHER V 5X10X1 20 FW5
69 411 141 6705 WASHER SPR 5 28 SW5
70 630 000 7770 BOLT,HEX-SCT 8 M5X20
71 630 000 7763 BOLT,HEX-SCT 14 M5X16
72 630 000 7756 BOLT,HEX-SCT 6 M5X12
73 411 141 4008 WASHER V 4X9X0.8 8 FW4
74 411 141 2905 WASHER SPR 4 8 SW4
75 630 000 7664 BOLT,HEX-SCT 8 M4X20
76 411 141 3902 WASHER V 3X7X0.5 4 FW3
77 411 141 2806 WASHER SPR 3 4 SW3
78 630 000 7565 BOLT,HEX-SCT 4 M3X20
81 411 119 1909 WASHER V 3X7X0.5 22 FW3 F
82 411 086 4408 WASHER SPR 3 22 SW3 F
83 411 041 8908 SCR PAN 3X6 4 M3X6 PAN
84 411 042 0703 SCR PAN 3X8 8 M3X8 PAN
85 411 040 7803 SCR PAN 3X12 2 M3X12 PAN
86 411 040 6202 SCR PAN 3X10 8 M3X10 PAN
87 411 088 1702 WASHER V 5X10X1 4 FW5 F
88 411 008 2109 WASHER SPR 5 4 SW5 F
89 411 140 4900 BOLT HEX 5X12 4 M5X12 HEX
90 411 141 4602 WASHER V 10X21X2 4 FW10 F
91 411 086 0103 WASHER SPR 10 4 SW10 F
92 630 000 8791 BOLT,HEX 4 M10X40 HEX
93 630 000 8784 BOLT,HEX 4 M10X30 HEX
94 411 113 9703 SCR TRS 6X10 8 M6X10 TRS
95 411 166 7008 SCR TRS 6X16 8 M6X16 TRS
96 411 004 5104 NUT HEX 6 8 M6 F
97 411 051 1708 SCR TRS 4X6 8 M4X6 TRS
98 630 000 8999 SET SCREW 2 M6X16 SET
99 630 000 8920 SET SCREW 8 M4X6 SET
NOTE
