MODEL TIM-5000 9905-001 ２ビームＸＹ部 2-BEAM XY SECTION Fig. C-2 Ｘ軸部 X Axis Section See Fig.C-1 Key No.1 See Fig.C-1 Key No.2 See Fig.C-1 Key No.2 See Fig.C-1 Key No.1 121 191 192 112 101 164 159 158 118 102 158 161 159 161 15…
MODEL TIM-5000
9905-001
C-1
Key No. PART No. PART NAME Q'ty REMARKS
51 411 141 5203 WASHER V 16X30X3 20 FW16
52 411 141 3407 WASHER SPR 16 20 SW16
53 630 000 8364 BOLT,HEX-SCT 12 M16X100
54 630 000 8357 BOLT,HEX-SCT 8 M16X80
55 411 141 4800 WASHER V 12X24X2.5 4 FW12
56 411 141 3308 WASHER SPR 12 4 SW12
57 630 000 8227 BOLT,HEX-SCT 4 M12X30
58 411 141 4701 WASHER V 10X21X2 20 FW10
59 411 141 3209 WASHER SPR 10 20 SW10
60 630 000 8173 BOLT,HEX-SCT 4 M10X60
61 630 000 8166 BOLT,HEX-SCT 8 M10X50
62 630 000 8142 BOLT,HEX-SCT 8 M10X35
63 411 141 4305 WASHER V 6X12.5X1.6 64 FW6
64 411 141 3001 WASHER SPR 6 64 SW6
65 630 000 7909 BOLT,HEX-SCT 24 M6X25
66 630 000 7893 BOLT,HEX-SCT 64 M6X20
67 630 000 7886 BOLT,HEX-SCT 48 M6X16
68 411 141 4107 WASHER V 5X10X1 20 FW5
69 411 141 6705 WASHER SPR 5 28 SW5
70 630 000 7770 BOLT,HEX-SCT 8 M5X20
71 630 000 7763 BOLT,HEX-SCT 14 M5X16
72 630 000 7756 BOLT,HEX-SCT 6 M5X12
73 411 141 4008 WASHER V 4X9X0.8 8 FW4
74 411 141 2905 WASHER SPR 4 8 SW4
75 630 000 7664 BOLT,HEX-SCT 8 M4X20
76 411 141 3902 WASHER V 3X7X0.5 4 FW3
77 411 141 2806 WASHER SPR 3 4 SW3
78 630 000 7565 BOLT,HEX-SCT 4 M3X20
81 411 119 1909 WASHER V 3X7X0.5 22 FW3 F
82 411 086 4408 WASHER SPR 3 22 SW3 F
83 411 041 8908 SCR PAN 3X6 4 M3X6 PAN
84 411 042 0703 SCR PAN 3X8 8 M3X8 PAN
85 411 040 7803 SCR PAN 3X12 2 M3X12 PAN
86 411 040 6202 SCR PAN 3X10 8 M3X10 PAN
87 411 088 1702 WASHER V 5X10X1 4 FW5 F
88 411 008 2109 WASHER SPR 5 4 SW5 F
89 411 140 4900 BOLT HEX 5X12 4 M5X12 HEX
90 411 141 4602 WASHER V 10X21X2 4 FW10 F
91 411 086 0103 WASHER SPR 10 4 SW10 F
92 630 000 8791 BOLT,HEX 4 M10X40 HEX
93 630 000 8784 BOLT,HEX 4 M10X30 HEX
94 411 113 9703 SCR TRS 6X10 8 M6X10 TRS
95 411 166 7008 SCR TRS 6X16 8 M6X16 TRS
96 411 004 5104 NUT HEX 6 8 M6 F
97 411 051 1708 SCR TRS 4X6 8 M4X6 TRS
98 630 000 8999 SET SCREW 2 M6X16 SET
99 630 000 8920 SET SCREW 8 M4X6 SET
NOTE
MODEL TIM-5000
9905-001

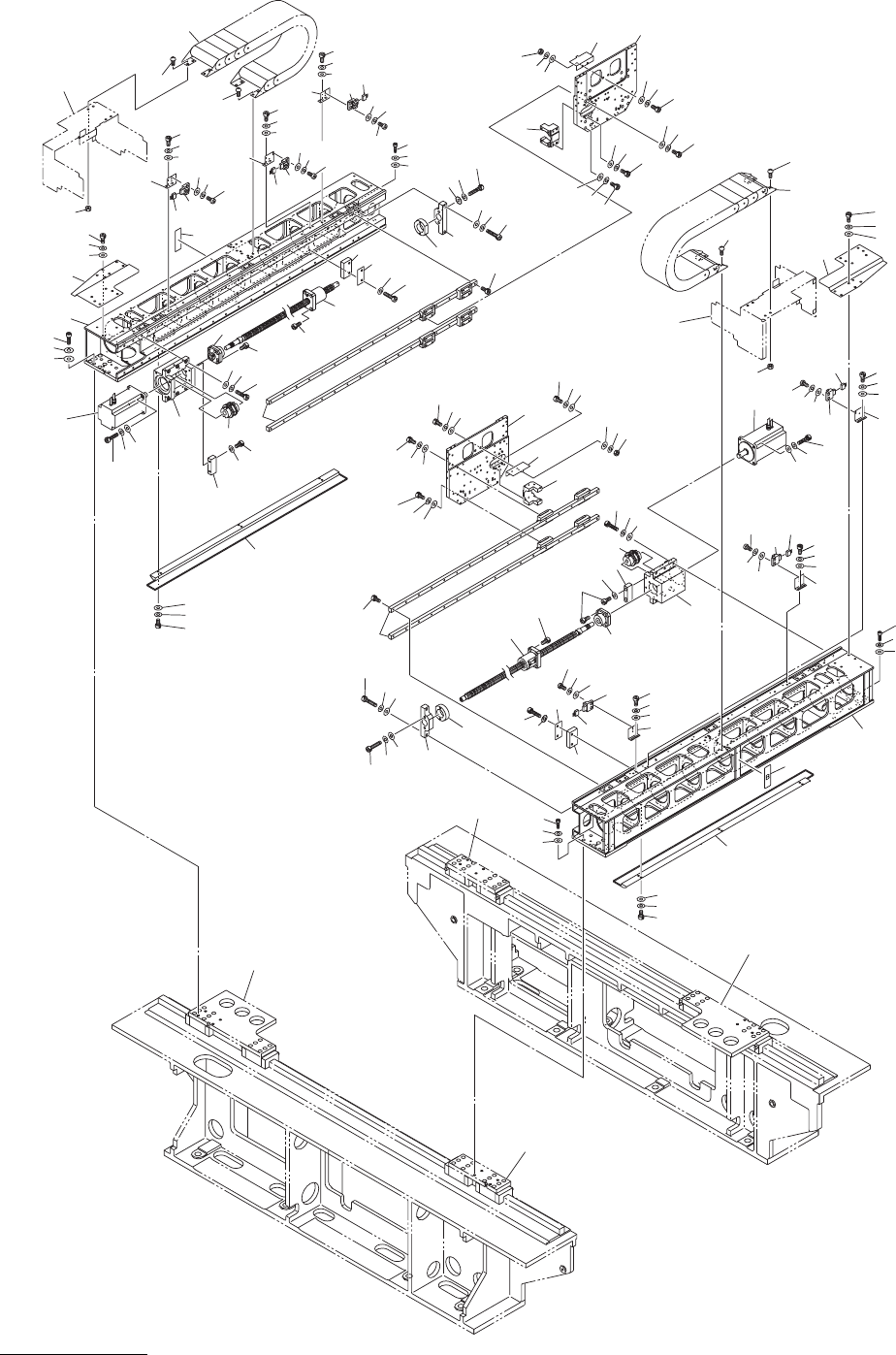

２ビームＸＹ部 2-BEAM XY SECTION
Fig. C-2 Ｘ軸部 X Axis Section
See Fig.C-1
Key No.1
See Fig.C-1
Key No.2
See Fig.C-1
Key No.2
See Fig.C-1
Key No.1
121
191
192
112
101
164
159
158
118
102
158
161
159
161
158
159
105
171
172
173
124
158
162
115
106
123
158
161
159
158
160
104
103
173
109
158
166
167
170
159
160
122
169
168
167
110
119
120
181
182
183
157
156
117
116
162
158
159
161
163
108
114
158
159
162
107
190
172
171
175
See Fig.C-5
Key No.406
171
172
174
166
167
168
164
191
121
192
159
158
112
190
102
101
105
158
162
169
167
169
160
159
158
103
158
160
159
122
104
168
167
110
181
119
120
183
182
158
123
106
161
157
166
120
120
119
183
119
181
183
182
111
171
172
175
171
172
174
114
168
167
166
107
109
108
173
162
159
158
161
159
158
166
167
170
163
117
115
118
156
122
157
156
172
173
171
124
126
116
See Fig.C-5
Key No.406
169
168
167
181
182
183
119
120
111
169
168
167
181
182
183
119
120
125
110
122
157
156
169
168
166
110
181
182
MODEL TIM-5000
9905-001
C-2
Key No. PART No. PART NAME Q'ty REMARKS
101 630 074 8338 FRAM(X BEAM) 2
102 630 068 9549 BRACKET,LOCATE 2
103 630 068 9655 BRACKET 2
104 630 073 8971 HOLDER 2
105 630 072 9191 BLOCK 2
106 630 072 9207 BLOCK 2
107 630 072 9252 PLATE 2
108 630 069 7957 HOLDER 2
109 630 069 0125 PLATE 2
110 630 071 7495 BRACKET 4
111 630 071 7501 BRACKET 2
112 630 076 2662 BRACKET 2
114 630 068 7125 GUIDE,LINEAR 2
115 630 065 8064 BALL SCREW 2
116 630 005 1377 BEARING,UNIT 2
117 630 037 4438 COUPLING 2
118 630 050 0783 MOTOR,AC-SERVO 2
119 630 069 0545 SENSOR,PHOTO 6
120 630 000 0269 SENSOR,PHOTO(CONNECTOR) 6
121 630 071 1868 MECH PARTS 2
122 630 070 2217 BOLT,HEX-SCT 16
123 630 073 0685 PLATE 2
124 630 069 0095 COVER 2
125 630 078 1878 NAME PLATE,INDEX 1
126 630 078 1885 NAME PLATE,INDEX 1
156 411 141 4503 WASHER V 8X17X1.6 16 FW8
157 411 141 3100 WASHER SPR 8 16 SW8
158 411 141 4305 WASHER V 6X12.5X1.6 52 FW6
159 411 141 3001 WASHER SPR 6 44 SW6
160 630 000 7916 BOLT,HEX-SCT 8 M6X30
161 630 000 7909 SET SCREW 24 M6X25
162 630 000 7893 BOLT,HEX-SCT 20 M6X20
163 630 000 7886 BOLT,HEX-SCT 8 M6X16
164 630 000 7879 BOLT,HEX-SCT 8 M6X12
166 411 141 4107 WASHER V 5X10X1 12 FW5
167 411 141 6705 WASHER SPR 5 20 SW5
168 630 000 7763 BOLT,HEX-SCT 12 M5X16
169 630 000 7749 BOLT,HEX-SCT 12 M5X10
170 411 141 0505 NUT HEX 5 4 M5
171 411 141 4008 WASHER V 4X9X0.8 44 FW4
172 411 141 2905 WASHER SPR4 44 SW4
173 630 000 7619 BOLT,HEX-SCT 80 M4X8
174 630 000 7633 BOLT,HEX-SCT 16 M4X12
175 630 000 7657 BOLT,HEX-SCT 16 M4X16
181 411 119 1909 WASHER V 3X7X0.5 12 FW3 F
182 411 086 4408 WASHER SPR 3 12 SW3 F
183 411 042 0703 SCR PAN 3X8 12 M3X8 PAN
190 411 004 5104 NUT HEX 6 8 M6 F
191 411 166 7008 SCR TRS 6X16 8 M6X16 TRS
192 411 113 9703 SCR TRS 6X10 8 M6X10 TRS
