MODEL TIM-5000 9905-001 2 ビームＸＹ部 2-BEAM XY SECTION Fig. C-5 ヘッドコントロールボックス Head Control Box 495 407 471 472 473 466 467 469 469 467 466 471 472 473 405 453 453 481 416 481 415 482 483 482 483 473 472 471 474 472 471 486 4…
MODEL TIM-5000
9905-001
C-4
Key No. PART No. PART NAME Q'ty REMARKS
301 630 077 1480 BLOCK 2
302 630 069 8930 BLOCK 2
303 630 075 6029 BRACKET 2
304 630 075 6012 BRACKET 2
305 630 069 8954 PLATE 2
306 630 069 8961 PLATE 2
307 630 069 9333 ACCESSORY,P.C.B(BUSH) 4
308 630 069 9340 ACCESSORY,P.C.B(BUSH) 6
309 630 075 6036 PLATE 2
351 630 072 0877 CORD 1 675CB-11D-156
352 630 072 0891 CORD 1 675CB-11D-157
353 630 075 4834 UNIT,CAMERA 2 675CB-11D-158
354 630 069 0002 LIGHTING UNIT 2 675CB-11D-159
354 -01 630 005 5580 LAMP 1
355 630 072 4752 SCOPE UNIT 2 675CB-11D-160
356 630 075 4537 ACCESSORY,LIGHT 2 675CB-11D-071
366 411 141 4107 WASHER V 5X10X1 12 FW5
367 411 141 6705 WASHER SPR 5 12 SW5
368 630 000 7763 BOLT,HEX-SCT 4 M5X16
369 630 000 7770 BOLT,HEX-SCT 8 M5X20
371 411 141 4008 WASHER V 4X9X0.8 14 FW4
372 411 141 2905 WASHER SPR 4 14 SW4
373 630 000 7633 BOLT,HEX-SCT 8 M4X12
374 630 000 7657 BOLT,HEX-SCT 6 M4X16
375 630 000 7688 BOLT,HEX-SCT 2 M4X30
376 411 141 3902 WASHER V 3X7X0.5 8 FW3
377 411 141 2806 WASHER SPR 3 8 SW3
378 630 000 7510 BOLT,HEX-SCT 8 M3X8
381 411 141 6903 WASHER V 2X5X0.3 4 FW2
382 411 141 2608 WASHER SPR 2 4 SW2
383 630 008 1114 BOLT,HEX-SCT 4 M2X8
391 630 000 8920 SET SCREW 2 M4X6 SET
NOTE
MODEL TIM-5000
9905-001

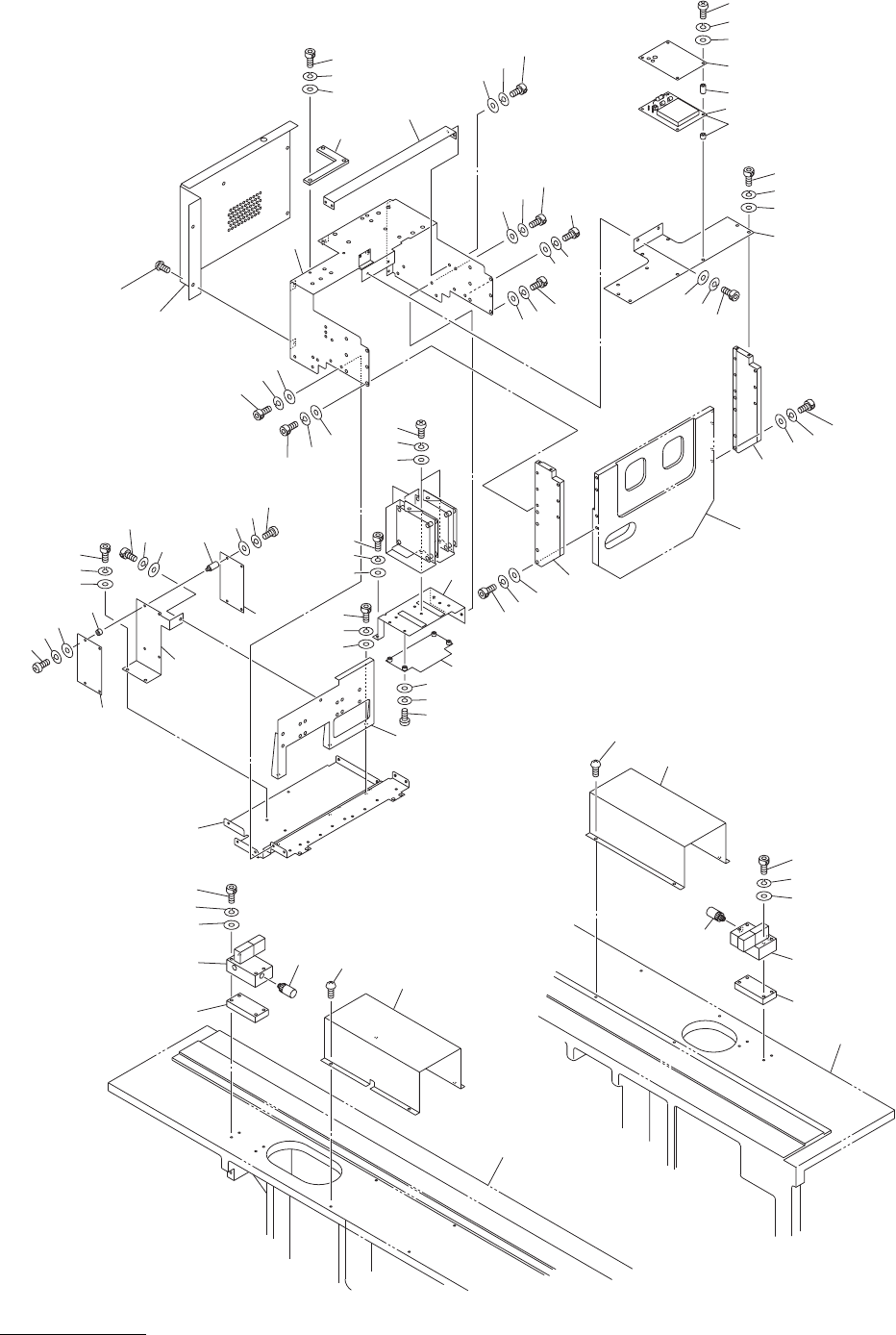

2 ビームＸＹ部 2-BEAM XY SECTION
Fig. C-5 ヘッドコントロールボックス Head Control Box
495
407
471
472
473
466
467
469
469
467
466
471
472
473
405
453
453
481
416
481
415
482
483
482
483
473
472
471
474
472
471
486
452
487
489
410
413
474
472
471
409
474
471
408
472
412
471
419
472
476
420
See Fig.B-1
Key No.2
See Fig.B-1
Key No.3
406
474
472
471
476
403
472
471
420
412
419
421
494
421
494
414
473
471
472
475
472
471
488
487
486
458
457
459
402
401
466
467
468
468
467
466
See Fig.C-2
Key No.107
473
472
471
474
471
472
489
486
451
487
454
MODEL TIM-5000
9905-001
C-5
Key No. PART No. PART NAME Q'ty REMARKS
401 630 073 8957 PLATE 2
402 630 073 8964 PLATE 2
403 630 074 2701 PLATE 2
405 630 074 2657 BRACKET 2
406 630 074 2718 COVER 2
407 630 076 3454 COVER 2
408 630 074 2664 PLATE 2
409 630 069 9753 BRACKET 2
410 630 074 2688 BRACKET 2
411 630 005 2732 AIR LINE EQPT 2
412 630 069 9876 SOLENOID VALVE 2
413 630 074 2671 BRACKET 2
414 630 070 1142 COVER 2
415 630 070 1753 ACCESSORY,P.C.B 8
416 630 070 1760 ACCESSORY,P.C.B 8
419 630 051 9556 AIR LINE EQPT 2
420 630 071 0861 PLATE 2 675B--11B-015
421 630 071 5200 COVER 2 675B--11B-016
451 630 053 1664 UNIT,DRIVER 4 675CB11D-251
452 630 078 6927 P.C.B,MOUNT(PMD-MOTHER) 2 675CB11U-051
453 630 074 5122 P.C.B,MOUNT(SDS-DIN) 4 675CB11U-253
454 630 083 2341 P.C.B,MOUNT(DD CONVERTER) 2
457 630 069 1061 ACCESSORY,P.C.B 8 675CB11D-357
458 630 063 0181 ACCESSORY,P.C.B 8 675CB11D-358
459 630 076 3492 COVER 2 675CB11V-171
466 411 141 4107 WASHER V 5X10X1 28 FW5
467 411 141 6705 WASHER SPR 5 28 SW5
468 630 000 7763 BOLT,HEX-SCT 16 M5X16
469 630 000 7756 BOLT,HEX-SCT 12 M5X12
471 411 141 4008 WASHER V 4X9X0.8 68 FW4
472 411 141 2905 WASHER SPR 4 68 SW4
473 630 000 7626 BOLT,HEX-SCT 48 M4X10
474 630 000 7633 BOLT,HEX-SCT 8 M4X12
475 630 000 7619 BOLT,HEX-SCT 4 M4X8
476 630 037 6968 BOLT,HEX-SCT 8 M4X50
481 411 119 1909 WASHER V 3X7X0.5 8 FW3 F
482 411 086 4408 WASHER SPR 3 8 SW3 F
483 411 041 8908 SCR PAN 3X6 8 M3X6 PAN
486 411 119 2104 WASHER V 4X9X0.8 14 FW4 F
487 411 008 1706 WASHER SPR 4 14 SW4 F
488 411 162 1505 SCR PAN 4X20 4 M4X20 PAN
489 411 042 3001 SCR PAN 4X10 10 M4X10 PAN
494 411 113 7501 SCR TRS 4X10 8 M4X10 TRS
495 411 113 9109 SCR TRS 5X10 12 M5X10 TRS
NOTE
