MODEL TIM-5000 9905-001 MB-1 Key No. PART No. PART NAME Q'ty REMA RKS 1 630 068 6425 GUIDE,LINEAR 1 2 630 032 7267 COUPLIN G 1 3 630 069 0255 MOT OR,AC-SERVO 1 4 630 048 4762 SPACER 1 5 630 074 0950 COVER 1 71 411 1…
MODEL TIM-5000
9905-001
異形ヘッドＬ部 DEFORM HAED L SECTION

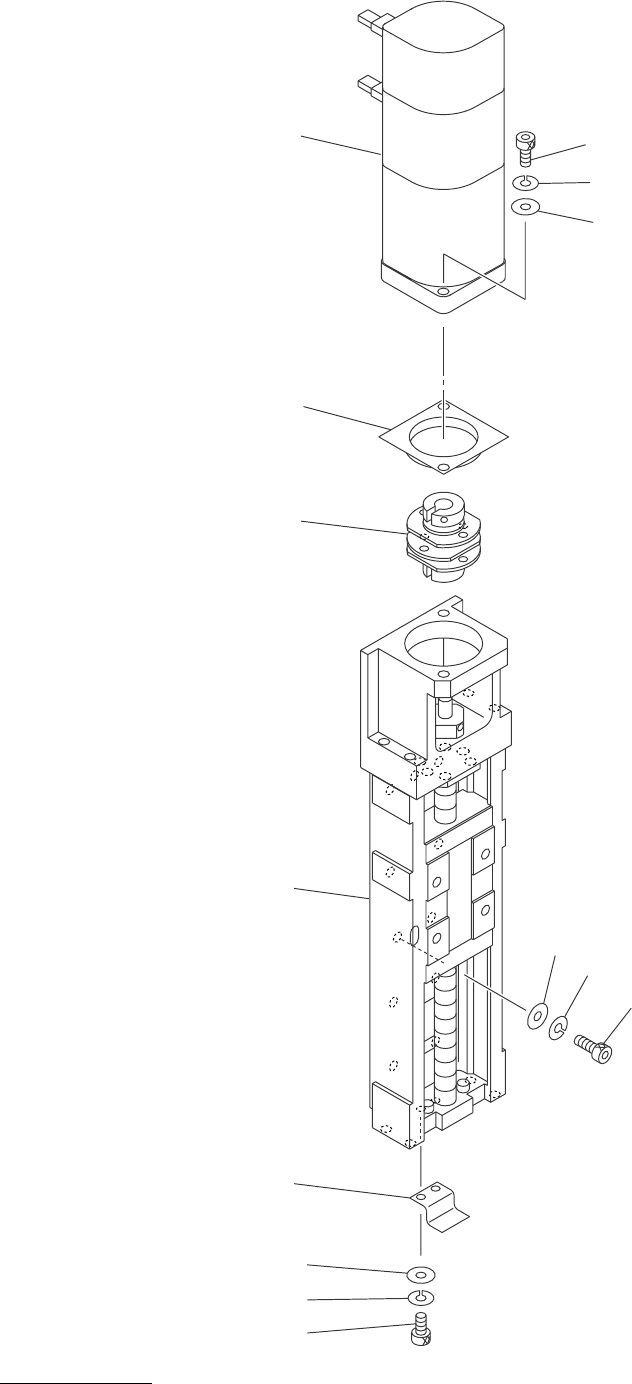

Fig. MB-1Ｌ軸駆動ユニット L Axis Driver Unit
3
4
2
74
72
71
71
72
73
1
5
76
77
78
MODEL TIM-5000
9905-001
MB-1
Key No. PART No. PART NAME Q'ty REMARKS
1 630 068 6425 GUIDE,LINEAR 1
2 630 032 7267 COUPLING 1
3 630 069 0255 MOTOR,AC-SERVO 1
4 630 048 4762 SPACER 1
5 630 074 0950 COVER 1
71 411 141 4008 WASHER V 4X9X0.8 8 FW4
72 411 141 2905 WASHER SPR 4 8 SW4
73 630 000 7633 BOLT,HEX-SCT 6 M4X12
74 630 000 7657 BOLT,HEX-SCT 2 M4X16
76 411 141 3902 WASHER V 3X7X0.5 2 FW3
77 411 141 2806 WASHER SPR 3 2 SW3
78 630 000 7510 BOLT,HEX-SCT 2 M3X8
NOTE
2 unit/1 machine
MODEL TIM-5000
9905-001
異形ヘッドＬ部 DEFORM HAED L SECTION
Fig. MB-2ＤＤモータ部 DD Motor Section
123
108
109
121
112
111
121
110
107
106
105
101
176
177
179
122
113
175
177
179
176
177
178
181
182
183
104
103
102
181
182
183
175
177
178
