MODEL TIM-5000 9905-001 異形ヘッドＬ部 DEFORM HAED L SECTION Fig. MB-3 ノズルレベル検出部 Nozzle Level Detector 273 272 271 204 202 205 203 266 267 270 210 211 276 279 277 201 See Fig.MB-1 Key No.1 214 276 215 278 277 276 278 277 213 21…
MODEL TIM-5000
9905-001
MB-2
Key No. PART No. PART NAME Q'ty REMARKS
101 630 068 9143 MOTOR,STEPPING 1
102 630 080 4294 GUIDE,LINEAR 1
103 630 068 8252 HOLDER 1
104 630 068 8474 SPRING,COMP 1
105 630 068 4766 PLATE 1
106 630 074 8017 SPRING,COMP 1
107 630 078 7429 BLOCK 1
108 630 068 4728 PLATE 1
109 630 068 8801 BOLT 1
110 630 068 4735 PLATE 1
111 630 068 4391 BLOCK 1
112 630 069 0538 PIPE FITTINGS 1
113 630 068 4407 BLOCK 1
121 630 048 0849 SEAL 2
122 630 078 7719 BOLT 1
123 630 000 8487 BOLT,HEX-SCT 4
171 411 141 4008 WASHER V 4X9X0.8 2 FW4
172 411 141 2905 WASHER SPR 4 2 SW4
173 630 000 7664 BOLT,HEX-SCT 2 M4X20
175 411 141 5807 WASHER F 3X6X0.5 4 FWS3
176 411 141 3902 WASHER V 3X7X0.5 4 FW3
177 411 141 2806 WASHER SPR 3 8 SW3
178 630 000 7527 BOLT,HEX-SCT 4 M3X10
179 630 000 7558 BOLT,HEX-SCT 4 M3X16
181 411 141 5708 WASHER F 2.5X5X0.5 2 FWS2.5
182 411 141 6606 WASHER SPR 2.5 2 SW2.5
183 630 013 8924 BOLT,HEX-SCT 2 M2.5X10
NOTE
2 unit/1 machine
MODEL TIM-5000
9905-001
異形ヘッドＬ部 DEFORM HAED L SECTION

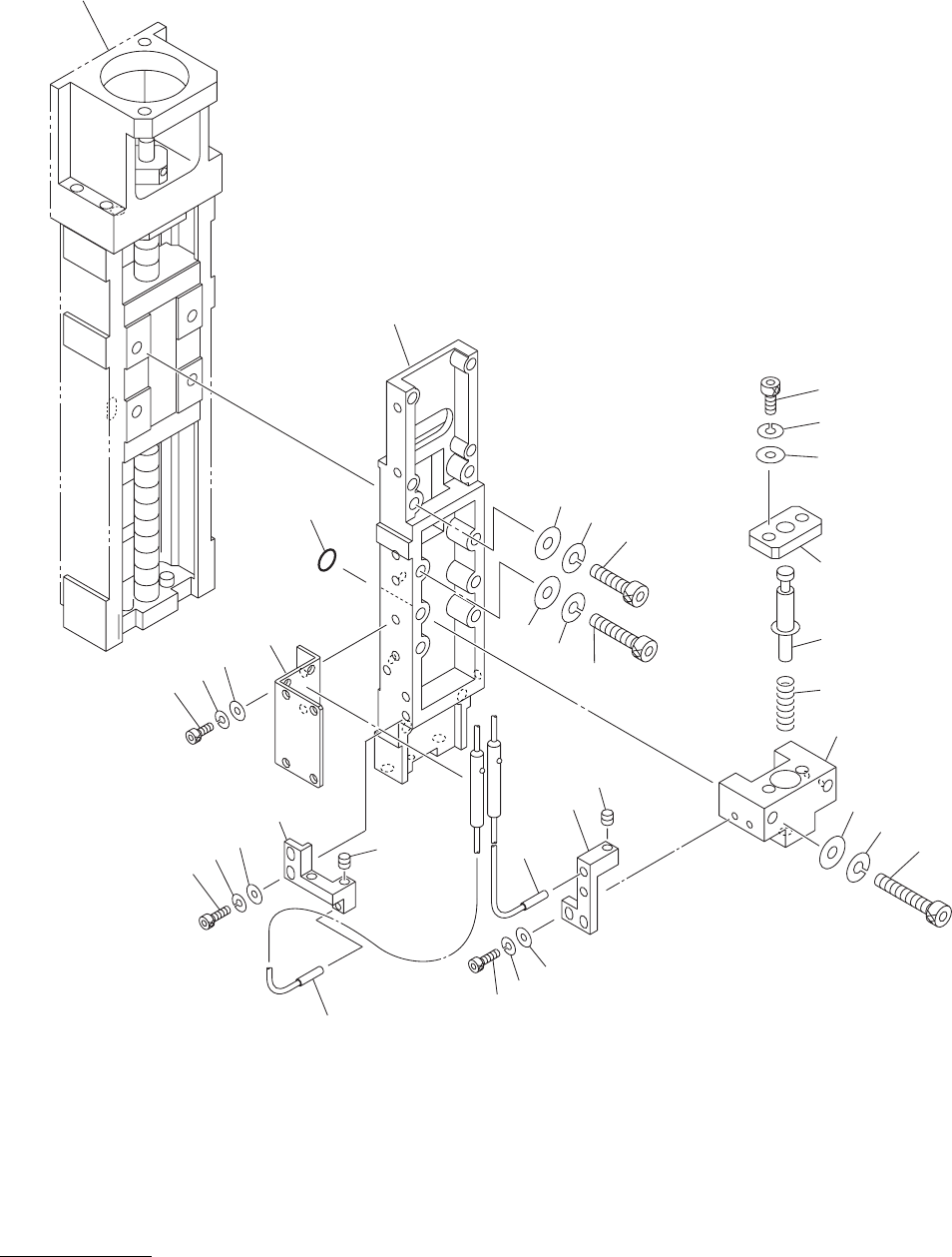

Fig. MB-3ノズルレベル検出部 Nozzle Level Detector
273
272
271
204
202
205
203
266
267
270
210
211
276
279
277
201
See Fig.MB-1
Key No.1
214
276
215
278
277
276
278
277
213
212
214
216
266
267
268
266
267
269
MODEL TIM-5000
9905-001
MB-3
Key No. PART No. PART NAME Q'ty REMARKS
201 630 068 4148 FRAME 1
202 630 071 3701 SHAFT 1
203 630 068 4711 BLOCK 1
204 630 068 4704 PLATE 1
205 630 002 3657 SPRING,COMP 1
210 630 069 0262 SEAL 1
211 630 068 5435 BRACKET 1
212 630 069 0514 SENSOR,PROXIMITY 1
213 630 069 0521 SENSOR,PROXIMITY 1
214 411 062 6402 SCR SET HEX-SCT 3X3 2
215 630 068 5466 BRACKET 1 675MB-11B-705
216 630 068 5442 BRACKET 1 675MB-11B-706
266 411 141 4107 WASHER V 5X10X1 6 FW5
267 411 141 6705 WASHER SPR 5 6 SW5
268 630 000 7770 BOLT,HEX-SCT 2 M5X20
269 630 000 7787 BOLT,HEX-SCT 2 M5X25
270 630 000 7800 BOLT,HEX-SCT 2 M5X35
271 411 141 4008 WASHER V 4X9X0.8 2 FW4
272 411 141 2905 WASHER SPR 4 2 SW4
273 630 000 7626 BOLT,HEX-SCT 2 M4X10
276 411 141 3902 WASHER V 3X7X0.5 6 FW3
277 411 141 2806 WASHER SPR 3 6 SW3
278 630 000 7527 BOLT,HEX-SCT 4 M3X10
279 630 000 7510 BOLT,HEX-SCT 2 M3X8
NOTE
2 unit/1 machine
