MODEL TIM-5000 9905-001 N-1 Key No. PART No. PART NAME Q'ty REMA RKS 1 630 069 3782 MOT OR,REVERSIBLE 1 2 630 069 1795 PULLEY,T IMIM G 1 3 630 069 3614 BELT,T IMING 1 4 630 069 1818 PULLEY,T IMIM G 1 5 630 072 1614 …
MODEL TIM-5000
9905-001
コンベア部 CONVEYOR SECTION

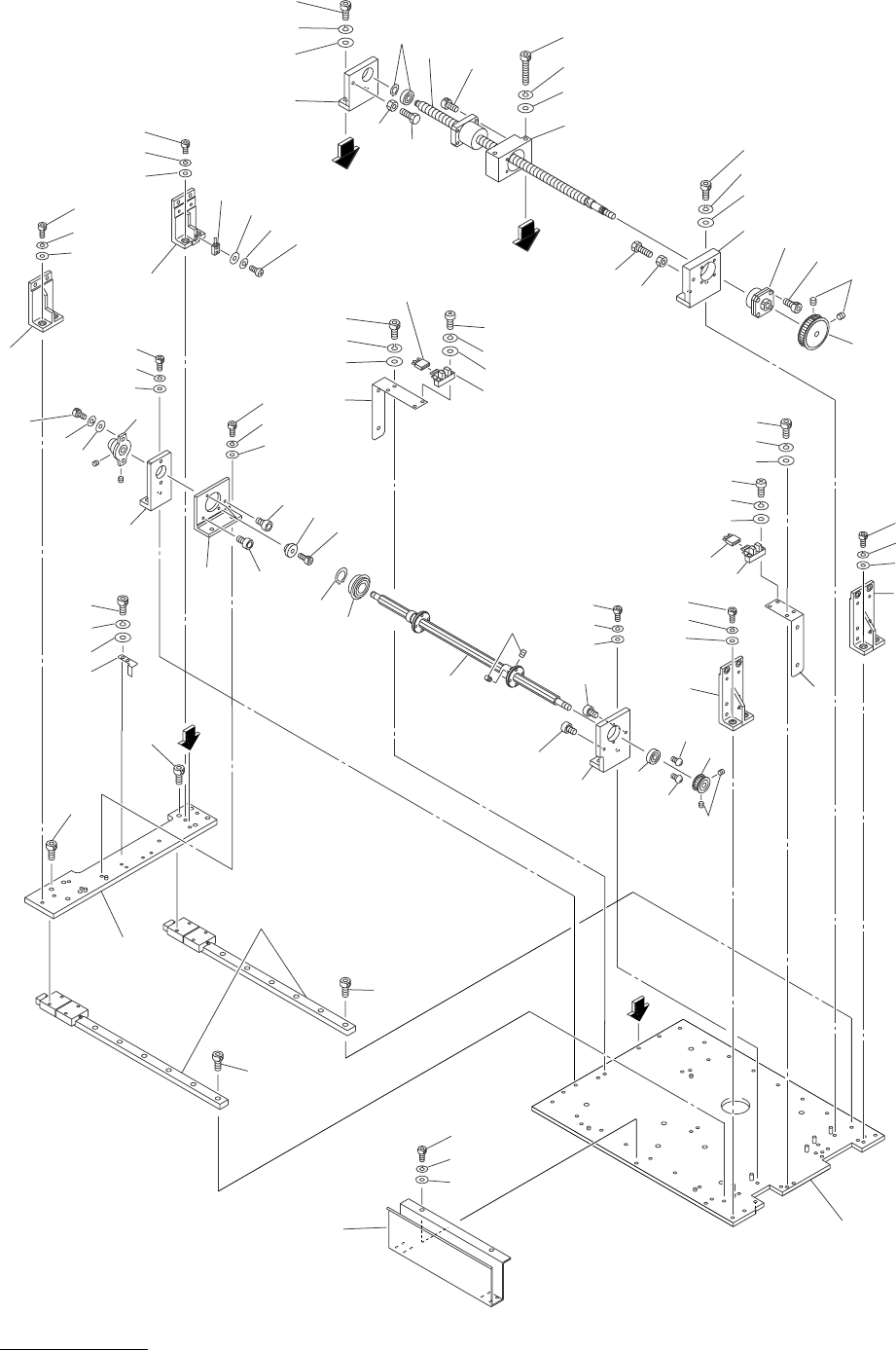

Fig. N-1 コンベアベ−ス下面（１） Conveyor Base Lower (1)
See Fig.N-2
Key No.124
6
20
5
92
10
11
7
19
16
7
4
91
8
21
92
9
14
18
91
2
3
1
13
15
58
57
56
58
57
56
66
67
68
63
62
61
61
62
63
51
51
52
61
51
17
5
52
62
63
62
63
61
58
57
56
58
57
56
69
67
66
61
62
63
MODEL TIM-5000
9905-001
N-1
Key No. PART No. PART NAME Q'ty REMARKS
1 630 069 3782 MOTOR,REVERSIBLE 1
2 630 069 1795 PULLEY,TIMIMG 1
3 630 069 3614 BELT,TIMING 1
4 630 069 1818 PULLEY,TIMIMG 1
5 630 072 1614 CAM FOLLOWER 2
6 630 069 3621 BELT,TIMING 1
7 630 001 1425 BEARING,RADIAL 2
8 630 009 5869 MOTOR,STEPPING 1
9 630 069 1894 PULLEY,TIMIMG 1
10 630 069 3638 BELT,TIMING 1
11 630 069 1832 PULLEY,TIMIMG 1
13 630 069 3799 GEAR,REDUCTION 1
14 630 078 6552 BRACKET 1
15 630 078 6569 BRACKET 1
16 630 075 3585 BRACKET 1
17 630 069 3591 PLATE 1
18 630 064 2797 SUPPORT 1
19 630 069 3577 SHAFT 1
20 630 075 3608 BRACKET 1
21 630 075 3615 BRACKET 1
51 411 141 4800 WASHER V 12X24X2.5 4 FW12
52 411 141 3306 WASHER SPR 12 2 SW12
56 411 141 4503 WASHER V 8X17X1.6 11 FW8
57 411 141 3100 WASHER SPR 8 11 SW8
58 630 000 8012 BOLT,HEX-SCT 11 M8X20
61 411 141 4305 WASHER V 6X12.5X1.6 10 FW6
62 411 141 3001 WASHER SPR 6 10 SW6
63 630 000 7893 BOLT,HEX-SCT 10 M6X20
66 411 141 4107 WASHER V 5X10X1 8 FW5
67 411 141 6705 WASHER SPR 5 8 SW5
68 630 000 7763 BOLT,HEX-SCT 4 M5X16
69 630 000 7824 BOLT,HEX-SCT 4 M5X45
91 630 000 8944 SET SCREW 4 M5X6 SET
92 630 000 8951 SET SCREW 4 M5X8 SET
NOTE
MODEL TIM-5000
9905-001
コンベア部 CONVEYOR SECTION
Fig. N-2 コンベアベ−ス上面（１） Conveyor Base Upper (1)
