ﾄﾚｲﾘﾌﾀ部(3) TRAY LIFTER SECT.(3) 15 F10862-51-300-AF_0 4-3 M95
PART NAME
REMARKS
Q'TY
15
ﾄﾚｲﾘﾌﾀ部(2)
TRAY LIFTER SECT.(2)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 名 品 番 個数 備 考
R
1
R
2
4314 1086251178
PLATE ﾌﾟﾚｰﾄ
1
331 108625113104
SIDE COVER(LEFT) ｻｲﾄﾞｶﾊﾞｰ(LEFT)
1
332 108625113203
SIDE COVER(RIGHT) ｻｲﾄﾞｶﾊﾞｰ(RIGHT)
1341 108625134101
COVER ｶﾊﾞｰ
1343 108625114302
COVER ｶﾊﾞｰ
1
344 108625114401
PLATE ﾌﾟﾚｰﾄ
1
345 108625114502
DUCT ﾀﾞｸﾄ
5 External toothed Ste
6
N311
N510018765AA
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
M4X5-4.8 A2J (Trivalen
4
N319
N510018277AA
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
JB-AM5X12
6
N323
N986JBAM512
BOLT ﾎﾞﾙﾄ
M5X12
6
N324
N986YYYY-814
CAP ｷｬｯﾌﾟ
4 External toothed Ste
6
N341
N510018762AA
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
M94
F10862-51-300-AF_04-2
ﾄﾚｲﾘﾌﾀ部(3)
TRAY LIFTER SECT.(3)
15
F10862-51-300-AF_04-3
M95
PART NAME
REMARKS
Q'TY
15
ﾄﾚｲﾘﾌﾀ部(3)
TRAY LIFTER SECT.(3)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 名 品 番 個数 備 考
R
1
R
2

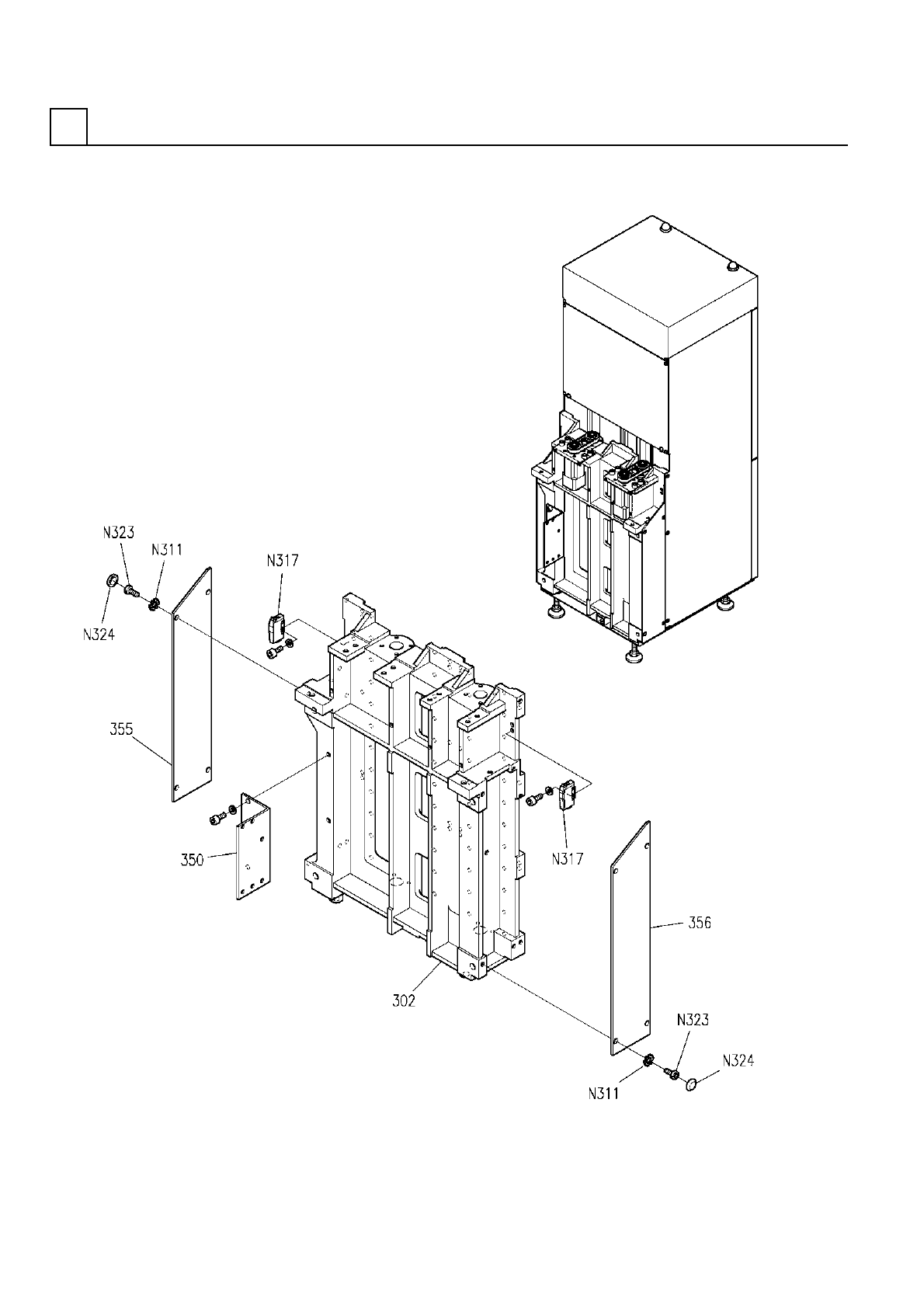

1302 N210047749AA
FRAME ﾌﾚｰﾑ
1
350 1086251150
BRACKET ﾌﾞﾗｹｯﾄ
1
355 1086251355
COVER ｶﾊﾞｰ
1356 1086251356
COVER ｶﾊﾞｰ
5 External toothed Ste
8
N311
N510018765AA
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
PANADAC910T
2
N317
N310P910T
SENSOR ｾﾝｻ
JB-AM5X12
8
N323
N986JBAM512
BOLT ﾎﾞﾙﾄ
M5X12
8
N324
N986YYYY-814
CAP ｷｬｯﾌﾟ
M96
F10862-51-300-AF_04-3
