付属部品部 (1) ACCESSORY P ARTS SECT .(1) 18 F10862-01-650-AC_0 1-1 M117
PART NAME
REMARKS
Q'TY
17
ﾄﾚｲﾌﾟﾚｰﾄ部
TRAY PLATE SECT.
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 名 品 番 個数 備 考
R
1
R
2
1 1086254000
TRAY PLATE UNIT ﾄﾚｲﾌﾟﾚｰﾄﾕﾆｯﾄ
1
1 1086254001
TRAY PLATE ﾄﾚｲﾌﾟﾚｰﾄ
1
2 104595410202
GUIDE ｶﾞｲﾄﾞ
13 108625400301
HOOK ﾌｯｸ
24 1080789035
MAGNET BAR ﾏｸﾞﾈｯﾄﾊﾞｰ
THS-M3-10
4
N 1 N986YYYY-708
STUD ｽﾀｯﾄﾞ
M3,1-TYPE,STEEL,Z.C.T
4
N 2 XNG3AFY
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
3,A-TYPE,STEEL,Z.C.T
4N 3 XWC3AFY
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
M116
F10862-54-000-AA
付属部品部(1)
ACCESSORY PARTS SECT.(1)
18
F10862-01-650-AC_01-1
M117
PART NAME
REMARKS
Q'TY
18
付属部品部(1)
ACCESSORY PARTS SECT.(1)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 名 品 番 個数 備 考
R
1
R
2

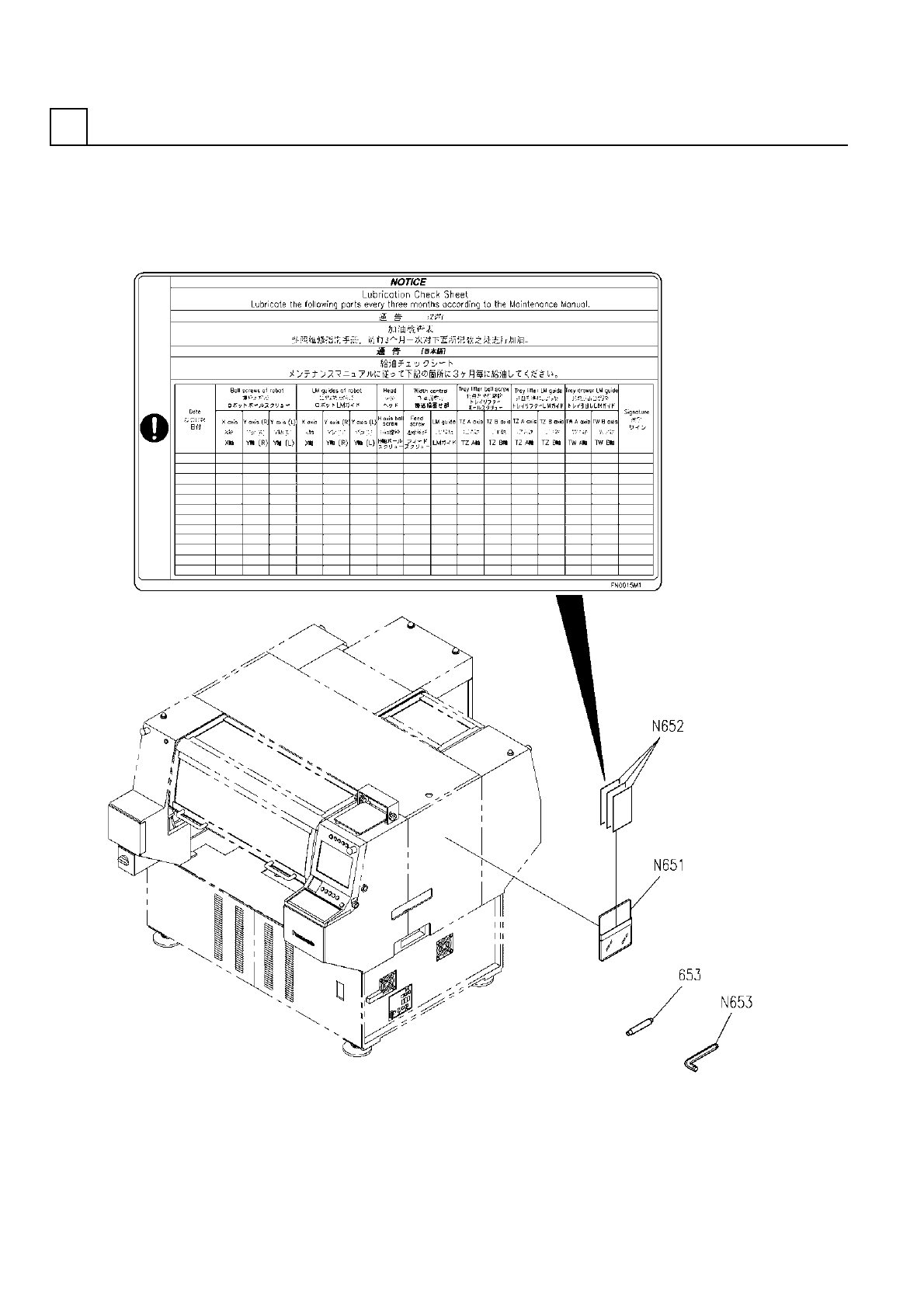

1 1086201650
ACCESSORY PARTS UNIT ﾌｿﾞｸﾌﾞﾋﾝﾕﾆｯﾄ
1
653 1080731340
JIG ｼﾞｸﾞ
500W
1
N651
N986YYYY-B55
POCKET ﾎﾟｹｯﾄ
FN0015M1
3
N652
N986FN0015M1
SHEET ｼｰﾄ
LT10
1
N653
N510000061AA
WRENCH ﾚﾝﾁ
M118
F10862-01-650-AC_01-1
