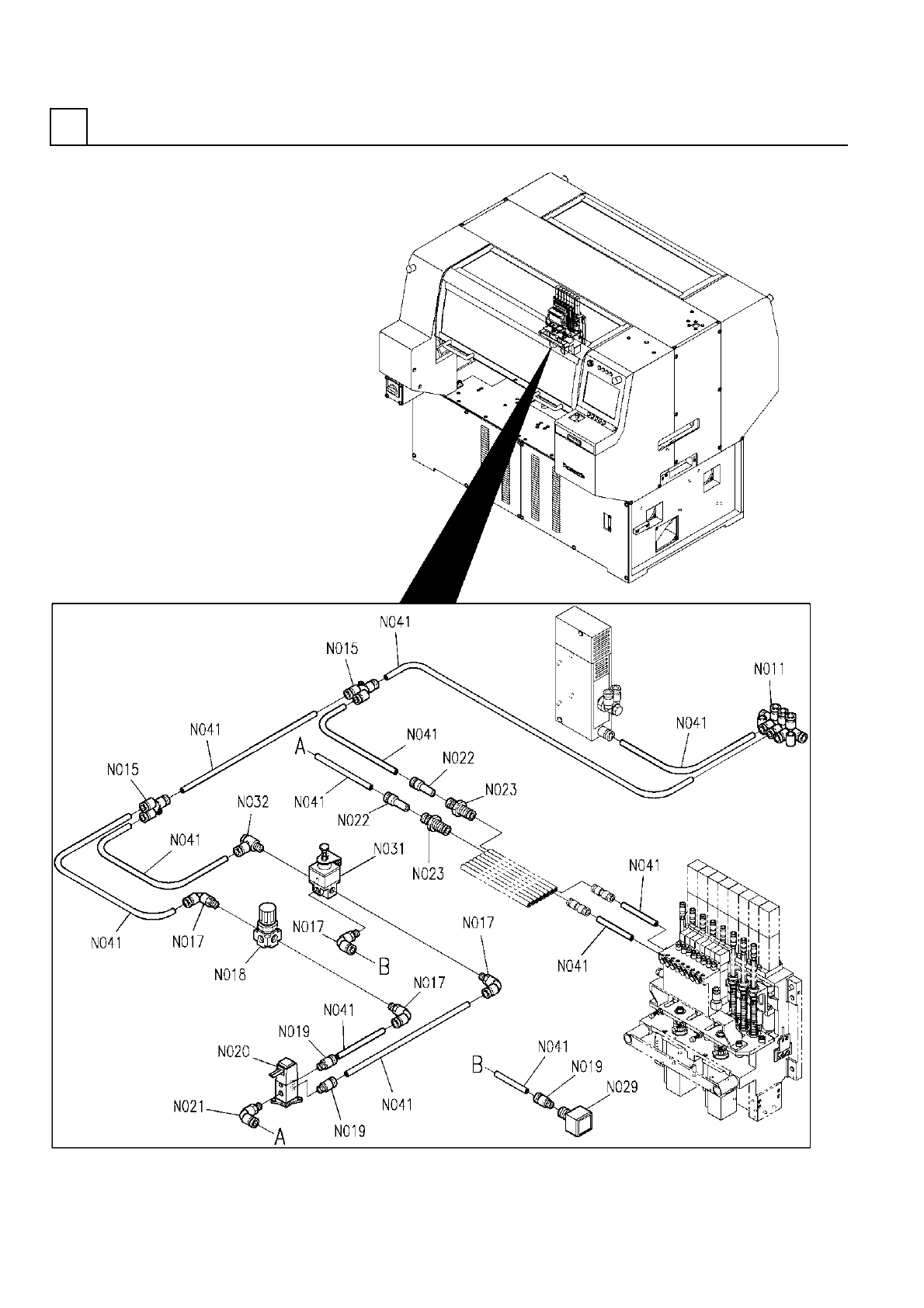

空圧制御部(共通部2)
PNEUMATIC SYSTEM SECT.(COMMON SECT.-2)
1
F10862-03-000-AJ_02-2
P3
PART NAME
REMARKS
Q'TY
1
空圧制御部(共通部2)
PNEUMATIC SYSTEM SECT.(COMMON SECT.-2)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 名 品 番 個数 備 考
R
1
R
2
KM11-06-10-6
1
N011
N431KM11-004
FITTING ﾂｷﾞﾃ
KQ2U06-00
2
N015
N431KQ2U0600
FITTING ﾂｷﾞﾃ
KJL06-01S
4
N017
N431KJL0601S
FITTING ﾂｷﾞﾃ
IR1000-01
1
N018
N4231R100001
REGULATOR ﾚｷﾞｭﾚｰﾀ
KQ2S06-M5
3
N019
N431KQ2S06M5
FITTING ﾂｷﾞﾃ
VKF332-5GS-M5
1
N020
N411VKF3-725
SOLENOID VALVE ｿﾚﾉｲﾄﾞﾊﾞﾙﾌﾞ
KJL06-M5
1
N021
N431KJL06M5
FITTING ﾂｷﾞﾃ
KQ2R06-08
2
N022
N431KQ2R0608
FITTING ﾂｷﾞﾃ
KQ2E08-00
2
N023
N431KQ2E0800
FITTING ﾂｷﾞﾃ
ZSE30-01-25-ML
1
N029
N445ZSE3-073
PRESSURE SWITCH ｱﾂﾘｮｸｽｲｯﾁ
IR2000-02-X108
1
N031
N4231R20-187
REGULATOR ﾚｷﾞｭﾚｰﾀ
KQ2V06-02S
1
N032
N431KQ2V-187
FITTING ﾂｷﾞﾃ
TU0604B
1
N041
N434TU0604B
TUBE ﾁｭｰﾌﾞ
