ﾌﾟﾘﾝﾄ基板搬送部(ﾚｰﾙ部) P. C. B. TR ANSFER SE CT.(RAIL SECT.) 5 F10862-15-000-AG_0 2-4 M47
PART NAME
REMARKS
Q'TY
5
ﾌﾟﾘﾝﾄ基板搬送部(可動側)
P. C. B. TRANSFER SECT.(MOVABLE SIDE)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 名 品 番 個数 備 考
R
1
R
2
1005 108621500503
RAIL(REAR) ﾚｰﾙ(REAR)
1
008 1086215008
RAIL(UPPER) ﾚｰﾙ(UPPER)
8
009 108620500901
SPRING ﾊﾞﾈ
1010 1086215010
RAIL(REAR) ﾚｰﾙ(REAR)
2011 1086205211
STOPPER ｽﾄｯﾊﾟ
3
024 1086205017
PIN ﾋﾟﾝ
2
025 108620511801
BLOCK ﾌﾞﾛｯｸ
2026 109970570201
PULLEY ﾌﾟｰﾘｰ
4027 1086205227
NUT ﾅｯﾄ
2
037 1086205237
BRACKET ﾌﾞﾗｹｯﾄ
1041 108621504101
RAIL(UPPER) ﾚｰﾙ(UPPER)
3044 1045906321
STOPPER ｽﾄｯﾊﾟｰ
3
045 1086215341
PLATE ﾌﾟﾚｰﾄ
M4X12
10
N002
N986YYYY-K10
SCREW ﾈｼﾞ(ﾃｲﾄｳﾛｯｶｸｱﾅﾂｷ)
MX6G12.5BA
2
N003
MX6G12.5BA
GEAR HEAD ｷﾞﾔｰﾍｯﾄﾞ
M6RX4G4L S
2
N004
M6RX4G4L
MOTOR ﾓｰﾀ
MOPC3917
2
N005
M0PC3917
CAP FOR CAPACITOR ｺﾝﾃﾞﾝｻｷｬｯﾌﾟ
MB022000
5
N008
N648MB022000
PULLEY ﾌﾟｰﾘｰ
WASM15-4-1
3
N010
N986WASM1541
WASHER ｻﾞｶﾞﾈ
M6X12
4
N011
N986YYYY-R80
BOLT ﾎﾞﾙﾄ(ﾃｲﾄｳﾛｯｶｸｱﾅﾂｷ)
MB026000
4
N012
N648MB026000
PULLEY(TENSION) ﾌﾟｰﾘｰ(ﾃﾝｼｮﾝ)
WSSB8-4-5
4
N013
N560WSSB845
WASHER ｻﾞｶﾞﾈ
M4X40-10.9 A2J (Trival
8
N015
N510017365AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X6,STEEL
2
N020
XXE4D6FW
SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ
MZAX040
2
V 1 MZAX040
CAPACITOR ｺﾝﾃﾞﾝｻ
M46
F10862-15-000-AG_02-3
ﾌﾟﾘﾝﾄ基板搬送部(ﾚｰﾙ部)
P. C. B. TRANSFER SECT.(RAIL SECT.)
5
F10862-15-000-AG_02-4
M47
PART NAME
REMARKS
Q'TY
5

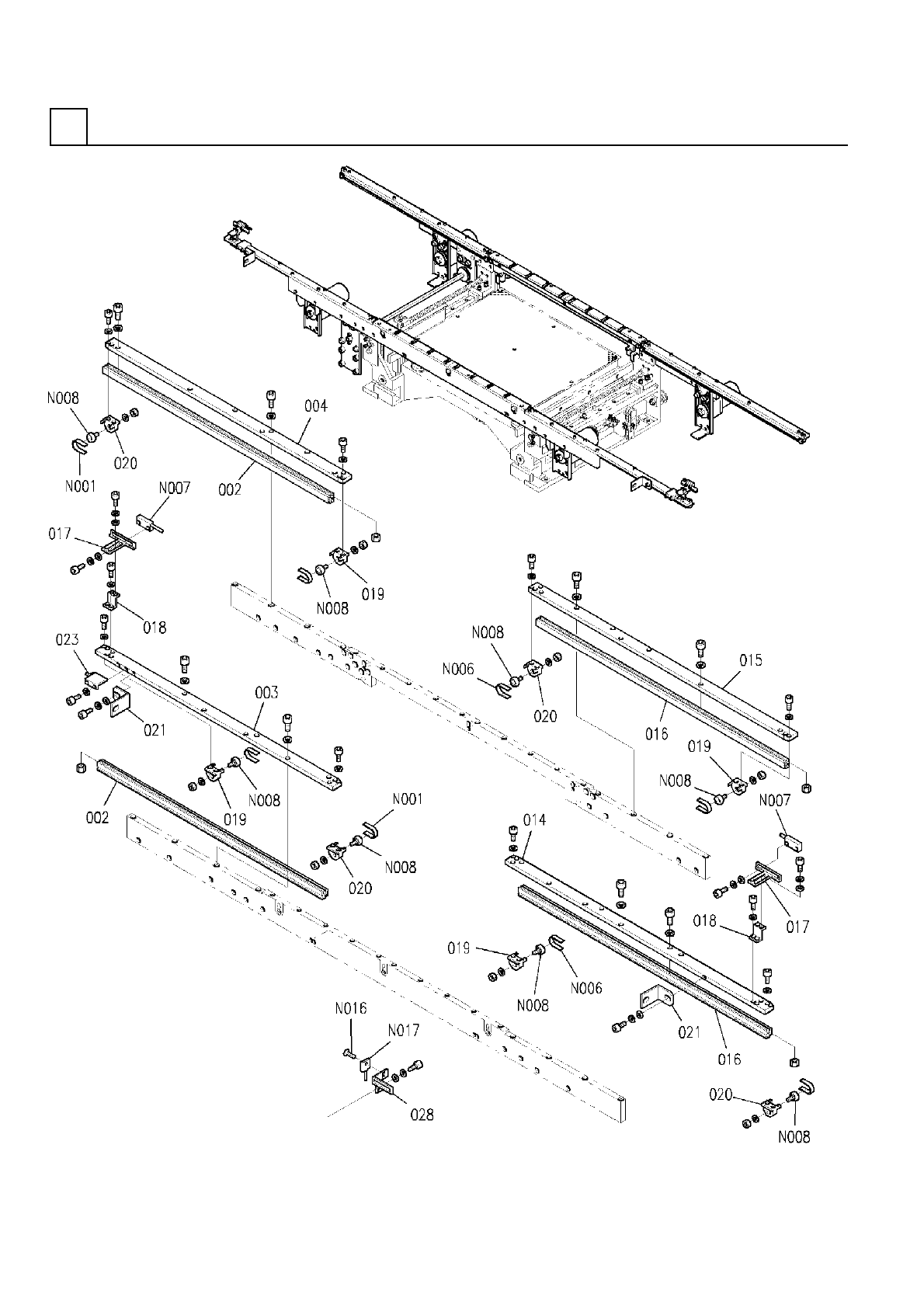

ﾌﾟﾘﾝﾄ基板搬送部(ﾚｰﾙ部)
P. C. B. TRANSFER SECT.(RAIL SECT.)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 名 品 番 個数 備 考
R
1
R
2
2002 1086215002
FRAME ﾌﾚｰﾑ
1
003 108621500301
GUIDE ｶﾞｲﾄﾞ
1
004 108621500401
GUIDE ｶﾞｲﾄﾞ
1014 108621501401
GUIDE ｶﾞｲﾄﾞ
1015 108621501501
GUIDE ｶﾞｲﾄﾞ
2
016 1086215016
FRAME ﾌﾚｰﾑ
2
017 1086205115
BRACKET ﾌﾞﾗｹｯﾄ
2018 1086289166
BRACKET ﾌﾞﾗｹｯﾄ
4019 108628902001
BLOCK ﾌﾞﾛｯｸ
4
020 1086205244
BLOCK ﾌﾞﾛｯｸ
2021 1086289152
BRACKET ﾌﾞﾗｹｯﾄ
1023 1086289164
PUSHER ﾌﾟｯｼｬ
1
028 108628953701
BRACKET ﾌﾞﾗｹｯﾄ
TA-4NBR/F4.5WX1415
2
N001
N641TA4N1415
BELT ﾍﾞﾙﾄ
TA-4NB R/F 4.5WX1535
2
N006
N641TA4N1535
BELT ﾍﾞﾙﾄ
P919T
2
N007
N310P919T
SWITCH ｽｲｯﾁ
MB022000
8
N008
N648MB022000
PULLEY ﾌﾟｰﾘｰ
M3X8,+,STEEL,C.P
1
N016
XSS3+8FC
FLUSH HEAD SCREW ｻﾗｺﾈｼﾞ
P917M
1
N017
N310P917M
SENSOR ｾﾝｻ
M48
F10862-15-000-AG_02-4
