PART NAME REMARKS Q'TY 6 ﾌﾟﾘﾝﾄ基板ｻﾎﾟｰﾄ部(3) P.C.B. SUPP ORT SECT. (3) ｲﾗｽﾄ No. REF No. PART No. 部 品 名 品 番 個数 備 考 R 1 R 2 1 016 108620602601 PLATE ﾌﾟﾚｰﾄ 1 017 1086206017 BLOCK ﾌﾞﾛｯｸ 1 018 104708965301 STOPPER ｽﾄｯﾊﾟ 1 0…

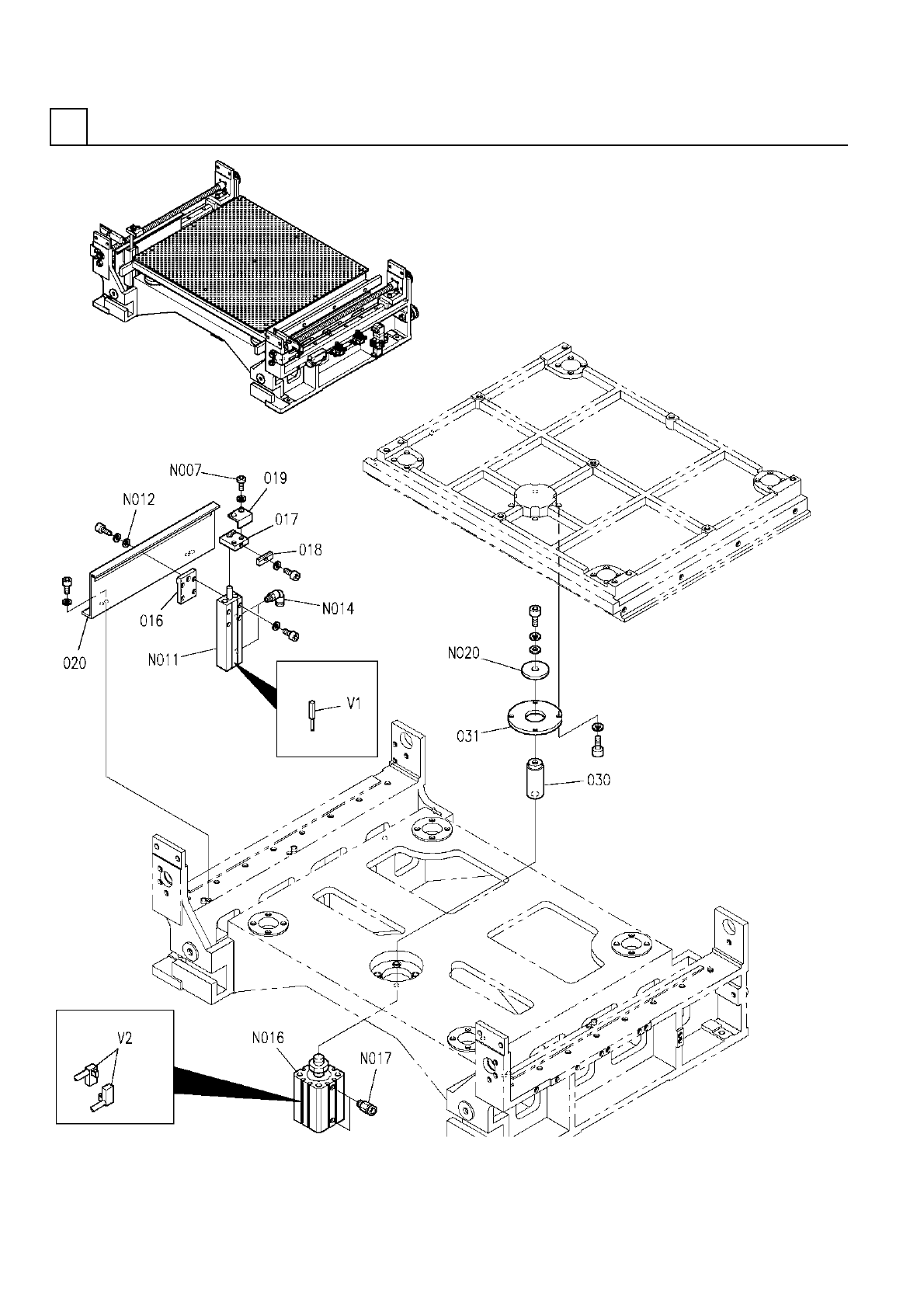

ﾌﾟﾘﾝﾄ基板ｻﾎﾟｰﾄ部(3)
P.C.B. SUPPORT SECT.(3)
6
F10862-16-000-AF_03-3
M53
PART NAME
REMARKS
Q'TY
6
ﾌﾟﾘﾝﾄ基板ｻﾎﾟｰﾄ部(3)
P.C.B. SUPPORT SECT.(3)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 名 品 番 個数 備 考
R
1
R
2
1016 108620602601
PLATE ﾌﾟﾚｰﾄ
1
017 1086206017
BLOCK ﾌﾞﾛｯｸ
1
018 104708965301
STOPPER ｽﾄｯﾊﾟ
1019 1047089652
BRACKET ﾌﾞﾗｹｯﾄ
1020 1086216020
BRACKET ﾌﾞﾗｹｯﾄ
1
030 N210028450AA
JOINT ｼﾞｮｲﾝﾄ
1
031 N210028190AA
PLATE ﾌﾟﾚｰﾄ
CBS3-8
2
N007
N986CBS38
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
GXAS-SD15-40-RB41
1
N011
N403GXAS-206
CYLINDER ｼﾘﾝﾀﾞ
WSSB16-6-3
1
N012
N560WSSB1663
WASHER ｻﾞｶﾞﾈ
KJL04-M5
2
N014
N431KJL04M5
FITTING ﾂｷﾞﾃ
CDQ2A40-40DCM-A73
1
N016
N401CDQ2-B19
CYLINDER ｼﾘﾝﾀﾞ
KJS04-01S
2
N017
N431KJS0401S
FITTING ﾂｷﾞﾃ
WSSB40-10-5
1
N020
N560WSSB-260
WASHER ｻﾞｶﾞﾈ
RB4
1V 1 N403RB4
SENSOR ｾﾝｻ
D-A73
2V 2 N401DA73
SENSOR ｾﾝｻ
