ﾉｽﾞﾙﾁｪﾝｼﾞ部 NOZZLE CHAN GE SECT. 9 F10862-19-200-AG_0 1 M71
PART NAME
REMARKS
Q'TY
8
ﾉｽﾞﾙﾎﾙﾀﾞ部(ﾌｨﾙﾀ部)
NOZZLE HOLDER SECT.(FILTER SECT.)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 名 品 番 個数 備 考
R
1
R
2
1 1086209530
FILTER UNIT ﾌｨﾙﾀﾕﾆｯﾄ
1
531 1086289282
FILTER ﾌｨﾙﾀ
M70
F10862-09-530
ﾉｽﾞﾙﾁｪﾝｼﾞ部
NOZZLE CHANGE SECT.
9
F10862-19-200-AG_01
M71
PART NAME
REMARKS
Q'TY
9

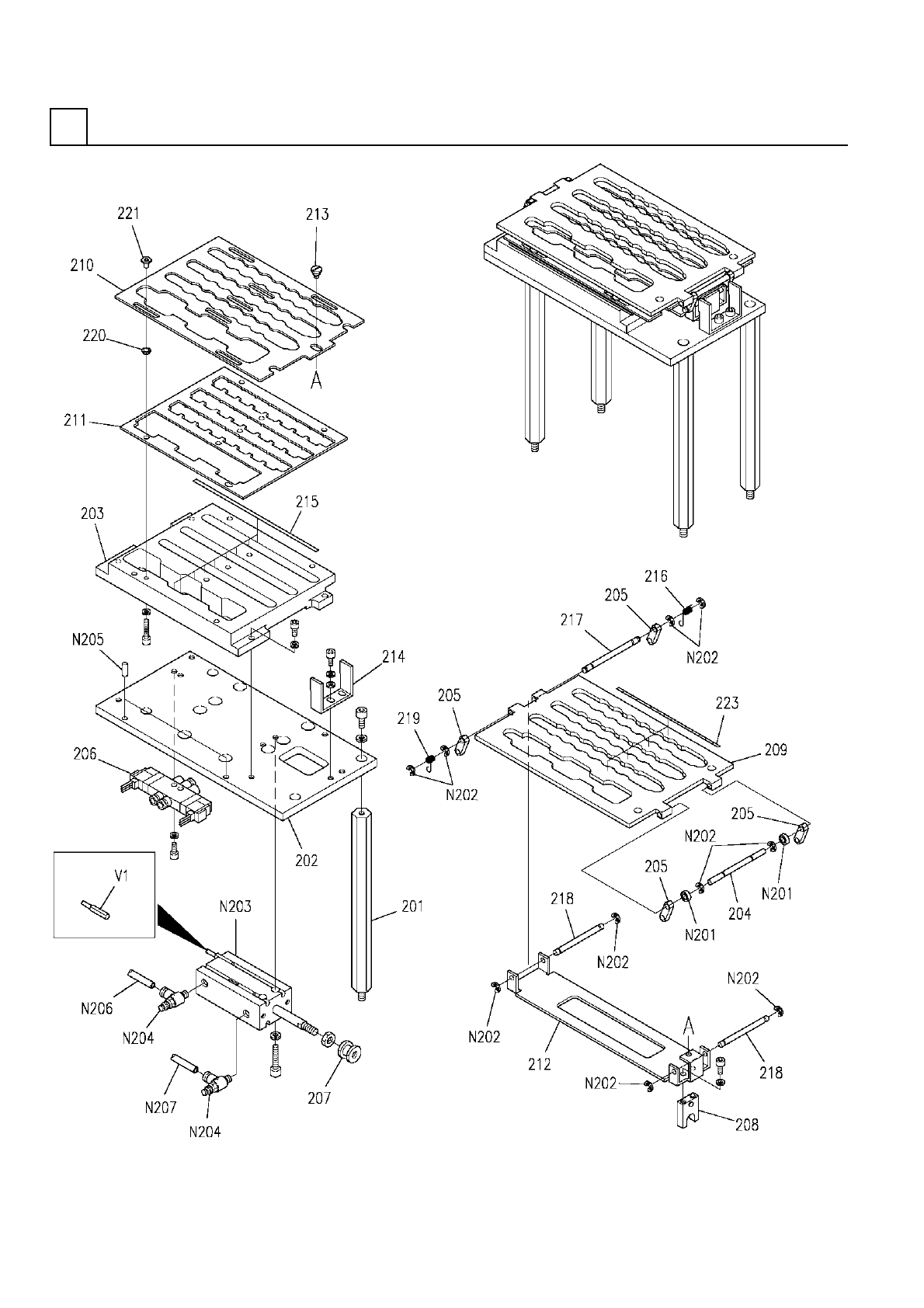

ﾉｽﾞﾙﾁｪﾝｼﾞ部
NOZZLE CHANGE SECT.
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 名 品 番 個数 備 考
R
1
R
2
1 1086219200
NOZZLE CHANGE UNIT ﾉｽﾞﾙﾁｪﾝｼﾞﾕﾆｯﾄ
4
201 108621900102
STAND ｽﾀﾝﾄﾞ
1
202 N210048713AA
PLATE ﾌﾟﾚｰﾄ
1203 108621920301
BASE ﾍﾞｰｽ
1204 1086289037
SHAFT ｼｬﾌﾄ
4
205 1086219005
LINK ﾘﾝｸ
1
206 1047005235
VALVE ﾊﾞﾙﾌﾞ
1207 1086219007
JOINT ｼﾞｮｲﾝﾄ
1208 1086219008
PLATE ﾌﾟﾚｰﾄ
1
209 1086219209
PLATE ﾌﾟﾚｰﾄ
1210 108621921001
PLATE ﾌﾟﾚｰﾄ
1211 108621921101
PLATE ﾌﾟﾚｰﾄ
1
212 N210048711AA
JOINT ｼﾞｮｲﾝﾄ
1
213 108621901302
PIN ﾋﾟﾝ
1214 1086219064
STOPPER ｽﾄｯﾊﾟｰ
2215 1086219014
SHEET ｼｰﾄ
1
216 1086219066
SPRING ﾊﾞﾈ
1
217 1086289035
SHAFT ｼｬﾌﾄ
2218 1086289036
SHAFT ｼｬﾌﾄ
1219 1086219069
SPRING ﾊﾞﾈ
7
220 1086219020
COLLAR ｶﾗｰ
7
221 1086219071
PIN ﾋﾟﾝ
1223 1086219223
LABEL ﾗﾍﾞﾙ
MR105ZZ
2
N201
KXF05XVAA00
BEARING ﾍﾞｱﾘﾝｸﾞ
4,STEEL,T.T.C
10
N202
XUC4FT
RETAINING RING E-TYPE E ｶﾞﾀﾄﾒﾜ
CDU25-50D-A93
1
N203
N401CDU2-G77
CYLINDER ｼﾘﾝﾀﾞ
AS1201F-M5-04
2
N204
N406AS12-014
SPEED CONTROLLER ｽﾋﾟｰﾄﾞｺﾝﾄﾛｰﾗ
4X12,h7A,STEEL
2
N205
XPJ4C12FW
PARALLEL PIN ﾍｲｺｳﾋﾟﾝ
TU0425B
1
N206
N434TU0425B
TUBE ﾁｭｰﾌﾞ
TU0425Y
1
N207
N434TU0425Y
TUBE ﾁｭｰﾌﾞ
D-A93
2V 1 N401DA93
SENSOR ｾﾝｻ
M72
F10862-19-200-AG_01
