KHW_YG100R_PL - 第13页
1 4 X-axis Moving-axis KHW -11 10 19 36 49 1 18 58 52 44 44 44 44 14 42 15 44 10 44 43 47 1 1 48 48 13 13 46 46 41 43 41 8 9 12 16 35 17 18 21 44 52 38 38 2 33 34 37 50 38 2 55 39 40 55 39 40 55 39 40 55 54 44 39 40 3 56…
6
3

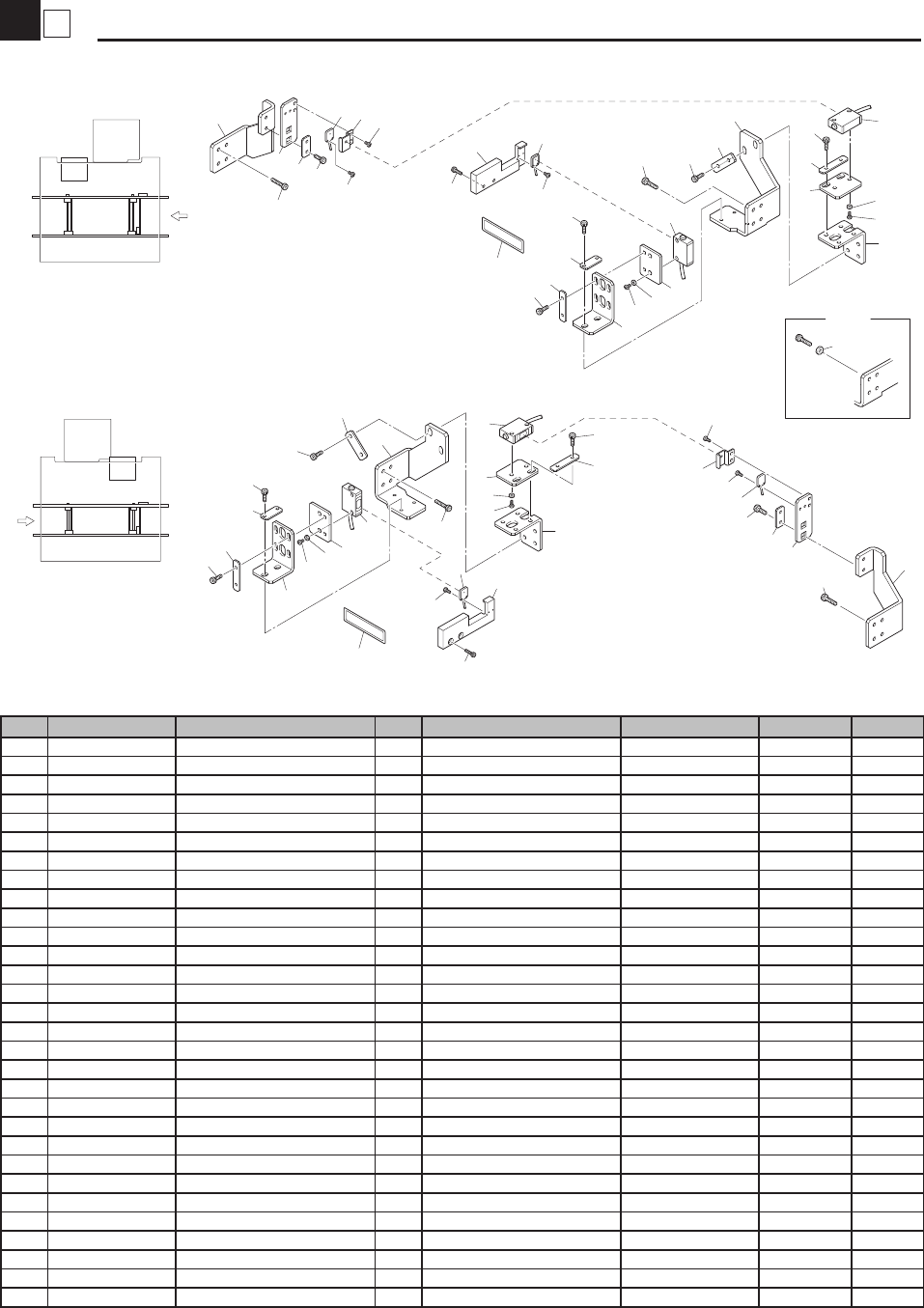

Feeder Floating Detection 20 (with ATS)
Feeder Holder
KHW-1110
OLD
21
10
7
9
11
12
14
13
2
18
16
18
23
17
26>25
4
26>25
25
25
20
24
25
25
27
19
22
23
12
11
18
17
13
14
25
20
24
25
26>25
10
25
1
3
5
6
13
19
20
24
25
3
6
13
19
20
24
25
7
9
25
8
19
22
ATS Right Type
ATS
ATS
ATS Left Type
26
18
15
23
26
23
26>25
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGS-M3971-20X BRKT.SENSOR1 R 1
2 KGS-M3971-30X BRKT.SENSOR1 R 1
3 KGS-M3972-20X BRKT.SENSOR2 R 1
4 KGS-M3972-30X BRKT.SENSOR2 R 1
5 KGS-M3973-00X BRKT.SENSOR3 1
6 KGS-M3974-00X PLATE,SENSOR 1
7 KGS-M3975-00X BRACKET,RECEIVER 1
8 KGS-M3976-00X COVER,SENSOR 1 1
9 KGS-M3977-00X SQUARE WASHER 1 1
10 KGS-M3978-00X SQUARE WASHER 2 1
11 KGS-M3951-00X PLATE SENSOR 2
12 KGS-M3910-00X BRACKET SENSOR 1 2
13 KGS-M3906-00X BRACKET 6 3
14 KGS-M3911-00X SQUARE WASHER 2
15 KGS-M3941-00X BRACKET 4-1,SENSOR R 1
16 KGS-M3942-00X BRACKET 4-2,SENSOR R 1
17 KG2-M3903-10X SEAL LASER 2
18 KGS-M3961-00X SENSOR,LASER ASSY 2
19 KGS-M3961-10X SENSOR,LASER ASSY 1
20 92907-03200 WASHER PLAIN 6
21 92907-04200 WASHER PLAIN 8
21-1 Delete (2010/1/29) MG10119
22 98907-03005 SCREW BINDING HEAD 2
23 90115-02J005 BOLT,HEX S.H 6
24 91317-03012 BOLT HEX.SOCKET HEAD 6
25 91317-04010 BOLT HEX.SOCKET HEAD 14
25-1 91317-04010 BOLT HEX.SOCKET HEAD 22 (2010/1/29) MG10119 OK
26 91317-04012 BOLT HEX.SOCKET HEAD 12
26-1 91317-04012 BOLT HEX.SOCKET HEAD 4 (2010/1/29) MG10119 OK
27 KGS-M3976-10X COVER SENSOR 1
1
4
X-axis
Moving-axis
KHW-1110
19
36
49
1
18
58
52
44
44
44
44
14
42
15
44
10
44
43
47
11
48
48
13
13
46
46
41
43
41
8
9
12
16
35
17
18
21
44
52
38
38
2
33
34
37
50
38
2
55
39
40
55
39
40
55
39
40
55
54
44
39
40
3
56
54
44
58
3
43
4
5
21
29
45
45
25
57
57
28
24
26
22
31
24
23
20
30
30
26
25
47
27
32
41
41
32
7
6
47
41
59
60
OLD
51
53
51
53
42
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHW-M0201-00X X AXIS SUB ASSY. 1
2 KHW-M2213-S0X PLATE X AXIS SET 1
2-1 KHW-M2213-S1X PLATE X AXIS SET 1 (2007/12/11) MDY0002 OK
2-2 KHW-M2213-S2X PLATE X AXIS SET 1 (2009/12/26) MFY0051 OK
3 KV7-M2231-00X SPACER R,NUT 4
4 KHW-M2236-00X STAY,DUCT 1
5 KHW-M223A-00X FRAME,HEAD SERVO 1
6 KHW-M223B-00X STAY,Z HNS. 1
7 KHW-M223C-00X STAY,R HNS. 1
8 KHW-M223D-00X COVER,FRAME 1
9 KHW-M223E-00X STAY,LIGHT HNS. 1
10 KHW-M223F-00X STAY,L HNS. 1
11 KHW-M223J-00X COVER,HNS. 1
12 KHW-M223K-00X STAY,CAMERA HNS. 1
13 KHW-M2239-00X BRACKET 2
14 KHW-M220A-00X SENSOR,XORG 1
15 KHW-M220B-00X SENSOR,XOT 1
16 KHW-M2291-00X BRACKET, SENSOR 1
17 KHW-M2282-00X DOG, ORIGIN 1
18 KHW-M2283-00X DOG, 2ND LIMIT 2
19 KGS-M2267-A0X CABLE,DUCT 1
20 KGT-M221A-A0X COVER,DUCT ASSY. 1
20-1 KHY-M221A-A0X COVER,DUCT ASSY. 1 (2008/12/7) MEY0066 OK
21 KV7-M226B-00X PLATE 2
22 KGT-M2268-00X BRACKET 1,TAPE 1
22-1 KHY-M2268-00X BRACKET 1,TAPE 1 (2008/12/7) MEY0066 OK
23 KHW-M2269-00X BRACKET 2,TAPE 1
23-1 KHY-M2269-00X BRACKET 2,TAPE 1 (2008/12/7) MEY0066 OK
24 KGS-M220A-01X TAPE ,X DUCT 1
25 KGS-M220B-00X TAPE 2,X DUCT 1
26 KGS-M220C-00X TAPE 3,X DUCT 1
27 KHW-M2266-00X PLATE,NUT 1
28 KGT-M2266-10X PLATE,NUT 1
29 KHW-M226A-00X COVER,CABLE 1
30 $2TE8-R URETHANE TUBE 1
30-1 $2UB08-2F-R URETHANE TUBE 1 (2008/10/30) ME00131 OK
31 $US8 JOINT 2
32 $UL8 JOINT 2
33 KGS-M2256-00X GRIP 1
34 KHW-M22C5-00X COVER UNDER,X AXIS 1
35 KHW-M26F5-00X BRKT.,HARNESS 1
36 KGS-M2252-00X STOPPER 1
37 KHW-M22C6-00X COVER,X FRAME UNDER 1
38 KV7-M2663-00X NYLOCK BOLT 16 M5X16
38-1 90990-01J030 BOLT,HEX.SOCKET HEAD 16 (2007/10/29) MD00030 OK
39 KV7-M2253-00X WASHER,SPRING 16
39-1 90990-38J001 WASHER,SPRING 16 (2008/4/15) ME20075 OK
40 90990-01J006 BOLT HEX.SOCKET HEAD 16
41 91312-03006 BOLT HEX.SOCKET HEAD 16 M3X6
42 91312-03008 BOLT HEX.SOCKET HEAD 4
42-1 97602-03308 SCREW,PAN HEAD W/W 4 (2007/12/25) MDY0119 OK
43 91312-04006 BOLT HEX.SOCKET HEAD 10 M4X6
44 91312-04008 BOLT HEX.SOCKET HEAD 20 M4X8
45 91312-04018 BOLT HEX.SOCKET HEAD 2 M4X18
46 91312-05008 BOLT HEX.SOCKET HEAD 6 M5X8
47 91312-06010 BOLT HEX.SOCKET HEAD 11 M6X10
48 91312-06030 BOLT HEX.SOCKET HEAD 4 M6X30
49 91317-04008 BOLT HEX.SOCKET HEAD 6 M4X8
50 91317-05008 BOLT HEX.SOCKET HEAD 4 M5X8
51 92902-03600 WASHER PLAIN 4
51-1 Delete (2007/12/25) MDY0119
52 92902-04200 WASHER PLAIN 4
53 92903-03100 WASHER SPRING 4
53-1 Delete (2007/12/25) MDY0119
54 92907-04200 WASHER PLAIN 4
55 92907-08600 WASHER PLAIN 16
56 92907-10200 WASHER,PLAIN 1
57 98902-03006 SCREW BINDING HEAD 4
58 90990-11J003 SCREW,PAN HEAD W/W 6
59 90563-03J100 SPACER BOLT 12
59-1 90563-03J100 SPACER BOLT 6 (2007/7/9) MD60187 OK
60 90563-03J120 SPACER BOLT 6 (2007/7/9) MD60187
2
4

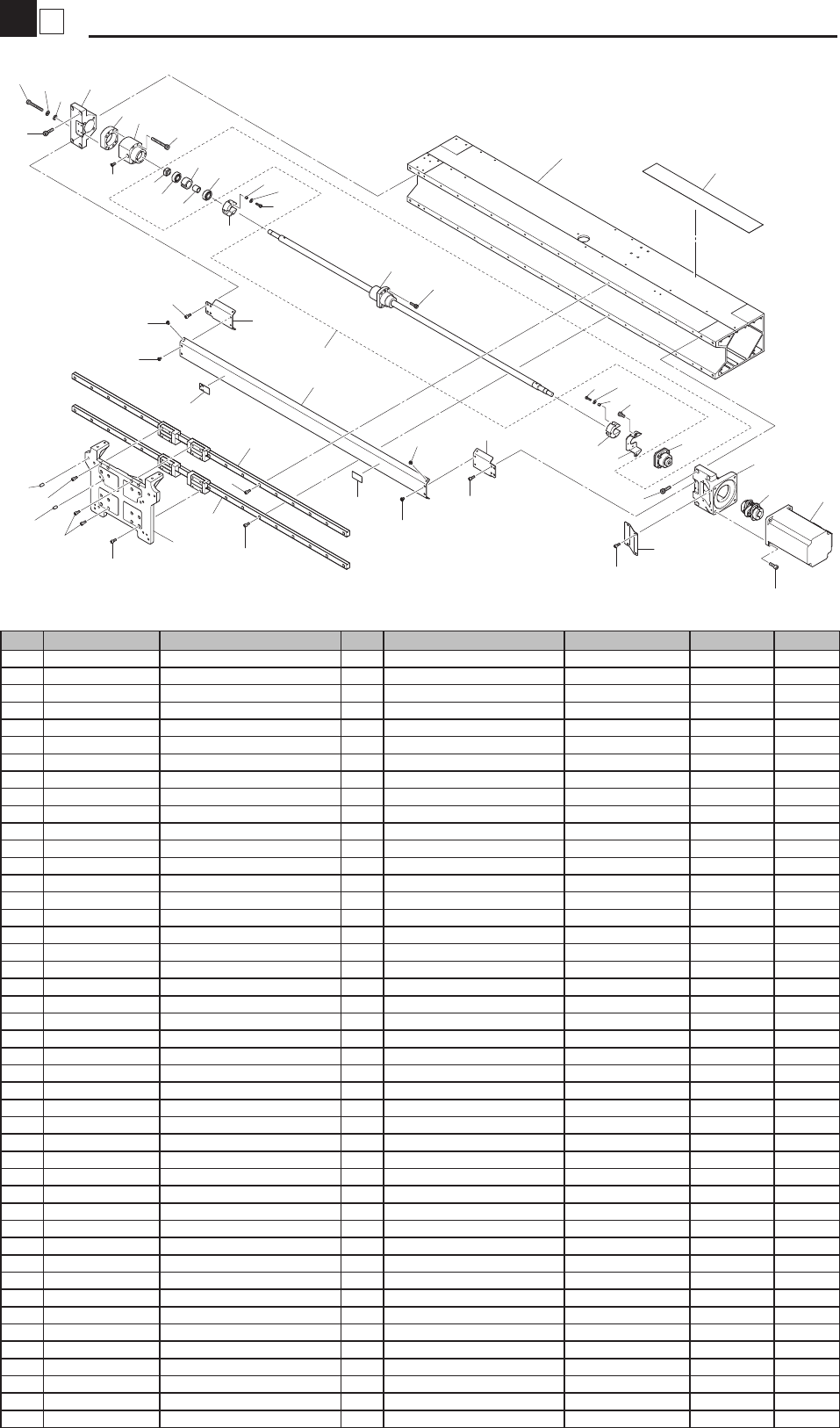

X-axis-Sub Assy
Moving-axis
KHW-1110
30
38
37
4
28
5
6
30
34
11
9
10
10
9
16
35
35
23
19
40
2
2
39
(YG88)
(YG100)
39
24
24
24
12
33
23
35
35
32
20
8
1
18
26
31
36
17
25
16
15
7
29
32
22
3
14
13
27
33
32
21
17
36
31
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHW-M2211-00X FRAME X AXIS 1
1-1 KHW-M2211-01X FRAME X AXIS 1 (2007/12/11) MDY0002 OK
2 KGS-M2276-S0X X-AXIS GUIDE SET 1
3 KHW-M2241-00X HOLDER,MOTOR X 1
3-1 KHW-M2241-01X HOLDER,MOTOR X 1 (2007/12/11) MDY0002 OK
4 KHW-M2242-00X HOLDER,BRG. X 1
4-1 KHW-M2242-01X HOLDER,BRG. X 1 (2007/12/11) MDY0002 OK
5 KHW-M2243-00X PLATE,SLEEVE BRG. 1
6 KHW-M2240-00X SLEEVE,BRG 1
7 KHW-M224A-A0X SUPPORT UNIT 1
8 KHW-M2271-00X SCREW BALL, X AXIS 1
9 KGS-M2245-00X BRG.,ANGULAR 1
9-1 90990-26J008 BEARING 1 (2007/12/6) MDX0068 OK
10 KHW-M224E-00X SPACER,BRG SET 1
11 KG2-M9173-00X LOCK NUT 1
12 KHW-M2261-00X HOLDER,HEAD 1
13 90K63-511403 AC SERVO MOTOR 1
13-1 90K63-511203 AC SERVO MOTOR 1 (2010/1/16) MFY0088 OK
14 KM0-M2220-00X COUPLING,X-AXIS 1
15 KHW-M2247-00X BASE,STOPPER 1
16 KHW-M2248-00X DAMPER 2
17 KHW-M2249-00X SPACER 6
18 KGS-M220A-30X TAPE X-AXIS 1
19 KHW-M22C1-00X COVER A,X AXIS 1
20 KHW-M22C2-00X COVER B,X AXIS 1
21 KHW-M22C3-00X COVER C,X AXIS 1
22 KHW-M22C4-00X COVER,COUPLING X 1
23 KV7-M7165-00X SEAL DON'T TOUCH 2
24 91317-04010 BOLT HEX.SOCKET HEAD 16 M4X6
25 91317-05010 BOLT HEX.SOCKET HEAD 2 M5XL10
26 91317-05018 BOLT HEX.SOCKET HEAD 4 M5X18
27 91317-06018 BOLT HEX.SOCKET HEAD 4 M6XL18
28 91317-06020 BOLT HEX.SOCKET HEAD 4 M6X20
29 91317-06025 BOLT HEX.SOCKET HEAD 4 M6X25
30 91317-06050 BOLT HEX.SOCKET HEAD 8 M6X50
31 91312-03008 BOLT HEX.SOCKET HEAD 6 M3X8
32 91312-04006 BOLT HEX.SOCKET HEAD 12 M4X6
33 91312-04016 BOLT,HEX.SOCKET HEAD 34 M4XL16
34 90990-09J006 SCREW,FLAT HEAD 1
35 98902-04006 SCREW BINDING HEAD 8
36 92902-03200 WASHER PLAIN 6
37 92907-06200 WASHER PLAIN 4
38 92907-06100 WASHER,SPRING 4
39 99480-06012 PIN,PARALLEL 2
40 KHW-M2271-A0X X-AXIS B.S.SUB ASSY 1 (2009/4/23) MF40074
