1 5 Housing Assy Head KHW -090604 12 31 49 25 44 27 44 44 29 45 35 32 32 32 21 32 37 37 43 43 45 15 8 8 36 36 50 36 39 38 45 33 33 16 17 16 17 28 39 24 34 14 13 41 41 40 30 4 44 44 26 10 38 38 9 40 6 47 9 8 8 29 7 40 2 1…
4
4
Y-axis (Duct / Frame)
Moving-axis
KHW-080724
12
31
14
15
11
36
9
16
10
36
40
43
41
41
41
38
38
38
38
37
17
30
30
30
32
3
4
3539
23
23
18
37
32
32
28
23
24
24
24
25
25
25
34
39
42
20
22
34
39
42
34
39
42
33
23
19
21
23
24
24
S-ATS
S-ATS
25
25
33
34
39
42
33
33
23
24
25
33
33
42
35
39
42
27
32
30
30
30
27
33
6
41
38
33
33
8
33
33
33
38
33
2
36
15
14
13
31
7
1
29
32
32
43
40
36
43
40
36
33
33
38
38
35
16
26
26
5
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHW-M2695-00X BRACKET B, GUIDE 1
1-1 KHW-M2695-01X BRACKET B, GUIDE 1 (2008/3/28) ME30251 OK
2 KHW-M26F1-02X FRAME 1 1
3 KHW-M26F2-02X FRAME 2 1
4 KGS-M26F3-00X FRAME 3 1
5 KHW-M26F4-00X DUCT,HARNESS 1
5-1 KHW-M26F4-01X DUCT,HARNESS 1 (2008/3/28) ME30251 OK
6 KGS-M2694-00X BRACKET A,GUIDE 1
7 KGS-M260A-00X TAPE, Y AXIS 1
8 KGT-M2698-00X
PLATE 1,CLAMP 1
9 KGS-M2678-A0X GUIDE,CABLE Y 1
10 KV7-M2268-00X BRACKET 1,TAPE 1
11 KV7-M2269-00X BRACKET 2,TAPE 1
12 KV7-M2266-00X PLATE,NUT 1
13 KGT-M2667-00X PLATE 1
14 KGS-M260D-00X TAPE 3, Y DUCT 1
15 KGS-M260B-00X TAPE, Y DUCT 1
16 KGS-M260C-00X TAPE 2, Y DUCT 1
17 KHW-M2655-00X BRACKET,STOPPER R 1
18 KHW-M2655-10X BRACKET,STOPPER L 1
19 KHW-M2652-00X BRACKET,STOPPER 1R 1
20 KHW-M2652-10X BRACKET,STOPPER 1L 1
21 KHW-M2652-50X BRACKET,STOPPER 2R 1
22 KHW-M2652-60X BRACKET,STOPPER 2L 1
23 KV7-M2651-00X DAMPER,STOPPER 4
24 KHW-M2654-00X PLATE , DAMPER 4
25 KHW-M2656-00X SPACER 8
26 KHW-M26C1-00X COVER A,Y AXIS 2
26-1 KHW-M26C1-01X COVER A,Y AXIS 2 (2008/3/31) ME30269 OK
27 KHW-M26C3-00X COVER,COUPLING Y 2
27-1 KHW-M26C3-01X COVER,COUPLING Y 2 (2008/3/31) ME30269 OK
28 KHW-M26C4-00X BRKT. R,HARNESS 1
29 KHW-M26C5-00X BRKT. L,HARNESS 1
30 KV7-M7165-00X SEAL DON'T TOUCH 6
31 98502-03004 SCREW PAN HEAD 4
32 91312-04006 BOLT HEX.SOCKET HEAD 13 M4X6
33 91312-04008 BOLT HEX.SOCKET HEAD 27 M4X8
34 91312-05008 BOLT HEX.SOCKET HEAD 4 M5X8
35 91312-05010 BOLT HEX.SOCKET HEAD 8 M5X10
36 91312-06010 BOLT HEX.SOCKET HEAD 28 M6X10
37 91312-08020 BOLT HEX.SOCKET HEAD 2 M8X20
38 92902-04200 WASHER PLAIN 41 M8X20
39 92902-05200 WASHER PLAIN 8
40 92902-06200 WASHER PLAIN 20
41 92990-04400 WASHER EXTL.TOOTHED 7
41-1 90172-00J040 WASHER,EXTL.TOOTHED 7 (2008/4/15) ME40115 OK
42 92990-05400 WASHER EXTL.TOOTHED 4
42-1 90172-00J050 WASHER,EXTL.TOOTHED 4 (2008/4/15) ME40115 OK
43 92990-06400 WASHER EXTL.TOOTHED 20
43-1 90172-00J060 WASHER,EXTL.TOOTHED 20 (2008/4/15) ME40115 OK

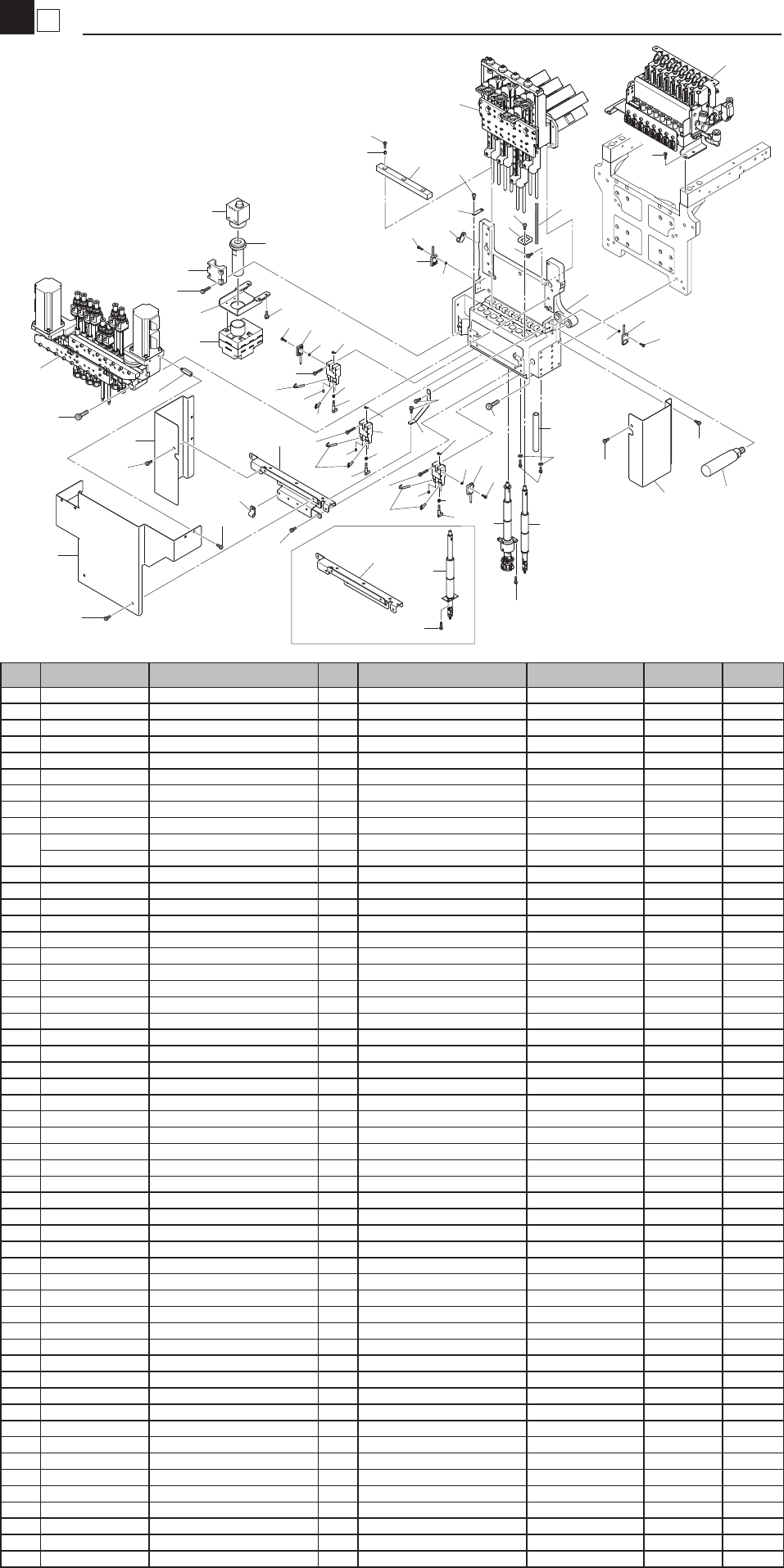

1
5
Housing Assy
Head
KHW-090604
12
31
49
25
44
27
44
44
29
45
35
32
32
32
21
32
37
37
43
43
45
15
8
8
36
36
50
36
39
38
45
33
33
16
17
16
17
28
39
24
34
1413
41
41
40
30
4
44
44
26
10
38
38
9
40
6
47
9
8
8
29
7
40
2
11
18
46
19
20
23
48
22
3
42
1
SF
37
17
16
5
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHW-M7111-00X HOUSING,MAIN 1
2 KHW-M7113-00X DAMPER,Z DOWN 1
3 KHW-M7114-00X COLLAR,STOPPER 3
4 KGS-M7115-03X SLEEVE,SPRING 8
5 KGS-M7116-00X SPRING,RETURN 8
6 KGS-M714T-04X PLATE,STOPPER 4
7 KGS-M714U-00X PLATE 2,STOPPER 1
8 KV8-M71VS-00X COLLAR,SENSOR 4
8-1 90990-41J066 COLLAR 4 (2008/4/17) ME20197 OK
9
KHW-M653G-00X
HNS,SENSOR ASSY FNC
1 FNC
KHW-M653G-10X HNS,SENSOR ASSY SF 1 SF
10 KGS-M2256-00X GRIP 1
11 KHW-M7120-A0X Z ASSY. 1
12 KHW-M7130-A0X R ASSY. 1
13 KHW-M7140-A0X SHAFT HEAD SUB ASSY. 4
14 KHW-M7140-B0X SHAFT HEAD SUB ASSY. 4
15 KGS-M7161-00X BLOCK,CLUTCH 4
16 KGS-M7162-00X SHAFT,CLUTCH 4
17 KGS-M7163-00X SPRING,CLUTCH 4
18 KHW-M7170-A0X EJECTOR ASSY. 1 non bit type
18-1
KHW-M7170-B0X EJECTOR ASSY. 1 bit type (2008/2/4) MDY0141 OK
19 KGA-M7210-01X CCD CAMERA 1
20 KV7-M7211-00X LENS 095 1
21 KGR-M7600-00X FIDUCIAL LIGHT ASSY. 1
22 KHW-M71B2-00X STAY,FID.LIGHT 1
23 KGS-M711D-02X BLOCK,LENS HOLDER 1
24 KHW-M71C1-00X PLATE,HNS. 1
25 KHW-M71C2-00X COVER,CAMERA 1
26 KHW-M71C3-00X COVER,MACS 1
27 KHW-M71C5-00X COVER,HEAD 1
28 KHW-M71C7-00X STAY,HNS. 1
29 $NK-4N NYLON CLIP 5
30 92907-03200 WASHER PLAIN 8
31 90563-04J200 SPACER BOLT 2
32 KGS-M653K-00X SENSOR POS SPARE 2
33 KHW-M653F-A0X SENSOR CLUTCH SPARE 2
34 KHW-M7140-C0X SHAFT HEAD SUB ASSY. 8 SF
35 KHW-M71C1-50X PLATE,HNS. 1 SF
36 90440-10J020 CIRCLIP 4
37 90990-02J007 SET SCREW 8
38 90115-02J008 BOLT HEX.SOCKET HEAD 4
39 91317-03006 BOLT HEX.SOCKET HEAD 2 M3XL6
40 91317-03008 BOLT HEX.SOCKET HEAD 18 M3XL8
41 91317-03010 BOLT HEX.SOCKET HEAD 1 M3XL10
42 91317-03012 BOLT HEX.SOCKET HEAD 3 M3XL12
43 91317-03016 BOLT HEX.SOCKET HEAD 8 M3XL16
43-1 91317-03018 BOLT HEX.SOCKET HEAD 8 M3XL18 (2007/8/22) MD80003 OK
44 91317-04006 BOLT HEX.SOCKET HEAD 12 M4XL6
45 91317-04008 BOLT HEX.SOCKET HEAD 4 M4XL8
46 91317-04010 BOLT HEX.SOCKET HEAD 4 M4XL10
47 91317-04016 BOLT HEX.SOCKET HEAD 4 M4XL16
48 91317-04022 BOLT HEX.SOCKET HEAD 4 M4XL22
49 91317-05020 BOLT HEX.SOCKET HEAD 4 M5XL20
50 91317-06020 BOLT HEX.SOCKET HEAD 4 M6XL20
2
5
Z Assy
Head
KHW-080729
32
12
15
14
13
2
2
33
40
34
38
20
33
39
21
31
29
27
25
30
28
26
24
21
39
33
20
34
40
1
38
42
9
19
4
37
19
10
5
7
6
17
17
36
18
36
18
16
23
22
37
33
39
39
35
35
16
8
16
16
8
41
41
11
5
7
6
3
43
45
44
4
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHW-M7121-00X PLATE,Z MOTOR 1
2 KHW-M7122-00X PLATE,Z STAND 2
3 KHW-M7123-00X PLATE,Z GUIDE 1
4 KGS-M7124-02X GUIDE,Z 8
5 KGS-M7125-00X
RACK,MAIN Z 8
6 KGS-M712N-00X SPRING,RACK 8
7 KGS-M7126-00X RACK,SUB Z 8
8 KGS-M7127-02X SPRING,RACK 8
9 KGS-M7129-03X ARM L,Z AXIS 4
10
KGS-M712A-03X
ARM S,Z AXIS
4 L=43.5mm(FNC)
KGS-M712A-53X ARM SF ,Z AXIS 4 L=45mm(SF)
11 KGS-M712B-02X BLOCK,STOPPER Z 1
12 KGS-M712C-01X BODY,DAMPER 4
13 KGS-M712D-01X SHAFT,DAMPER 4 (FNC)
14 KGS-M712E-00X NUT,MOUNT 4
14-1 90990-15J011 NUT,HEXAGON 4 (2007/11/21) MD00121 OK
15 KGS-M712F-01X SPRING,DAMPER 4
16 KGS-M712G-00X POST,SPRING S 16
17 KGS-M712H-01X PIN,RACK 16
17-1 90990-43J006 PIN 16 (2008/6/3) ME30136 OK
18 KGS-M712J-00X DAMPER,Z UP 8
19 KGS-M712K-02X GUIDE,SPRING 8
20 KGS-M712L-00X PINION,Z 8
21 KHW-M712M-00X BRACKET,MOTOR 8
22 KGS-M7153-03X ARM,SF 4
23 KGS-M7154-03X ARM,FNC 4
24 90K6A-012203 AC SERVO MOTOR Z1 1
25 90K6A-01C204 AC SERVO MOTOR Z2 1
26 90K6A-012205 AC SERVO MOTOR Z3 1
27 90K6A-01C206 AC SERVO MOTOR Z4 1
28 90K6A-012207 AC SERVO MOTOR Z5 1
29 90K6A-01C208 AC SERVO MOTOR Z6 1
30 90K6A-012209 AC SERVO MOTOR Z7 1
31 90K6A-01C210 AC SERVO MOTOR Z8 1
32 90440-10J025 CIRCLIP 4
33 99480-03010 PIN,PARALLEL 30
34 92A08-04305 SET SCREW M4X5 8
35 90115-02J005 BOLT,HEX S.H 32
36 90115-2AJ005 BOLT,HEX.SOCKET HEAD 8
37 90115-2AJ010 BOLT,HEX.SOCKET HEAD 16
38 91317-03006 BOLT HEX.SOCKET HEAD 16 M3XL6
39 91317-03010 BOLT HEX.SOCKET HEAD 20 M3XL10
40 91317-03014 BOLT HEX.SOCKET HEAD 4 M3XL14
41 91317-03018 BOLT HEX.SOCKET HEAD 4 M3XL18
41 91317-03018 BOLT HEX.SOCKET HEAD 4 M3XL18
41-1 91317-03016 BOLT HEX.SOCKET HEAD 4 M3XL16 (2008/2/7) ME20001 OK
42 91317-04016 BOLT HEX.SOCKET HEAD 4 M4XL16
43 KHW-M712C-50X BOLT,STOPPER 4 (SF)
44 KGS-M712P-00X SPARE Z AXIS 1 4 SPARE (2012/10/23) MJ00151
45 KGS-M712R-00X SPARE Z AXIS 2 4 SPARE (2012/10/23) MJ00151
