KHW_YG100R_PL - 第37页
13 7 PCB Detect Sensor Conveyor Unit KHW -1011 4 4 7 9 9 7 7 7 7 8 8 6 6 5 1 10 10 3 3 2 2 1 10 5 10 6 8 (L>R) (R>L) The same as both side the standorrds coveyer . No. Part No. Part Name Q'ty Remarks Date of c…
12
7

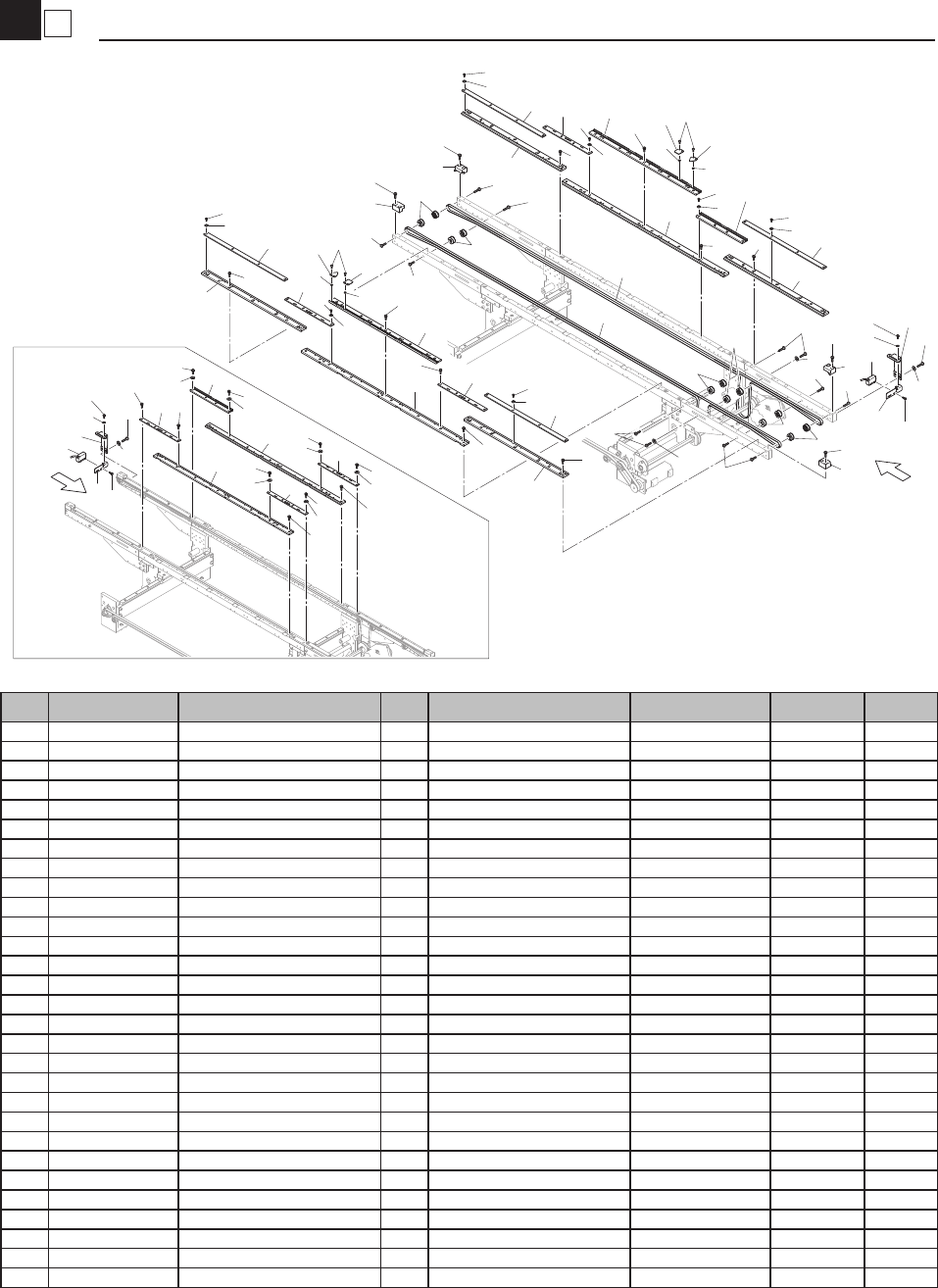

Main Conveyor 4 (Back S.T.D.)
Conveyor Unit
KHW-1110
19
22
19
22
19
22
19
22
19
19
22
19
19
22
19
19
19
22
12
19
19
22
3
3
2
5
12
19
19
4
18
19
19
21
21
13
13
20
20
8
20
20
22
19
19
19
22
5
19
22
19
22
22
12
12
1
1
16
21
9
9
9
9
11
21
24
21
21
7
26
21
23
20
5
6
5
5
20
8
16
7
25
23
23
10
20
11
20
10
24
22
1
1
5
27
14
15
25
21
20
27
19
19
4
2
27
18
15
14
25
27
17
17
6
(L>R)
(R>L)
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHW-M9123-00X GUIDE 1 4
2 KHW-M9124-00X PLATE 1,GUIDE 1
3 KHW-M9124-50X PLATE 1,GUIDE 1
4 KHW-M9125-00X PLATE 2,GUIDE 2
5 KHW-M9126-50X GUIDE 1-2 3
6 KHW-M9126-60X GUIDE 1-3 1
7 KHW-M912A-00X BRKT.,SENSOR 1
8 KHW-M9144-00X BRACKET 3,SENSOR 1
9 KV7-M9140-A0X PULLEY CONV.ASSY. 8
10 KGA-M9113-00X GUIDE 1,END 2
11 KGA-M9114-00X GUIDE 2,END 2
12 KGS-M9126-00X GUIDE 1-1 4
13 KGS-M9140-A0X PULLEY CONV.ASSY. 4
14 KGM-M9135-00X PLATE,EDGE 2 8
14-1 KGM-M9135-00X PLATE,EDGE 2 16 (2008/9/29) ME90127 OK
15 KG7-M9136-00X PLATE,EDGE 3 8
15-1 Delete (2008/9/29) ME90127 OK
16 KGS-M911A-00X SENSOR ENT 1
17 KHW-M9129-00X BELT1, CONVEYOR 2
18 91312-03006 BOLT HEX.SOCKET HEAD 15 M3XL6
19 91312-03008 BOLT HEX.SOCKET HEAD 70 M3X8
20 91312-04012 BOLT,HEX.SOCKET HEAD 11 M4X12
21 91312-05020 BOLT HEX.SOCKET HEAD 13 M5XL20
22 92902-03200 WASHER PLAIN 29
23 92902-04200 WASHER PLAIN 6
24 92902-05200 WASHER PLAIN 7
25 98902-03005 SCREW BINDING HEAD 32
26 97602-03310 SCREW,PAN HEAD W/W 4 M3XL10
27 95302-03700 NUT HEXAGON 32
13
7
PCB Detect Sensor
Conveyor Unit
KHW-1011
4
4
7
9
9
7
7
7
7
8
8
6
6
5
1
10
10
3
3
2
2
1
10
5
10
6
8
(L>R)
(R>L)
The same as both side the standorrds coveyer.
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGS-M911A-00X SENSOR ENT. 1
2 KHW-M928A-00X SENSOR WAIT 1 with AMP
3 KHW-M911D-B0X SENSOR POS.2 1 with AMP Double PU
4 KHW-M911D-A0X SENSOR POS.1 1 with AMP
5 KGS-M927A-00X SENSOR EXIT 1
6 KHW-M9157-00X HOLDER,SENSOR 3
7 91312-03004 BOLT HEX.SOCKET HEAD 10 M3XL4
8 91312-03008 BOLT HEX.SOCKET HEAD 6 M3X8
9 92A08-03303 SET SCREW M3X3 2 M3XL3
10 97602-03310 SCREW,PAN HEAD W/W 4 M3XL10
1
8
Multi Camera & Light Assy
Camera
KHW-1107
2
3
2
3
1
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1
KGR-M73CS-30X C+L W35-H271-F-SPARE 1 35mm-Front
KGR-M73CS-31X C+L W35-H271-R-SPARE 1 35mm-Rear
KGR-M73CS-40X C+L W50-H271-F-SPARE 1 50mm-Front
KGR-M73CS-41X C+L W50-H271-R-SPARE 1 50mm-Rear
2 91317-06020 BOLT HEX. SOCKET HEAD 4
3 92907-06200 WASHER, PLAIN 4
