2 8 Single Camera & Light Assy (These parts can't be sold.) Camera KHW -11 10 16 10 14 31 31 30 30 50 9 42 43 8 13 2 23 38 21 38 24 44 39 1 18 22 35 1 1 41 40 36 12 43 37 3 4 43 7 4 27>25 17 20 19 29 47 6 5 4…
1
8
Multi Camera & Light Assy
Camera
KHW-1107
2
3
2
3
1
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1
KGR-M73CS-30X C+L W35-H271-F-SPARE 1 35mm-Front
KGR-M73CS-31X C+L W35-H271-R-SPARE 1 35mm-Rear
KGR-M73CS-40X C+L W50-H271-F-SPARE 1 50mm-Front
KGR-M73CS-41X C+L W50-H271-R-SPARE 1 50mm-Rear
2 91317-06020 BOLT HEX. SOCKET HEAD 4
3 92907-06200 WASHER, PLAIN 4
2
8
Single Camera & Light Assy (These parts can't be sold.)
Camera
KHW-1110
16
10
14
31
31
30
30
50
9
42
43
8
13
2
23
38
21
38
24
44
39
1
18
22
35
11
41
40
36
12
43
37
3
4
43
7
4
27>25
17
20
19
29
47
6
5
49
51
52
28
39
53
48
46
45
38
32
31
26>25
30
30
25
25
31
30
30
32
31
30
30
25
15
31
54
33
34
26>25
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV1-M73A0-64X MULTI CAM.SUB ASSY 1
2 KGR-M7301-10X STAND,CAMERA 1
2-1 KJJ-M7301-01X STAND,CAMERA 1 (2010/1/14) MG10021 OK
3 91317-06020 BOLT HEX.SOCKET HEAD 4 M6X20
4 92907-06200 WASHER PLAIN 4 M6
5 KV1-M7303-00X HOLDER,CAMERA 1 1
6 91317-05045 BOLT HEX.SOCKET HEAD 2 M5X45
7 KGA-M66F0-01X C.CABLE ASSY 1
8 KGR-M7511-00X FRAME,SIDE LIGHT 1
9 KGR-M7514-00X DIFFUSER,SIDE LIGHT 1
10 KGR-M7515-00X COVER,SIDE LIGHT 1
11 KGR-M7522-00X CYLINDER ASSY 1
12 KGR-M7524-00X PLATE,SPICON 1
13 KGR-M7528-00X STOPPER 1
13-1 Delete (2009/10/23) MF00095
14 KGR-M7550-10X M.LIGHT S.BOARD SET 1 Four pieces of LED boards
14-1 KGR-M755S-A1X M.LIGHT BRD,SIDE SET 1 Light+Seal (V2.46std R1.000-) (2009/5/21) MF50022 NG
15 KGR-M7510-00X HALF MIRROR 1
16 KGR-M7512-00X COVER,GLASS 1
17 KGR-M7513-00X DIFFUSER,COAX 1
18 KGR-M7516-02X COVER,LIGHT UNIT 1
18-1 KGR-M7516-03X COVER,LIGHT UNIT 1 Notch of 30x70mm (2009/2/26) MF20099 NG
19 KGR-M7517-00X FRAME,BASE 1
19-1 KGR-M7517-01X FRAME,BASE 1 Two omission hole of 30x34mm (2009/2/26) MF20099 NG
20 KGR-M7518-00X FRAME,MAIN LIGHT 1
21 KGR-M7519-00X FRAME,COAX 1
22
KGR-M7520-00X GROMMET 1
22-1
90990-23J010 GROMMET 1 (2007/12/4) MDX0031 OK
23 KGR-M7539-01X STAND,LIGHT 1
24 KGR-M7541-00X COVER,CAMERA 1
25 KGR-M7554-01X M.LIGHT MAIN ASSY 4
25-1 KGR-M755S-00X M.LIGHT BOARD SET 1 MAIN x4,SUB CX x2,COAX x1 (2007/5/23) MD50050
25-2 KGR-M755S-01X M.LIGHT BOARD SET 1
（2010/01/18）
MG10070 OK
26 KGR-M7556-00X M.LIGHT SUB CX.ASSY 1
26-1 Delete (2007/5/23) MD50050
27 KGR-M7558-01X M.LIGHT COAX.ASSY 1
27-1 Delete (2007/5/23) MD50050
28 KV1-M6474-03X LED DRIVER BRD.ASSY 1
28-1 KV1-M6474-04X LED DRIVER BRD. ASSY 1 (2008/5/30) ME50098 OK
29 90563-03J050 SPACER BOLT 4 M3X5
30 KGR-M7540-00X ISOLATE WASHER 16
30-1 90990-28J043 WASHER,PLAIN 16 (2007/12/2) MDX0104 OK
31 90166-02JA04 SCREW,PAN HEAD 32 M2, 5X4
32 90563-0AJ040 SPACER,BOLT 16 M2, 5X4
33 90562-0AJ120 SPACER,BOLT 4 M2, 5X12
34 90K41-000240 SEAL,DON'T TOUCH 2
35 KGR-M6417-00X LABEL,LIGHT 1
36 $SSU4 SPEED CONTROLLER 2
37 $TL4-M3M JOINT 2
38 98507-04005 SCREW PAN HEAD 13 M4X5
39 98507-03005 SCREW PAN HEAD 8 M3X5
40 91317-03025 BOLT HEX.SOCKET HEAD 2 M3X5
41 91317-04018 BOLT HEX.SOCKET HEAD 2 M4X18
42 91317-04008 BOLT HEX.SOCKET HEAD 2 M4X8
43 91317-04005 BOLT HEX.SOCKET HEAD 8 M4X5
44 91317-03005 BOLT HEX.SOCKET HEAD 8 M3X5
45 KGR-M66N1-00X HNS,LIGHT1 1
46 KGR-M66N2-00X HNS,LIGHT2 1
47 KV7-M66N3-00X HNS,LIGHT3 1
48 KGR-M66N5-00X HNS,LIGHT5 1
49 KGR-M66N6-00X HNS,LIGHT6 1
50 KGR-M66N7-00X HNS,LIGHT7 3
51 KGR-M66N8-01X HNS,LIGHT8 1
52 KGR-M66N9-00X HNS,LIGHT9 1
53 KGR-M66NA-00X HNS,LIGHT10 1
54 KGR-M7534-00X ADHESIVE TAPE 2
1
9

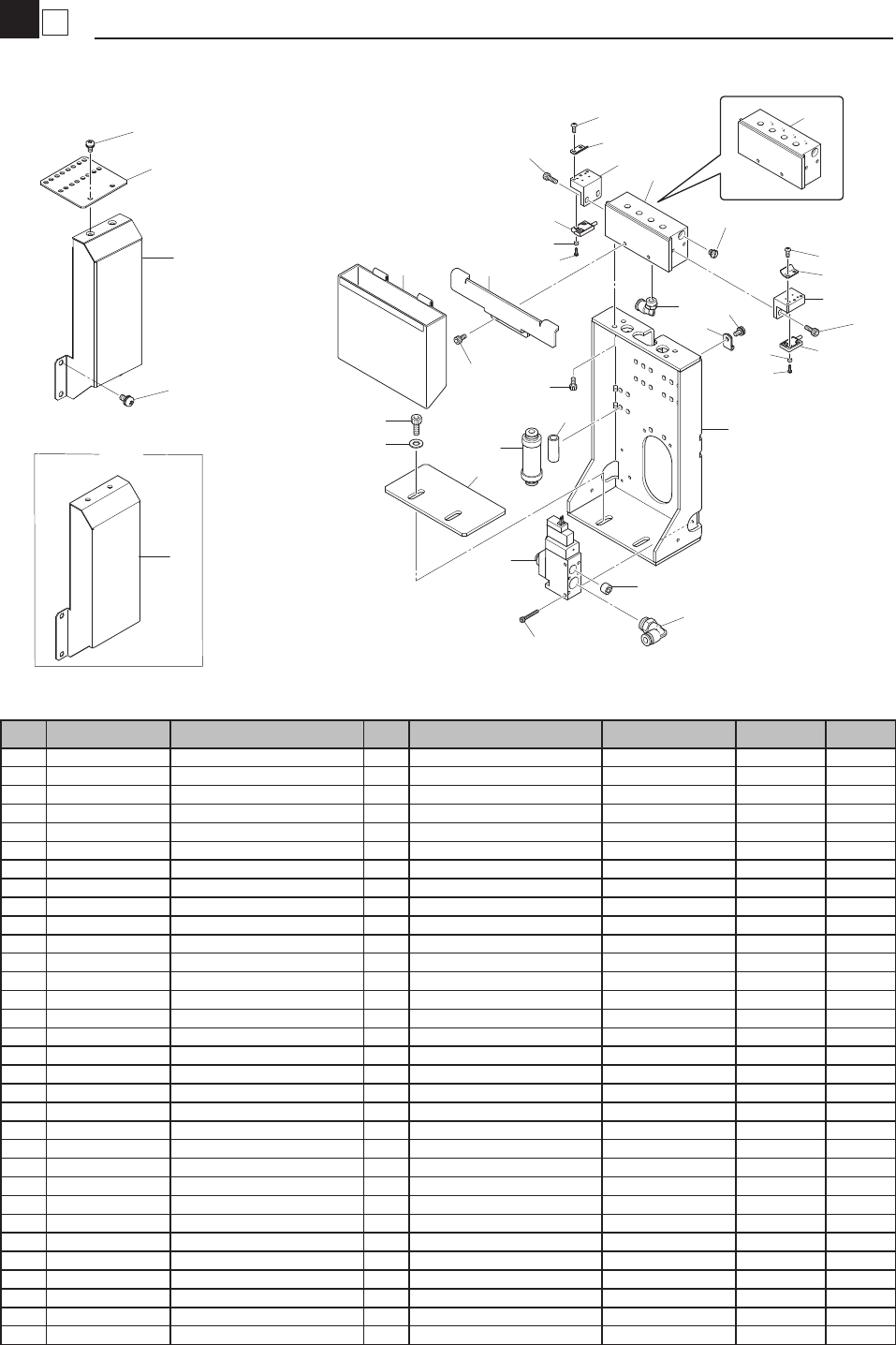

Blow Station Sel.
Blow Station
KHW-1110
OLD
24
6
24
6
5
28
28
9
9
10
21
17
15
1
26
26
11
18
27
29
2
7
25
16
13
21
20
19
22
23
10
23
8
5
3
4
for SF HEAD
14
12
19
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHW-M9901-00X BASE,B.STN. 1
2 KHW-M9902-00X PLATE,BASE 1
3 KHW-M9903-01X BLOCK,BLOW ST. 1 FNC
4 KHW-M9903-50X BLOCK,BLOW ST. 1 SF
5 KHW-M9904-00X BRACKET,SENSOR 2
6 KHW-M9905-00X PLATE,REFLECT 2
7 KHW-M9906-A0X VALVE ASSY. 1
8 KHW-M99D3-00X STAND,DUMP BOX 1
9 KHW-M652J-00X SENSOR,BLOW ST ASSY 1
10 KV8-M71VS-00X COLLAR,SENSOR 4
10-1 90990-41J066 COLLAR 4 (2008/4/17) ME20197 OK
11 KGR-M9934-01X INLINE FILTER 1
12 KGS-M99D0-00X DUMP BOX ASSY. 1
13 K40-M8598-10X PLUG 1 1
14 $PF JOINT 1
15 $TL6-01M JOINT 1
16 $TL6-02 JOINT 1
17 $NK-2N NYLON CLIP 5
18 KGR-M9934-F0X FILTER SPARE 1
19 KHW-M9931-00X EXHAUST BOX 1
19-1 KJJ-M9931-00X EXHAUST BOX 1 (2008/12/23) MEY0068 NG
20 KHW-M9932-00X PLATE,TUBE CLAMP 1
21 97602-04308 SCREW,PAN HEAD W/W 7
22 97602-05310 SCREW,PAN HEAD W/W 4
23 90115-02J006 BOLT HEX.SOCKET HEAD 4
24 90122-03J008 BOLT BUTTON HEAD 4
24-1 92012-03008 BOLT BUTTON HEAD 4 (2008/8/29) ME70216 OK
25 91312-03020 BOLT,HEX.SOCKET HEAD 2 M3X20
26 91312-04008 BOLT HEX.SOCKET HEAD 6 M4X8
27 91312-06016 BOLT HEX.SOCKET HEAD 2 M6X16
28 91317-04010 BOLT HEX.SOCKET HEAD 4 M4X10
29 92902-06200 WASHER PLAIN 2
