KHW_YG100R_PL - 第4页

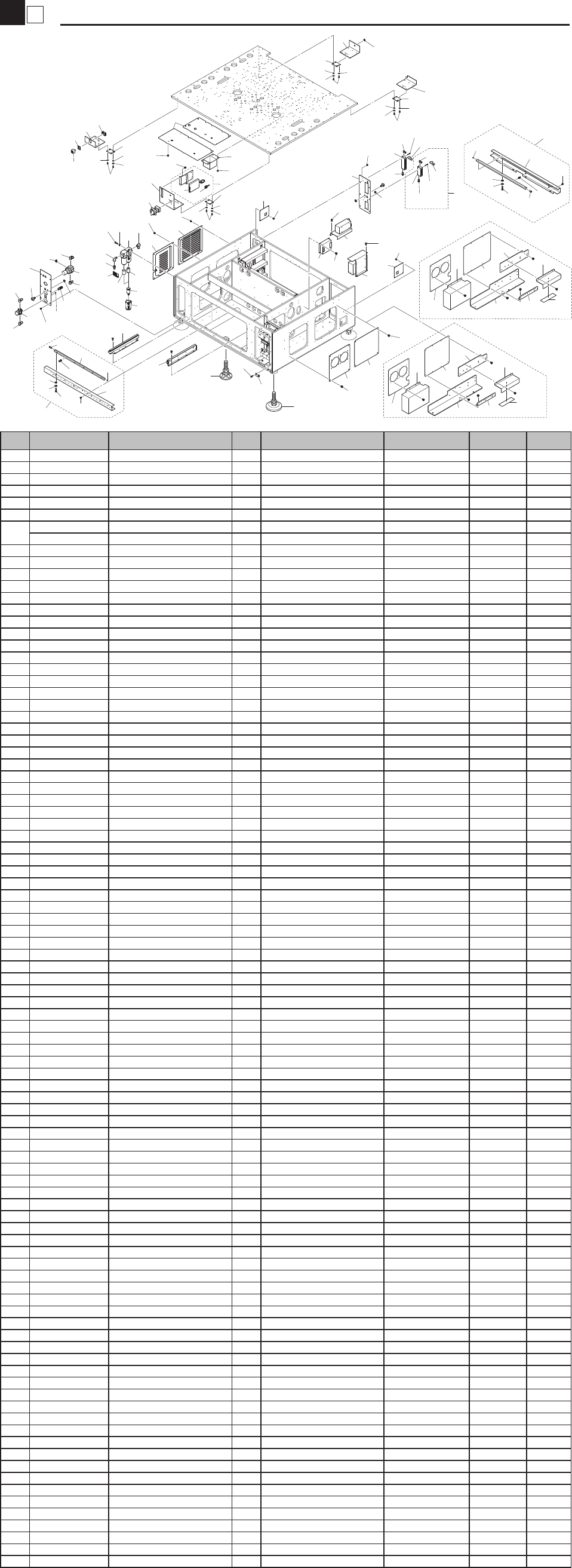

1 2 T op Cover Cover KHW -11 10 35 43 18 16 12 33 19 17 46 31 32 48 51 56 58 58 1 1 31 32 23 30 30 44 44 23 48 55 35 14 49 57 24 53 54 59 26 41 43 44 44 45 43 35 13 39 42 9 59 37 1 42 9 58 5 6 7 6 8 47 52 28 29 34 36 43 …
1
1
Base
Base
KHW-1110
63
68
26
27
71
71
39
40
29
28
45
48
46
52
51
47
53
53
49
34
30
67
66
67
62
35
21
41
15
71
54
50
60
54
53
14
12
17
71
13
60
64
65
16
15
18
20
22
19
71
60
64
65
16
42
10
11
2
1
36
61
70
9
73
73
7
S
W
8
44
67
30
71
71
UPS-STD
UPS-W-ATS
72
58
71
55
56
24
24
25
25
59
59
57
57
23
43
71
62
66
67
31
67
72
32
6
5
4
69
38
37
67
66
62
67
30
33
43
71
67
66
62
35
3
30
74
80
75
79
78
81
82
77
74
80
76
79
78
81
82
77
83
84
85
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGA-M1180-00X LEVELING BOLT ASSY 4
2 KGS-M1180-00X LEVELING BOLT ASSY 2
3 KHW-M1124-00X COVER,PU MOTOR UNDER 1
4 KV2-M537A-00X NOIZE FILTER 1
5 KHW-M6561-A0X POWER SUPPLY 1 ASSY 1
6 KHW-M6561-B0X POWER SUPPLY 1 ASSY 1
7
KHW-M1122-00X COVER ,S-PU UNDER 1 Single-PU
KHW-M1123-00X COVER ,W-PU UNDER 1 Double-PU
8 KGK-M530H-00X USB FDD 1
9 KGS-M0111-00X FDD SUB ASSY 1
10 KM5-M6554-10X MAIN SWITCH 1
11 KGS-M1338-00X BRKT,MAIN SWITCH 1
12 KGS-M0105-F0X MANUFOLD SUB F ASSY 1
13 KGS-M1325-00X BRACKET 5 1
14 KM0-M1141-00X MANUFOLD 1
15 $TSH8-01 JOINT 1
16 $TSS4-01 JOINT 6
17 K40-M8598-00X PLUG 1 1
18 KHW-M0105-R0X MANUFOLD SUB R ASSY 1
19 KHW-M1325-00X BRACKET 5 1
20 K40-M8598-10X PLUG 1 1
21 KHU-M8596-00X PRESSURE GAGE 1
22 KV7-M8583-00X OPTION MANIFOLD ASSY 1
23 KM7-M8584-00X MANIFOLD 1
24 $SL8-01 JOINT 2
24-1 $TL8-01 JOINT 2 (2008/3/25) ME20028 OK
25 $KM-11 MUFFLER 2
26 KHW-M8502-00X F.M.COMB. 1
27 $SL12-03 JOINT 1
27-1 $TL12-03 JOINT 1 (2008/8/25) ME20030 OK
28 KG7-M8512-00X JOINT 1
28-1 90990-42J006 JOINT 1 (2008/6/17) ME30112 OK
29 KG7-M8513-00X JOINT 1
29-1 90990-42J008 JOINT 1 (2008/6/17) ME30112 OK
30 KGS-M1317-00X COVER 17 4
31 KGS-M1336-00X BRKT.REAR LEFT 1
32 90990-23J004 GROMMET 1
32-1 90990-23J008 GROMMET 1 (2010/6/22) MG60109 OK
33 KGS-M1337-00X BRKT.FL RR 1
34 KHW-M1339-00X BRKT.FL 1
35 KHW-M8597-00X BRACKET,GAUGE 1
36 KV7-M1125-00X PLATE,CLAMP 1
37 KHW-M1151-00X PLATE,SIDE 1 1
38 KM0-M1152-01X PLATE,SIDE 2 1
39 KM0-M1153-01X PLATE,SIDE 3 1
40 KHW-M1153-01X PLATE,SIDE 3 1
41 KGA-M4126-01X GUIDE RAIL L ASSY 1
42 KGA-M4127-01X GUIDE RAIL R ASSY 1
43 KGS-M111D-00X PLATE,GATE IN/OUT 2
44 KGK-M6680-10X HNS,USB-FDD 3M 1
45 KHW-M8501-10X ELEMENT 1
46 KHW-M8501-20X MANT LE 1
47 KHW-M1113-00X PLATE 3-1 1
48 KHW-M8504-00X REGULATOR 1
49 KH5-M8501-00X EXHAUST VALVE 1
50 $KM-23 MUFFLER 1
51 $TL4-02 JOINT 1
51-1 $TBLY4-02 JOINT 1 (2008/3/31) ME20029 OK
52 $SLY10-03 JOINT 1
53 $SL12-03 JOINT 3
54 KG2-M669R-11X HNS,BUZZER 1
55 KGS-M1113-00X PLATE 3(VALVE) 1
56 KHW-M8582-00X VALVE 1
57
91312-03030 BOLT,HEX.SOCKET HEAD 2
58
KM0-M531G-00X PANEL PLUG 1
59
KHW-M8582-40X VALVE 1 (Spare)
60 91312-04008 BOLT HEX.SOCKET HEAD 7 M4X8
61 91312-05008 BOLT HEX.SOCKET HEAD 2 M5X8
62 91312-05010 BOLT HEX.SOCKET HEAD 16 M5X10
63 91312-06014 BOLT HEX.SOCKET HEAD 2 M6X14
64 92903-04200 WASHER PLAIN 6
65 92990-04400 WASHER EXTL.TOOTHED 3
65-1 90172-00J040 WASHER,EXTL.TOOTHED 3 (2008/4/15) ME40115 OK
67 92990-05400 WASHER EXTL.TOOTHED 16
67-1 90172-00J050 WASHER,EXTL.TOOTHED 16 (2008/4/15) ME40115 OK
68 92990-06200 WASHER PLAIN 2
69 90990-11J005 SCREW PAN.HEAD W/W 4
70 90990-12J001 SCREW BIN.HEAD W/W 3
71 90990-12J004 SCREW BIN.HEAD W/W 20
72 97602-04310 SCREW,PAN HEAD W/W 4
73 97602-05310 SCREW,PAN HEAD W/W 8
74 KHW-M1151-10X PLATE,SIDE 1 1
75 KHW-M1152-00X PLATE,SIDE 2 1
76 KHW-M1152-10X PLATE,SIDE 2 1
77 KHW-M1155-00X BRACKET,UPS 1
77-1 KHW-M1155-01X BRACKET,UPS 1 (2008/6/9) ME60070 OK
78 KHW-M1157-00X BRACKET 2,UPS 1
79 KHW-M1158-00X PLATE UPS 1
80 KHW-M1160-00X COVER,HARNESS 1
81 KHW-M1161-00X BRACKET 3,UPS 1
82 KV7-M1515-00X PLATE, RUBBER 1
83 KGA-M11B0-10X AIR TAG 1
84 KHW-M8501-30X BOWL (F3000-W) 2 (2011/12/20) MH00013
85 KHW-M8501-40X BOWL GUARD (F3000-W) 2 (2011/12/20) MH00013
1
2
Top Cover
Cover
KHW-1110
35
43
18
16
12
33
19
17
46
31
32
48
51
56
58
58
11
31
32
23
30
30
44
44
23
48
55
35
14
49
57
24
53
54
59
26
41
43
44
44
45
43
35
13
39
42
9
59
371
42
9
58
5
6
7
6
8
47
52
28
29
34
36
43
44
44
51
56
58
19
31
32
17
20
43
24
46
59
54
58
53
40
49
41
48
23
23
18
50
43
18
58
38
4
41
54
2
3
21
21
15
58
58
58
56
51
20
53
27
43
59
54
41
40
44
43
43
25
58
40
58
56
57
55
49
13
48
51
45
32
31
53
59
54
44
44
21
21
33
22
10
41
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHW-M1301-A0X COVER 1 ASSY. 1
1-1 KHW-M1301-00X COVER 1 1 (2008/7/10) ME70043 OK
2 KHW-M130B-00X BASE,USB 1
3 KHM-M1397-00X BRACKET,FDD 3 1
4 90K41-000540 LABEL,ALERT 1
5 KHW-M130E-00X DOOR,USB 1
6 KW3-M1349-00X MINI LATCH 1
7 KGJ-M1350-00X SPACER,MINI LATCH 1
8 KGJ-M1351-01X PLATE,MINI LATCH 1
9 KG2-M536A-22X HNS,PE 150 1
9-1 90K30-244015 HNS,COVER 1 (2008/7/2) ME60248 OK
10 KHW-M1302-A0X COVER 2 ASSY. 1
10-1 KHW-M1302-00X COVER 2 1 (2008/7/10) ME70043 OK
11 KGS-M1303-A2X COVER 3 ASSY. 1
11-1 KGS-M1303-02X COVER 3 1 (2008/7/10) ME70043 OK
12
KGS-M1304-A0X COVER 4 ASSY. 1
KGS-M1304-B0X COVER 4 ASSY. 1 Backward Operation
12-1
KGS-M1304-00X COVER 4 1 (2008/7/10) ME70043 OK
KGS-M1304-50X COVER 4 1 Backward Operation (2008/7/10) ME70043 OK
13 KHW-M1305-00X COVER 5 2
14 KGS-M1306-52X COVER 6 1
15 KGS-M1307-A0X COVER 7 ASSY. 1
15-1 KGS-M1307-00X COVER 7 1 (2008/7/10) ME70043 OK
16 KGS-M1308-A0X COVER 8 ASSY. 1
16-1 KGS-M1308-00X COVER 8 1 (2008/7/10) ME70043 OK
17 K16-90101-06X BOLT:TP-M4X6 9
17-1 90990-46J001 BOLT,THIN HEAD 9 (2008/6/3) ME30136 OK
18 KGA-M1318-00X COVER 18 4
19 KGS-M1321-03X COVER 21 2
20 KGS-M1322-02X BRACKET1,COVER 21 2
21 KM0-M1335-00X BRACKET 1 GATE COVER 4
22 KHW-M8597-00X BRACKET,GAUGE 1
23 K46-M1374-10X HINGE 2 4
23-1 K46-M1374-11X HINGE 2 4 (2009/7/13) MF70096 OK
23-2 K46-M1374-12X HINGE 2 4 (2013/2/13) MK20039 OK
24 KGS-M1356-01X PLATE 1,JOINT 1
25 KGS-M1357-00X PLATE 2,JOINT 1
26 KGS-M1358-00X PLATE 3,JOINT 1
27 KGS-M1359-01X PLATE 4,JOINT 1
28 KL3-M1381-02X PLATE 1,KEYBOARD 1
29 KGT-M1382-00X PLATE 2,KEYBOARD 1
30 KGS-M1329-01X COVER 29 2
31 KM0-M1332-01X BRACKET MAGNET 4
32 KV5-M1130-00X CATCH MG. 4
33 90K41-000350 LABEL,ALERT 2
34 KV7-M1391-10X PLUG 4
35 KGA-M1392-00X PLUG(30) 2
36 KH1-M13A9-00X BUSH 2
37 KGA-M13B9-00X HOOK 1
38 KV7-M8880-20X BRUSH, FEEDER 1
39 91312-03006 BOLT HEX.SOCKET HEAD 4 M3X6
40 91312-04010 BOLT HEX.SOCKET HEAD 10 M4X10
41 91312-05010 BOLT HEX.SOCKET HEAD 42 M5X10
42 90990-11J003 SCREW,PAN HEAD W/W 2
43 90990-12J001 SCREW BIN.HEAD W/W 62
44 90990-12J002 SCREW BIN.HEAD W/W 64
45 90990-12J004 SCREW BIN.HEAD W/W 8
46 90990-12J005 SCREW BINDING HEAD 8
47 90990-12J006 SCREW BIND HEAD W/W 2
48 98902-03005 SCREW BINDING HEAD 8
49 98902-03008 SCREW BINDING HEAD 6
50 98902-04005 SCREW BINDING HEAD 4
51 98902-04010 SCREW BINDING HEAD 8
52 98702-04008 SCREW BINDING HEAD 8
53 92907-04200 WASHER PLAIN 3
54 92902-05200 WASHER PLAIN 2
55 92990-03200 WASHER PLAIN 50
55-1 92902-03200 WASHER PLAIN 10 (2007/11/1) MD80089 OK
56 92902-04200 WASHER PLAIN 26
57 92990-03400 WASHER EXTL.TOOTHED 50
57-1 92990-03400 WASHER EXTL.TOOTHED 6 (2007/11/1) MD80089 OK
57-2 90172-00J030 WASHER,EXTL.TOOTHED 6 (2008/4/15) ME40115 OK
58 92990-04400 WASHER EXTL.TOOTHED 200
58-1 92990-04400 WASHER EXTL.TOOTHED 26 (2007/11/1) MD80089 OK
58-2 90172-00J040 WASHER,EXTL.TOOTHED 26 (2008/4/15) ME40115 OK
59 92990-05400 WASHER EXTL.TOOTHED 50
59-1 92990-05400 WASHER EXTL.TOOTHED 8 (2007/11/1) MD80089 OK
59-2 90172-00J050 WASHER,EXTL.TOOTHED 8 (2008/4/15) ME40115 OK
2
2
Door Cover
Base
KHW-1110
3
26
15
23
18
29
17
1
22
21
2
18
14
13
12
12
12
11
12
8
10
31
28
10
31
28
16
8
25
11
25
28
31
10
12
12
8
25
24
24
18
17
9
21
20
22
19
18
16
13
26
25
28
28
30
2
27
6
4
5
29
16
11
27
24
4
6
7
16
29
5
9
26
15
32
34
33
50
50
9
26
15
26
15
40
42
17
47
24
24
24
24
29
16
14
13
16
43
27
25
25
11
12
12
12
12
6
44
46
31
31
10
10
11
8
8
18
18
18
41
9
14
49
13
16
39
31
39
31
10
10
8
8
38
24
24
48
48
48
48
24
25
25
24
24
6
37
36
27
4
29
16
17
23
3
29
18
31
12
8
14
11
7
1
35
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHW-M1309-A0X COVER 9 ASSY.(STD) 2
2 KHW-M1309-00X COVER 9-1(STD) 2
3 KGS-M130A-51X COVER 9-2 2
4 KGS-M1340-51X BRACKET 1,COVER 9 2
4-1 KGS-M1340-52X BRKT. 1,COVER 9 2 Bolt Size UP (2008/10/17) ME60115 NG
5 KGS-M1341-50X BRACKET 2,COVER 9 2
5-1 KGS-M1341-51X BRKT. 2,COVER 9 2 Bolt Size UP (2008/10/17) ME60115 NG
6 KGS-M1342-01X BRKT.3 COVER 9 2
6-1 KGS-M1342-02X BRKT.3 COVER 9 2 Bolt Size UP (2008/10/17) ME60115 NG
7 KHW-M1343-00X BRKT.4 COVER 9 2
8 KV7-M1349-00X PLATE 2,NUT 2
9 KH2-M1324-00X GRIP 2
9-1 KH2-M1324-01X GRIP 2 (2008/10/15) ME00034
10 KM0-M1331-01X BRACKET GAS DAMPER 2
11 KGS-M1348-00X GAS SPRING 2
12 KM0-M1346-00X SHOULDER,BOLT 4
12-1 90990-31J006 BOLT,SHOULDER 4 (2008/6/24) ME10118 OK
13 KL0-M1373-01X BRACKET 1 SCHMEASAL 1
14 KL0-M1374-00X PLATE 1 SCHMESAL 1
15 KGS-M1344-00X STOPPER 45 2
16 KGS-M1360-00X BOLT 4
17 K16-90101-06X BOLT:TP-M4X6 9
17-1 90990-46J001 BOLT,THIN HEAD 9 (2008/6/3) ME30136 OK
18 K16-90101-10X BOLT:TP-M4X10 5
18-1 90990-46J003 BOLT,THIN HEAD 5 (2008/6/3) ME30136 OK
19 KHW-M13D6-00X SEAL 1(YG100R) 1
20 KW7-M13D7-01X SEAL 2(YAMAHA) 1
21 90K41-000360 LABEL,ALERT 2
22 90K41-000420 LABEL,ALERT 2
23 KGA-M1392-00X PLUG(30) 2
24 91317-04006 BOLT HEX.SOCKET HEAD 4 M4X6
25 91317-04008 BOLT HEX.SOCKET HEAD 8 M4X8
25-1 91317-06010 BOLT HEX.SOCKET HEAD 8 M6X10 Bolt Size UP (2008/10/17) ME60115 NG
26 91317-04020 BOLT HEX.SOCKET HEAD 2 M4X20
27 91317-05014 BOLT HEX.SOCKET HEAD 2 M5X14
28 90990-12J002 SCREW BIN.HEAD W/W 64
29 92907-04200 WASHER PLAIN 3
30 95307-04600 NUT HEXAGON 1
31 95307-06600 NUT HEXAGON 2
32 KGS-M1309-B0X COVER 9 ASSY.(S-ATS) 1
33 KGS-M1309-11X COVER 9-2(S-ATS) 1
34 KGS-M130A-11X COVER 9-2(S-ATS) 1
35 KGS-M1341-10X BRKT. 2,COVER 9 1
35-1 KGS-M1341-11X BRKT. 2,COVER 9 1 Bolt Size UP (2008/10/17) ME60115 NG
36 KGS-M1343-12X BRKT. 4,COVER 9 1
37 KGS-M1345-02X BRKT. 5,COVER 9 1
38 KGS-M1347-02X BRKT. 6,COVER 9 1
39 KL3-M1348-10X GAS SPRING 4
40 KGS-M1309-D0X COVER 9 ASSY.(S-ATS) 1
41 KGS-M1309-20X COVER 9-1(S-ATS) 1
42 KGS-M130A-20X COVER 9-2(S-ATS) 1
43 KGS-M1340-61X BRKT. 1,COVER 9 1
44 KGS-M1341-21X BRKT. 2,COVER 9 1
45 KGS-M1343-20X BRKT. 4,COVER 9 1
46 KGS-M1345-10X BRKT. 5,COVER 9 1
47 KGS-M1347-10X BRKT. 6,COVER 9 1
48 KM0-M1346-00X SHOULDER,BOLT 4
48-1 90990-31J006 BOLT,SHOULDER 4 (2008/6/24) ME10118 OK
49 K16-90101-06X THIN HEAD 10
49-1 90990-46J001 BOLT,THIN HEAD 10 M4x6 (2008/6/3) ME30136 OK
50 K16-90101-10X THIN HEAD 4
50-1 90990-46J003 BOLT,THIN HEAD 4 M4x10 (2008/6/3) ME30136 OK
